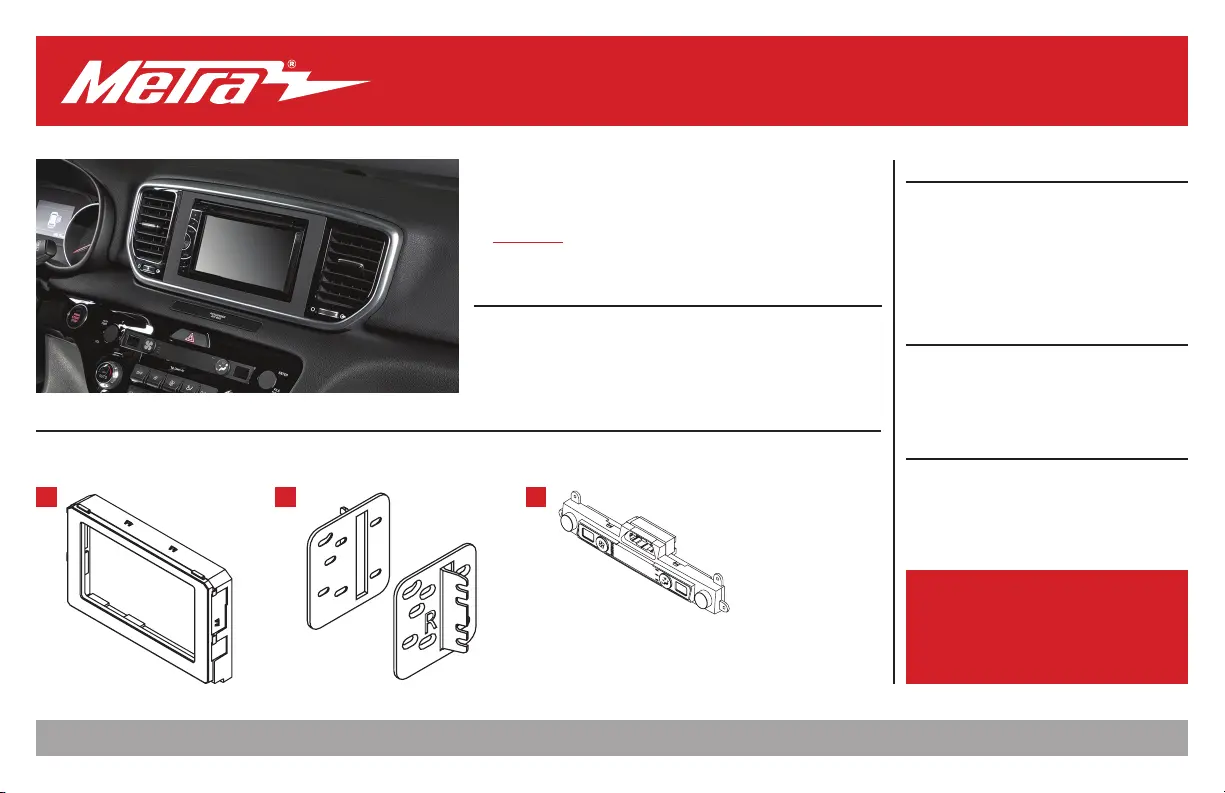

Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 9/14/22 INST99-7298B
I N S TA L L AT I O N I N S T R U C T I O N S
95-7298B
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Climate display • D) Wiring harness (not shown) TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Pick tool
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation ...................................................4-6
Kit Assembly ..........................................................7
Axxess Interface Installation ............................8-15
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Included with kit
Antenna Adapter: Included with kit
A CB
Kia Sportage (with auto climate control w/o factory amplier)
2020-2021
KIT FEATURES
• ISO DDIN radio provision
• Integrated electronics with laser
etched graphics retain the factory
climate control display features.
• Retains factory steering wheel
controls and back up camera.
• Painted scratch resistant matte black.
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specic applications
386.257.1187
|
MetraOnline.com
2
DASH DISASSEMBLY
1. Unclip and slide the top of the center
console back slightly. (Figure A)
2. Unclip and remove the panel on the
end of the passenger side of the dash,
then remove (1) Phillips screw exposed.
(Figure B)
3. Unclip the panel above the glove box.
Unplug the passenger airbag light, then
remove the panel. (Figure C)
4. Remove (2) Phillips screws securing the
radio display and a/c vent panel, then
unclip and remove the panel. (Figure D)
Continued on the next page
(Figure A) (Figure C)
(Figure B) (Figure D)
REV. 9/14/2022 INST95-7298B 3
(Figure E) (Figure G)
(Figure F) (Figure H)
DASH DISASSEMBLY (CONT.)
5. Remove (4) Phillips screws securing the
radio. Slide the radio out, then unplug
and remove the radio. (Figure E)
6. Remove (3) Phillips screw securing the
climate control panel. (Figure F)
7. Remove (1) Phillips screw securing the
lower right side drivers knee bolster.
Unsnap the bolster just enough to
access the (1) Phillips screw securing the
climate control panel, then remove the
screw. (Figure G)
8. Unclip the climate/radio control panel
from the dash, unplug the connectors,
then remove the panel. (Figure H)
Continue to Kit Preparation
