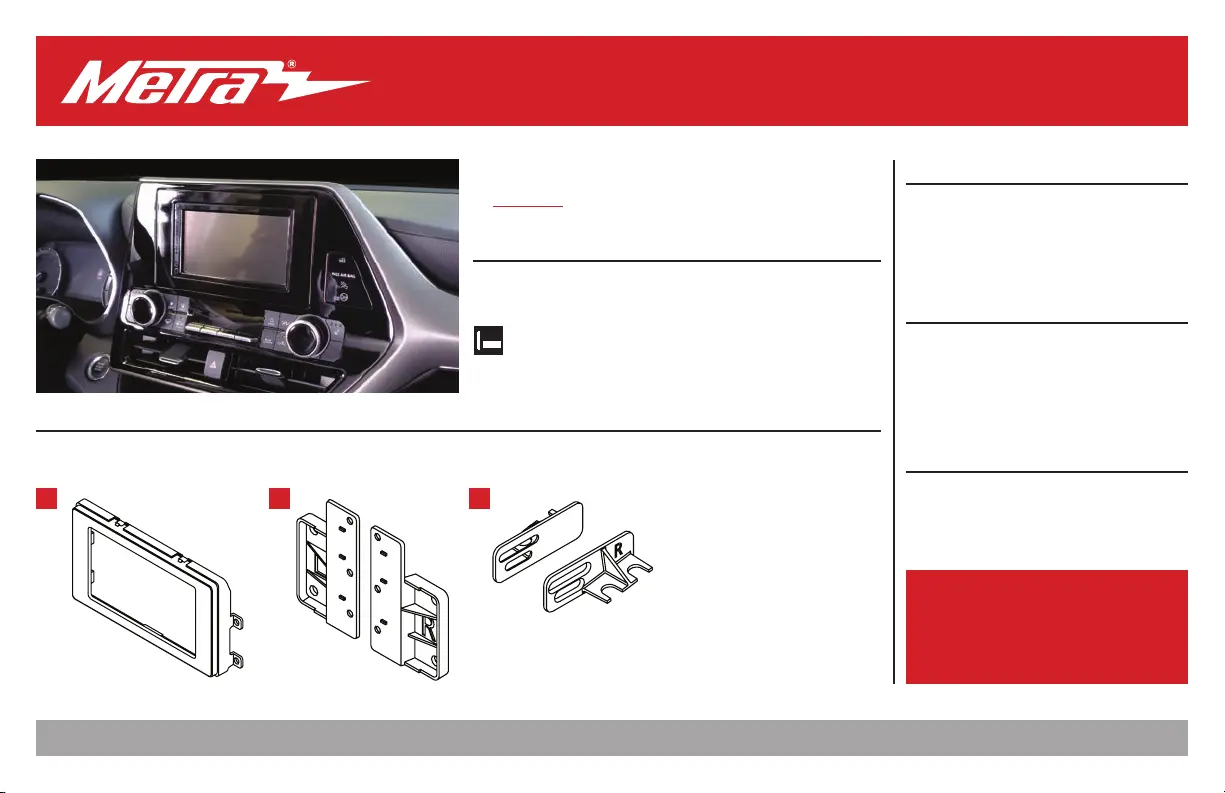

Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 10/21/20 INST107-TO7HG
I N S TA L L AT I O N I N S T R U C T I O N S
107-TO7HG
Patent Pending
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DDIN radio provision*
• Painted gloss black
* This kit is designed for an ISO DDIN radio which have an “L” shaped chassis
design, with the radio chassis at the bottom of the screen,
or Pioneer modular 6.8” radios.
† Refer to the radio manufacturer for current models
KIT COMPONENTS
• A) Radio trim panel • B) Screen brackets • C) Radio chassis brackets TOOLS REQUIRED
• Panel removal tool • 10mm socket
• Phillips screwdriver
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly
–ISO DDIN radio provision .....................................2
–Pioneer Modular radio provision .......................3
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: 70-1765 non-amplied
See metra-online.com or axxessinterfaces.com
for audio and SWC interface options
Antenna Adapter: 40-LX11
A CB
Toyota Highlander
(Without factory 12.3 inch screen)
2020
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specic applications
1.800.221.0932
|
MetraOnline.com
2
1. Unclip and remove the trim behind
the radio. Remove (4) 10mm screws
exposed. (Figure A)
2. Unclip, unplug, and remove the radio
and panel. (Figure B)
3. Remove (4) Phillips screws securing the
factory radio to the dash panel.
(Figure C)
Continue to Kit Assembly
DASH DISASSEMBLY KIT ASSEMBLY
(Figure A)
Bottom chassis radio provision
1. Secure the radio brackets to the radio
using screws supplied with the radio.
(Figure A)
2. Slide the radio assembly into to the dash
and secure using the factory screws.
3. radio trim panel Secure the into the
factory dash panel.
4. Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to
the radio. Metra recommends using
the proper mating adapter from Metra
and/or Axxess. Test the radio for proper
operation.
5. Reassemble the dash in reverse
order of disassembly to complete the
installation.
(Figure A)
(Figure B)
(Figure C)
REV. 10/21/2020 INST107-TO7HG 3
(Figure B)
(Figure C)(Figure A)
KIT ASSEMBLY (CONT.)
Pioneer Modular DDIN radio provision
Note: For steps 1 and 2, reference the
installation manual provided with the radio
for which hardware to use. The display
screen and radio chassis use two different
types of screws.
1. Secure the radio brackets to the radio
chassis using (4) screws supplied with
the radio. (Figure A)
2. Slide the radio chassis into to the dash,
then secure using the factory screws.
3. Secure the radio display to the screen
brackets using (6) screws supplied with
the radio. (Figure B)
4. Place the into to the radio trim panel
factory dash panel, then the radio screen
assembly, and secure using the factory
screws. (Figure C)
5. Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to
the radio. Metra recommends using
the proper mating adapter from Metra
and/or Axxess. Test the radio for proper
operation.
6. Connect the radio display to the
radio chassis.
7. Reassemble the dash in reverse
order of disassembly to complete the
installation.
