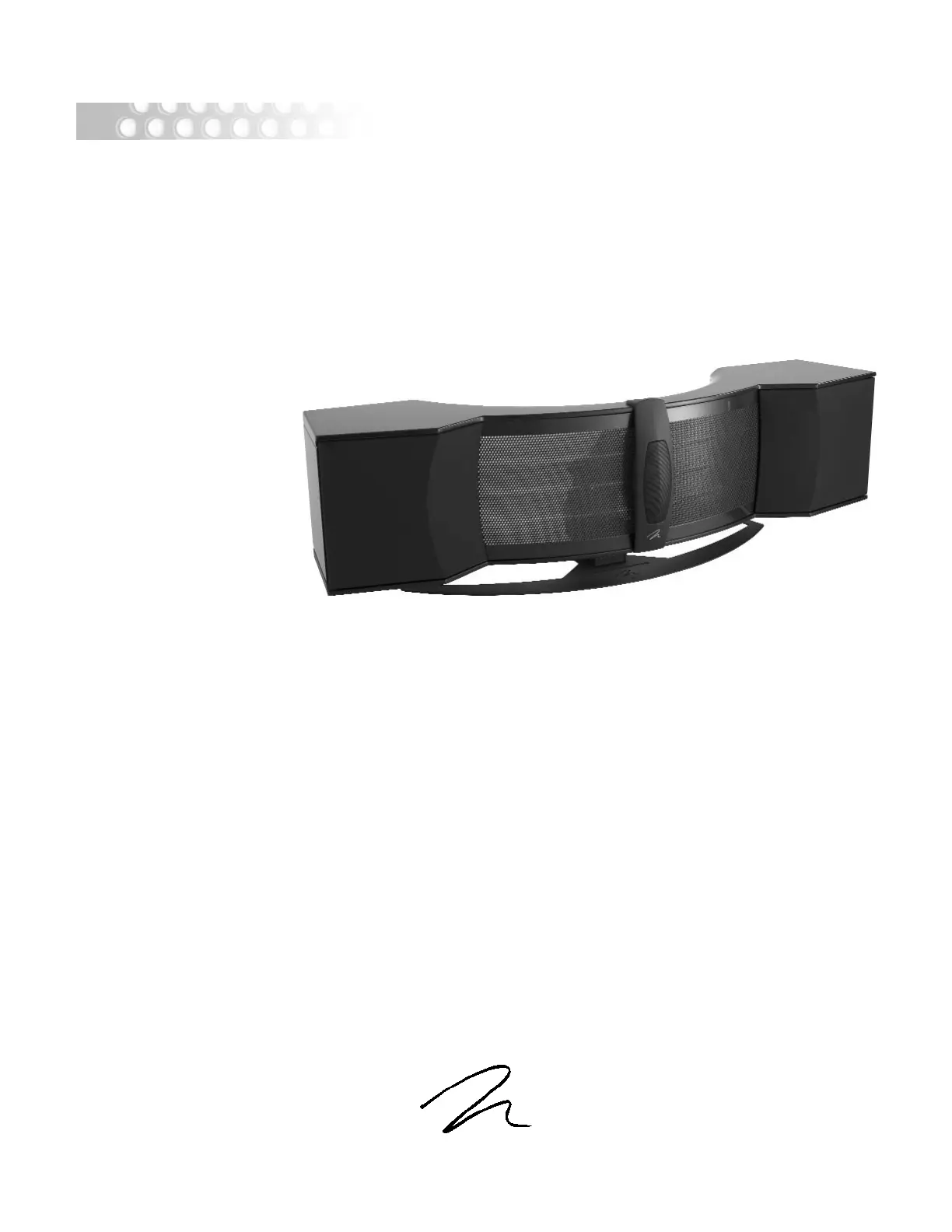

TH E A T E R TM i
u s e r s m a n u a l
c l s e l e c t r o s t a t i c
M LA R T I N O G A N ®
2 Contents
Contents & Introduction . . . . . . . . . . . . . . . . . . . . . . . . .2
Contents
Introduction
Installation in Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Low Voltage Power Connection
Signal Connection
Using Only One Power Supply . . . . . . . . . . . . . . . . . . .5
Break-In
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Using the Adjustable Mount
Installation Options
Rubber Bumper Feet
Stand Removal and Installation . . . . . . . . . . . . . . . . . . .7
Removing the Stand
Installing the Stand
Mounting the Theater i On A Wall . . . . . . . . . . . . . . . . .8
Warnings and Notes
About the Wall Anchors
Mounting the Theater i
Dispersion Interactions . . . . . . . . . . . . . . . . . . . . . . . . .11
Controlled Horizontal Dispersion
Controlled Vertical Dispersion
Three Major Types of Dispersion
Home Theater i . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Electrostatic Advantages . . . . . . . . . . . . . . . . . . . . . . . .14
MartinLogan Exclusives . . . . . . . . . . . . . . . . . . . . . . . . .15
Curvilinear Line Source
Transducer Integrity
Low Voltage Power
Plasma Deposited Diaphragm
Controlled Dispersion Array
MicroPerf Stator
Electrostatic Loudspeaker History . . . . . . . . . . . . . . . .16
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . .18
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Specifications
Warranty and Registration
Service
Glossary of Audio Terms . . . . . . . . . . . . . . . . . . . . . . . .22
Congratulations! You have invested in a new world of
home theater!
The MartinLogan Theater i represents the culmination of
an intensive, dedicated group research program directed
toward establishing a world class reference monitor utilizing
leading-edge technology, without compromising durability,
reliability, craftsmanship or aesthetic design.
The advantages of MartinLogan hybrid technology will
present themselves to you from the moment the movie
begins. The box effect (a phenomenon similar to cupping
your hand around your mouth when speaking) produced
by dynamic midrange drivers is absent and the natural
openness of the human voice comes through. Never before
in home theatre has the midrange been so clear. Sounds float
around the screen clearly defining the area from where
they were created, not the area of the speaker that created
them. This superior performance is made possible through
the use of our proprietary curved electrostatic transducer.
This is the same design technology that is used in state-of-
the-art MartinLogan loudspeaker systems.
The materials in your new Theater i speaker are of the high-
est
quality and will provide years of enduring enjoyment
and
deepening respect. The cabinetry is constructed from
the highest quality composite material for acoustical integrity
and is finished with our attractive custom finish.
Through rigorous testing, the curvilinear electrostatic panel
has proven itself to be one of the most durable and reli-
able transducers available today. Fabricated from a custom
tool punched high-grade steel, the patented panel is coat-
ed with a special polymer that is applied via a proprietary
electrostatic bonding process. This panel assembly houses
a membrane just 0.0005 of an inch thick. Ruggedly con-
structed and insulated, as much as 200 watts of continuous
power has driven the Theater i’s energized diaphragm into
massive excursions with no deleterious effects.
The other sections of your User’s Manual will explain in
detail the operation of your Theater i speaker and the philoso-
phy applied to their design. A clear understanding of
your speakers will insure that you obtain maximum perfor-
mance and pleasure from this most exacting transducer. It has
been designed and constructed to give you years of trouble-
free listening enjoyment.
Installation in Brief 3
We know you are eager to hear your new Theater i center
channel, so this section is provided to allow fast and easy
set up. Once you have it operational, please take the time to
read, in depth, the rest of the information in this manual. It
will give you perspective on how to attain the greatest
possible performance from this most exacting transducer.
If you should experience any difficulties in the setup or
operation of your Theater i speaker, please refer to the
Operation or Installation sections of this manual.
Should you encounter a persistent problem that cannot be
resolved, please contact your authorized MartinLogan
dealer. They will provide you with the appropriate technical
analysis to alleviate the situation.
WARNING!
•Hazardous voltages exist inside—do not
remove cover.
•Refer servicing to a qualified technician.
•To prevent fire or shock hazard, do not
expose this module to moisture.
•Turn amplifier off and unplug speaker
should any abnormal conditions occur.
•Do not operate if there is any visual
damage to the electrostatic panel element.
•Do not drive speaker beyond its rated power.
Step 1: Unpacking
Remove your new Theater i speaker from the packaging.
Step 2: Placement
Place the Theater i directly between your front left and
right speakers and point it directly at the listening position.
Please see the Installation section (page 6) of this manual
for more details.
Step 3: Power Connection (see warning)
The Theater i requires power to energize its electrostatic
panel. Plug the provided power supply first into the Power In
power receptacle on the rear panel of the speaker
, making
sure that you have made a firm
connection, and then to a
convenient wall outlet. Please see the Operation section
(pages 4–5) of this manual for more details.
Step 4: Signal Connection
Use the best speaker cables you can. Higher quality cables,
available from your specialty dealer, are recommended
and will give you superior performance. Spade connectors
are suggested for optimum contact.
Attach your speaker cables to the signal input section on
the rear panel. Be consistent when connecting speaker leads
to the terminals on the back of the Theater i. Take great
care to assign the same color to the (+) terminal on both
the speaker and the amplifier. Please see the Operation
section (pages 4–5) of this manual for more details.
Step 5: Listen and Enjoy
Now, you may turn on your system and enjoy!
The lightning bolt flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user to
the presence of uninsulateddangerous voltage” within
the product’s enclosure that may be of sufficient mag-
nitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
