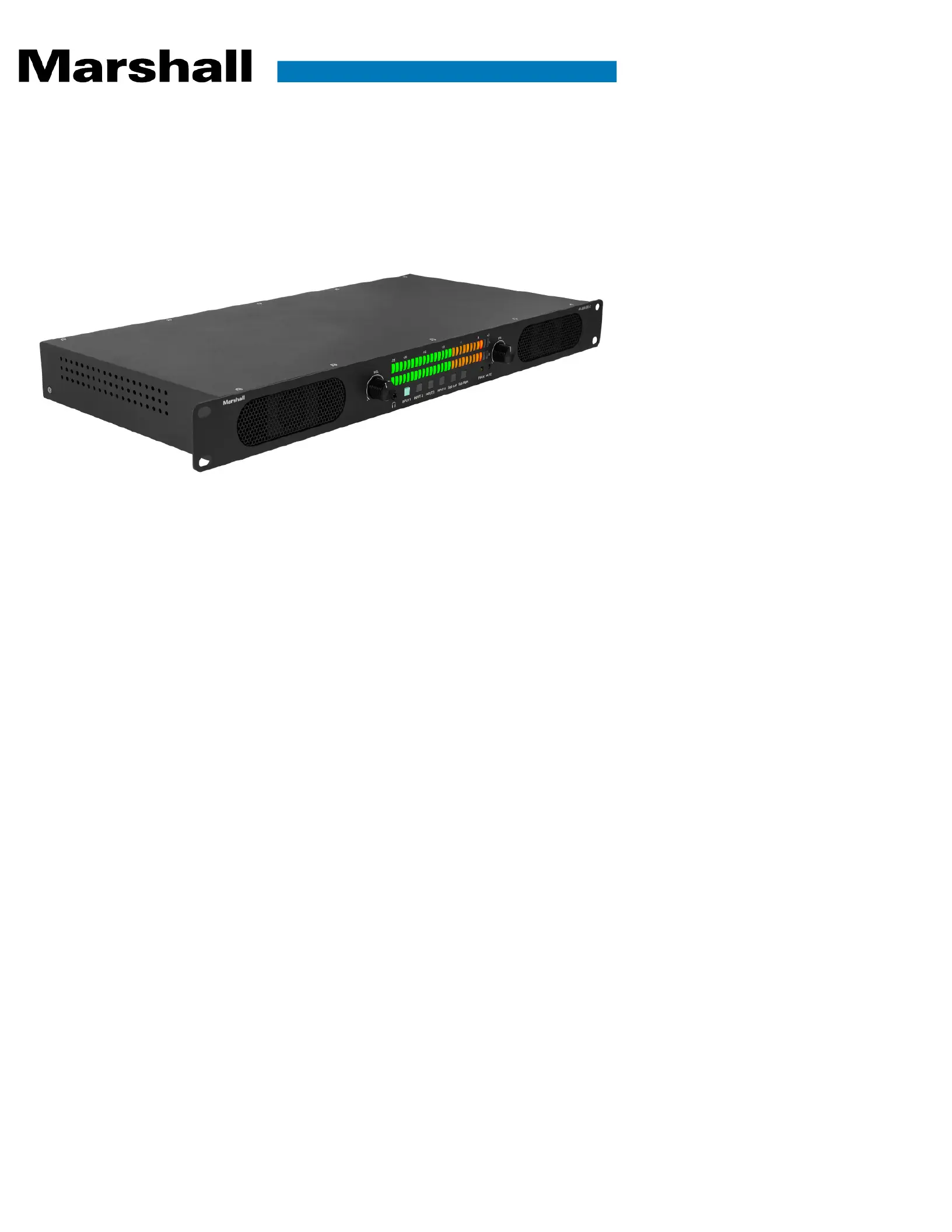

Br oa d c a s t A / V Di v i s i o n
AR-AM4-BG-2
Multichannel Analog Audio Monitor
User Manual
[Firmware Version 0.43]
2
Table of Contents
2. Package Contents
3. Front Panel Description
4. Control Button Detail
5. Rear Panel Description
6. Operation
7. Metering and Indicators
8. Software - Control App
9. Serial Connection
10. Operation
11. Updating
12. Specications
Warranty
1. Features
03
04
05
05
06
06
07
08
09
10
11
12
03
4
1. Speakers
Provides sound from two channels except when Solo buttons are pressed
2. Headphone Jack
3. Volume Knob / Mute Button
Turn the knob to adjust the sound level out of both speakers
Press in on the knob to instantly mute the speaker
4. Headphone Jack
Designed to accept stereo headphones with 3.5mm plug
5. Input and Solo Left/Right Select Buttons
Select either channel for monitoring from both speaker
6. LED VU Meter Display
7. LED Indicator Lights
Phase – Indicates audio in-phase / out-of-phase conditions
Mute – Indicates when speakers have been muted
8. Balance Knob
Select either speaker or adjust balance between them
3. Front Panel Description
