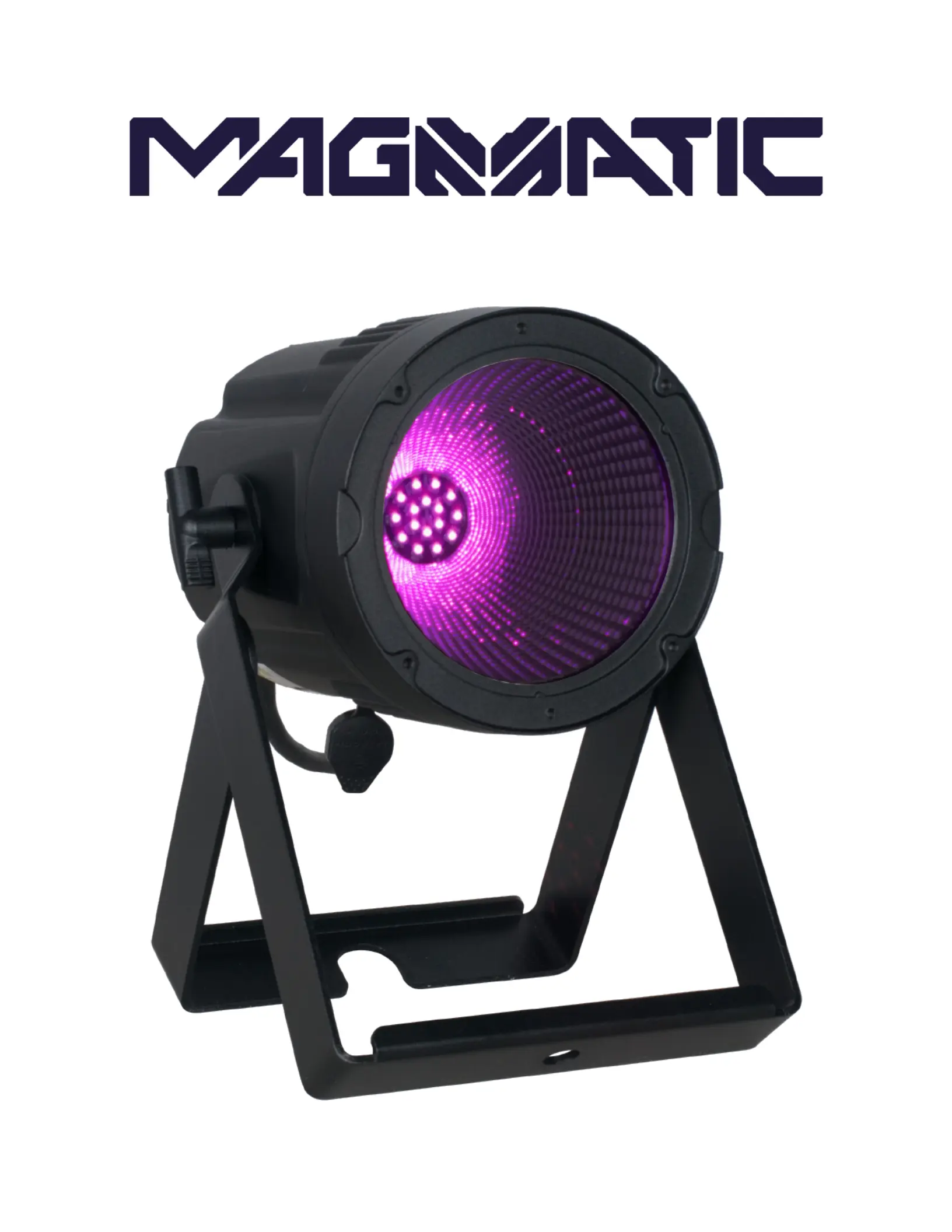

Seite 1/23
User Manual
PRISMA PAR 50
2
©2021 MAGMATIC EFFECTS all rights reserved. Information, specifications, diagrams, images, and
instructions herein are subject to change without notice. MAGMATIC EFFECTS logo and identifying
product names and numbers herein are trademarks of MAGMATIC EFFECTS. Copyright protection
claimed includes all forms and matters of copyrightable materials and information now allowed by statutory
or judicial law or hereinafter granted. Product names used in this document may be trademarks or registered
trademarks of their respective companies and are hereby acknowledged. All non-MAGMATIC brands and
product names are trademarks or registered trademarks of their respective companies.
MAGMATIC EFFECTS and all affiliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as a
result of the improper, unsafe, unsufficient and negligent assembly, installation, rigging, and operation
of this product.
MAGMATIC EFFECTS | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com sales@magmaticeffects.com |
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
+31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu info@elationlighting.eu |
Elation Professional Mexico | AC Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000
+52 (728) 282-7070
RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION!
FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF ULTRAVIOLET LIGHT
WEAR PROPER EYE AND SKIN PROTECTION.
DO NOT OPERATE FIXTURE WITH DAMAGED/MISSING EXTERNAL COVER
PROTECTIVE LENS.
DO NOT LOOK DIRECTLY INTO THE (UV) LIGHT AND/OR VIEW (UV) LIGHT
DIRECTLY WITH OPTICAL INSTRUMENTS THAT MAY CONCENTRATE THE LIGHT/
RADIATION OUTPUT.
AVOID PROLONGED PERIODS OF EXPOSURE.
AVOID WEARING WHITE COLOR CLOTHING AND/OR USING (UV) PAINTS ON SKIN.
AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT DISTANCES SHORTER THAN 11 feet (3.3m).
INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE DISORDERS, OR
INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY RECEIVE DISCOMFORT IF EXPOSED TO THE
ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE.
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of this
document may be available online.
Please check www.elationlighting.com for the latest revision/update of this manual
before beginning installation and/or programming.
Date Document Version Software Version ≥ DMX Channel Modes Notes
06/15/2020 1.0 1.01 1 / 2 / 3 / 6 Initial Release
10/14/2020 1.1 1.03 1 / 2 / 3 / 6 Updated Primary/Secondary
05/26/2021 1.2 1.03 1 / 2 / 3 / 6 Updated Installation Height
3
C O N T E N T S
General Information 4
Limited Warranty (USA Only) 5
Warranty Returns (USA Only) 7
Safety Guidelines 9
Fixture Overview 10
Installation Instructions 11
System Menu 13
DMX Traits: Channel Functions & Values 15
Dimmer Modes 18
Specifications 19
Dimensions 20
