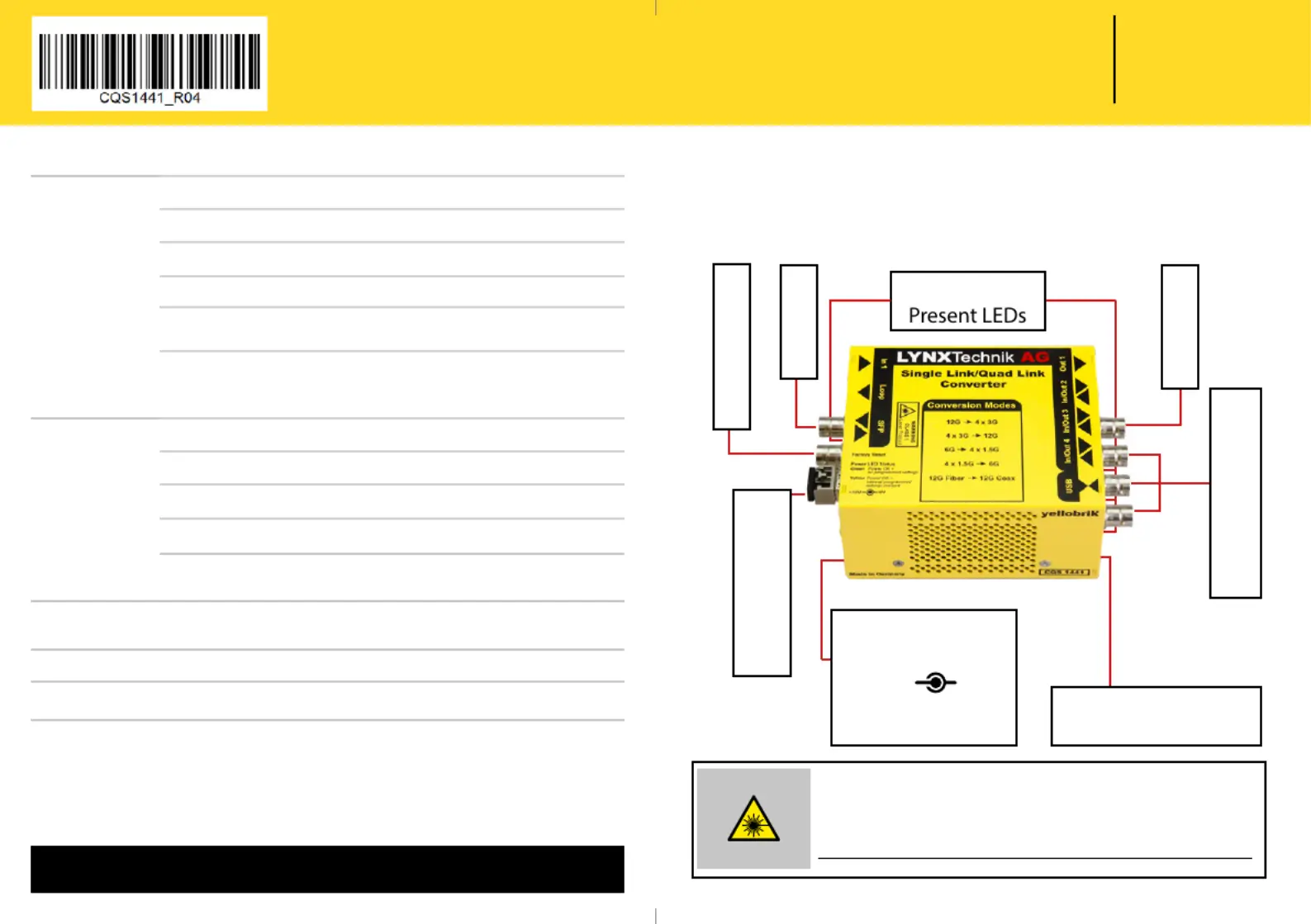

Technical Specications CQS 1441
Bi-directional Single-Link to Quad-Link Converter
SDI Input
12V DC Power
Input & LEDs
Connector inner pin: +12V d.c.
Connector outer pin: 0V
SDI Input 4x multi-rate SDI inputs; 75 Ohm BNC connector 1x SFP connector
SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081, SMPTE 2082
Multi-standard operation from 270Mbit/s to 12Gbit/s; reclocking
Input present LED indication
Electrical Return Loss: >10dB from 1.5GHz to 3GHz, >7dB from 3GHz
to 6GHz; >4dB from 6GHz to 12GHz
Automatic cable EQ
140m @ 3Gbit/s (Belden 1694A), 80m @ 6Gbit/s,
80m @ 12Gbit/s (Belden 4794R cable)
SDI Outputs 5x multi-rate SDI outputs; 75 Ohm BNC connectors
2x 12Gbit/s SDI output; 75 Ohm BNC connector
1x 12Gbit/s SDI output; SFP connector
SMPTE 292M, SMPTE 424M, SMPTE 2081, SMPTE 2082
Electrical Return Loss: >10dB from 1.5GHz to 3GHz, >7dB from 3GHz
to 6GHz, >4dB from 6GHz to 12GHz
Alignment Jitter: < 0.2 UI @ 1.5Gbit/s, < 0.3 UI @3Gbit/s, 6Gbit/s,
12Gbit/s
Timing Jitter: < 1.0 UI @1.5Gbit/s, < 2.0 UI @3Gbit/s, 6Gbit/s, 12Gbit/s
Power +12VDC @ 6.79W nominal - (supports 7 - 24VDC input range)
We are constantly adding more yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
SDI 1 Loop out
SDI In / Out 2 - 4
(congured automatically)
USB Connection
(for yelloGUI control updates&
12G SDI SFP Fiber
Input & Out put
SDI In 1
SDI Out 1
W
W
W
WARNING
ARNING
ARNING
ARNINGWARNING
CLASS 1 LASER PRODUCT
A Class 1 laser is safe under all conditions of normal use. This means the maxi-
mum permissible exposure (MPE) cannot be exceeded when viewing a laser
with the naked eye or with the aid of typical magnifying optics (e.g. telescope or
microscope). An unsafe power level may be collected by a magnifying optic with
a larger aperture.
The optical port should be terminated with an optical connector or a dust plug.
+12V d.c. 0V
yellobrik
®
Quick
Reference
yellobrik
®
LYNX
Technik
AG |
www.lynx-technik.com
Connections
All connections are clearly indicated on the module.
Bi-directional ports can be congured in the yelloGUI (see below).
Operation Modes
Following 2-SI (two sample-interleaved) conversion modes are available:
12G Single Link > 4 x 3G Quad Link
4 x 3G Quad Link > 12G Single Link
6G Single Link > 4 x 1.5G Quad Link
4 x 1.5G Quad Link > 6G Single Link
Conversion Mode settings can be changed in the yelloGUI:
www.lynx-technik.com > support > download area > yelloGUI
Power / Prog Setting LED
Green = Power OK and no internal programmed settings are present
Yellow = Power OK and internal programmed settings are present(Red*)
* Some module‘s case print may describe the color of the LED as “Red “ instead of “Yellow “ but it has the
same functionality of representing “Power Ok and internal programmed settings are present.
Power
The module requires a 12V DC power input and the LED conrms when
power is connected. A power supply is provided, however, if you use
your own power supply, please provide a clean 12V DC power source
between 7 and 24VDC.
Optical Interface
The optical port (SFP slot) is for use with a 12Gbit/s SFP.
Please only use the SFP provided by LYNX Technik AG: OH-TR-12G-LC
Power Lead Strain Relief
The module (dierent module shown here) has a small hole in the case
located above the power connection. This prevents the power lead from
being accidentally pulled out. Use the supplied tie-wrap and secure the
lead, as shown below.
Optional Mounting Solutions
The optional RFR 1001 mounting bracket can be used to permanently
mount the module on any surface or on 19” rack rails.
The optional RFR 1000-1 rack mount can be used to mount up to 14
yellobrik modules permanently. In addition, the RFR 1000-1 can provide
full power redundancy for all mounted yellobriks.
RFR 1000-1 rack mount
In order to mount the CQS1441 in an RFR 1000-1, please remove the bar
between two rack frame slots and the black plug from the hole right
beside the power connection of the CQS1441.
Do not obstruct ventilation holes of the CQS 1441
when using the mounting bracket.
The mounting bracket is for use in standard 19“
mounting cabinets. Please use screws supplied
with the 19“ cabinets.
