To download the latest version of Quick Start
Guide, multilingual user manual, software, or
driver, etc., please visit Lumens
https://www.MyLumens.com/support

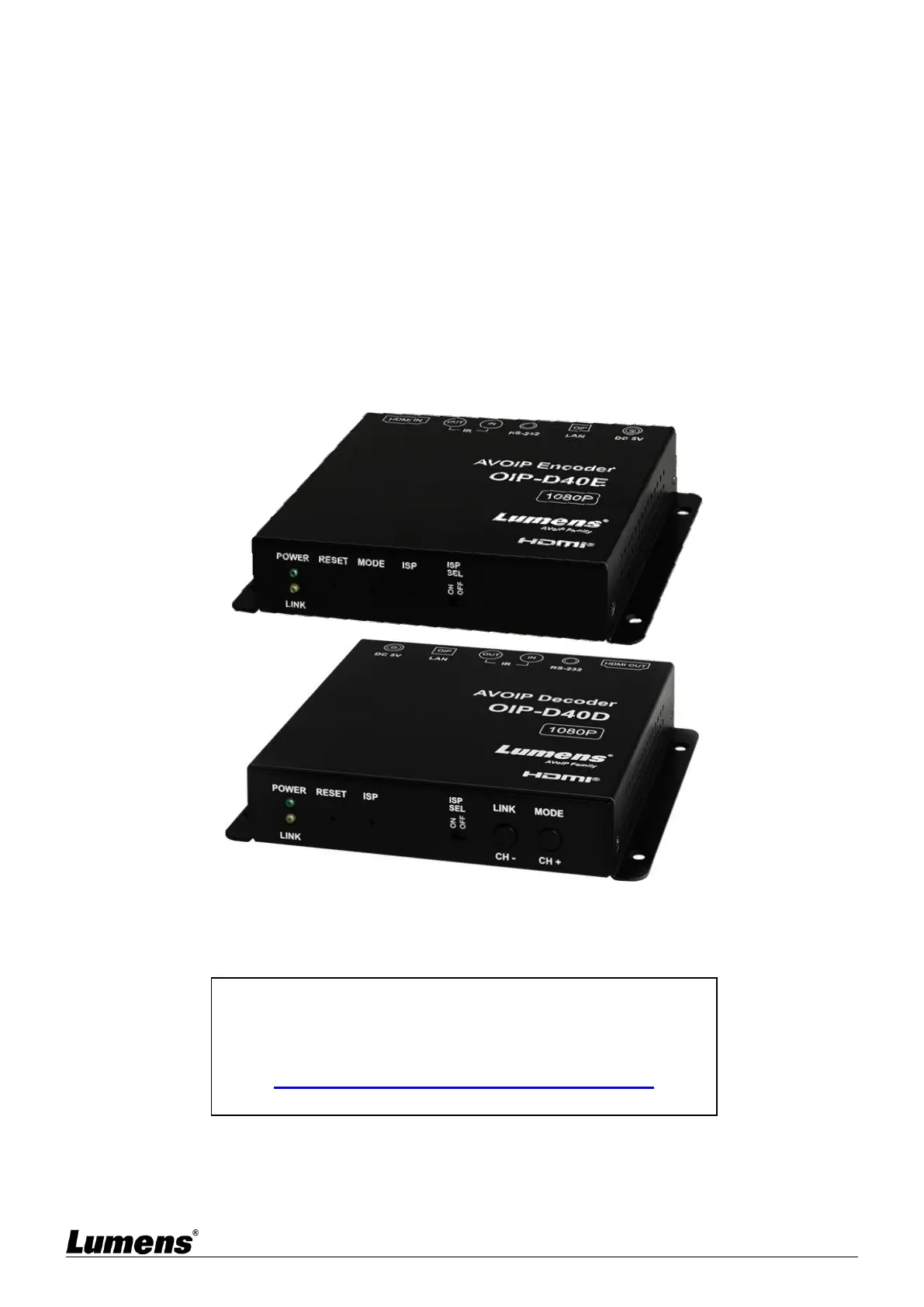

OIP-D40E/D4 0D
AVoIP Encoder/AVoIP Decoder
User Manual - English
[Important]
1
Table of Contents
Chapter 1 Package Contents .................................................................... 2
1.1 -D40E Encoder OIP .......................................................................................... 2
1.2 -D40D Decoder OIP .......................................................................................... 2
Chapter 2 Product Overview .................................................................... 3
2.1 Overview .......................................................................................................... 3
2.2 Product Applications ...................................................................................... 3
2.3 System Requirements 3 ....................................................................................
2.4 I/O Functions Introduction ............................................................................. 4
2.5 Description of Indicator Display .................................................................... 6
2.6 IR Pin Assignment Conguration .................................................................. 6
2.7 Serial Port Pin and Default Setting ................................................................ 6
Chapter 3 Installation and Connections .................................................. 7
3.1 Connection diagram 7 .......................................................................................
3.2 Connection Setting ......................................................................................... 8
Chapter 4 Start Using ................................................................................ 9
4.1 Network Switch Setting .................................................................................. 9
4.2 WebGUI Control Methods ............................................................................... 9
Chapter 5 WebGUI Control Menu ........................................................... 10
5.1 WebGUI Control Menu Descriptions ...........................................................10
Chapter 6 Product Specications .......................................................... 17
6.1 nical Specications Tech .............................................................................. 17
6.2 Image Specications ....................................................................................17
6.3 Audio Specications ..................................................................................... 18
6.4 Wire Specications ....................................................................................... 18
Chapter 7 Troubleshooting .................................................................... 19
Chapter 8 Safety Instructions ................................................................ 20
Copyright Information ............................................................................... 21
2
Chapter 1 Package Contents
1.1 OIP-D40E Encoder
OIP-D40E
Encoder
Instruction for
installation
5 V/2.6 A
Power supply
(including a
multinational
adapter)
3.5 mm
male to D-Sub
female adapter
cable

3.5 mm to
infrared emitter
3.5 mm to
infrared extender
Foot mats
(A set of four)
1.2 OIP-D40D Decoder
OIP-D40D
Decoder
Instruction for
installation
5 V/2.6 A
Power supply
(including a
multinational
adapter)
3.5 mm
male to D-Sub
female adapter
cable

3.5 mm to
infrared emitter
3.5 mm to
infrared extender
Foot mats
(A set of four)
