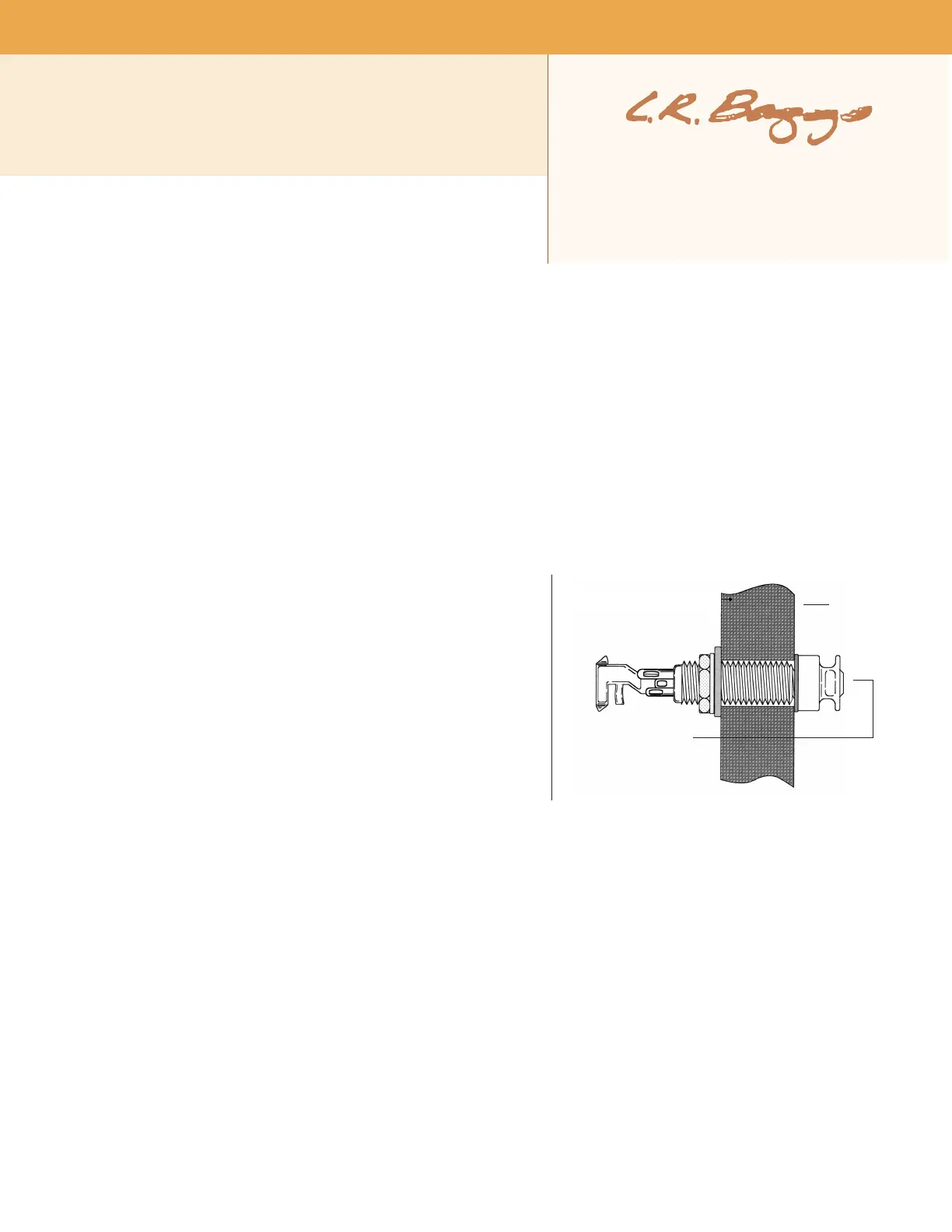

Seite 1/2
I N S T A L L A T I O N M A N U A L & U S E R ' S G U I D E
L . R . B A G G S P I C K U P S
M 1
4 8 3 N . F R O N T A G E R D .
N I P O M O , C A 9 3 4 4 4
W W W . L R B A G G S . C O M
1 . P A C K A G E C O N T E N T S
One (1) M1 soundhole magnetic pickup
One (1) prewired strapjack assembly
One (1) 12' Mogami guitar cable
One (1) 3/32" Allen wrench
Two (2) spare 3/4" pole pieces
One (1) spare 3/8" pole piece
Two (2) self-stick wire clips
2 . O V E R V I E W A N D C A U T I O N S
The M1 is a passive soundhole magnetic pick up that features outstanding body sensitivity with great warmth and presence. Its dual-coil design
employs L.R. Baggs' exclusive TriAxial Dynamic Technology to produce clear, rich tones that are resistant to feedback, noise and hum, with string
and body sound all in one. The M1 also features individually adjustable pole pieces with smooth, threadless tops. Also included are two cables: a
22-inch prewired strapjack assembly (for permanent installations) and a 12-foot Mogami guitar cable (for temporary installations).
The M1 will fit guitars with soundholes larger than 3.5" that are centered beneath the strings. Ensure that this product will fit the guitar
properly before mak ing any alterations to the instrument.
The installation procedure is very simple; however, we recommend that any woodworking (for instance, drilling a strapjack hole) be performed by
a professional dealer/ installer. We do not provide advice or support for home or hobbyist woodworking. Installers: please read the instructions
carefully before proceeding. We will not be responsible for any damage to the gu itar or personal injury resulting from installation, improper
installation, use or misuse of the produc t.
3 . I N S T A L L A T I O N
3.1 Installation overview: There are two ways to install the M1, by using
either of the two provided cables. For permanent installations, use the
strapjack harness. If the guitar doesn't have a hole in the tailblock, it will be
necessary to drill one in order to use the strapjack.
For temporary or nondestructive installations, use the 12-foot guitar cable,
which is designed to run out of the soundhole directly into your outboard
gear. This is a high-quality Mogami cable; using it will help ensure that the M1
sounds as good as we in tended. The other principal advantage of this
installation is that it l eaves the instrument unaltered. For permanent
installations, proceed to the strapjack instruc tions; for temporary installations,
skip to the pickup installation in section 3.3.
3.2 Strapjack installation: If you plan to do a permanent installation, be sure
to try installing the M1 in the soundhole before you drill the strapjack hole.
The M1 will only fit in a soundhole larger than 3.5" in diameter. Also, a few
guitars have off-center soundholes that will not allow the pole pieces to be directly under the strings. If you have one of these, plug in the M1
using the 12-foot cord, and see how well it works before you alter your guitar.
For proper installation, this jack requires a clean 1/2" hole in the tail block of the instrument. If the guitar lacks this hole, start by placing a piece
of masking tape on the outside of the instrument over the drilling area (to avoid chipping the finish), drill a small pilot hole in the tail block and
then follow with a step drill. Now proceed with the installation.
Remove the strap ring, retaining nut and one washer from the end of the jack. There should still be one star locking washer, one flat washer and a
nut remaining on the jack. Bring the jack down through the soundhole into the body and insert it into the pre-drilled hole in the tail block.
Using the internal nut (be sure to include the f lat and star washers), set the proper depth that will allow the entire smaller threaded section to
protrude from the instrument (see figure).
With the jack in place, lay the remaining washer over the threads and attach the external retaining nut until it’s tight. Finish by attaching the strap
ring (it should cover the retaining nut and washer). Note that asserting too much pressure may crack the finish.
3.3 Pickup installation: Begin by plugging the strapjack harness or the 12' cable into the pickup. If you are using the 12' cable, loop the cord
beneath the pickup and push it into the strain relief recess on the underside of the pickup until it pops into place (the loop between the plug and
strain relief should be rather tight).
Now loosen the clamp screws on either end of the pickup's top plate until the clamps are open enough to accommodate the guitar's top
thickness. Then slide the pickup into the soundhole and tighten the screws. For small soundholes, it may be necessary to remove one or both
tail
block
smaller
threaded
section
protrudes
clamps, slide the pickup into place, then reattach the clamp(s) once it is correctly positioned. When reattaching the clamps, verify that they slide
into the slot that is molded into the pickup housing.
Tighten the screws snugly, but don't overdo it -- this can damage the pickup or guitar finish. If you are concerned about the possibility of the M1
damaging the instrument's finish, consider applying thin cork pads (not included) between the clamp and guitar. However, note that the clamps
have been left unpadded to improve coupling between the pickup and guitar body. Because the M1 reads the top resonances that provide depth
and warmth, using cork pads may dampen this sensitivity and adversely affect the pickup's responsiveness.
For permanent installations, be sure to secure the wire with the two self-stick wire clips provided (this is important because of the pickup's body
sensitivity).
4 . U S E R ' S G U I D E
4.1. Package contents explained: In addition to the pickup, cables and wire clips, the box also contains a 3/32" Allen wrench and three spare
pole pieces. The Allen wrench is included for pole piece adjustment (see section 4.3); spare pole pieces have been provided in two sizes.
4.2. Plugging in: The M1 will plug into practically anything with good results. Low impedance inputs such as those found on mixing boards will
flatten the sound and reduce the pickup output. High impedance devices such as active direct boxes will capture all of the M1's nuances. Our Para
D.I. partners well with the M1 due to its high impedance, clean gain and EQ capability.
Note that the length and quality of your cord will have a large influence on the sound. This is because passive magnetic pick ups interact with the
cord capacitance to create a frequency peak that is a distinctive part of the tone. Long cords move this peak frequency downward, and create an
edgy, "electric" tone with more midrange. Short, low-capacitance cords move the peak upward, creating an airier, more acoustic-sounding tone.
These are simply general guidelines; experiment with different cables to determine the best match for your guitar and equipment.
4.3. Experiment with pole piece heights: The pole pieces on the M1 are preset for bronze acoustic strings, but this is just a starting place. They
are adjustable with the 3/32" Allen wrench so you may obtain the optimum balance and tone. The height of the pole pieces relative to the strings
will have a profound effect on the sound and balance of the pickup. Raising the pole pieces will increase the output of the strings; lowering them
will decrease the output. For the most powerful and articulate sound we recommend setting the pole pieces as close to the strings as is practical.
Lowering the pole pieces will de-emphasize the direct string output and emphasize the body sound.
We have provided two additional 3/4" pole pieces for use in the B and little E string positions with nickel or electric guitar strings, and one spare
3/8" pole piece for use with acoustic sets that have an unwound "G" string.
Note: When adjusting the pole pieces downward you will encounter additional resistance when you reach the bottom of the adjustment range.
Do not force the pole pieces any further! This could damage the pickup permanently.
4.3. Mixing with other sources: The M1 is intended to provide a complete sound from a single passive pickup. However, you may still want to
pair it with another transducer.
The prewired strapjack harness has stereo output capability. You can connect the output wire from a mini-mic or another transducer to the ring
terminal of this jack. Then run a stereo cord to the L.R. Baggs Mixpro or your favorite outboard gear.
The M1 can easily be substituted for other soundhole pickups in an existing two-source setup. As with all two-pickup setups, you should
experiment with relative phase if possible. The two sources will often mix much better in one phase than the other.
