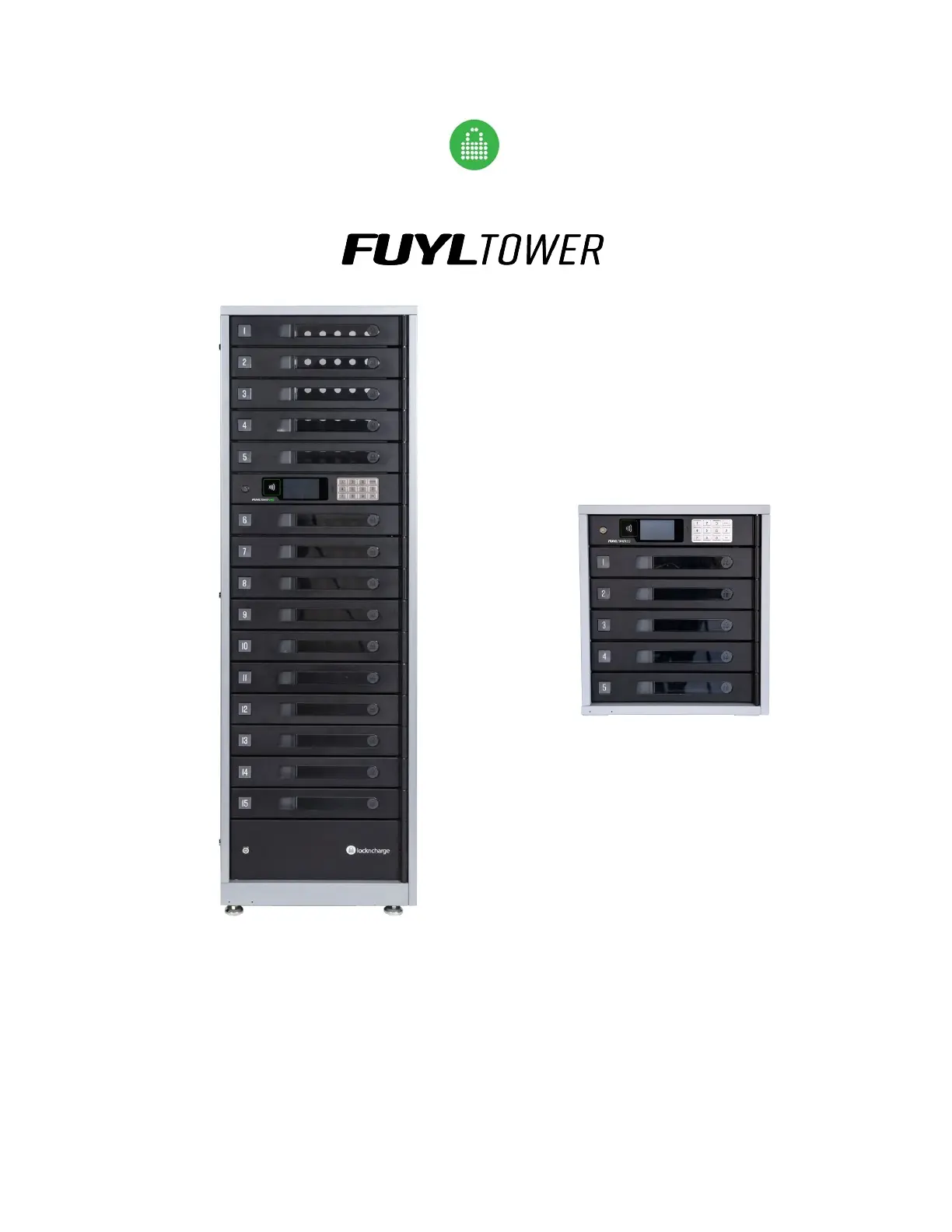

Seite 1/16
F
F
F
FFU
U
U
UUY
Y
Y
YYL
L
L
LL TOW
TOW
TOW
TOW TOWE
E
E
EER
R
R
RR
INSTR
INSTR
INSTR
INSTRINSTRUCT
UCT
UCT
UCTUCTI
I
I
IIONS
ONS
ONS
ONSONS
-
-
-
- - HARDW
HARDW
HARDW
HARDWHARDWARE
ARE
ARE
AREARE
www.pclocs.com.au | www.lockncharge.com
2
FUYL Tower Instructions - hardware
with release software version 1.2.4
www.pclocs.com.au
www.lockncharge.com
Overview
The FUYL Tower is an intelligent asset management system with a central electronic access control panel that can
store, charge and secure mobile devices.
The Tower has individually secured bays. Each charging bay features a mains voltage power outlet (110V / 240V
locale depen , with in built circuit protection and a 5V USB charging port capable of 2.4A charge current.dant) -
Users of the system provide a 4- digit PIN code or a compatible RFID card to lock and unlock the charging bays.
Access breaches are detected by the system and will trigger a warnings/alerts for administrators.
The central electronic control panel features admin keypad override using an administrator RFID card or an 8-
digit PIN.
Using a wired local network, administrators can connect remotely to the or wireless FUYL Tower control panel to
access the FUYL Tower management portal for more advanced administrator . settings and features
Specifications
Name:
FUYL Tower 15 Intelligent Asset Management System
FUYL Tower 5 Intelligent Asset Management System
Input: 110VAC nom, 60Hz, 15A max (US version)
240VAC nom, 50Hz, 10A max (non-US version)
Output:
5VDC @ 2.4A max x 15 outlets (FUYL Tower 15)
5VDC @ 2.4A max x 5 outlets (FUYL Tower 5)
110VAC or 240VAC at 4A max per outlet
(depending in mains input voltage)
Dimensions:
FUYL Tower 15: 1696 x 523 x 478 mm | 67 x 21 x 19 in
Weight: 88kg | 194lbs
FUYL Tower 5: 593 x 528 x 480 mm | 23 x 21 x 19 in
Weight: 35kg | 77lbs
Operating Temperature: 0C - 50C (32F - 122F) ambient
Disclaimer
This information is the intellectual property of IWS Global Pty Ltd and may not be distributed, duplicated or copied in part or full without the written permission. Since
the use of this information, the equipment connected and the conditions by which any IWS Global product is used is beyond the control of IWS Global, it is the obligation
of the owner and/or user to determine the correct and safe use of any equipment and product. To the extent that the law permits, any liability which may be incurred
as a result of the use or future use of a product manufactured or sold by IWS Global is limited to the cost of repairing or replacing the failed product or component at
the discretion of IWS Global either within, or outside of warranty periods, and does not extend to any loss or damage which may be caused as a consequence of
misuse or failure of the equipment or product or the information contained herein. IWS Global shall not in any event be liable for economic loss of profits, indirect,
special, bodily injuries or consequential damages.
Specifications and images are for illustration purposes only. Final product may differ and is subject to change without notice.
PC Locs, LocknCharge and the Padlock device are Trademarks of IWS Global Pty Ltd.
Copyright IWS Global Pty Ltd, June 9.201
3
FUYL Tower Instructions - hardware
with release software version 1.2.4
www.pclocs.com.au
www.lockncharge.com
C ONTENTS
CONTENTS....................................................................................................................................................................... 3
SAFETY INSTRUCTIONS ..................................................................................................................................................... 4
INSTALLATION ................................................................................................................................................................. 5
SETUP ............................................................................................................................................................................. 6
GENERAL USE .................................................................................................................................................................. 7
USER SPECIFIED PIN (USP) MODE – STORING AND RETREIVING A LOCKERS CONTENTS.......................................................... 7
ADMIN SPECIFIED PIN (ASP) MODE – ACCESSING THE PRE-PROVISIONED CONTENTS OF A LOCKER ......................................... 8
UNUSUAL CIRCUMSTANCES ............................................................................................................................................... 9
LOCKER BREACH ............................................................................................................................................................ 9
LOCKER STUCK.............................................................................................................................................................. 9
TOO MANY PIN ATTEMPTS ............................................................................................................................................... 9
ADMINISTRATION ............................................................................................................................................................ 10
ADMIN OVERRIDE MODE – AUTHENTICATING ................................................................................................................... 10
ADMIN OVERRIDE MODE – MENU OPTIONS ....................................................................................................................... 11
MANUAL DOOR OVERRIDE ................................................................................................................................................12
LOCAL MANAGEMENT PORTAL ........................................................................................................................................... 14
TROUBLESHOOTING ......................................................................................................................................................... 15
WARRANTY ..................................................................................................................................................................... 16
