Seite 1/12

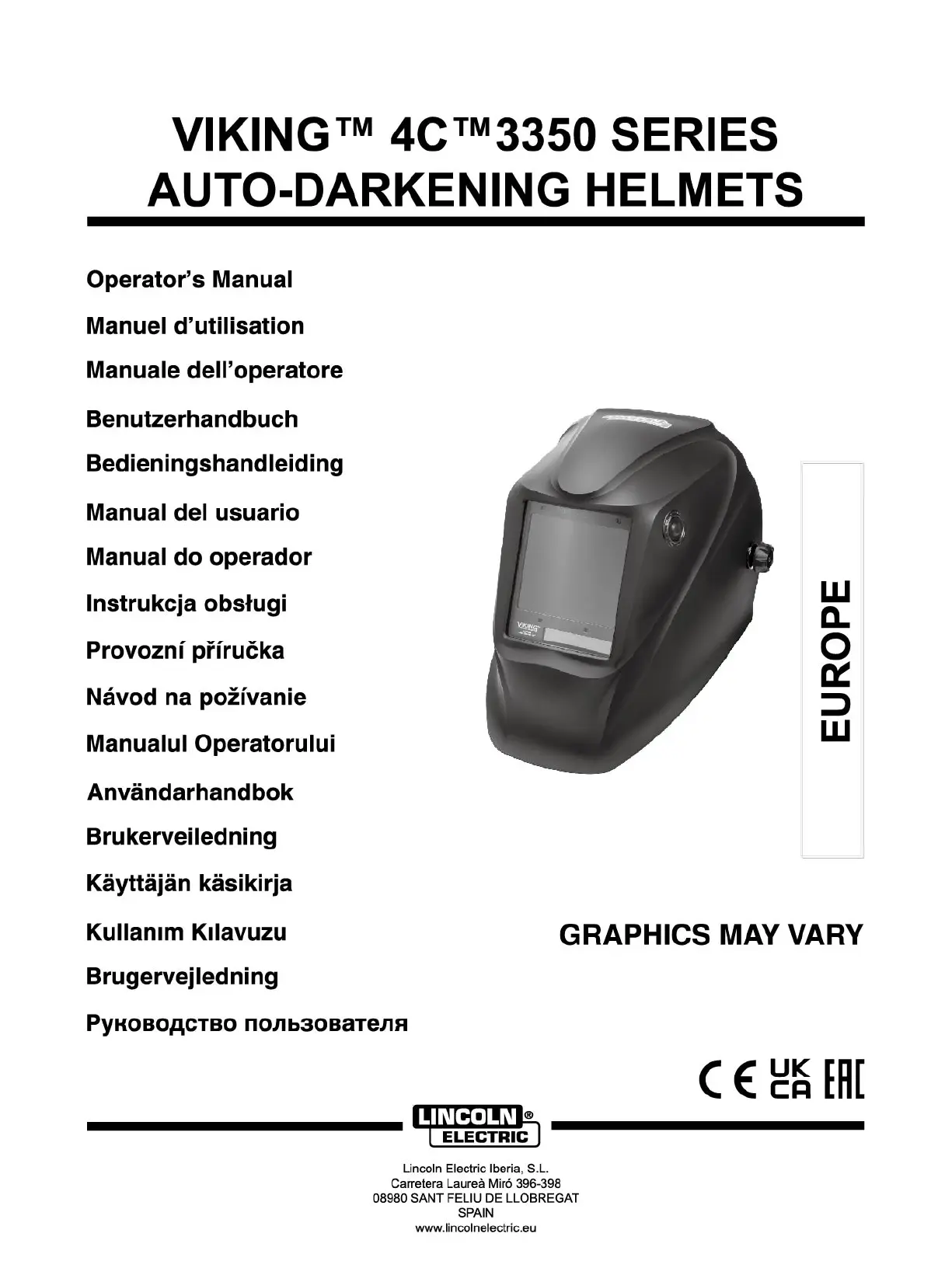

GRAPHICS MAY VARY
Operator’s Manual
VIKING TM 3350 Series
Auto-Darkening Helmets
4.50 x 5.25 Standard Replacement Lens
Register your machine:
www.lincolnelectric.com/register
Authorized Service and Distributor Locator:
www.lincolnelectric.com/locator
IM10167 | Issue D ate 08/13
© Lincoln Global, Inc. All Rights Reserved.
For use with machines having Code Numbers:
Save for future reference
Date Purchased
Code: (ex: 10859)
Serial: (ex: U1060512345)
TABLE OF CONTENTS Page
SAFETY WARNINGS – READ BEFORE USING 1
HELMET INFORMATION 2
SPECIFICATIONS 3
OPERATING INSTRUCTIONS 4
CARTRIDGE OPERATIONS/FEATURES 5
HELMET CARE AND MAINTENANCE 6
SHADE GUIDE SETTINGS 6
CARTRIDGE AND LENS REPLACEMENT 7
TROUBLESHOOTING 8
WARRANTY INFORMATION 9
REPLACEMENT PARTS, OPTIONAL ACCESSORIES 9
SAFETY WARNINGS – READ BEFORE USING
ARC Rays can injure eyes and burn skin
• Before welding, always inspect helmet and filter lens to be sure they are fitted
properly, in good condition and not damaged.
• Check to see that the clear lens is clean and securely attached to the helmet.
• Always wear safety glasses or goggles under the welding helmet and protective
clothing to protect your skin from radiation, burns and spatter.
• Ensure that optical radiation from other welder’s arcs in the immediate area does
not enter in from behind the helmet and auto-darkening filter.
Note: Auto-darkening filters in Lincoln helmets are designed to protect the user against harmful
ultra-violet and infrared rays both in the dark and light states. No matter what shade the filter is
set to, the UV/IR protection is always present.
FUMES AND GASES can be dangerous to your health.
• Keep your head out of fumes.
• Use enough ventilation or exhaust at the arc or both to keep fumes and gases
from your breathing zone and general area.
• When welding with electrodes which require special ventilation such as
stainless or hard facing (see instructions on container or MSDS) or on lead
or cadmium plated steel and other metals or coatings which produce highly
toxic fumes, keep exposure as low as possible and within applicable OSHA
PEL and ACGIH TLV limits using local exhaust or mechanical ventilation.
In confined spaces or in some circumstances, outdoors, a respirator may
be required. Additional precautions are also required when welding on gal-
vanized steel.
1
WARNING
Refer to http://www.lincolnelectric.com/safety
for additional safety information.
