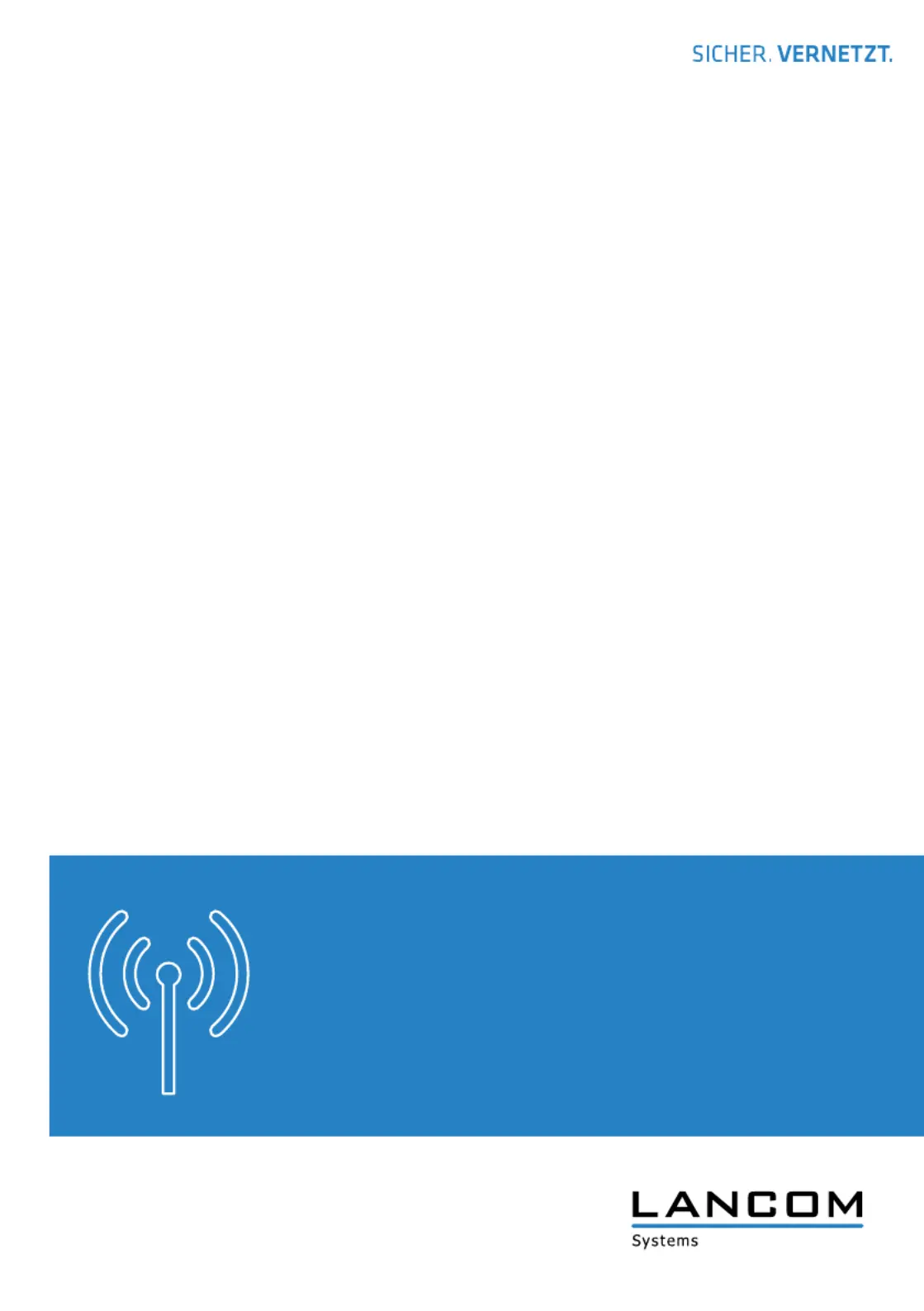

LANCOM Antenna
AirLancer IN-H180
MOUNTING INSTRUCTIONS
Preparation for wall- and ceiling mounting
Use the antenna as a drilling template to mark out the
drill holes for wall- or suspended ceiling mounting. The
horizontal and vertical separation of the adjacent holes is
104mm.
For ceiling mounting, if required, drill a hole into the center
of the ceiling board to feed-through the connector cables.
Alternatively, you can use the integrated cable duct on the
antenna backside to lead the cables sideways.
Size of the drill holes
Using the markings as a guide, drill the holes and insert
dowels for wall mounting, if appropriate. Depending on the
surface material the required size of the holes may vary.
Mounting the antenna
1. Ceiling board mounting with screws and nuts
Included: 4 thread screws 30 mm, 4 washers, 4 nuts
From the frontside, stick the thread screws through the
appropriate holes of the antenna housing and the previ-
ously drilled holes of the ceiling board. Place the washers on
the screws from the backside of the ceiling board. Finally,
use the nuts for fixing.
MOUNTING INSTRUCTIONS
2. Ceiling mounting with screws and clips
Included: 4 clips, 4 thread screws 15 mm
Push the clips into the appropriate slides at the backside
of the antenna, so that the clips are placed in line with
the holes in the antenna housing. Stick the thread screws
through the holes in the antenna housing from the front
side and loosely connect the screws to the clips.
Now the antenna can be moved onto the existing or addi-
tionally mounted metal ceiling t-bars. Finally, tighten the
screws for proper fixing.
3. Wall mounting with screws & dowels
Included: 4 screws, 4 dowels
Place the antenna with its backside at the wall so that the
holes in the antenna housing are in line with the previously
inserted dowels. Stick the screws through the holes of the
antenna housing into the dowels and tighten the screws.
Operating mode 2x2 MIMO & 4x4 MIMO
The antenna can be operated by two Wi-Fi modules. For
this, both red marked antenna connectors are connected to
the Wi-Fi module which is operating at 2.4 GHz. Both white
marked antenna connectors are connected to the Wi-Fi
module which is operating at 5 GHz.
Ø7,5 mm
60 mm
30 mm
