Seite 1/75

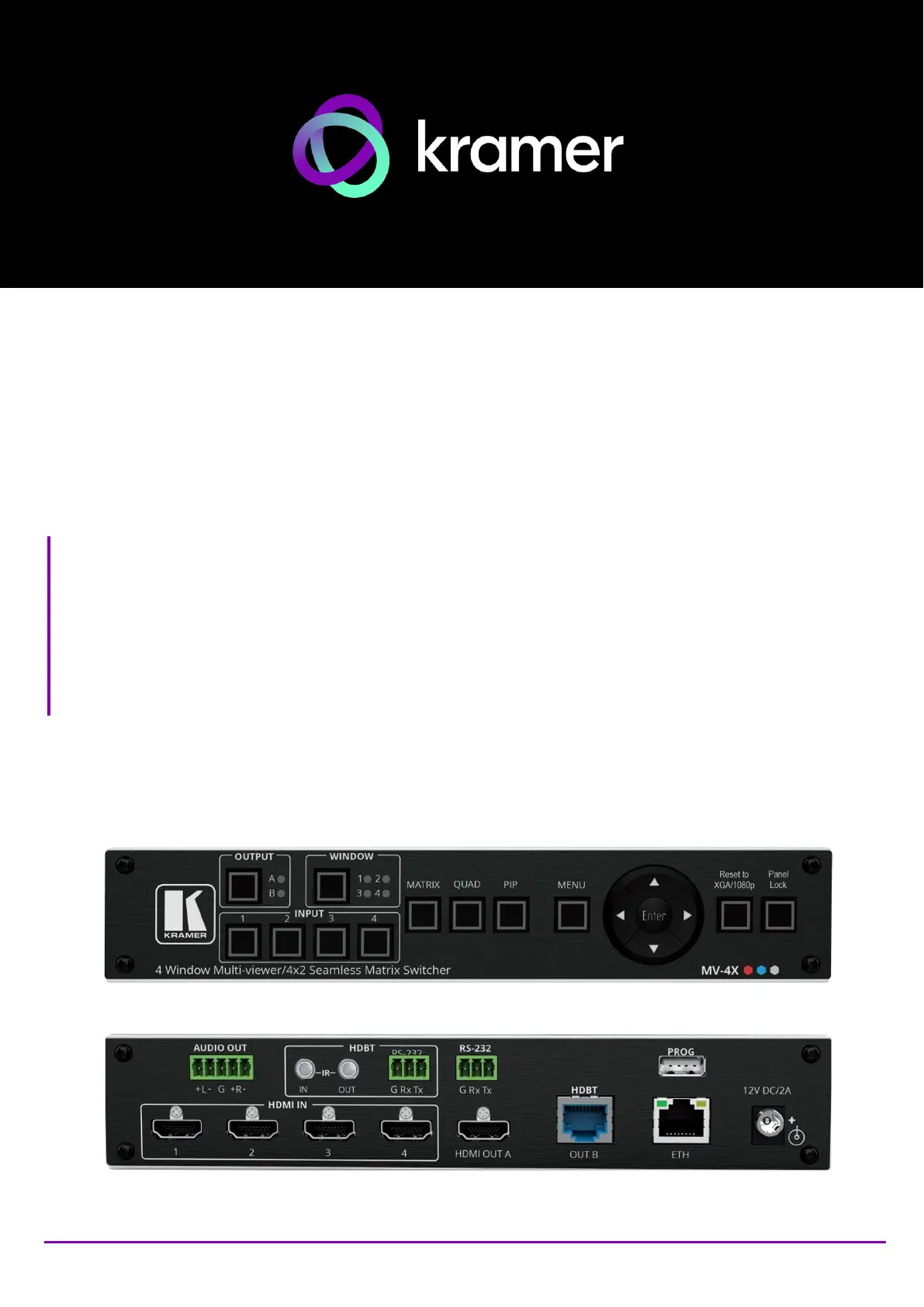

P/N: 2900-301566 Rev 2 www.kramer .comav
USER MANUAL
MODEL:
MV-4X
4 Window Multi-viewer/4x2 Seamless Matrix
Switcher
Kramer Electronics Ltd.
MV- Contents 4X –
i
Contents
Introduction 1
Getting Started 1
Overview 2
Typical Applications 3
Controlling your MV- 44X
Dening MV-4X 4 Window Multi-viewer/4x2 Seamless Matrix Switcher 5
Mounting MV- 74X
Connecting MV- 84X
Connecting the Output to a Balanced/Unbalanced Stereo Audio Acceptor 9
Connecting to MV-4X via RS- 9232
Wiring RJ 45 Connectors 9-
Operating and Controlling MV- 4X 10
Using Front Panel Buttons 10
Controlling and Operating Via the OSD Menu 10
Operating via Ethernet 21
Using Embedded Web Pages 25
General Operation Settings 27
Dening the Matrix Mode Parameters 31
Dening the Multi-View Parameters 34
Dening the Auto-Layout Parameters 40
Managing EDID 41
Dening General Settings 44
Dening Interface Settings 46
Dening MV-4X User Access 47
Dening Advanced Settings 48
Dening OSD Settings 51
Conguring a Logo 52
Viewing the About Page 54
Technical Specications 55
Default Communication Parameters 56
Default EDID 56
Protocol 3000 59
Understanding Protocol 3000 59
Protocol 3000 Commands 60
Result and Error Codes 71
Kramer Electronics Ltd.
MV- Introduction 4X –
1
Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world
of unique, creative, and aordable solutions to the vast range of problems that confront the
video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we
have redesigned and upgraded most of our line, making the best even better!
Getting Started
We recommend that you:
• Unpack the equipment carefully and save the original box and packaging materials for
possible future shipment.
• Review the contents of this user manual.
Go to www.kramerav.com/downloads/MV-4X to check for up- -date user manuals, to
application programs, and to check if rmware upgrades are available (where appropriate).
Achieving Best Performance
• Use only good quality connection cables (we recommend Kramer high-performance,
high-resolution cables) to avoid interference, deterioration in signal quality due to poor
matching, and elevated noise levels (often associated with low quality cables).
• Do not secure the cables in tight bundles or roll the slack into tight coils.
• Avoid interference from neighboring electrical appliances that may adversely inuence
signal quality.
• Position your Kramer away from moisture, excessive sunlight and dust. MV-4X
Safety Instructions
Caution:
• This equipment is to be used only inside a building. It may only be connected to other
equipment that is installed inside a building.
• For products with relay terminals and GPI\O ports, please refer to the permitted rating
for an external connection, located next to the terminal or in the User Manual.
• There are no operator serviceable parts inside the unit.
Warning:
• Use only the power cord that is supplied with the unit.
• To ensure continuous risk protection, replace fuses only according to the rating
specied on the product label which located on the bottom of the unit.is
