3. ASSEMBLY
1. SAFETY NOTES
- please check the support arms prior to and after use. Please do not use damaged support arms
- do not exceed the max. centric load of 50 kg
- not suitable for outdoors or moist rooms.
- please refer to local mounting instructions/regulations (may possibly deviate from the examples provided in Sections 5 A,B,C)
- use 4 screws for the wall mount
- only use trained technicians to assemble/mount the system
- only mount on suitable walls with the corresponding assembly material (not included in the delivery)
- walls that are too weak or have electrical and water conduits are not suitable. In case of doubt, consult a qualified technician.
- check that the screws are tight and the condition of the system regularly.
- careful and attentive handling is required when adjusting the system - due to the possibility of pinching or wedging your hand.
- when using the mount at "events and production sites for scenic presentations" BGV C1 applies accordingly.
a. Pace each cover 6on the bracket until it clicks into place.8
b. Place bracket through the slit in the wall tube 7
b. ATTENTION: Hold the pieces in such a way that the back of the tube and the cover
b. form a line AND the round part of the cover faces forward (see. Illustration 3.b.)
c. Now place the other two covers until they click into place.6
d. Screw the support tube with (top open) a U bracket to the wall tube 9 7:
d. - Screw set 1-2-3-3-10-1
d. ENSURE: when using the top bore hole in the wall tube 7
d. that the extension arm is in a horizontal position. 4
e. Screw the extension arm with (bottom open) a U bracket into the wall tube 4 7:
e. - Screw set 1-2-3-3-10-1
f. connect the support tube 9with the extension arm 4:
f. - Screw set 1-2-3-3-10-1
g. The four U discs, large are used a washers for the wall mount5

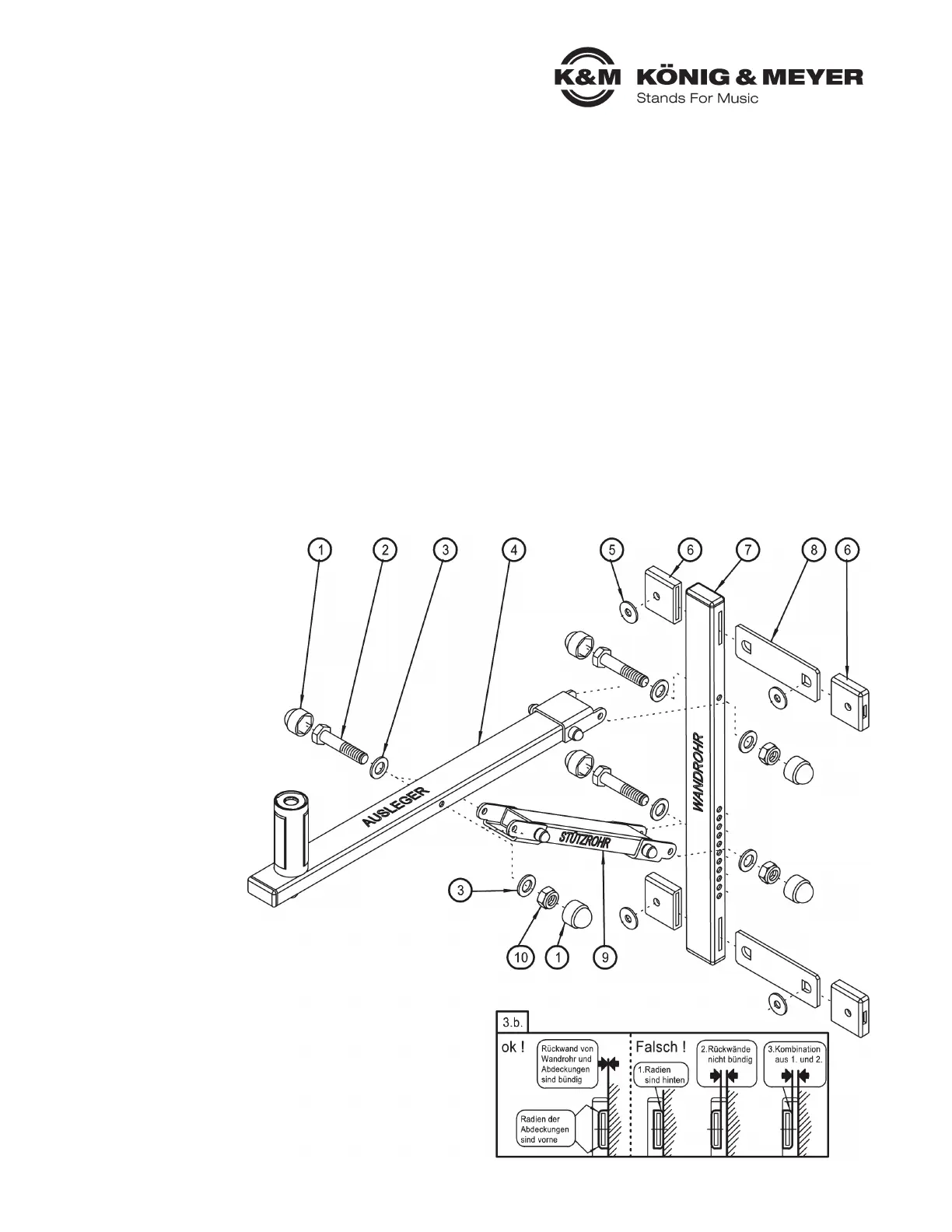

2. PARTS - OVERVIEW
Conduct a visual inspection to
ensure that all the parts are
included and are in working
order.
4extension arm
7wall tube
9support tube
in the bag:
1 12 x caps
2 3 x screws M6 x 60 mm
3 6 x U-discs, small
5 4 x U-discs, large
6 4 x bracket covers
8 2 x bracket
10 3 x securing nuts M6
Thank you for choosing this product. The instructions provide directions to all of the important setup and handling steps. We
recommend you keep these instructions for future reference.
24110 Speaker Wall Mount
- for loudspeakers up to max. 50 kg
- equally suited for home, object and public venues
- with a patented expanding mandrel ensuring wobble-free loudspeaker hold
- suitable for flange bushings - internal diameter 33-37 mm
- Extension arm range from 0° to 22° (in 10 positions)
- loudspeaker can face any direction using the expanding mandrel
5. MOUNT EXAMPLES
A. Concrete wall. Example: Bolt anchor M8 x 75 mm
A. - drill, clean hole, hammer in the anchor, mount the bracket. Set the U disk, tighten the nut with 20 Nm.
B. Perforated brick: Example: Plastic frame anchors ø 10 x 100 mm with wood screw DIN571 ø 7 x 105 mm
B. - drill, clean hole, set the anchor, mount the bracket. Set the U disc, tighten the screws.
C. Suitable for both concrete and perforated brick: Injection molded anchor
C. - without sieve bushing for concrete wall.
C. - with sieve bushing for perforated bricks.
C. Advantage: mount without expansion; as such the mount can be used as often as needed and ensures mounting right up to the
C. edge (not under 100 mm distance).
C. Please follow the assembly/mounting instructions provided with the products.
4. WALL MOUNT
- Place the mount in a vertical position and mark
-the bore holes
- Drill the anchor holes 4x
-(ø 8 for the bolt anchor; ø 10 for frame anchor)
6. USAGE NOTES / FUNCTION
SAFETY NOTES
- ensure that there are enough technicians available for the assemble/mounting and disassembly/dismounting and setting of the
-position/angle of the loudspeakers (we recommend 2 technicians that are physically fit)
- ensure that the loudspeaker material is in working order, e.g. the connector must be the right size and quality.
- ensure that suitable installation equipment and tools are used: e.g. safe ladders among others.
- first check that the mount is in proper working order (e.g. properly install support tube 9, then mount the loudspeakers.
7. POSITION THE EXTENSION ARM ANGLE
- ATTENTION: prior to positioning the extension arm, first remove the loudspeaker,
- ATTENTION: or have a second person hold the loudspeaker securely
- ATTENTION: while positioning the angle.
- Unscrew the screw Ybetween the wall and the support tube and remove the parts from the bore hole.
- Place the support tube in the desired position and screw it to the wall tube.
- The extension arm can be positioned in 11 positions (refer to Section 8 DIMENSIONS).
8. DIMENSIONS
