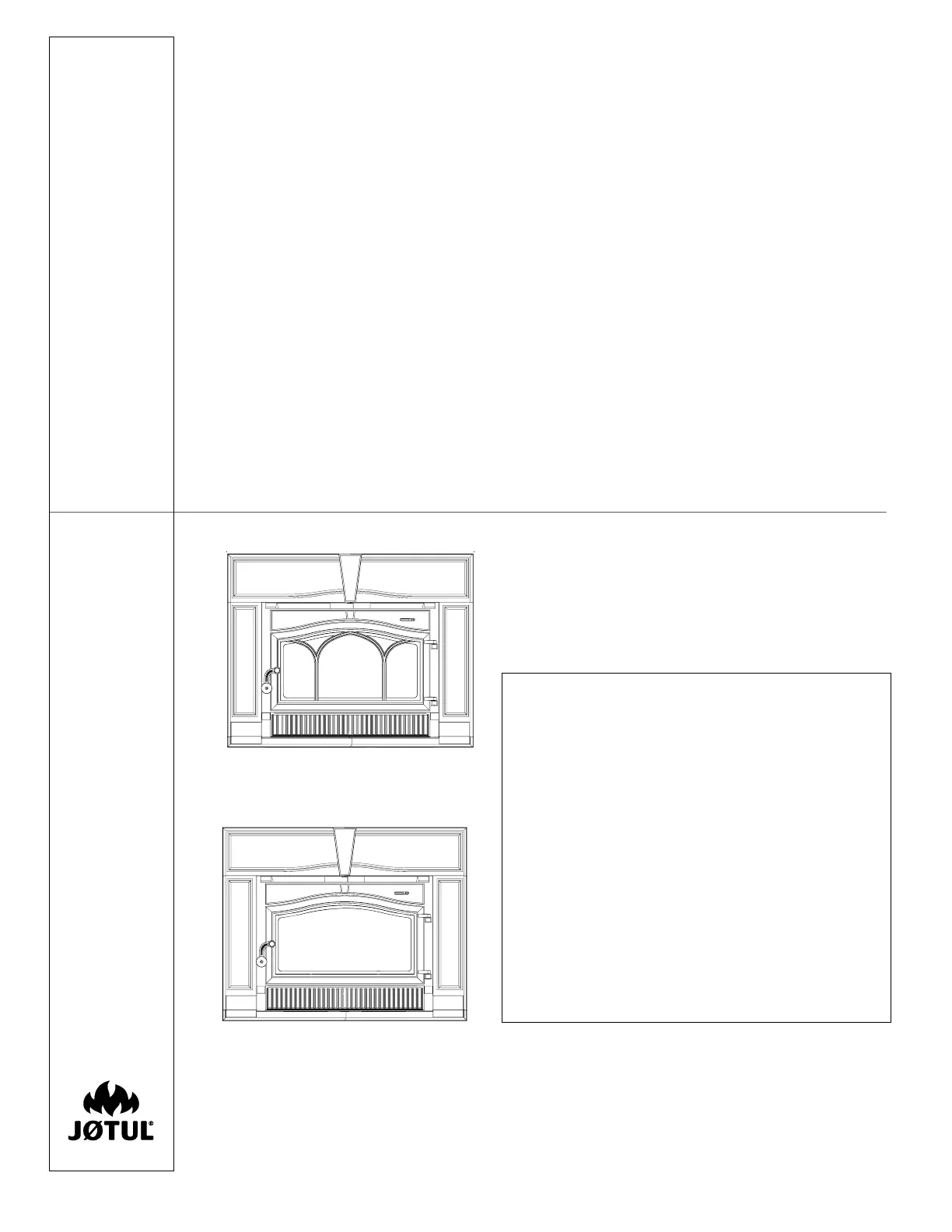

Seite 1/28
The Jøtul C Rockland fireplace insert is 550
listed to burn solid wood only. Do not burn
any other fuels.
Read this entire manual before you install
and use this appliance.
Save these instructions for future reference
and make them available to anyone using or
servicing the fireplace insert.
This wood heater requires periodic inspection
and repair for proper operation. See this
manual for specific maintenance information.
It is against federal regulations to operate
this wood heater in a manner inconsistent
with the operating instructions in this
owner’s manual.
Jøtul C CB 550
Rockland
Fireplace Insert
Installation and Operating Instructions
for the United States & Canada
V2
Jøtul C CB Rockland 550
Fireplace Insert
Clean Face
Traditional Lattice
Jøtul C CB Rockland 139656_09 10/18550
Table of Contents
Standards and Safety Notices
Standards / Codes 3 ........................................................
Combustion Specifications 3 ........................................
Safety Notices 4 ...............................................................
Preparation 4 ...................................................................
Unpacking the Firebox 4 ...............................................
Specifications
Dimensions 5 ...................................................................
Installation
Masonry Fireplace Requirements 6 ............................
Factory-built Fireplace Requirements 6 ....................
Chimney Height 6 ............................................................
Hearth Protection 7 ........................................................
Clearance to Combustibles 8-9 ...................................
Chimney Connection 10 ................................................
Firebox Installation 12 ....................................................
Surround Assembly 13 ....................................................
Operation
Combustion Efficiency 14 .............................................
CO Emissions ............................................................... 14
Wood Fuel and Performance 14 ...................................
Functionality 14 ...............................................................
Break-in Procedure 15 ......................................................
Air Control Settings 15 .....................................................
Starting / Maintaining the Fire 16 ...............................
Adding Fuel 16 .................................................................
Formation of Creosote 16 ..............................................
Blower Operation 17 ........................................................
Maintenance
Ash Removal 18 ................................................................
Glass Care 18 .....................................................................
Chimney System 19 .........................................................
Gaskets 19 ..........................................................................
Illustrated Parts Breakdown
Exploded View ............................................................ 22
Parts Listing 23 ...............................................................
Appendix
Alternate Hearth Protection 24 ..................................
Leg Leveler Installation 24 ...........................................
Door Knob Assembly 24 ................................................
Blower Flex Conduit Kit Installation 25 ......................
Warranty Statement ..................................25
For Your Records...
Record the following information to help your
dealer determine what you will need should
your fireplace ever require parts or service.
The serial number and manufacturing date are
indicated on the permanent label located in the
blower compartment under the firebox. You
may also wish to attach your sales receipt to this
manual for future reference.
Model: Jøtul C Rockland Fireplace Insert550
Serial Number:
Purchase Date:
Dealer:
Phone:
Installed by:
Date:
PLEASE NOTE:
IT IS NORMAL FOR SMOKE AND ODOR
TO OCCUR DURING THE INITIAL
STAGES OF OPERATION, DEPENDING
UPON TEMPERATURES GENERATED
OVER TIME. THISCURING
CONDITION CAN BE ALLEVIATED BY
PROMOTING FRESH AIR CIRCULATION
WITHIN THE IMMEDIATE VICINITY OF
THE APPLIANCE.
3
Jøtul C CB Rockland 139656_09 10/18550
Combustion Specifications
Jøtul C 550 Rockland
Heat Output Range:1 11,700 to 34,900 BTU/hr.
Max. Heat Output: 65,000 BTU/hr.
Heating Capacity:2 Up to 1,700 sq. ft.
Maximum Burn Time:2 Up to 9 hours
Combustion Efficiency:3 HHV LHV
71.48% 77.28%
CO Emissions:4 141.62 g/hr
Pariculate Emissions:5 4.5 g/hr
Fuel: Up to 24” Logs (610 mm)
See the Operation section of this manual for important
information regarding the safe, proper, and most efficient
operation of your stove.
1 results are determined during Heat Output Range
specific emissions tests established by the EPA.
The Maximum Heat Output value is representative of a
more frequent re-fueling cycle than specified in the EPA
High Heat Output test method.
2 Heating Capacity and Maximum Burn Time will vary
depending on design of home, climate, wood type and
operation
3 High Heat Value and Low Heat Value are obtained per CSA
B415.1-10 test method. HHV calculation encompasses all
products of combustion, including water condensation.
LHV calculation includes water in its vapor state. Simply
put, HHV assumes all the water component is in a liquid
state (condensed) at the end of combustion and that
heat recovered from condensation can be put to use.
4 Carbon Monoxide Emissions rate results from Test
Method CSA B415.1-10.
5. Particulate Emissions rate is obtained using EPA Test
Method 28-5H.
NOTE:
CONSULT THE AUTHORITY HAVING
JURISDICTION IN YOUR LOCALE
(SUCH AS MUNICIPAL BUILDING
DEPARTMENT, FIRE DEPARTMENT,
FIRE PREVENTION BUREAU,
ETC.) BEFORE INSTALLATION TO
DETERMINE THE NEED TO OBTAIN A
PERMIT.
Standards
The Jøtul C CB Rockland fireplace insert has been 550
tested and listed to the following standards:
U.S: ANSI/UL 1482-2011
Canada: ULC-S628-1993
Certified Safety Tests performed by:
ITS, Intertek Testing Services
Middleton, Wisconsin
Manufactured by:
Jøtul North America
55 Hutcherson Drive
Gorham, Maine 04038-2644
WARNING !
THIS WOOD HEATER HAS A MANUFACTURER-
SET MINIMUM LOW BURN RATE THAT MUST
NOT BE ALTERED. IT IS AGAINST FEDERAL
REGULATIONS TO ALTER THIS SETTING
OR OTHERWISE OPERATE THIS WOOD
HEATER IN A MANNER INCONSISTENT WITH
OPERATING INSTRUCTIONS IN THIS MANUAL.
Check Building Codes
When installing, operating and maintaining your
Jøtul C 550 CB fireplace insert, follow the guidelines
presented in these instructions, and make them available
to anyone using or servicing the stove.
In the U.S., the National Fire Protection Association’s Code,
NFPA 211, Standards for Chimneys, Fireplaces, Vents and
Solid Fuel Burning Appliances, or similar regulations, may
apply to the installation of a solid fuel burning appliance
in your area.
In Canada, the guideline is established by the CSA
Standard, CAN/CSA-B365-M93, Installation Code for Solid-
Fuel-Burning Appliances and Equipment.
THE JOTUL C 550 CB ROCKLAND FIREPLACE INSERT IS NOT
APPROVED FOR USE IN MOBILE HOMES.
This heater meets the 2015 U.S.
Environmental Protection Agency’s
emission limits for wood heaters
manufactured after May 15, 2015.
This appliance is not approved for sale after
May 15, 2020.
