Seite 1/12

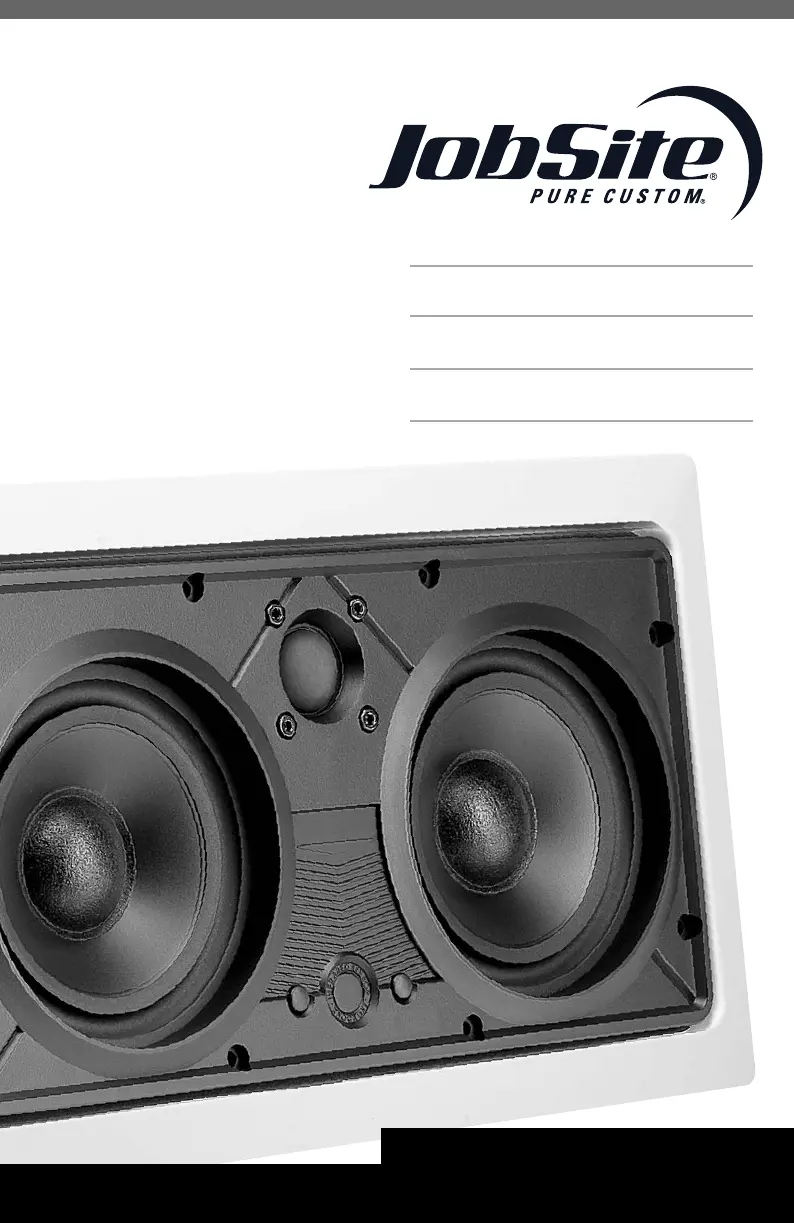

INSTALLATION & USER GUIDE
RIGHT, LEFT, SURROUND AND
CENTER CHANNEL IN-WALL LOUDSPEAKER
LST-RLS/CTR
For High Performance
Home Theater Reproduction
from In-Wall Locations
LST-RLS/CTR
RIGHT, LEFT, SURROUND AND CENTER IN-WALL LOUDSPEAKER
TABLE OF CONTENTS
Features............................................................................................................................1
Product Overview...........................................................................................................1
Package Contents ..........................................................................................................2
Preparing for Installation..............................................................................................2
Installation.......................................................................................................................2
Setting the Speaker Configuration Settings .............................................................6
Operation..........................................................................................................................7
Specifications .................................................................................................................7
Warranty...........................................................................................................................7
Figure 1
New Construction Wings
Bracket
Frame
Speaker Baffle
Grille
PRODUCT OVERVIEW
1
FEATURES: LST-RLS
Dual 5-1/4” mica filled polypropylene
woofers with butyl rubber surrounds
1 liquid cooled ElastoDynamic®
dome tweeter
Front mounted bass and treble
cut switches (-3dB)
Configurable as a main or
surround speaker
Rigid braced ABS speaker baffle
Moisture and UV resistant
Rust proof aluminum grille
Installation friendly design:
Suitable for painting
Connection terminals accept up to 12
gauge speaker wire
Includes system mounting hardware for
New Construction or retrofit installations
FEATURES: LST-CTR
Dual 5-1/4” magnetically shielded mica
filled polypropylene woofers with butyl
rubber surrounds
1 liquid cooled magnetically shielded
ElastoDynamic®dome tweeter
Front mounted dialog enhancement
switch
Front mounted treble cut switch (-3dB)
Crossover mounted Off-Axis
compensation (OAC) switch
Rigid braced ABS speaker baffle
Moisture and UV resistant
Rust proof aluminum grille
Installation friendly design:
Suitable for painting
Connection terminals accept up to 12
gauge speaker wire
Includes system mounting hardware for
New Construction or retrofit installations
IR Knockout (accommodates
JOBSITE IR-FMR IR Receiver)
