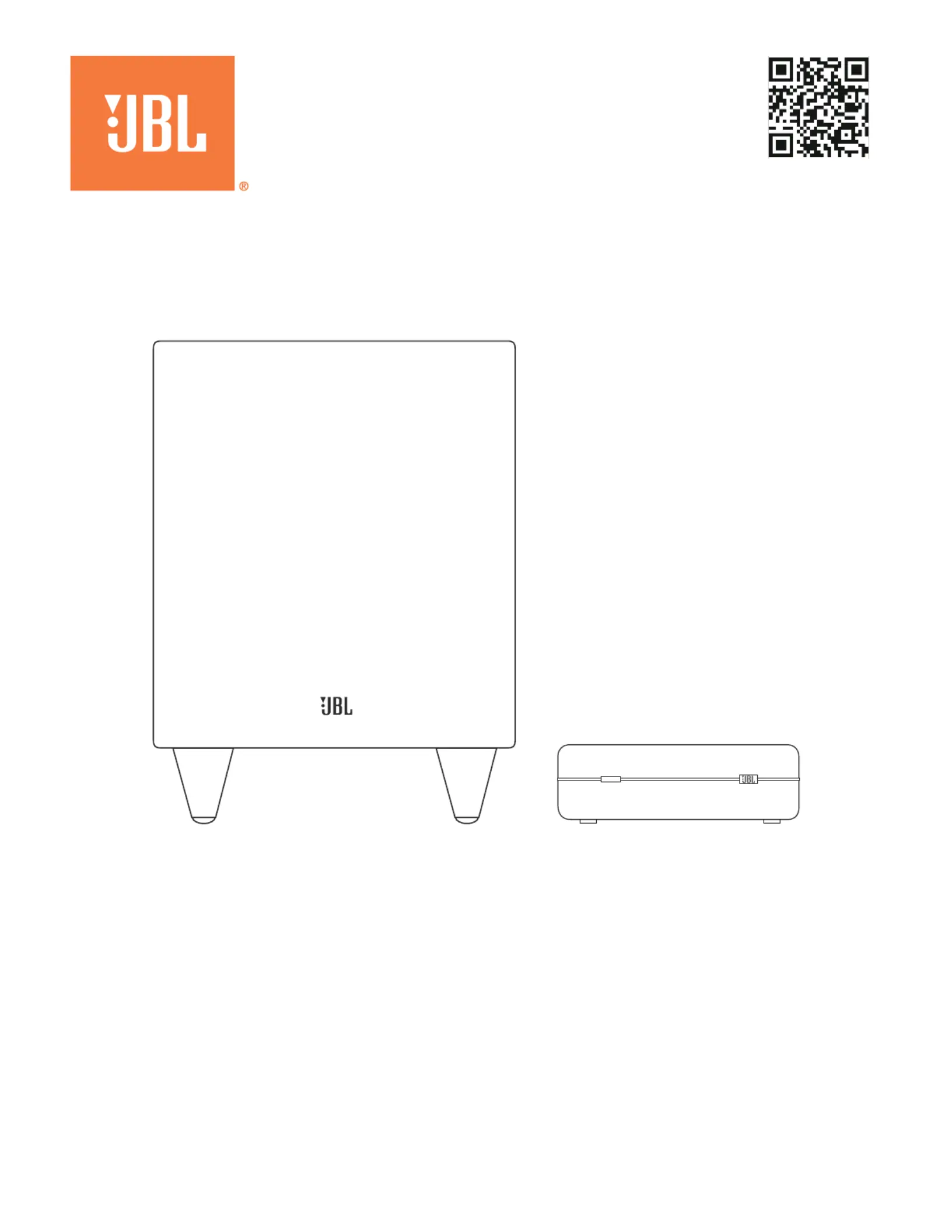

OWNER’S MANUAL
JBL SUB80P Wireless Subwoofer
JBL SUB80P
www.jbl.com/specialtyaudio
2
English
LIMITED WARRANTY
JBL loudspeakers are warranted against defects. The duration of a warranty depends on the laws in the country in which it was purchased.
Your local JBL retailer can help you determine the duration and coverage of your warranty.
For more information please visit: www.jbl.com/specialtyaudio.
Congratulations and Thank You for purchasing your new JBL SUB80P Wireless Subwoofer.
Please take the time to read the following installation and setup information in order to optimize the performance of your wireless subwoofer.
INTRODUCTION
THANK YOU FOR CHOOSING THIS JBL PRODUCT!
Your new JBL SUB80P 200-watt powered wireless subwoofer incorporates an 8" (200mm) down-firing cone transducer and a built-in, high-
performance, 200-watt amplifier that delivers the powerful, dynamic and accurate low-frequency performance that makes your film soundtracks
and music come alive. The subwoofer receives its audio signal from the transmitter module via wireless technology, so you can place it anywhere
in your room without having to run an audio cable. And to maximize connection flexibility, the subwoofer also features wired connections.
We’re confident that this JBL subwoofer will provide every note of enjoyment that you expect and that when you think about purchasing
additional audio equipment, you will once again choose JBL products.
This owners manual contains all the information you need to set up, connect and adjust your new subwoofer. For more in-depth information, go to
our Web site: www.jbl.com/specialtyaudio.
INCLUDED ITEMS
Wireless Subwoofer Transmitter Module
Trigger Cable
LFE Cable
Transmitter Power Supply
Power Supply AC Cord
(varies with region)
TABLE OF CONTENTS
LIMITED WARRANTY ........................................................................................................................................................................................ 2
INTRODUCTION ............................................................................................................................................................................................... 2
INCLUDED ITEMS ............................................................................................................................................................................................ 2
SUBWOOFER REAR-PANEL CONTROLS .......................................................................................................................................................... 3
PLACING THE SUBWOOFER ............................................................................................................................................................................ 4
CONNECTING THE SUBWOOFER .................................................................................................................................................................... 5
OPERATING YOUR SUBWOOFER ..................................................................................................................................................................... 7
SPECIFICATIONS ............................................................................................................................................................................................. 8
3
English
SUBWOOFER REAR-PANEL CONTROLS
1 2
WIRELESS
CODE
DC 5V
INPUT
R
3 4
L
SUB80P
Phase Switch
Bass Boost Switch
Power On Mode
Switch
Subwoofer Level
Control
Input Mode Switch
External Trigger Input
Wireless Code Switch
Power Connector
TRANSMITTER UNIT REAR-PANEL
CONNECTIONS AND CONTROLS
Power Switch Power Cord
Wireless Code
Switch
Input
Connectors
Line-Level LFE In
Connector
Line-Level L /R In
Connector
SUBWOOFER UNIT
Phase switch: This switch determines whether the subwoofer transducer’s piston-like action moves in and out in phase with the satellite
speakers. If the subwoofer were to play out of phase with the satellite speakers, the sound waves from the satellites could cancel out some of the
subwoofers sound waves, reducing bass performance and sonic impact. This phenomenon depends in part on the placement of all the speakers
in the room. In most cases, the Phase switch should be left in the Normal” position. However, it does no harm to experiment, and you can leave
the Phase switch in the position that maximizes bass response and impact.
Bass Boost switch: Set this switch to On” to enhance the subwoofer’s low-frequency performance. Set this switch to Off” for normal low-
frequency performance.
Power On Mode switch: When this switch is set in the Auto position and when the Power switch is set to On, the subwoofer will
automatically turn itself on when it receives an audio signal and will enter the standby mode after it has received no audio signal for about
15 minutes. When this switch is set in the On position, the subwoofer will remain on whether or not it is receiving an audio signal. An LED on the
subwoofers top panel indicates whether the subwoofer is in the on or standby state:
no matter what setting the Power On Mode switch is in.
Subwoofer Level control: Use this control to adjust the subwoofers volume. Turn clockwise to increase the volume; turn counterclockwise to
decrease the volume.
Input Mode switch: When this switch is in the Normal setting, the input signal from the Line-Level L/R In connectors and Transmitter Unit is
active with the internal low-pass crossover enabled. When this switch is in the LFE setting, the input signal from the Line-Level LFE In connector
and Transmitter Unit is active with the internal low-pass crossover bypassed.
External Trigger Input connector: Use the mini plug of the supplied combination LFE and trigger cable to connect the External Trigger Input
connector to the trigger output of another compatible component. Whenever the subwoofer detects a trigger signal between 3V and 30V (AC
or DC), its amplifier will turn on. The amplifier will turn off after the trigger signal ceases, even when the Power On Mode switch is in the Auto
position.
Line-Level LFE In connector: When youre connecting the subwoofer to the dedicated subwoofer output of a receiver/processor that has its
own low-pass crossover network, use the Line-Level LFE In connector. You must also set the subwoofer’s Input Mode switch in the LFE position
to bypass the subwoofers internal low-pass crossover.
