JBL Stage 220P Bedienungsanleitung
Lesen Sie kostenlos die 📖 deutsche Bedienungsanleitung für JBL Stage 220P (32 Seiten) in der Kategorie Subwoofer. Dieser Bedienungsanleitung war für 9 Personen hilfreich und wurde von 2 Benutzern mit durchschnittlich 4.5 Sternen bewertet
Seite 1/32

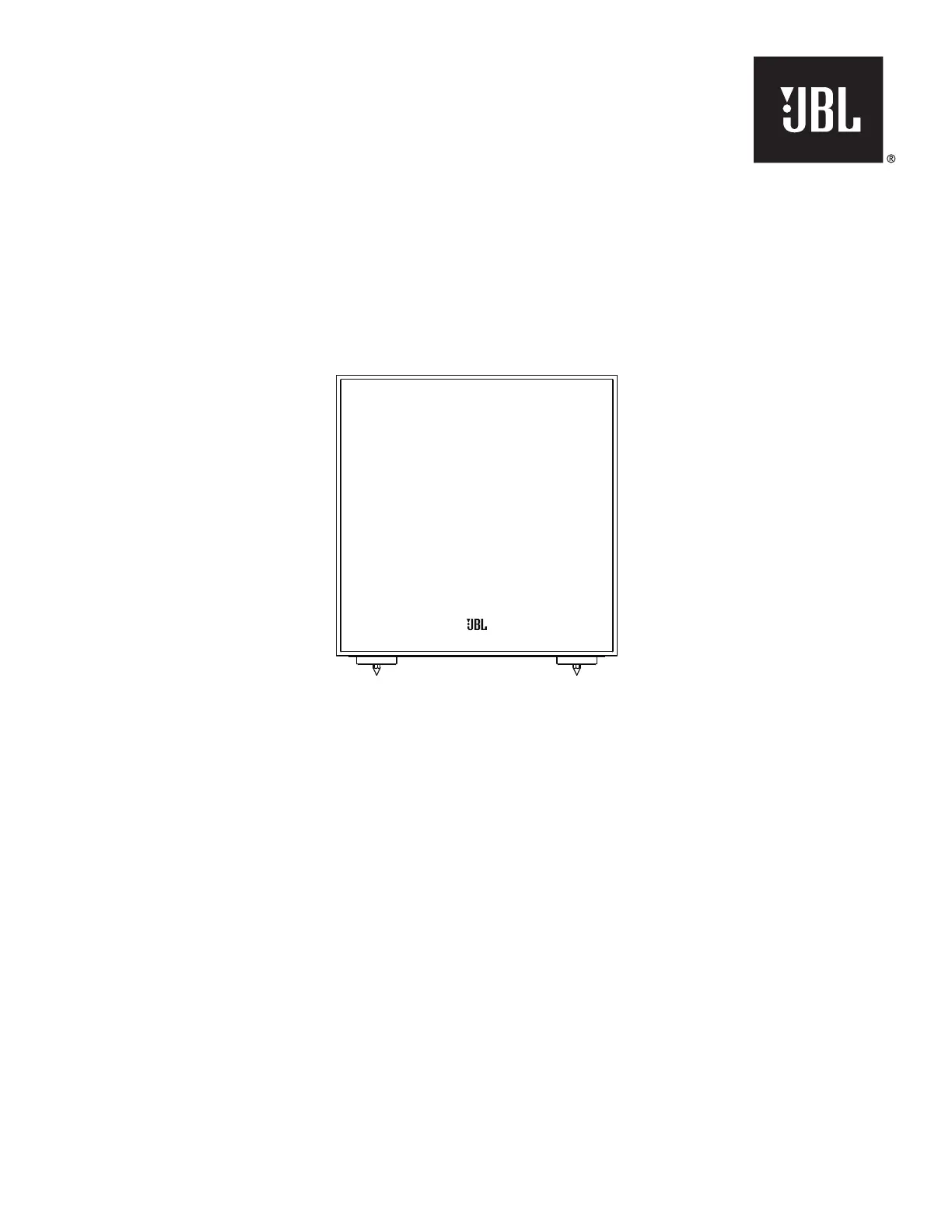

STAGE 200P/220P
Powered Subwoofer • Caisson de graves actif • Subwoofer ativo
• Leistungsstarker Subwoofer • Subwoofer alimentato • パワード ･ サブ
ウーファー • 강력한 서브우퍼 • Subwoofer alimentado • Aktiv subwoofer
• Aktiivinen alibassokaiutin • Aktiv subwoofer • Aktiv subwoofer
• Aangedreven subwoofer • Aktywny głosnik niskotonowy • 有源低音炮
•有源低音揚聲器 • Subwoofer bertenaga • Активный сабвуфер
STAGE 200P/220P
THANK YOU FOR CHOOSING THIS JBL® PRODUCT
INCLUDED ITEMS
Powered Subwoofer
200P/220P
Your new JBL® powered subwoofer incorporates a high-performance
transducer and built-in amplifier that delivers the powerful, dynamic and
accurate low-frequency performance that makes your film soundtracks
and music come alive. And with adjustable crossover, phase controls and
automatic turn on/off, it is also simple to connect and set up.
We're confident that this JBL subwoofer will provide every note of enjoyment
that you expect - and that when you think about purchasing additional audio
equipment for your home, car or office, you will once again choose JBL
products.
This quick-start guide contains all the information you need to set up,
connect and adjust your new subwoofer. For more in-depth information, go
to our web site: www.jbl.com.
Note: Type of power plug varies by regions.
2
SUBWOOFER REAR-PANEL CONTROLS AND CONNECTION
输入
P ER ~ 5WOW AC 20
1) Power Mode:
When switched to 'Auto' position, the subwoofer will then be in Standby
mode. It will automatically turn on when an audio signal is detected
and will return to the Standby mode when no audio signal is detected
after approximately 15 minutes. Setting this switch to 'On' keeps the
subwoofer powered until the power cord is pulled out.
In 'Standby' mode, the power consumption is lower than 0.5W.
2) Power Mode Indicator:
When the Power Indicator is in the 'On' position, this LED indicates
whether the subwoofer is in the On or Standby state.
• When the LED glows , the subwoofer is turned On.blue
• When the LED glows , the subwoofer is in the Standby mode.red
3) Phase Switch:
This switch determines whether the subwoofer transducer's piston-
like action moves in and out in phase with the main speakers. If the
subwoofer were to play out of phase with the main speakers, the sound
waves from the main speakers could partially cancel out the sound
waves from the subwoofer, reducing bass performance and sonic impact.
This phenomenon depends in part on the placement of all the speakers
relative to the listening position and to each other in the room.
4) Crossover Control:
This control determines the highest frequency at which the subwoofer
reproduces sounds. The higher you set the Crossover control, the
higher in frequency the subwoofer will operate and the more its bass will
"overlap" that of the speakers. This adjustment helps achieve a smooth
transition of bass frequencies between the subwoofer and the speakers
for a variety of different rooms and subwoofer locations.
5) Volume:
Use this control to adjust the subwoofer's volume. Turn the knob
clockwise to increase the volume; turn the knob counterclock-wise to
decrease the volume.
6) Subwoofer (LFE Input):
Connect the subwoofer to the dedicated subwoofer / LFE output of a
receiver/processor.
7) Main Voltage Selector Switch:
Set this switch up to select voltage 220-240V.
Set this switch down to select voltage 100-120V.
Noted: Must select correct mains voltage before power cord plug in.
8) Power Input:
After you have made and verified the subwoofer's input connection, plug
the power cord into an active, unswitched electrical outlet for proper
operation of the subwoofer.
DO NOT plug the power cord into the accessory outlets found on some
audio components.
