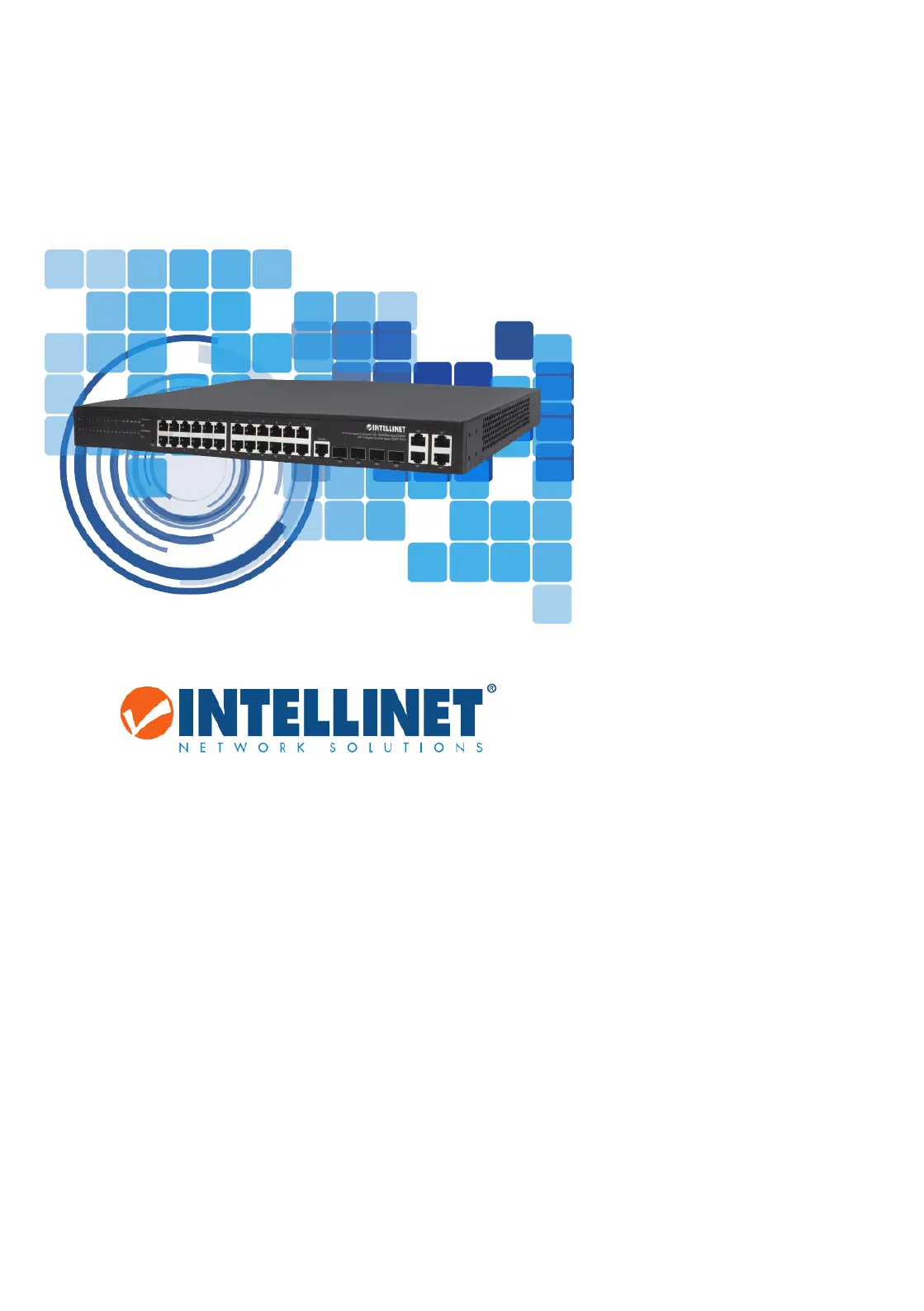

INT-561426_QiG-0918_REV-5.01
24-Port Gigabit Ethernet PoE+
Web-Managed Switch with
4 Gigabit Combo Base-T/SFP
Ports Instructions
Model 561426
intellinetnetwork.com
2
24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 4 Gigabit Combo Base-T/SFP Ports
English
The Intellinet Network Solutions 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 4
Gigabit Combo Base-T/SFP Ports oers an array of time-saving, cost-eective features while
providing superior network throughput. No conguration is required and installation is plug
and play. Thanks to its optional desktop and 19” rackmount design, superior performance
and value, the switch is the perfect choice for your small oce home or home network.
With a backplane speed of 56 Gbps, plenty of performance is available for your computers,
servers and other networking devices. Each of the ports automatically senses the link speed
of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and
maximum performance. Designed to give ample power to compatible devices that need
them, this PoE+ switch oers up to 30 watts of power per port until its power budget of 370
watts is reached.
Green Ethernet Technology
More often than not, a network switch does not utilize all its ports at all times. Normally,
when a computer, notebook, network printer or other network-connected device is powered
down, the switch continues to consume the same amount of power as if the port were
still active. Now, thanks to the new, energy ecient IEEE 802.3az technology, this Intellinet
Network Solutions switch detects link status to all connected devices and reduces the power
usage of ports not in use. In addition, the switch can adjust the level of power output based
on the length of the network cable connected to a particular port. This feature allows for the
enjoyment of maximum network performance, and when things slow down, it automatically
scales back power usage to conserve energy and save money.
LED COLOR STATUS STATUS DESCRIPTION
Power Green O Power O
On Power On
LNK/ACT
(1 – 24;
25T – 28T)
Orange
O No device is connected to the port.
On A device is connected to the port at 10/100 Mbps speed.
Flashing Sending or receiving data.
Green
O No device is connected to the port.
On A device is connected to the port at 1000 Mbps speeds.
Flashing Sending or receiving data.
SFP
(25S – 28 S) Green
O No device is connected to the port.
On A device is connected to the port.
Flashing Sending or receiving data.
PoE Yellow
O No device is connected to the port.
On The connected device is receiving power.
Flashing Abnormal power supply.
Front Panel
10/100/1000 Mbps & PoE 10/100/1000 Mbps
1000 Mbps SFP
3
Power
Use the included power cord to connect the device (on the rear panel) to an AC outlet. The
device supports AC 100 – 240 V, 50/60 Hz.
Chassis Ground Column
Located on the right side of the power supply connector, a grounding terminal connector
is used to provide proper grounding for your Intellinet Network Solutions data switch. If
you use the chassis grounding screw, it should be wired to an object that provides earth
ground. In rackmount installations, grounding is typically provided by the metal frame of the
mounting rack.
Desktop Installation
Prior to use, it is recommended that the switch be placed/positioned on a level surface with
at least 25 mm (approx. 1”) of clearance for ventilation; away from sources of electrical noise:
radios, transmitters, broadband ampliers within 100 m (approx. 328’) of network devices
it’s to be connected to. Attach the rubber feet to the bottom of each corner of the switch to
increase stability.
Rackmount Installation
The switch can be mounted in an EIA standard-sized, 19-inch rack. Attach the mounting
brackets on the switch’s side panels (one on each side) and secure them with the
screws provided.
Use the screws provided with the equipment rack to mount the Intellinet Network Solutions
data switch on the rack.
Placement
English
24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 4 Gigabit Combo Base-T/SFP Ports
Rear Panel
