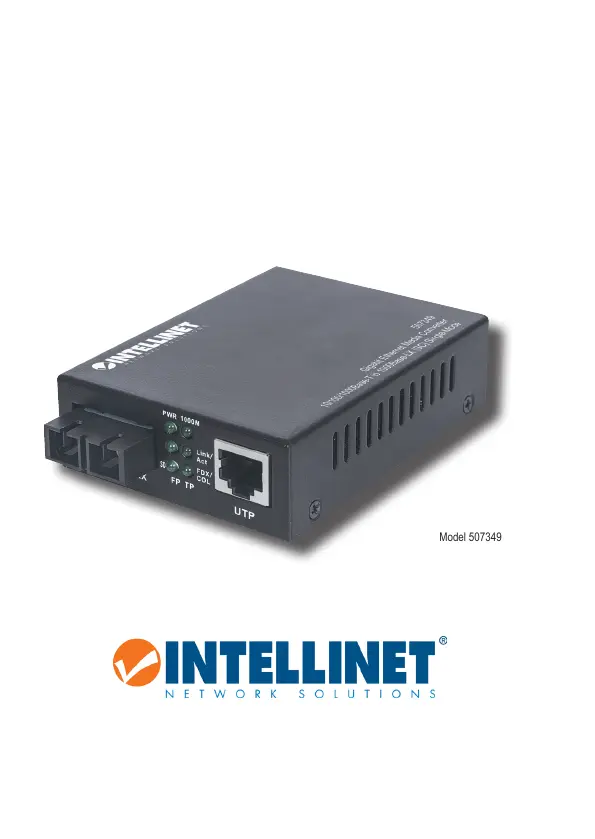

GIGABIT ETHERNET
MEDIA CONVERTER
INSTRUCTIONS
MODELS 506533, 507349
INT-506533/507349-UM-ML1-1015-02
Important: Read before use. ā¢ Importante: Leer antes de usar.
intellinetnetwork.com
2
ENGLISH
Gigabit Ethernet Media Converter English
Thank you for purchasing the Intellinet Gigabit Ethernet Media
Converter. Media converters connect two Ethernet networks over
a longer distance using ļ¬ber optic cable.
MODELS
ā¢ī 506533:
Gigabit Ethernet Media Converter
1000Base-T to 1000Base-SX (SC) Multi-Mode, 550 m (1800 ft.)
ā¢īī507349:
Gigabit Ethernet Single Mode Media Converter
10/100/1000Base-T to 1000Base-LX (SC) Single-Mode, 20 km
(12.4 mi)
CONNECTIONS
TwistedīPairīāīRJ45
Connect the UTP port of the media converter to an RJ45 port on
the network; e.g., to an Ethernet switch. Cat5e or better cabling is
recommended.
Fiber Optic
As shown above, two ļ¬ber optic cables need to be connected
between two ideally identical media converters. Make a
connection from Media Converter 1 TX to Media Converter 2 RX,
and from Media Converter 1 RX to Media Converter 2 TX.
Media Converter 1
Media Converter 2
RJ45
RJ45
TX
TX RX
RX
OPTICAL FIBER
ETHERNET 1 ETHERNET 2
Twisted Pair
Twisted Pair
ENGLISH 3
Maximum length and ļ¬ber cable speciļ¬cation depend on the
model. (See Models.)
POWER
Plug the power adapter into the 5 V DC input jack on the media
converter, then connect it to a regular power outlet. Only use
the included power adapter or one with matching speciļ¬cations
(output of 5 V DC, at least 1 A).
LEDS
PWR ā The power adapter is connected when lit.
1000M ā 1000 Mbps link on the twisted pair connection when lit.
Link/Actī(TPī=īRJ45;īFPī=īFiber) ā Active link when lit; data traļ¬c
when ļ¬ashing; no active network link when unlit.
FDX/COLī(forīTP/RJ45) ā Full duplex connection when lit; data
collisions when ļ¬ashing; half duplex when unlit.
SDī(forīFP/Fiber) ā Fiber optic signal is detected when lit; no
signal when unlit.
For speciļ¬cations, go to intellinetnetwork.com.
