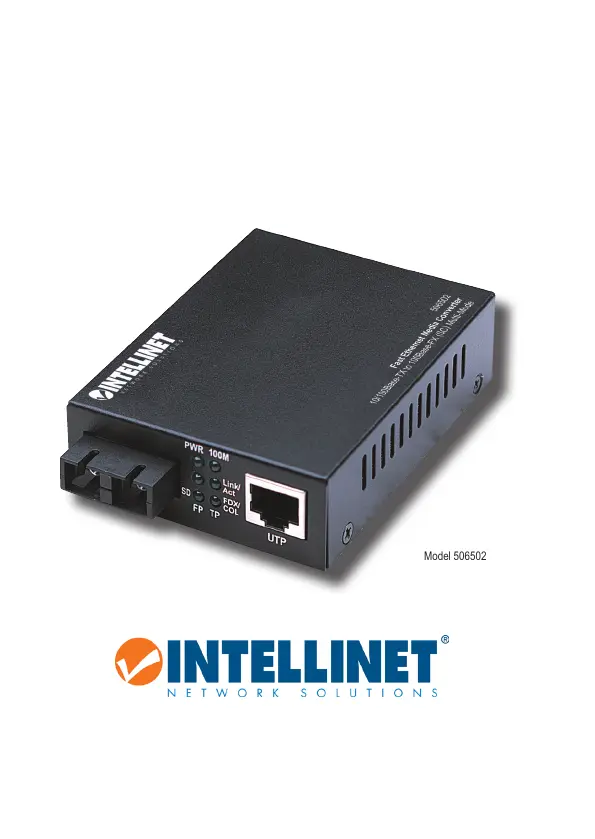

Seite 1/16
FAST ETHERNET
MEDIA CONVERTER
INSTRUCTIONS
MODELS 506502, 506519, 507332
INT-506502/506519/507332-UM-ML1-1015-02
Important: Read before use. • Importante: Leer antes de usar.
intellinetnetwork.com
2
ENGLISH
Fast Ethernet Media Converter English
Thank you for purchasing the Intellinet Fast Ethernet Media
Converter. Media converters connect two Ethernet networks over
a longer distance using fiber optic cable.
MODELS
• 506502:
Fast Ethernet Media Converter
10/100Base-TX to 100Base-FX (SC) Multimode, 2 km (1.24 mi.)
•506519:
Fast Ethernet Media Converter
10/100Base-TX to 100Base-FX (ST) Multimode, 2 km (1.24 mi.)
•507332:
Fast Ethernet Single Mode Media Converter
10/100Base-TX to 100Base-FX (SC) Single Mode, 20 km (12.4 mi.)
CONNECTIONS
TwistedPair–RJ45
Connect the UTP port of the media converter to an RJ45 port on
the network; e.g., to an Ethernet switch. Cat5e or better cabling is
recommended.
Fiber Optic
As shown above, two fiber optic cables need to be connected be-
tween two ideally identical media converters. Make a connection
MediaConverter1
MediaConverter2
RJ45
RJ45
TX
TX RX
RX
OPTICAL FIBER
ETHERNET1 ETHERNET2
Twisted Pair
Twisted Pair
ENGLISH 3
from Media Converter 1 TX to Media Converter 2 RX, and from
Media Converter 1 RX to Media Converter 2 TX. Maximum length
and fiber cable specification depend on the model. (See Models.)
POWER
Plug the power adapter into the 5 V DC input jack on the media
converter, then connect it to a regular power outlet. Only use
the included power adapter or one with matching specifications
(output of 5 V DC, at least 1 A).
LEDS
PWR – The power adapter is connected when lit.
100M – 100 Mbps link on the twisted pair connection when lit;
10 Mbps link or no link if unlit.
Link/Act(TP=RJ45;FP=Fiber) – Active link when lit; data traffic
when flashing; no active network link when unlit.
FDX/COL(forTP/RJ45) – Full duplex connection when lit; data
collisions when flashing; half duplex when unlit.
SD(forFP/Fiber) – Fiber optic signal is detected when lit; no
signal when unlit.
For specifications, go to intellinetnetwork.com.
