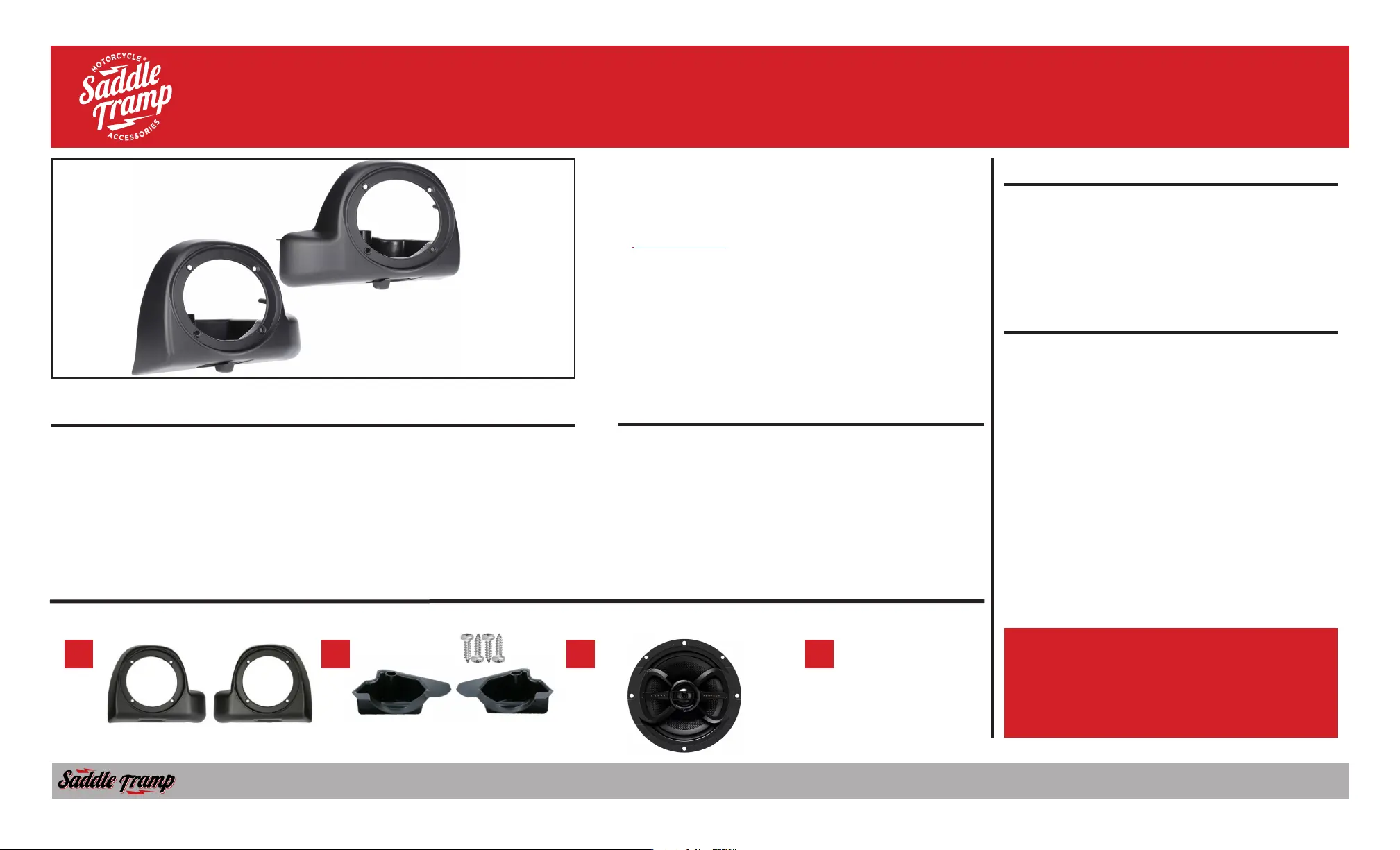

Seite 1/10
• Sound-optimized enclosure for improved bass
performance
• Molded tray fits snugly into lower fairings
• OE Fit and finish
• Painted a complimentary Matte Black finish
Preparation................................................................................2
Fairing Disassembly...............................................................3-4
Installation..............................................................................5-8
TABLE OF CONTENTS
Attention! We recommend removing the main battery fuse prior
to installation. When testing the after-market equipment, ensure
that all factory equipment is connected before cycling the key to
ignition.
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Torx® Drivers T-10,T-15, T-20, T-25
• Phillips screwdriver
• Sockets wrenches, 7/16, 1/2.
• 3/8 Drill bit
• Blue Thread-locker
• *Silicone (3MSCLR), gasket tape (IBSPKGTP)
• *(4) #14 X 3/4” Hex head screw
• *(2) 3/8 wire grommet
• Masking tape
*Optional
Part Components
A) Speaker enclosure (L & R) B) Enclosure tray (L & R) C) Infinity Kappa Perfect 6.5" Speakers
A B D
INFKPNTCKIT
INFKPNTCKIT
INFKPNTCKIT
INFKPNTCKITINFKPNTCKIT
INSTALLATION INSTRUCTIONS
# PowerSportsMetra
MetraPowerSports.com
Motorcycle Accessories ©COPYRIGHT 20 METRA ELECTRONICS CORPORATION REV. 07/ 23 11/2023 INFKPNTCKIT
Part Applications
• Harley Davidson FLHT, FLHTCU, FLHTCUL, FLHX, FLHXS, FLTRX, FLTRXS, FLTRXSE
(w/ lower fairings) 2014-Up (†)
(†) Does not fit Twin-Cooled® models
(†) FLHX models require purchase of lower fairing kit
Harley-Davidson® 2014-2022
Lower Fairing Audio Upgrade Kit
Visit MetraPowerSports.com for more detailed information about the product and up-to-
date vehicle specific applications.
Note: This Installation will reuse hardware from the existing
mounted lower fairing.
Note:
Note:
Note:
Note: Note: Not compatible with the Rockford Fosgate OE system.
Product Features
D HM-9722 harness (not Shown))
C
2 386.257.2956 MetraPowerSports.com
PREPARATION
Attention! To prevent accidental vehicle start-up, which could cause death or serious injury,
remove main fuse before proceeding.
1. Open left side saddle bag lid.
2. Rotate (2) mounting studs counter clockwise until released, then lift off saddle bag
3. Remove left side access cover.
4. For vehicles equipped with security siren: Verify that the Hands-Free Fob is present.
5. Cycle the key to the ignition position.
6. Remove main fuse.
(Figure A)
Models Equipped With Fairing Lowers
1. Open lower fairing glove box door.
2. Remove 7/16 in. nut securing the lower fairing cap.
(Figure B.1)
3. Remove fairing cap.
(Figure B.2)
4. Remove lower fairing clamp screw and 1/2 in. nut.
(Figure B.3)
5. Remove (2) 7/16 in. flange nuts securing upper clamp, then remove fairing assembly.
(Figure B.4)
(
Figure A
)
(
Figure B
)
Continue to disassembly
REV. 07/11/2023 INFKPNTCKIT 3
Speaker Pod
1. From the front, remove the (2) screws , block-off panel then glove box.
(Figure A.1,2,4)
*Attention: Take precautions not to brake of the lock positioning tab.
(Figure A.3)
2. Disconnect the vent door linkage and separate assembly from fairing.
(Figure B.1 )
(
Figure A
)
(
Figure C
)
FAIRING DISASSEMBLY
Continued on next page
(
Figure B
)
1. From the back, remove the (3) screws.
(Figure C.1)
Lower Fairings
