The set-up of the camera cannot only be
achieved via the OSD but also remotely by RS-
485 connection. It is possible to change the set-
up from a PC through the RS-485 connection
after installation, even if, the camera is installed,
at height or at a long distance from the control
centre.
Manual/Variable Electronic Shutter
The ICD-48E/ICD-48 has 9 steps of manual electronic shutter from 1/50
(EIA 1/60) to 1/100,000 seconds. It also has, a variable shutter function
which can change its shutter speed within its range from 1/50 (EIA: 1/60)
to 1/100,000.
BLC (Back Light Compensation) function
An intelligent BLC function gives appropriate brightness, even if there is a
high bright back light illumination of subjects in the viewed scene.
Other Standard Functions
AES (Automatic Electronic Shutter), Two-Way Auto Iris control (VIDEO Iris
and DC Iris), Line Lock/Internal Lock and AGC (Automatic Gain Control).
Remote Set-up Capability
Camera ID set up, AES/Electronic Shutter selection, BLC ON/OFF/SPOT selection and level
adjustment, DC Iris level adjustment, AGC/Hyper-AGC selection and GAIN LOW/MID/HIGH
(AGC OFF) selection, INTERNAL LOCK/LINELOCK selection and phase adjustment, GENLOCK
phase adjustment, DETAIL level adjustment, PEDESTAL level adjustment, MENU LOCK
OSD Set-Up Items
The ICD-48E/ICD-48 is a 1/2"CCD Digital Signal Processing (DSP) Monochrome Camera,
with High Sensitivity (0.0075 lux at F1.2) and High Resolution (Horizontal Resolution 560TV lines[CCIR]/
570 TV lines[EIA]). It is extremely Infra-Red sensitive giving the best performance in its class
when used in conjunction with Infra-Red lighting (800nm to 1000nm approx).
It has a remote set-up capability via RS-485 to allow set-up alterations even after installation.

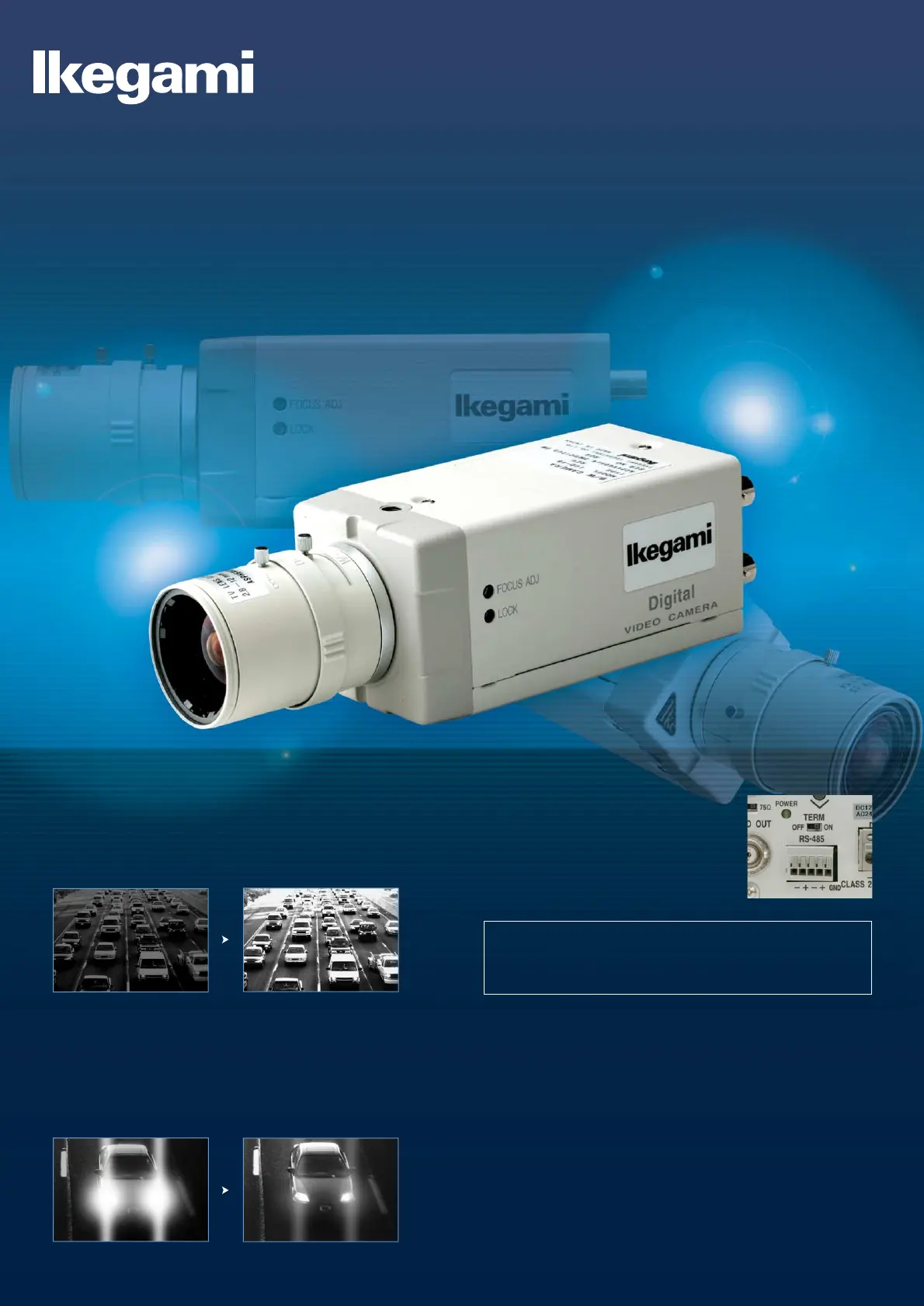

1/2" CCD Multi-Function DSP Monochrome Camera
Conventional Camera ICD-48E/ICD-48
Conventional Camera ICD-48E/ICD-48
High Sensitivity
With its high sensitivity of 0.0075 lux at F1.2 the ICD-48E/48 has a near
black Infra-red sensitivity (800nm to 1000nm approx), which is about five
times higher than it’s predecessors, the award winning ICD-42E and ICD-
47E. This makes it ideal for outdoor surveillance when round the clock
performance is required.
High Resolution and High Quality Picture Performance
The camera delivers a high horizontal resolution of more than 560 TV lines
(CCIR)/570 TV lines (EIA) and realises a high quality picture with a Signal
to Noise ratio more than 50dB.
Low Smear Level
A near natural image is delivered, due to the low smear performance of
-120dB, even in difficult high bright situations like those of direct car
headlights.
GIVING NEW VALUE TO IMAGES
1/2" CCD Multi-Function DSP Monochrome Camera
ICD-48E [CCIR] / ICD-48 [EIA]
1/2 inch, Interline Transfer CCD
CCIR: 752(H) x 582(V), 440,000 pixels approx.
EIA: 768(H) x 494(V), 380,000 pixels approx.
CCIR: 625 lines at 50Hz, 2:1 interlace
EIA: 525 lines at 59.94Hz, 2:1 interlace
INTERNAL/LINELOCK/GENLOCK
VS 1.0 Vp-p/75 ohms
CCIR: 560 TV lines
EIA: 570 TV lines
more than 50 dB
(AGC OFF, DETAIL OFF, weight ON)
0.0075lux at F1.2
0.01lux at F1.4
(Light source: Halogen lamp, Colour temperature: 2856K)
ON/OFF switchable and level adjustable
ON/OFF switchable
AES range: CCIR: 1:2000, EIA: 1: 1600
CCIR: OFF (1/50), 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/100000
Variable Shutter 1/50 to 1/100000
EIA: OFF (1/60), 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/100000
Variable Shutter 1/60 to 1/100000
ON (AGC/HYPER-AGC)/OFF (LOW/MID/HIGH) switchable
Video Iris/DC Iris selectable (DC iris level is adjustable)
CS mount (C mount adaptor can be used)
Built in (1 line, 16 characters)
OSD set-up and selection is available by 5 buttons
Camera ID set-up
AES/Electronic Shutter selection
BLC ON/OFF/SPOT selection and level adjustment
DC Iris level adjustment
AGC/Hyper-AGC selection and GAIN LOW/MID/HIGH (AGC OFF) selection
INTERNAL LOCK/LINELOCK selection and phase adjustment
GENLOCK phase adjustment
DETAIL level adjustment
PEDESTAL level adjustment
MENU LOCK
Built in
Local Set up item and Equipment ID for RS-485
Built in
CCIR: AC24V 10% 50Hz /DC12V (10.5V to 15V)±
AC230V±15% 50Hz
EIA: AC24V 10% 60Hz /DC12V (10.5V to 15V)±
CCIR: AC230V 30mA approx.
AC24V 310mA approx.
DC12V 320mA approx.
EIA: AC24V/DC12V 4.3W approx.
-10 C(14°C to +50° °F to 122°F)
1/4"-20UNC
W62 x H55 x D118mm(W2.44 x H2.17 x D4.65inch)
AC24V/DC12V type 430g approx.(0.95 lbs)
AC230V type 860g approx.(1.83 lbs)
VIDEO OUT: BNC
GENLOCK IN: BNC
LENS: 4P (applicable connector E4-191J-150 or equivalent)
RS-485: 5P (push in terminal)
AC24V/DC12V Input: 2P (push in terminal)
Operation Manual
C Mount Adaptor
Auto Iris Connector (E4-191J-150 or equivalent, CCIR only)
Imaging Device
Effective Pixels
Scanning System
Synchronization System
Video Output
Horizontal Resolution
S/N Ratio
Minimum Illumination
BLC (Backlight Compensation)
AES Function
High-speed Electronic Shutter
AGC (Automatic Gain Control)
Auto Iris Function
Lens Mount
Camera ID function
Local Setup function
RS-485 Communication
Flange Back Adjustment Mechanism
Power Requirement
Power Consumption
Operating Ambient Temperature
Camera Mount
Dimensions
Weight
Input/Output Connectors
Accessories
Specifications
Dimensions:mm(inch)
C MOUNT ADAPTOR
(ACCESSORY)
55 (2.17)
62 (2.44)
118 (4.65
)
2-1/4"-20UNC
1"-32UN-2B
ICD-48
AC24V/DC12V
ICD-48E AC230V
ICD-48E
AC24V/DC12V
Spectral Response
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
400 500 600 700 800 900 1000 1100
Wave Lenght (nm)
Relative Response
ICD-48E,ICD-48
IT CCD (Conventional)
FOCUS ADJ
LOCK
Max40mA
LENS
DC VIDEO
Design and specifications are subject to change without notice.
U112A0510-HI-K12 Printed in Japan
Ikegami Tsushinki Co.,Ltd. URL http://www.ikegami.co.jp/en/
Head Office
5-6-16 Ikegami, Ohta-ku, Tokyo 146-8567, Japan TEL.+81-(0)3-5700-1111/FAX.+81-(0)3-5700-1137
Overseas Sales Division
5-6-16 Ikegami, Ohta-ku, Tokyo 146-8567, Japan TEL.+81-(0)3-5700-4117/FAX.+81-(0)3-5700-4120
Ikegami Electronics (Europe) GmbH URL http://www.ikegami.de http://www.ikegami.co.uk
Ikegami Strasse 1,D-41460 Neuss, Germany TEL.+49-(0)2131-1230/FAX.+49-(0)2131-102820
UK CUSTOMER SUPPORT HELP LINE TEL.+44-(0)560-043-3769
