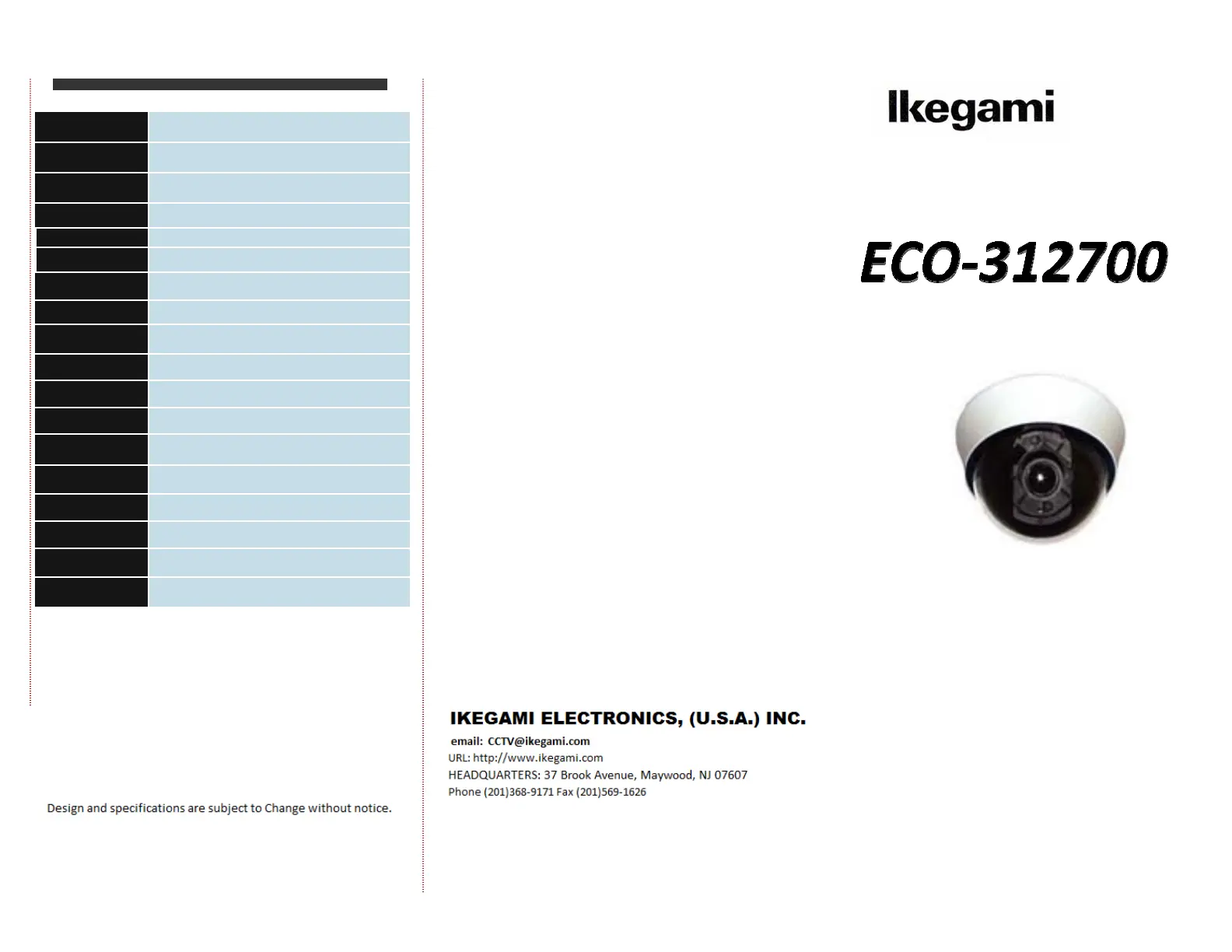

Specification
Note:
:
:
: : Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
Model ECO-312/700
Pick up Element 1/3" Nextchip CCD
Effective Picture Elements
(H×V) NTSC: 976(H)×494(V)
Horizontal Resolution 700 TV Line
Minimum Illumination 0.1 Lux
S/N Ratio More than 50dB
Scanning System 2:1 interface
Synchronous System Internal, Negative sync.
Auto Electronic Shutter NTSC: 1/60s~1/100,000s
Gama Characteristic 0.45
Video Output 1Vpp, 75Ω
Auto Gain Control Auto
Power/
/
/
//Current DC12V(+/-10%)/300mA
Lens 2.8-12mm Manual Zoom Lens
Dimension (mm) ￠ 118 x 106(H)mm
Weight (g) 750
Storage Temperature -20~+60℃ RH95% MAX
Operating Temperature -10~+50℃ RH95% MAX
3-Axis Bracket Built-in
INTRODUCTION
Congratulations on your purchase of this product.
This User Guide suits ECO-312700 product. We adopt
the latest Nextchip technical of sensor and driver. The
most attractive characteristics are small and easy hidden,
suits the elevator and corridor. In addition, it owns the
characters of high definition and stability, strong anti-
jamming, rich and real color. Fixing and using this model
are convenient too. It is very good for you to apply to your
CCTV system.
Please read this instruction manual carefully to en-
sure proper use of the product.
CONNECTING
BRIEF OF PRODUCT
*
*
*
* * (
(
(
(( )
)
)
) ) Sensor CCD
Adopt 1/3" Nextchip CCD Sensor.
*
*
*
* * Auto Gain Control (AGC)
Built-in auto gain control (AGC) circuit. The color
camera
can get high definition picture in low Lux condition.
*
*
*
* * Auto Electronic Shutter (AES)
Built-in auto electronic shutter function. The color
camera’s AES speed can reach 1/100,000s.
*
*
*
* * Gama Characteristic
Camera Gama characteristic is 0.45.
*
*
*
* * Scanning Mode
NTSC or PAL mode.
DC12V
Power Supply
Monitor
TROUBLE AND SOLUTION
Link wire rule：
Power
Video
1. No picture after providing power
. Maybe the power supply has voltage abnormity, please check the
power
supply voltage and pole whether exactitude.
. Please check all the connecting cable and monitors whether be con-
nected
correctly or not.
2. The picture level direction have flowing interference ripples
. May be caused by the power supply AC ripples, it need filter the wave
of the
power supply.
. Check the monitor and peripheral equipments used.
3. The picture background color changes continuously
. The fluorescent lamp’s electromagnetic field cause color roll. This is
proper
phenomenon of the cameras.
. Reduce the fluorescent lamp numbers or increase the distance be-
tween the
camera and the fluorescent lamps can improve it.
. Use power supply external sync. camera can solve it.
To prevent fire or shock hazarded. Do not expose the unit
The symbol is intended to alert the user to the presence of
The symbol is intended to alert the user to the presence of
to rain or moisture.
important operating and maintenance (servicing)
Instructions in the literature accompanying the appliance.
uninsulated ‘dangerous voltage’ within the product’s
enclosure that may be of sufficient Magnitude to consti-
a risk of electric shock to persons.
Video
DC12V
CAUTION:
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER OR BACK NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO OUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC. DO NOT OPEN
CAUTION: TO PREVENT ELECTRIC SHOCKS AND RISK OF
FIRE HAZARDS, DO NOT USE OTHER THAN
SPECIFIED POWER SOURCE.
Note：
：
：
： ：
● The power supply must through safe attestation. Its output volt-
age, current, voltage polarity and operating temperature must
match the camera’s requirement.
● ,When using the camera in the thunderbolt condition please note to
mount Anti-thunder device or put off the power supply plug and
cable.
●In order to capture high quality pictures, the power supply’s cable
and video output cable should not be too long.
Note:
:
:
: :
● Please note the camera’s operating temperature and its using
environment requirement. Avoid using the camera at too high
or too low temperatures. The operating temperature is –
20~+60Ԩ. (Recommendatory operating temperature is -
10~+50Ԩ.)
● Never make the camera face the sun or bright object. Other-
wise, it will damage the sensor.
● Do not mount the camera near by the radiator or heater.
