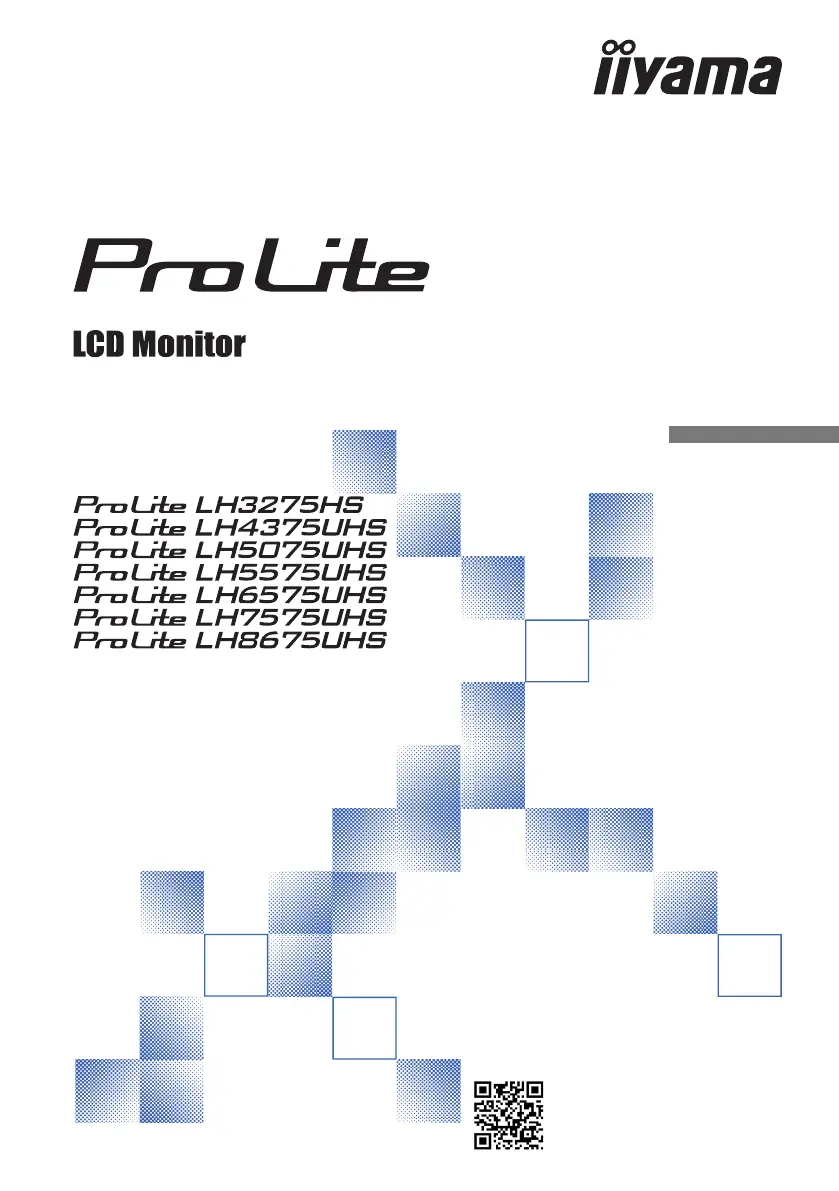

ENGLISH
Thank you very much for choosing the
iiyama LCD monitor for signage.
We recommend that you take a few
minutes to read this comprehensive
manual carefully before installing and
switching on the monitor. Please keep
this manual in a safe place for your
future reference.
USER MANUAL
ENGLISH
 Wereservetherighttochangespecicationswithoutnotice.
All trademarks used in this user manual are the property of their respective owners.
Eprel registration number
LH4375UHS-B1AG : 1859802 LH5075UHS-B1AG : 1886828 LH5575UHS-B1AG : 1868585
LH6575UHS-B1AG : 1875476 LH7575UHS-B1AG : 1886880 LH8675UHS-B1AG : 1881890
We recommend recycling of used product. Please contact your dealer or iiyama
service center. Recycle information is obtained via the Internet, using the
address: https://iiyama.com
YoucanaccesstheWebpageofdi󰀨erentcountriesfromthere.
CE MARKING DECLARATION OF CONFORMITY
This LCD monitor complies with the requirements of the EC/EU Directive 2014/53/EU RED
Directive”, 2009/125/EC “ErP Directive” and 2011/65/EU “RoHS Directive”.
The electro-magnetic susceptibility has been chosen at a level that gives correct operation in
residential areas, business and light industrial premises and small-scale enterprises, inside as
well as outside of the buildings. All places of operation are characterised by their connection to
the public low voltage power supply system.
Radiation Exposure Statement:
This equipment complies with CE radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & body.
Operating Frequency range and the maximum output power (EIRP) are listed below:
PL4375U
Function Frequency Maximum Output Power
(EIRP)
WiFi
2412-2472 MHz 19.851 dBm
5180-5240 MHz 22.109 dBm
5260-5320 MHz 22.163 dBm
5500-5700 MHz 22.281 dBm
5745-5825 MHz 13.118 dBm
PL5075U & PL5575U & PL6575U & PL7575U & PL8675U
Function Frequency Maximum Output Power
(EIRP)
WiFi
2412-2472 MHz 19.19 dBm
5180-5240 MHz 20.75 dBm
5260-5320 MHz 20.75 dBm
5500-5700 MHz 20.66 dBm
5745-5825 MHz 11.64 dBm
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands
Model No. : PL3275, PL4375U, PL5075U, PL5575U, PL6575U, PL7575U, PL8675U
ENGLISH
TABLE OF CONTENTS
FOR YOUR SAFETY ............................................................................1
SAFETY PRECAUTIONS................................................................1
SPECIAL NOTES ON LCD MONITORS 3 .........................................
CUSTOMER SERVICE 5 ...................................................................
CLEANING 5 ......................................................................................
BEFORE YOU OPERATE THE MONITOR ..........................................6
FEATURES......................................................................................6
CHECKING THE CONTENTS OF THE PACKAGE 7 ........................
UNPACKING 7 ...................................................................................
CONTROLS AND CONNECTORS..................................................8
INSTALLATION 12 .............................................................................
FUNCTIONS OF THE REMOTE CONTROL ................................14
PREPARING THE REMOTE CONTROL.......................................15
ID REMOTE CONTROL ................................................................16
BASIC OPERATION 17 ......................................................................
CONNECTING YOUR MONITOR : ProLite LH3275HS 19 ...............
CONNECTING YOUR MONITOR :
ProLite LH4375UHS /
ProLite LH5075UHS / ProLite LH5575UHS / ProLite LH6575UHS
..20
CONNECTING YOUR MONITOR :
ProLite LH7575UHS / ProLite LH8675UHS 21 .................................
COMPUTER SETTING 24 .................................................................
OPERATING THE MONITOR .............................................................25
ADJUSTMENT MENU CONTENTS 26 ..............................................
STANDBY FEATURE 48 ....................................................................
TROUBLE SHOOTING 49 ......................................................................
RECYCLING INFORMATION 50 .............................................................
APPENDIX 51 ........................................................................................
SPECIFICATIONS : ProLite LH3275HS-B1AG 51 .............................
SPECIFICATIONS : ProLite LH4375UHS-B1AG 52 ..........................
SPECIFICATIONS : ProLite LH5075UHS-B1AG 53 ..........................
SPECIFICATIONS : ProLite LH5575UHS-B1AG 54 ..........................
SPECIFICATIONS : ProLite LH6575UHS-B1AG 55 ..........................
SPECIFICATIONS : ProLite LH7575UHS-B1AG 56 ..........................
SPECIFICATIONS : ProLite LH8675UHS-B1AG 57 ..........................
DIMENSIONS : ProLite LH3275HS 58 ...............................................
DIMENSIONS : ProLite LH4375UHS 58 ............................................
DIMENSIONS : ProLite LH5075UHS 59 ............................................
DIMENSIONS : ProLite LH5575UHS 59 ............................................
DIMENSIONS : ProLite LH6575UHS 60 ............................................
DIMENSIONS : ProLite LH7575UHS 60 ............................................
DIMENSIONS : ProLite LH8675UHS 61 ............................................
COMPLIANT TIMING ....................................................................61
ENGLISH
FOR YOUR SAFETY 1
FOR YOUR SAFETY
WARNING
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE
If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the
monitor and contact your dealer or iiyama service center immediately. Further use may be
dangerousandcancausereorelectricshock.
NEVER REMOVE THE CABINET
High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of
reorelectricshock.
DO NOT PUT ANY OBJECT INTO THE MONITOR
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug
your monitor immediately and contact your dealer or iiyama service center. Using the monitor with
anyobjectinsidemaycausere,electricshockordamage.
INSTALL THE MONITOR ON A FLAT, STABLE SURFACE
The monitor may cause an injury if it falls or is dropped.
DO NOT USE THE MONITOR NEAR WATER
Donotusewherewatermaybesplashedorspiltontothemonitorasitmaycausereorelectric
shock.
OPERATE UNDER THE SPECIFIED POWER SUPPLY
Besuretooperatethemonitoronlywiththespeciedpowersupply.Useofanincorrectvoltagewill
causemalfunctionandmaycausereorelectricshock.
PROTECT THE CABLES
Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy
objectsonthecables.Ifdamaged,thecablesmaycausereorelectricshock.
ADVERSE WEATHER CONDITIONS
It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in
power may cause malfunction. It is also advised not to touch the plug in these circumstances as it
may cause electric shock.
SAFETY PRECAUTIONS
ENGLISH
2 FOR YOUR SAFETY
CAUTION
INSTALLATION LOCATION
Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or
smokyareasasitmaycausere,electricshockordamage.Youshouldalsoavoidareaswherethe
sun shines directly on the monitor.
DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION
The monitor may topple and cause injury if not suitably located. Please also ensure that you do not
place any heavy objects on the monitor, and that all cables are routed such that children may not
pull the cables and possibly cause injury.
MAINTAIN GOOD VENTILATION
Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause
re.Toallowadequateaircirculation,placethemonitoratleast10cm(or4inches)fromanywalls.
Operating the monitor on its back, side, upside down or on a carpet or any other soft material may
also cause damage.
DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR
Whenyoumovethemonitor,turno󰀨thepowerswitch,unplugthemonitorandbesurethesignal
cableisdisconnected.Ifyoudonotdisconnectthem,itmaycausereorelectricshock.
UNPLUG THE MONITOR
If the monitor is not in use for a long period of time it is recommended that it is left unplugged to
avoid accidents.
HOLD THE PLUG WHEN DISCONNECTING
To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable
itselfasthismaycausereorelectricshock.
DO NOT TOUCH THE PLUG WITH WET HANDS
Pulling or inserting the plug with wet hands may cause electric shock.
WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER
Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may
damage your computer.
ERGONOMIC RECOMMENDATIONS
To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room.
For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches)
away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour
is recommended as looking at the screen continuously can cause eye strain.
OTHERS
ENGLISH
FOR YOUR SAFETY 3

The following symptoms are normal with LCD monitors and do not indicate a problem.
NOTE -WhenyourstturnontheLCDmonitor,thepicturemaynottinthedisplayarea
because of the type of computer that is used. In this case, adjust the picture position to
the correct position.
-Youmayndslightlyunevenbrightnessonthescreendependingonthedesktop
pattern you use.
- Due to the nature of the LCD screen, an afterimage of the previous screen may remain
after switching the image, when the same image is displayed for hours. In this case, the
screenisrecoveredslowlybychangingtheimageorturningo󰀨thePowerSwitchfor
hours.
SPECIAL NOTES ON LCD MONITORS

This LCD cannot be used outdoors.

This LCD cannot be used with the screen facing upwards.

If you use a cable longer than the supplied one, the picture quality is not guaranteed.
ENGLISH
4 FOR YOUR SAFETY
USAGE CONFIRMATION
Product maximum non-stop usage hours following the installation guidelines in a clean and
temperature-controlled environment: 24/7
The monitor is compatible for usage in Landscape/Portrait applications.
IMAGE PERSISTENCE / IMAGE STICKING
Please be aware that all LCD screens can experience Image Persistence or Image Sticking. This
occurs when a residual image remains visible on a screen when static images are displayed for long
periods of time. LCD Image Persistence is not permanent but constant images being displayed for a
long period of time should be avoided.
To counteract Image Persistence, turn off the monitor for as long as the previous image was
displayed, so if an image was on the monitor for 1 hour and there is evidence of a residual or “ghost”
image,youshouldturno󰀨themonitorfor1hourinordertocleartheresidualimage.
For all LFD products, iiyama recommends displaying moving images and utilising a moving screen
saveratregularintervalswheneverthescreenisidle.Youcouldalsoturno󰀨themonitorwhennot
in use to assist the prevention.
Other ways to reduce the risk of Image Persistence will be to utilise the FAN-on function (if
available), Low Backlight and Low Brightness settings.
FOR EXTENDED USE AS A PUBLIC MONITOR

Image Sticking on LCD Panel
When a static image is displayed for hours, an electric charge trace remains near the electrode
inside the LCD producing a “ghost” image. (Image Persistence).
Image Persistence is not a permanent feature.

Recommendations
To prevent Image Sticking and promote longer life expectancy of monitor, we recommend the
following:
1. Avoid static images displayed for long periods – change static images on continuous loop.
2.Turno󰀨monitorwhennotinuse,eitherbyremotecontroloruseStandbyorSchedulefunctions.
3. Check the Monitor Menu Settings for "Pixel Shift" etc. and activate it when available. This will
reducetheImageStickingE󰀨ect.
4. When monitor is installed in high ambient temperature environment(s) or in an enclosed position,
utilise the Cooling Fan, Screen Saver and Low Brightness functions.
5. Suitable ventilation for any monitor is an expectation of any installation climate control systems
may need to be employed.
6. We strongly recommend utilisation of active cooling with fans for long operation times or high
ambient temperature environments.
ENGLISH
FOR YOUR SAFETY 5
NOTE 
If you have to return your unit for service and the original packaging has been
discarded, please contact your dealer or iiyama service center for advice or
replacement packaging.
WARNING 
If you drop any materials or liquids such as water into the
monitor
when cleaning,
unplug the power cable immediately and contact your dealer or iiyama service center.
CAUTION 
For safety reasons, turn o󰀨 the power switch and unplug themonitor before you
clean it.
NOTE 
To protect the LCD panel, do not scratch or rub the screen with a hard object.

Never use any of the following strong solvents. These will damage the cabinet and
the LCD screen.

Touching the cabinet with any product made from rubber or plastic for a long time
may cause degeneration or loss of paint on the cabinet.
Thinner Benzine Abrasive cleaner
Spray-type cleaner Wax Acid or Alkaline solvent
CABINET Stains can be removed with a cloth lightly moistened with a mild detergent solvent.
Then wipe the cabinet with a soft dry cloth.
LCD
SCREEN
Periodic cleaning with a soft dry cloth is recommended.
Don't use tissue paper etc. because these will damage the LCD screen.
CUSTOMER SERVICE
CLEANING
ENGLISH
6 BEFORE YOU OPERATE THE MONITOR
BEFORE YOU OPERATE THE MONITOR
FEATURES
Supports Resolutions up to 1920 × 1080 : ProLite LH3275HS
Supports Resolutions up to 3840 × 2160 : ProLite LH4375UHS / ProLite LH5075UHS /
ProLite LH5575UHS / ProLite LH6575UHS / ProLite LH7575UHS / ProLite LH8675UHS
High Contrast 1200:1 (Typical) / Brightness 500cd/m 2 (Typical) :
ProLite LH3275HS / ProLite LH4375UHS / ProLite LH5575UHS /
ProLite LH6575UHS / ProLite LH7575UHS
High Contrast 5000:1 (Typical) / Brightness 500cd/m 2 (Typical) :
ProLite LH5075UHS
High Contrast 1400:1 (Typical) / Brightness 500cd/m 2 (Typical) :
ProLite LH8675UHS
Digital Character Smoothing
Stereo Speakers
2 × 10W Stereo Speakers
Standby Feature
VESA Mounting Standard (200mm×200mm) Compliant
:
ProLite LH3275HS / ProLite LH4375UHS
VESA Mounting Standard (400mm×400mm) Compliant
:
ProLite LH5075UHS
/ ProLite LH5575UHS / ProLite LH6575UHS
VESA Mounting Standard (600mm×400mm) Compliant
:
ProLite LH7575UHS / ProLite LH8675UHS
ENGLISH
BEFORE YOU OPERATE THE MONITOR 7
The following accessories are included in your package. Check to see if they are enclosed with
the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional
iiyamaoce.
CHECKING THE CONTENTS OF THE PACKAGE
CAUTION
UNPACKING
CAUTION
Moving the monitor requires at least two people. If not, it may drop and could result in a serious
injury.
* All guarantees and warranties are void for any problems or damage caused by a power cable not
supplied by iiyama
An approved power cable greater or equal to H05VVF, 3G, 0.75mm 2 must be used.
Power Cable (2pcs)* HDMI Cable RS-232C Cable
Remote Control Battery (2pcs) Cable clicks (2pcs)
AC switch cover Screw (1pcs, for AC switch cover) (M3*6mm)
Stickers for screw holes
1 sheet (Stickers: 15pcs : ProLite LH7575UHS / ProLite LH8675UHS)
EU Energy Label Safety Guide Quick Start Guide
ENGLISH
BEFORE YOU OPERATE THE MONITOR 9
 ProLite LH5575UHS
 ProLite LH4375UHS / ProLite LH5075UHS
ENGLISH
10 BEFORE YOU OPERATE THE MONITOR
 ProLite LH7575UHS / ProLite LH8675UHS
 ProLite LH6575UHS
ENGLISH
BEFORE YOU OPERATE THE MONITOR 11
AC IN AC-INLET AC Connector( : Alternating current)
( ) (AC-IN)
AC SWITCH
(ON) / (OFF) MAIN POWER Main Power Switch
LAN RJ45 RJ45 Connector
AUDIO OUT ø 3.5mm Mini Jack Headphone Connector
DisplayPort IN DisplayPort DisplayPort Connector
DisplayPort OUT DisplayPort DisplayPort Connector
HDMI1 IN HDMI HDMI Connector
HDMI2 IN
HDMI
(HDMI ARC support:
ProLite LH3275HS) *
HDMI Connector
RS232C OUT ø 2.5mm Sub-mini Jack RS232C Connector
RS232C IN ø 2.5mm Sub-mini Jack RS232C Connector
USB USB2.0 (5V, 500mA) USB Connector
USB USB2.0 (5V, 500mA) USB Connector
MICRO SD Micro SD slot
IR OUT ø 3.5mm Mini Jack IR Connector
IR IN ø 3.5mm Mini Jack IR Connector
HDMI3 IN
HDMI
(HDMI ARC support:
ProLite LH4375UHS /
ProLite LH5075UHS /
ProLite LH5575UHS /
ProLite LH6575UHS /
ProLite LH7575UHS /
ProLite LH8675UHS) *
HDMI Connector
Handles
Reinforcing rib
Speakers
Option Slot
(SDM-S: ProLite LH4375UHS
SDM-L: ProLite LH5075UHS / ProLite LH5575UHS / ProLite LH6575UHS /
ProLite LH7575UHS / ProLite LH8675UHS)
Keyhole for Security Lock
Power Button
*
The HDMI ARC function is only available when you enable HDMI with One Wire.
The connected device (e.g. soundbar) needs to have/support HDMI ARC.
ENGLISH
12 BEFORE YOU OPERATE THE MONITOR
INSTALLATION
CAUTION
Follow the manual instructions for the type of mount you have selected. Refer all servicing to
qualiedservicepersonnel.
Moving the monitor requires at least two people.
Before installing, please make sure the wall is strong enough to hold the necessary weight of the
monitor and the mount.
This product cannot be used with the monitor screen facing downward/upward.
[WALL MOUNTING]
When using the wall mounting, consideration of thickness of the mounting stage needs to be taken.
Tighten the M4/M6/M8* Screws (4pcs) which “L” length is 12/16mm* to fasten the monitor. Using
a screw longer than this may cause electric shock or damage because it may contact with the
electrical parts inside the monitor.
CAUTION
L
Mounting Stage Screw
Chassis
[ROTATING THE MONITOR]
This monitor is designed to be compatible in both landscape and portrait modes.
A
A
Portrait
Available
Power Indicator
Landscape
A
A
Not Available
Power Indicator
* M4(L=12mm) : ProLite LH3275HS
M6(L=12mm) : ProLite LH4375UHS / ProLite LH5075UHS / ProLite LH5575UHS
M8(L=16mm) : ProLite LH6575UHS / ProLite LH7575UHS / ProLite LH8675UHS
Power Indicator
Power Indicator
ENGLISH
BEFORE YOU OPERATE THE MONITOR 13
[PLACING THE STICKERS]
If you feel the screw holes are too visible in portrait mode, please use the stickers to cover
them.

ProLite LH7575UHS
Screw holes : 7
: 4 : 3

ProLite LH8675UHS
Screw holes : 10
: 8 : 2
ENGLISH
14 BEFORE YOU OPERATE THE MONITOR
FUNCTIONS OF THE REMOTE CONTROL
Turns the display ON and OFF.
[PLAY]
Controlplaybackofmediales.
: Play
:
Stop
:
Pause
: Quick-Return
: Fast-Forward
SOURCE
Selects the source.
Press or button to select from HDMI1,
HDMI2, HDMI3*, DisplayPort, SDM*,
Browser, CMS, File Manager, Media
Player, PDF Player or Custom. Press [OK]
buttontoconrmandexit.
HOME
Opens the display’s on-screen menu systems.
LIST
Return to the previous menu. Only Browser,
Media Player and PDF Player inputs.
Navigates through submenus and settings.
: Up Button
: Down Button
: Left Button
: Right Button
In Media Player:
:Previousle :Nextle
In PDF Player:
: Previous page : Next page
OK Conrmsyourselectionorsavechanges.
ADJUST Not available on this model.
MUTE Turnsonoro󰀨themutefunctionwhenthe
Menu is not displayed.
COLOR Not available on this model.
NUMBER/
ID SET/
ENTER
Enter text for network setting or ID setting.
ID Mode ID: To enter ID Mode
NORMAL: To leave ID Mode
FORMAT Change picture format.
BACK Returns to a previous menu or closes the
OSD Menu.
INFO
Provides source and resolution information.
Press the button for 6 seconds to unlock
the remote control.
OPTIONS Display edit bar. Only Browser, Media
Player and PDF Player inputs.
VOLUME - / + VOLUME- : Decreases the sound volume.
VOLUME+ : Increases the sound volume.
* Not available for ProLite LH3275HS
ENGLISH
16 BEFORE YOU OPERATE THE MONITOR
YoucansettheremotecontrolIDwhenyouwanttousetheremotecontrolonspecicmonitors.
ID Mode (To enter ID Mode) : Press and hold the ID button until the red LED blinks twice.
Normal Mode (To leave ID Mode) : Press and hold the Normal button until the green LED blinks
twice.
ID REMOTE CONTROL
Programming ID Mode
To assign an ID to a remote control.
1. Enter ID Mode.
2. Press and hold the ID SET button until the red LED turned on.
3. Using the number button, input the desired ID. (01 - 255)
 4.PresstheENTERbuttontoconrmID.
 5.TheredLEDwillblinktwicewhenIDhasbeenconrmed.
Not pressing any button within 10 seconds will exit the ID Mode.
If an error pressing of buttons other than the digits occured, wait 1 second after the red LED
lightsoandthenlightsupagain,thenpressthecorrectdigitsagain.
To cancel or stop programming an ID, press the ID SET button.
It is necessary to set up the ID number for each monitor before selecting its ID number.
Use ID Mode
1. Enter ID Mode.
2. Input the ID of the monitor which would like to control by number button.
3. Press the INPUT button.
NOTE
NOTE Refer to the above instructions when taking out the batteries.
Replace with new batteries when the Remote Control does not work close to the monitor.
Use AAA dry batteries. Risk of explosion if battery is replaced by an incorrect type.
Operate the Remote Control by pointing it toward the Remote Sensor on the monitor.
Other manufacturers remote control will not work with this monitor. Use the provided
Remote Control ONLY.
Used batteries needed to follow the city rule to be discarded. (suggestion: to dispose of
used batteries please follow correct policy as per your council regulations)
Batteriesshallnotbeexposedtoexcessiveheatsuchassunshine,reorthelike.
If you do not intend to use the remote control for a long period, remove the batteries.
ENGLISH
BEFORE YOU OPERATE THE MONITOR 17
BASIC OPERATION
Turning the monitor ON
The monitor is turned On and the Power Indicator turns Transparent when you press the POWER
buttononthemonitor orthe Remote Control.Themonitor is turnedO󰀨and the Power Indicator
turns to Red when you press the button on the monitor or the Remote Control. Press POWER
again to turn On the monitor.
NOTE
Even when using the standby mode or turning OFF the Power Switch, the monitor will consume
a small amount of electricity. Disconnect the Power Cable from the power supply whenever the
monitor is not in use or during the night, to avoid unnecessary power consumption.
Display the adjustment menu page
The menu page appears on the screen when you press the HOME button on the Remote Control.
The menu page disappears when you press the BACK button on the Remote Control again.
Move the cursor vertically
Select adjustment by pressing the button on the remote control while the menu page is /
displayed on the screen.
ENGLISH
18 BEFORE YOU OPERATE THE MONITOR
Move the cursor horizontally
Select menu or setting, or perform the adjustment by pressing the / button on the remote
control while the menu page is displayed on the screen.
Adjust the volume of sound
Press the + / - button on the remote control to adjust the volume of sound when the menu page is
not displayed on the screen.
Switch the input signal
This is activated when you successively press the SOURCE button on the remote control.
ENGLISH
BEFORE YOU OPERATE THE MONITOR 19
CONNECTING YOUR MONITOR : ProLite LH3275HS
Ensurethatboththecomputerandthemonitorareswitchedo󰀨.
Connect the computer to the monitor with the signal cable.
Connect the computer with the RS-232C Cable from the monitor.
ConnectthePowerCabletothemonitorrstandthentothepowersource.
Turn on your monitor (Main Power Switch and Power Switch) and computer.
Make sure that the building installation has a circuit breaker of 120/240V, 20A (maximum).
The signal cables used for connecting the computer and monitor may vary with the
type of computer used. An incorrect connection may cause serious damage to both
the monitor and the computer. The cable supplied with the monitor is for a standard
connector. If a special cable is required please contact your local iiyama dealer or
regionaliiyamao󰀩ce.
MakesureyoutightenthengerscrewsateachendoftheSignalCable.
The Class I pluggable equipment Type A must be connected to protective earth.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
Excessive sound pressure from ear-/headphones can cause hearing damage/hearing
loss.
[Example of Connection]
<Back>
NOTE
Power Cable (Accessory)
AV Equipment etc.
HDMI Cable (Accessory)
GAME
Equipment etc.
HDMI Cable (Not Included)
Computer
RS-232C Cable (Accessory)
DisplayPort Cable
(Not Included)
ENGLISH
20 BEFORE YOU OPERATE THE MONITOR
CONNECTING YOUR MONITOR :
ProLite LH4375UHS / ProLite LH5075UHS /
ProLite LH5575UHS / ProLite LH6575UHS
Ensurethatboththecomputerandthemonitorareswitchedo󰀨.
Connect the computer to the monitor with the signal cable.
Connect the computer with the RS-232C Cable from the monitor.
ConnectthePowerCabletothemonitorrstandthentothepowersource.
Turn on your monitor (Main Power Switch and Power Switch) and computer.
Make sure that the building installation has a circuit breaker of 120/240V, 20A (maximum).
The signal cables used for connecting the computer and monitor may vary with the
type of computer used. An incorrect connection may cause serious damage to both
the monitor and the computer. The cable supplied with the monitor is for a standard
connector. If a special cable is required please contact your local iiyama dealer or
regionaliiyamao󰀩ce.
MakesureyoutightenthengerscrewsateachendoftheSignalCable.
The Class I pluggable equipment Type A must be connected to protective earth.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
Excessive sound pressure from ear-/headphones can cause hearing damage/hearing
loss.
[Example of Connection]
<Back>
NOTE
AV Equipment etc.
Power Cable (Accessory)
DisplayPort Cable
(Not Included)
GAME
Equipment etc.
HDMI Cable (Accessory)
HDMI Cable (Not Included)
Computer
RS-232C Cable
(Accessory)
ENGLISH
BEFORE YOU OPERATE THE MONITOR 21
CONNECTING YOUR MONITOR : ProLite LH7575UHS / ProLite LH8675UHS
Ensurethatboththecomputerandthemonitorareswitchedo󰀨.
Connect the computer to the monitor with the signal cable.
Connect the computer with the RS-232C Cable from the monitor.
ConnectthePowerCabletothemonitorrstandthentothepowersource.
Turn on your monitor (Main Power Switch and Power Switch) and computer.
Make sure that the building installation has a circuit breaker of 120/240V, 20A (maximum).
The signal cables used for connecting the computer and monitor may vary with the
type of computer used. An incorrect connection may cause serious damage to both
the monitor and the computer. The cable supplied with the monitor is for a standard
connector. If a special cable is required please contact your local iiyama dealer or
regionaliiyamao󰀩ce.
MakesureyoutightenthengerscrewsateachendoftheSignalCable.
The Class I pluggable equipment Type A must be connected to protective earth.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
Excessive sound pressure from ear-/headphones can cause hearing damage/hearing
loss.
[Example of Connection]
<Back>
NOTE
AV Equipment etc.
Power Cable (Accessory)
DisplayPort Cable
(Not Included)
GAME
Equipment etc.
HDMI Cable (Accessory)
HDMI Cable (Not Included)
Computer
RS-232C Cable
(Accessory)
ENGLISH
22 BEFORE YOU OPERATE THE MONITOR
[ Connection example with the peripheral device ]
CAUTION
Turno󰀨thepowerswitchandunplugthemonitor and peripherals before connection to avoid electric
shock or damage.
NOTE
Refer to the user manual of peripherals at the same time.
Ensure you have the necessary cables as required.

ProLite LH3275HS

ProLite LH4375UHS
ProLite LH5075UHS
ProLite LH5575UHS
ProLite LH6575UHS
ENGLISH
BEFORE YOU OPERATE THE MONITOR 23
[ About the daisy chain ] * Not available for ProLite LH3275HS
PC
[RS-232C IN]
[RS-232C]
[RS-232C OUT] [RS-232C IN]
MONITOR1 MONITOR2
Monitor control connection
RS-232C

ProLite LH7575UHS
ProLite LH8675UHS
PC
[DPIN]
[DP]
]NIPD[]TUOPD[
MONITOR1 MONITOR2
Digital video connection
DisplayPort
ENGLISH
24 BEFORE YOU OPERATE THE MONITOR
PC
[RJ-45]
[RJ-45] ROUTER
INTERNET
Monitor
[ To setup the network ]
1. Switch on the router and switch on its DHCP setting.
2. Connect the router to this monitor with an Ethernet cable.
3. Press HOME button and 1668 on the remote control, then select Settings.
4. Select "Network & internet", then press OK button.
5. Select "Ethernet", then press OK button.
6. Follow the on-screen instructions to install the network.
Connecting with a shielded CAT-5 Ethernet cable to comply with the EMC directive.
NOTE
Signal Timing
Change to the desired signal timing listed on page 61: COMPLIANT TIMING.
COMPUTER SETTING
ENGLISH
OPERATING THE MONITOR 25
OPERATING THE MONITOR
To create the best picture, your iiyama LCD monitor has been preset at the factory with the
COMPLIANT TIMING shown on page 61. You are also able to adjust the picture by following the
button operation shown below.
Press the HOME button on the remote control to start the On Screen Display
feature. There are additional Menu items which can be switched by using the / /
/ buttons on the remote control.
Select the Menu item of the adjustment you want to make. Press the OK button
on the remote control and enter the menu page. Then, use the / buttons on the
remote control to highlight the desired adjustment item.
Use the / buttons on the remote control to make the appropriate adjustment or
setting.
Press the BACK button on the remote control to leave the menu, and the settings
you just made would be automatically saved.
Audio
C
onfiguration
Pict
ure
C
onfiguration 2
en
1
C
d
vanced O
p
tion
Ad
For example, to correct for sharpness, select Menu item of "Picture". Press the OK button on the
remote control. Then, select "Sharpness" by using the / buttons on the remote control.
Use the / buttons on the remote control to change the sharpness settings. The sharpness
of the overall monitor should be changing accordingly while you are doing this.
Press the BACK button on the remote control lastly, it ends, all changes are saved in the memory.
Sharpness
Black level
Tint
Color
Noise redution off
NATIVEGamma selection
Contrast
Brightness 29
50
20
50
50
55

The BACK button on the remote control can be used to return previous menu item.

Any changes are automatically saved in the memory when the On Screen Display
disappears.
TurningothepowershouldbeavoidedwhileusingtheMenu.

All adjustments have only one setting which applies to all signal timings.
NOTE
ENGLISH
26 OPERATING THE MONITOR
ADJUSTMENT MENU CONTENTS
Adjustment Item Problem / Option Button to Press
Too dark
Too bright
Brightness*1
Contrast*2Too dull
Too intense
Sharpness*2Too soft
Too sharp
Color*2Too week
Too strong
Black level*2Black is too dark
Black is too bright
Tint*2
O
Low
Middle
High
Purplish
Greenish
Noise Reduction isturnedo.
Electronicimagenoisecausedbydierentmediaplayersis
reduced.
Electronicimagenoisecausedbydierentmediaplayersis
reduced more than Low.
Electronicimagenoisecausedbydierentmediaplayersis
reduced more than Medium.
Noise reduction*2
Color temperature
Gamma selection*2You can set the Gamma.
Native / 2.2 / 2.4 / Sgamma / D-image
Sharpness
Black level
Tint
Color
Noise redution off
NATIVEGamma selection
Contrast
Brightness 29
50
20
50
50
55
9300°K
7500°K
6500°K
10000°K
Native
User1
5000°K
User preset 1
Original color temperature
4000°K
3000°K
User2 User preset 2
ENGLISH
OPERATING THE MONITOR 27
*
1
Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright.
Brightness adjustment is disabled when Brightness of Panel saving is on.
*
2 Not available for Media Player, Browser, CMS, PDF Player and Custom inputs.
*
3 It can be chose only when Color temperature is set to “User1/User2”.
Picture reset Picture setting will be restored to factory-preset data.
Too weak
Too strong
R
G
2000K-10000K
B
Adjustment Item Problem / Option Button to Press
Color control* 3
Set user color.
User1
User2
Noise reduction
Gamma selection
Color temperature
Color control
Picture reset
Color
Tint 50
Black level 50
55
off
NATIVE
NATIVE
Action
Action
Cancel
OK
Return to Menu.
ENGLISH
28 OPERATING THE MONITOR
Adjustment Item Problem / Option
Screen
Full
Enlargethepicturehorizontallytollthescreenifthe
picturesourceis4:3(standarddenition).Whenthe
picturesourceis16:9(highdenition),itisnotscaled.
Zoom mode*14:3 Display all pictures in 4:3 aspect ratio.
Real Display the picture dot by dot.
Custom zoom*2
Zoom
Zoom the horizontal and vertical size of the image
simultaneously.
H zoom
H position*3
V zoom
V position*3
Zoom the horizontal size of the image.
Zoom / H Zoom values.
Zoom the vertical size of the image.
Zoom / V Zoom values.
Screen reset Screen setting will be restored to factory-preset data.
*1 Not available for Media Player, Browser, CMS, PDF Player and Custom inputs.
*2 It can be chose only when Zoom mode is set to “Custom”.
*3 When the value of Zoom, H zoom and V zoom is “0”, H position and V position cannot be adjusted.
Screen r eset
Screen
Action
Zoom mode
Custom zoom
Full
Action
Cancel
OK
Return to Menu.
21:9
Custom
Display all pictures in 21:9 aspect ratio.
Customize zoom screen.
ENGLISH
OPERATING THE MONITOR 29
Adjustment Item Problem / Option Button to Press
Bass Too weak
Too strong
Audio
Audio out (line out)
Treble Too weak
Too strong
Adjust audio output volume.
Audio reset
Audio setting will be restored to factory-preset data.
Too soft
Too loud
Balance Left side speaker is louder.
Right side speaker is louder.
Maximum volume
Minimum volume
Set the maximum volume.
Set the minimum volume.
Return the sound volume to the previous level.
Turno󰀨thesoundtemporarily.
O󰀨
On
Mute
Audio out sync
O󰀨
On
Thespeakervolumeisdi󰀨erentfromtheaudioout(line-out)
volume.
The speaker volume is consistent with the audio out (line-out)
volume.
Bass
Volume
Audio out(line out)
Maximum volume
Minimum volume 0
offMute
Audio
Treble
Balance 50
50
50
20
20
100
Volume Too soft
Too loud
Cancel
OK
Return to Menu.
Speaker Setting O󰀨
On
Disable the built-in speaker.
Enable the built-in speaker.
ENGLISH
30 OPERATING THE MONITOR
Adjustment Item Problem / Option
Conguration1
Switch on state
Android launcher
Powero󰀨 Themonitorwillremaino󰀨whenthepowercordis
connected to a wall outlet.
Forced on
Enable Android launcher in settings to access feature.
The monitor will turn on when the power cord is connected
to a wall outlet.
Last status The monitor will return to the previous power status (on/
o󰀨/standby)whenremovingandreplacingthepowercord.
Panel saving
Brightness
Backlightadjustmentiso󰀨.
For the monitor to slightly shift the position of pixels in four
directions (up, down, left or right).
O󰀨
On The image brightness will be reduced to
40% of the maximum.
Pixel shift Auto
O󰀨
On
Move the position of the image automatically.
Pixel shift isturnedo󰀨.
Move the position of the image at set
intervals. 10 - 900 seconds
RS232 routing Select the RS232 control port.
RS232 / LAN RS232
Boot on source*
1
Input
Select input source when boot up.
HDMI1 / HDMI2 / HDMI3*2 / DisplayPort / SDM*
2,3 / Browser
/ CMS / File Manager / Media Player / PDF Player / Custom
Playlist Select playlist index for Browser, Mediaplayer and PDF
player.
*1 No failover function, system will keep source even the source is no signal input.
*2 Not available for ProLite LH3275HS
*3 It can be used only when SDM-S/SDM-L is installed.
RS232 routing
Boot on source
WOL
Configuration1 re..
Factory reset
off
Configuration 1
Panel saving
Android launcher Action
Switch on state Force On
RS232
Action
Action
Action
Action
Last input
When the power is turned on, it starts with the same
settingaswhenthepowerwaslastturnedo󰀨.
O󰀨/On
Conguration1reset
Conguration1 setting will be restored to factory-preset data.
Factory reset Factory-preset data is restored.
Cancel
OK
Return to Menu.
Cancel
OK
Return to Menu.
WOL O󰀨
On
Disable wake on LAN function.
Enable wake on LAN function.
ENGLISH
OPERATING THE MONITOR 31
Adjustment Item Problem / Option Button to Press
Conguration2
OSD timeout
You can set the OSD display duration time between
5 and 120 seconds.
O󰀨/5-120seconds
OSD H position OSD is too left
OSD is too right
OSD is too low
OSD is too high
OSD V position
Information OSD
Set the period of time the information OSD is
displayed on the upper right corner of the screen.
O󰀨/1-60seconds
Logo and animation
Logo setting*1
Animation setting*1
iiyama Logo and animation display when the monitor is
turned on.
On
Select boot logo.
Select boot animation.
O󰀨 iiyama Logo and animation does not display when the
monitor is turned on.
User Custom logo option in android is set, there will be only
custom logo when the monitor is turned on.
Monitor ID Set ID to the
monitor
.
1 - 255
OSD H position
OSD V position
System rotation
Information OSD
onLogo and animation
Configuration 2
OSD timeout on
50
50
Landscape
on
System rotation Landscape
Portrait
Display the OSD in Landscape mode.
Display the OSD in Portrait mode.
Set
group
to the
monitor
.
1 - 254
Group ID*2
Shows information about your monitor, including Model name, Serial
No., Operation hours and SW version.
Monitor information
DP version*2,3 Set the version of the DisplayPort.
1.1 / 1.2SST / 1.2MST
DP Monitors*2,3 Set up multiple monitors with DisplayPort.
2 / >2
ENGLISH
32 OPERATING THE MONITOR
Adjustment Item Problem / Option
Conguration2
HDMI version*4Set the version of the HDMI.
2.0 / 1.4 / Auto
Conguration2reset
*1 The Logo setting and Animation setting are only available when you select "User" of Logo and
animation function.
*2 Not available for ProLite LH3275HS
*3 Suitable for DisplayPort input only.
*4 Suitable for HDMI input only.
Group ID
Monitor information
DP version
DP Monitors
HDMI version
Configuration2 reset
Configuration 2
Monitor ID
Animation setting
1
2
1.2MST
Action
Action
Action
22
Auto
Conguration2 setting will be restored to factory-preset data.
Cancel
OK
Return to Menu.
ENGLISH
OPERATING THE MONITOR 33
Adjustment Item Problem / Option Button to Press
Advanced option
IR control
No signal image
Select the operation mode of the remote control when multiple
monitors are connected via an RS232C connection.
Customize the image for the no signal screen.
Image/O󰀩cemettingguide/Title/Room/Date&Time/Duration(30
mins/1h/1.5h/2h/2.5h/3h/o󰀨)/Textcolor(White/Black)/Show
current time
Primary*2Set the monitor as the primary monitor for
remote control operation.
Secondary*2
Set the monitor as the secondary monitor. This
monitor can not be operated by the remote
control, and will only receive the control signal
from the primary monitor via the RS232C
connection.
Lock All
Power LED light The Power Indicator is turned On.On
O󰀨 ThePowerIndicatoristurnedO󰀨.
Tiling
Off timer
Schedule
HDMI with One Wire
HDMI with One Wire powe..
Advanced Option
Power LED light
IR control
Action
Action
off
off
off
Action
No signal image Action
on
Lock all but Power
Lock all but Volume
Lock all except
PWR & VOL
Unlock*1
Lock all of the remote control.
Unlock the remote control.
Lock all except the power of the remote control.
Lock all except the volume of the remote control.
Lock all except the volume and power of the
remote control.
Tiling *2,3
H monitors
Position
Sets the number of monitors used in
the horizontal position.
V monitors Sets the number of monitors used in
the vertical position.
Sets the position of the screen matrix.*
4
Frame comp. Top
Frame comp. Bottom
Frame comp. Left
Frame comp. Right
The monitor will adjust the image
to compensate for the width of the
monitor bezels in order to accurately
display the image.
ENGLISH
34 OPERATING THE MONITOR
Adjustment Item Problem / Option
Advanced option
Tiling
Off timer
Schedule
HDMI with One Wire
HDMI with One Wire powe..
Advanced Option
Power LED light
IR control
Action
Action
off
off
off
Action
No signal image Action
on
Tiling *2,3
Frame comp. Enable
The monitor will apply the settings in "H monitors",
"V monitors", "Position" and "Frame comp.".
O󰀨
O󰀨 Framecompensation.Enableisturnedo󰀨.
Enable Frame compensation.
Enable isturnedo󰀨.
On
On
Enable
*1 To unlock, press and hold the INFO button on the remote control for 6 seconds.
*2 Not available for ProLite LH3275HS
*3 With this function you can create a single large-screen matrix (video wall) that consists of up
to 150 sets of this monitor (up to 10-sets on the vertical and 15-sets on the horizontal sides).
However, the image quality may be degraded, display speed may be slowed down, or noise may
occur and pictures may not be displayed correctly. It is recommended that the screen matrix be
settoamaximumof5x5screencongurations(25monitors).
*4 Screen Matrix
Example: 2 x 2 screen matrix (4 monitors)
H monitors = 2 monitors
V monitors = 2 monitors
Example: 5 x 5 screen matrix (25 monitors)
H monitors = 5 monitors
V monitors = 5 monitors
1 2
3 4
H monitors
V monitors
Position
1 2
6 7
3 4
8 9
5
10
11 12 13 14 15
16 17 18 19 20
21 22 23 24 25
H monitors
V monitors
Position
Switch on delay
Adjust the power-on delaying time (in seconds) allows
a sequential powering-on for each monitor by their ID
number when multiple monitors are connected.
O󰀨(0)/Auto/On(2-255)seconds
ENGLISH
OPERATING THE MONITOR 35
Adjustment Item Problem / Option
Advanced option
Schedule
Input
Select default input source to use when the monitor is
automatically turned on next time.
HDMI1 / HDMI2 / HDMI3*2 / DisplayPort / SDM*2,6 /
Browser / CMS / File Manager / Media Player / PDF
Player / Custom
Playlist Choose playlist for the mediaplayer, PDF player and
browser.
Days of
the week
Set the day of the week.
SUN / MON / TUE / WED / THU / FRI / SAT
Every week
Schedule list Up to 7 schedules can be set.
Enable
*
7
Enable / disable schedule.
Start time *5
End time *5
Set start time.
Set end time.
*5 The start time in the Schedule must be less than the end time.
*6 It can be used only when SDM-S/SDM-L is installed.
*7 Adjustments to "Enable" should be made only after Start time, End time, Input and week have
been correctly set.
*8 The display detects and select available signal source automatically.
*9 Order of detection: HDMI1 HDMI2 HDMI3 SDM Browser CMS File DP
Manager Media Player PDF Player Custom
Set whether to repeat every week.
O󰀨/On
O󰀨Timer Setwhenturno󰀨themonitor.
O󰀨/1-24hours
Tiling
Off timer
Schedule
HDMI with One Wire
HDMI with One Wire powe..
Advanced Option
Power LED light
IR control
Action
Action
off
off
off
Action
No signal image Action
on
HDMI with One Wire
HDMI with One Wire
PowerO󰀨
O󰀨
On
HDMIwithOneWireisturnedo󰀨.
Control all devices connected by HDMI cable with one
remote control.
O󰀨
On
HDMIwithOneWirePowerO󰀨isturnedo󰀨.
Use the power button on the device connected with the
HDMI cable to switch to standby mode.
Auto signal detection *
8
O󰀨
All *9
Disable the Auto signal detection.
Detects all sources automatically if there is no signal on the
default input and selects the available signal automatically.
Failover
Detectssourcesautomaticallywithuser-denedorder
if there is no signal on the default input and selects the
available signal automatically.
ENGLISH
OPERATING THE MONITOR 41
Security
Adjustment Item Problem / Option
Unknown sources
Allow installation of apps from all sources
Device admin apps
No active apps
Security
Device admin apps
Unknown sources
Display credential storage information.
Disable / Enable installation of apps from unknown sources.
System
Adjustment Item Problem / Option
Date & time
GMT+08:00 China standard Time
Languages & input
Gboard
System
Language & Input
Date & time
Languages
On-screen keyboard
Physical keyboard
Use network-provided time
Ntp server
Set the Date and Time.
Use 24-Hour Format, Automatic Date & Time,
Date Format, Timezone.
Set display language, keyboard and input method.
Language: English / Deutsch / Français
/ Italiano / Español / / Polski / Русский
Nederlands/Ĉesky/Dansk/Svenska/Suomi
/ Norsk bokmål


Produktspezifikationen

Marke: Iiyama
Kategorie: Nicht kategorisiert
Modell: ProLite LH6575UHS

Brauchst du Hilfe?

Wenn Sie Hilfe mit Iiyama ProLite LH6575UHS benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten




Bedienungsanleitung Nicht kategorisiert Iiyama

Bedienungsanleitung Nicht kategorisiert

Neueste Bedienungsanleitung für -Kategorien-
