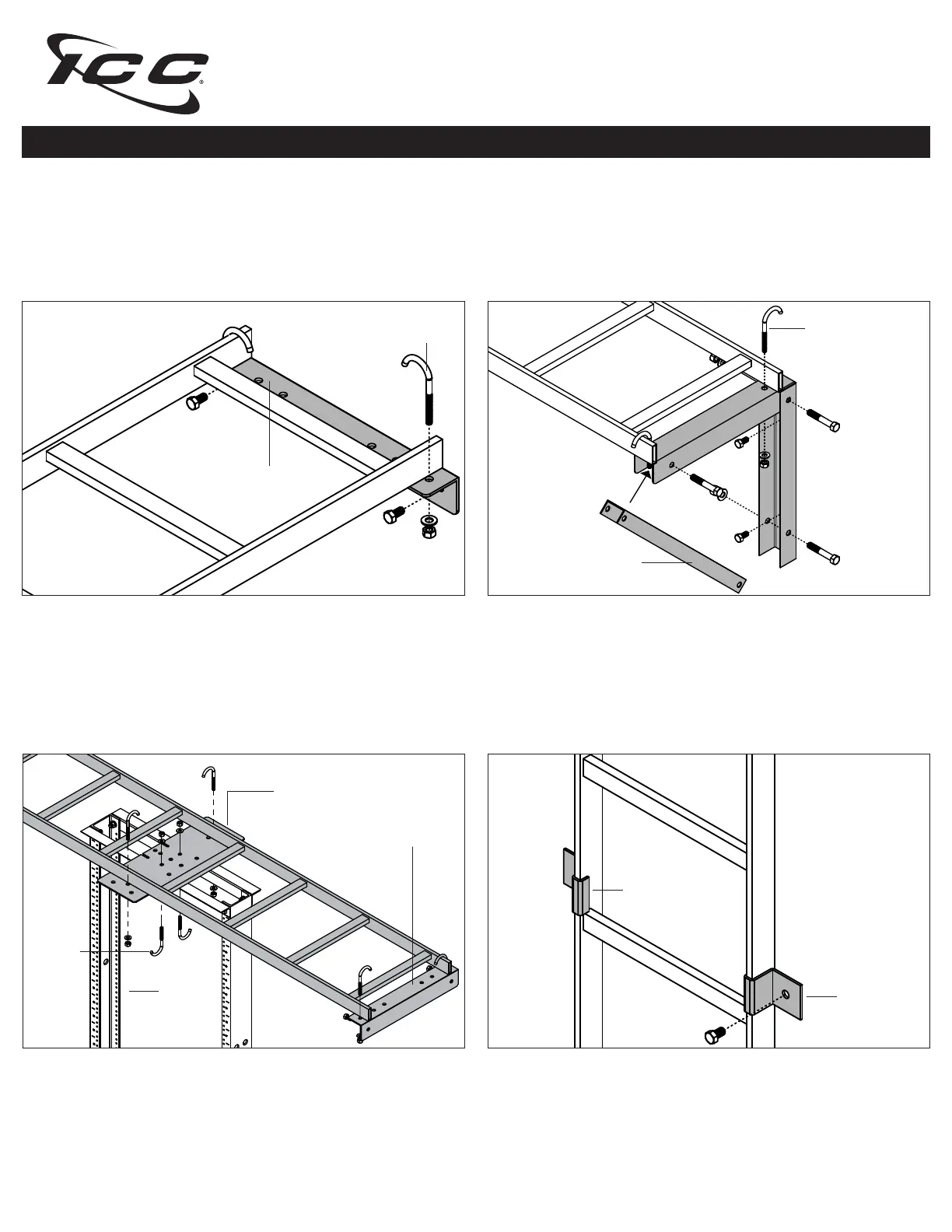

I N S T A L L A T I O N I N S T R U C T I O N S
Ladder Rack System
IMPORTANT: Before you start, please plan on how the ladder rack system is to be confi gured.
• To mount ladder rack runway to the wall
• Includes 1 bracket and 2 J-Bolts
• Wall fasteners are not included
• Hole size for mounting to the wall is 0.35”
Note: Drywall can not support the weight of ladder rack
• Includes 1 triangle and 2 J-Bolts
• Wall fasteners are not included
• Hole size for mounting to the wall is 0.35”
Note: It is recommended to install a triangle every 5’
How to Mount Ladder
Wall Support Bracket, Perpendicular
Part No.: ICCMSLAWSK
Wall Support Triangle, Parallel
Part No.: ICCMSLTWSK
J-Bolt J-Bolt
Wall Support Bracket
Triangle
Wall Support Bracket, Vertical
Part No.: ICCMSLVWBK
• To secure ladder rack runway fl at against the wall
• Includes 2 brackets
• Wall fasteners not included
• Hole size for mounting to the wall is 0.43”
Wall Bracket
Wall Bracket
5’ Ladder Rack Kit, Perpendicular
Part No.: ICCMSLRW05
• To route cable from rack to wall
• Includes a 5’ ladder rack, a relay bracket, a wall bracket,
2 J-bolts and 2 end caps
• Hole size for mounting to the wall is 0.35”
Wall Support Bracket
Rack
Relay Rack Bracket
J-Bolt
888-ASK-4ICC csr@icc.com icc.com
© Copyright 2014, ICC. ICC and ICC logo are registered trade name and trademark. All rights reserved. MSR-0352-RevC
I N S T A L L A T I O N I N S T R U C T I O N S
Ladder Rack System
IMPORTANT: Before you start, please plan on how the ladder rack system is to be confi gured.
• To sustain over-hanging ladder rack runway to the ceiling
• Includes 2 threaded rods(6’), 2 ladder brackets, 2 ceiling
brackets, and 8 nuts
• Ceiling fasteners not included
• Hole size for mounting to the ceiling is 0.53”
• To join ladder rack runway at ends
• Includes 2 feet and 2 Butt splice kits
• Floor fasteners not included
• Hole size for mounting to the fl oor is 0.55”
How to Mount Ladder
• To maintain proper cable bend radius at drop points
• Includes 1 radius controlled drop, 6 bolts and 3 nuts
Floor Mount Kit Ceiling Mount Kit with 6’ Rods
Cable Radius Drop
Part No.: ICCMSLMFFK
Part No.: ICCMSLCRDK
Part No.: ICCMSLCMRK
4 Post Relay Rack Brackets
Part No.: ICCMSL4PBK
• To secure ladder rack runway over 4 post racks
• Includes 2 parallel mounting brackets, 2 perpendicular
mounting brackets and 2 J-Bolts
Bracket
Rack
4-Post Adjustable Distribution Rack
Part #:
ICCMSR4P84 7’H, 45 RMS
Adjustable
Radius drop
Feet
Rod
Ceiling bracket
Ladder bracket
Butt splice
888-ASK-4ICC csr@icc.com icc.com
© Copyright 2014, ICC. ICC and ICC logo are registered trade name and trademark. All rights reserved. MSR-0352-RevC
I N S T A L L A T I O N I N S T R U C T I O N S
Ladder Rack System
IMPORTANT: Before you start, please plan on how the ladder rack system is to be confi gured.
How to Mount Ladder on a Rack with a Relay Rack Bracket Kit
On Distribution Racks
Part No. ICCMSLRRBK
Includes: 1 bracket, 4 J-Bolts and 4 nuts.
Hole positions and size .375”
Option 1: Mount bracket parallel to rack as shown using 2 J-Bolts.
Then mount ladder running parallel to rack as shown using 2 J-Bolts.
Option 2: Place ladder on top and bracket underneath
perpendicular to rack as shown. Secure both of them using
2 J-Bolts.
J-Bolt
Relay Rack Bracket
Option 2: Mount bracket perpendicular to rack as shown using 2
J-Bolts. Then mount ladder running perpendicular to rack as
shown using 2 J-Bolts.
J-Bolt
Relay Rack Bracket
J-Bolt
Relay Rack Bracket
2-Post Distribution Racks
Part #:
ICCMSR1984 7’H, 45 RMS
ICCMSR1972 6’H, 38 RMS
ICCMSR1948 4’H, 24 RMS
On Cable Managment Racks
Option 1: Mount bracket parallel to rack as shown using 2 J-Bolts.
Then mount ladder facing parallel to rack as shown using 2 J-Bolts.
J-Bolt
Relay Rack Bracket 2-Post Cable Management Rack
Part #:
ICCMSCMRH7 7’H, 44 RMS
