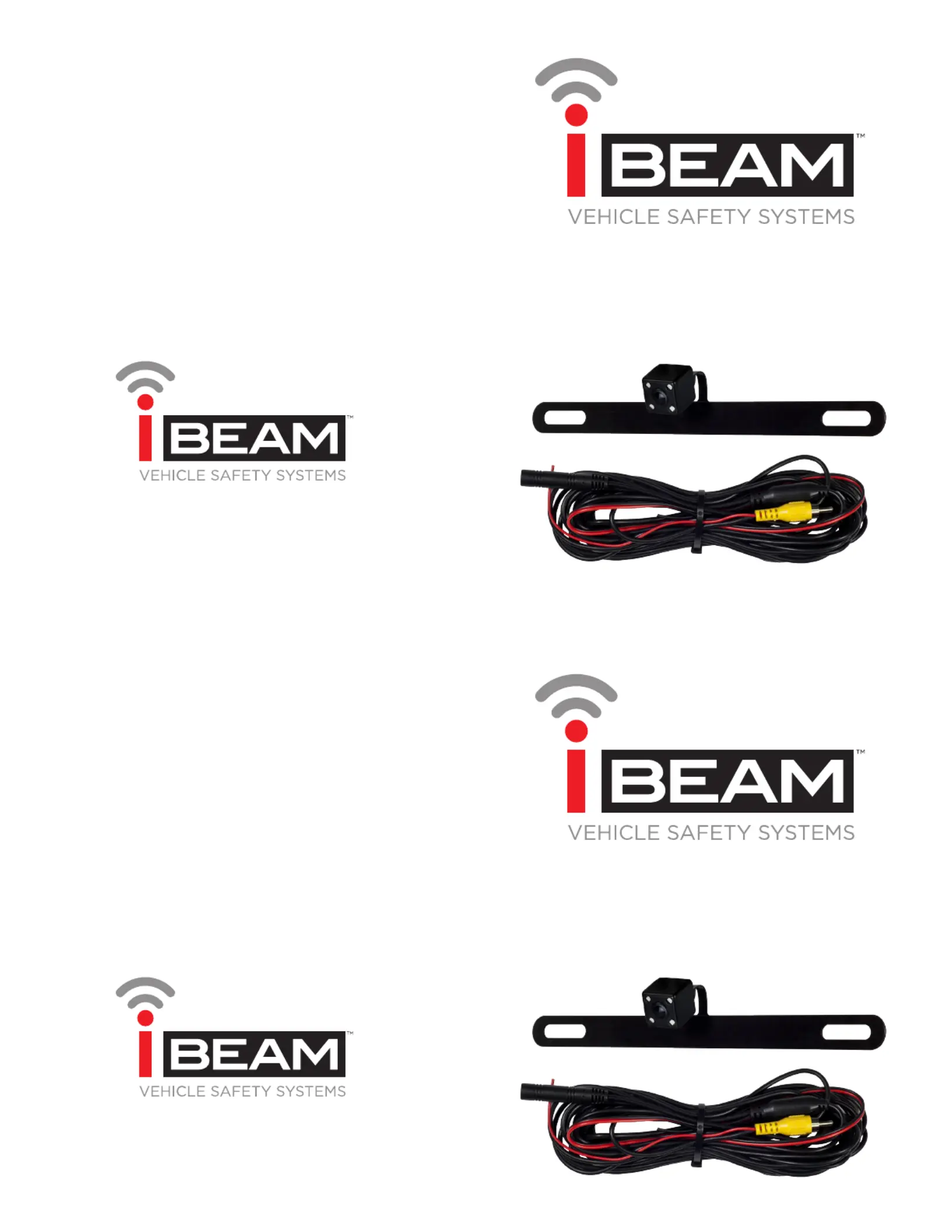

TE-BPCIR
Product Manual
TE-BPCIR
Product Manual
800.221.0932
iBeamUSA.com
460 Walker Street, Holly Hill, FL 32117
800.221.0932
iBeamUSA.com
460 Walker Street, Holly Hill, FL 32117
1) This is a behind license plate camera. Begin by removing the license plate bolts
and the license plate, then install camera. Replace license plate and bolts.
2) Connect the RED wire to the +12 volt reverse wire of the vehicle.
3) Connect the BLACK wire to ground (a metal, non-painted surface).
4) Run video cable though vehicle, up to video display. (Avoid placing video
cable where it can get pinched or damaged).
5) Attach the YELLOW video rca to the reverse camera input of the radio or
video display; connect the RED wire coming from the YELLOW video rca to
the reverse trigger wire on the radio or video display.
NOTE: The camera comes with the parking assist lines. If you want to remove the
parking lines follow the steps below:
1) Disconnect power to the camera
2) Cut the WHITE loop to remove the parking assist lines, isolate and tape the wires
3) Reconnect power to the camera
If the parking assist lines are wanted just follow the steps above and reconnect
the wires.
1) This is a behind license plate camera. Begin by removing the license plate bolts
and the license plate, then install camera. Replace license plate and bolts.
2) Connect the RED wire to the +12 volt reverse wire of the vehicle.
3) Connect the BLACK wire to ground (a metal, non-painted surface).
4) Run video cable though vehicle, up to video display. (Avoid placing video
cable where it can get pinched or damaged).
5) Attach the YELLOW video rca to the reverse camera input of the radio or
video display; connect the RED wire coming from the YELLOW video rca to
the reverse trigger wire on the radio or video display.
NOTE: The camera comes with the parking assist lines. If you want to remove the
parking lines follow the steps below:
1) Disconnect power to the camera
2) Cut the WHITE loop to remove the parking assist lines, isolate and tape the wires
3) Reconnect power to the camera
If the parking assist lines are wanted just follow the steps above and reconnect
the wires.
II. Connection
II. Connection
I. Specications
I. Specications
Parking line loop (White)
RED (+)
BLACK (Ground)
Video (in)
Red (Reverse Switch)
Reverse Wire on Radio (Trigger)
Reverse Lights
TV
Parking line loop (White)
RED (+)
BLACK (Ground)
Video (in)
Red (Reverse Switch)
Reverse Wire on Radio (Trigger)
Reverse Lights
TV
SENSOR
Effective Pixel
Horizontal Sync Frequency
Vertical Sync Frequency
Scanning System
Sync System
AGC
BLC
Resolution
S/N Ratio
Current Consumption
Power Supply
Operating Temperature
Storage Tempurature
Viewing Angle
Water-Proof
Minimum Illumination
SENSOR
Effective Pixel
Horizontal Sync Frequency
Vertical Sync Frequency
Scanning System
Sync System
AGC
BLC
Resolution
S/N Ratio
Current Consumption
Power Supply
Operating Temperature
Storage Tempurature
Viewing Angle
Water-Proof
Minimum Illumination
CMOS II
656 X 492
15625KHZ
PAL50HZ / NTSC 60HZ
2 : 1 Interlace
Internal
Auto
Auto
420 TV Lines
More Than 48dB
No More 150mA
DC12V 10%±
-22° ~ 17 F
-40° ~ 17 F
17
IP67
0.5Lux/F1.2(0Lux with LED)
CMOS II
656 X 492
15625KHZ
PAL50HZ / NTSC 60HZ
2 : 1 Interlace
Internal
Auto
Auto
420 TV Lines
More Than 48dB
No More 150mA
DC12V 10%±
-22° ~ 17 F
-40° ~ 17 F
17
IP67
0.5Lux/F1.2(0Lux with LED)
