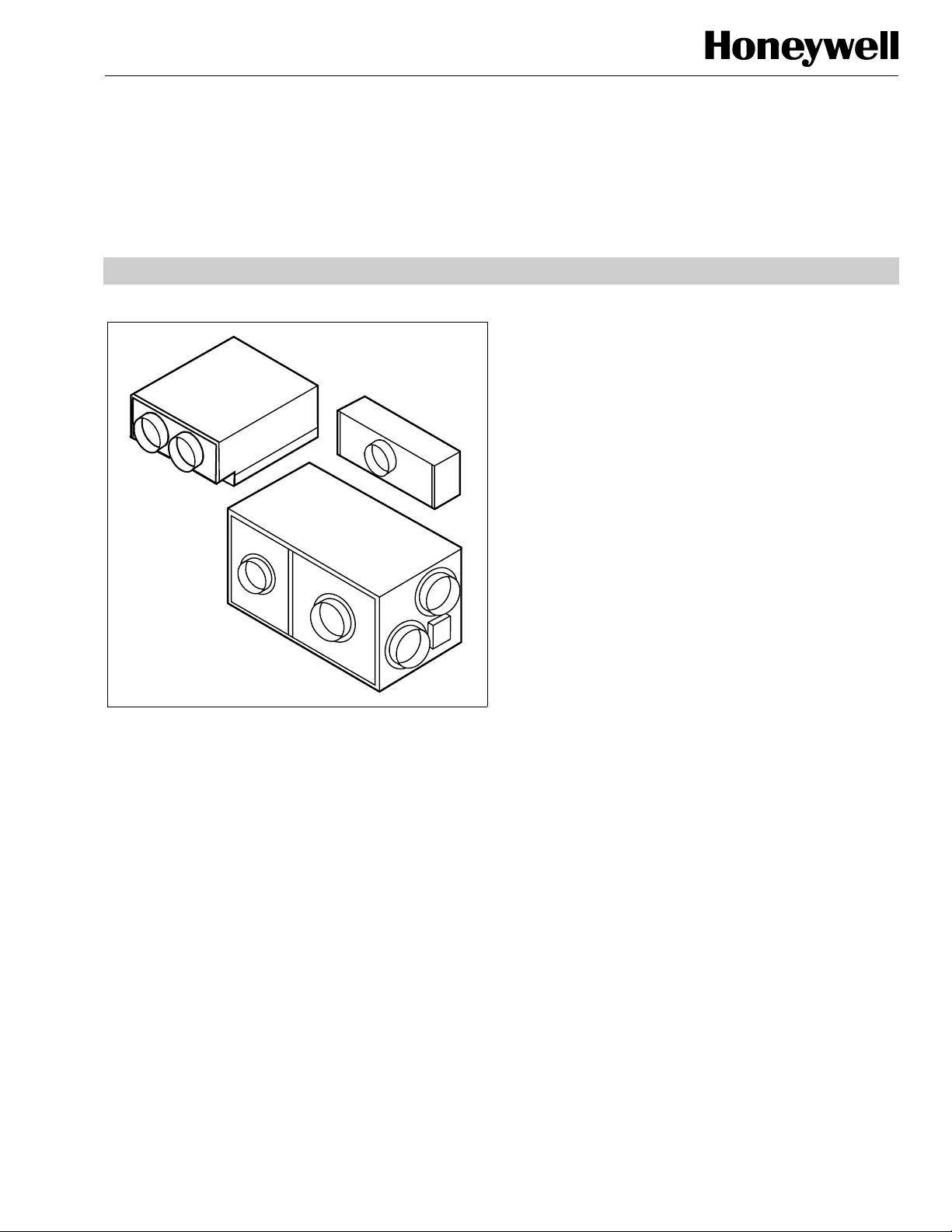

PRODUCT DATA
68-0222-5
The Honeywell Trademark is used under license from Honeywell
International Inc. by Air-Pure Systems.
Honeywell International Inc. makes no representations or warranties
with respect to this product,
F120 Room Air Cleaning System
GENERAL
The F120 Room Air Cleaning System is designed to collect
particles by circulating room air through a media filter. When
equipped with an optional CPZ module, the system also
adsorbs gaseous contaminants and odors.
The F120 exhaust feature is used to maintain the space at a
negative pressurization relative to adjacent spaces to prevent
contaminants and odors from moving into nearby areas.
The air supply and return design of the F120 allows air
contaminants to be filtered at the center of the room with the
filtered air returned toward the sides of the room for maximum
room air cleaning.
FEATURES
• Specifically designed for use in offices, hospitals,
medical clinics, childcare centers, schools, conference
rooms, copy centers, laboratories, cafeterias, and
hospitality business.
• Ultra-quiet operation allows the system to be used in
sound sensitive areas such as conference rooms,
offices, classrooms and libraries.
• Modular design of air supply and return allows
maximum flexibility when planning the appropriate air
recirculation pattern to maximize overall system
performance.
• Special return module filter removes both particulates
and gaseous contaminants from the air stream.
• Convenient roomside service for all filters.
• Easy-to-change prefilter extends the media filter life.
• Blower module can be mounted remotely from the
room to further reduce sound levels.
• Two-speed fan motor allows selecting high or low
airflow speeds.
• Optional exhaust feature allows installations to
maintain the space at a negative pressure with respect
to surrounding areas to prevent contaminants and
odors from moving into nearby areas.
• Installation is ideally suited to rooms with either two-
by-four or two-by-two foot drop ceiling panels, but can
be installed in any wall or ceiling that allows ducting
space.
• READ AND SAVE THESE
INSTRUCTIONS
M13442
BLOWER
MODULE
RETURN
MODULE
SUPPLY
MODULE
Contents
General..............................................................................1
Features ............................................................................1
Specifications ....................................................................2
Ordering Information .........................................................2
Planning the Installation ....................................................3
Installation .........................................................................7
Operation...........................................................................11
Maintenance......................................................................11
Parts List ...........................................................................11
Warranty ............................................................................16
F120 ROOM AIR CLEANING SYSTEM
68-0222-5 2
ORDERING INFORMATION
If you have additional questions, need further information, or would like to comment on our products or services, please write or
phone:
1. Your local Honeywell Commercial Air Products Distributor.
2. Air-Pure Systems
16873 Fish Point Rd. SE
Prior Lake, MN 55372-1714
Phone: (800) 998-1919
Fax: (800) 221-3248
SPECIFICATIONS
IMPORTANT
The specifications given in this publication do not
include normal manufacturing tolerances. Therefore,
this unit may not exactly match the listed specifica-
tions. This product is tested and calibrated under
closely controlled conditions, and some minor differ-
ences in performance can be expected if those con-
ditions are changed.
Model:
F120 consists of:
— two filtered return modules wit h a return grill prefilter,e,
and
— either a 99.97% HEPA ter or a 95% DOP filter and fil
CPZ dule; mo
— four air supply modul with supply grilles; es
— a blower module with a two-speed blower, four
recirculating ai supply openings, four recirculating air r
return eni and n ptiona exhau opening op ngs a o l st .
— mounting hardware kit consisting of 12 mounting
brackets; 40 ft (12m) of 12-gauge high-tensile strength
wire; six standard T- bar mounts; duct tape;
— seven duct collar straps.
Color:
Blower Housing: Unpainted galvanized steel.
Return and Supply Grilles: Off-white
Electrical Ratings:
aOff is “O”.
Air Flow Capacity:
a With exhaust option installed.
b Purchase filters separately.
Filters:
HEPA: High efficiency particulate air (HEPA) filter is 99.97 per-
cent efficient for 0.3 micron particulates when measured
with Military Standard 282 DOP test.
DOP: Hospital-grade DOP filter is 95 percent efficient for 0.3
micron particulates when measured with Military Standard
282 DOP test.
CPZ: Sorbent modules contain 11 pounds of sorbent. Adsorbs
higher molecular weight hydrocarbons and oxidizes acid
gases and lower molecular weight hydrocarbons.
Ambient Temperature Rating:
Shipping and Storage: -20°F to +150°F (-29°C to +66°C).
Operating: Ambient temperatures ≥ °90 F (32°C).
Can tolerate 104°F (40°C) for brief periods.
Sound Output Rating at 3.3 ft (1m):
High Speed: 52 dBA (below ASHRAE noise criteria (NC)
curve specifications for NC45 over speech recognition fre-
quency range of 500 to 2000 Hz).
Low Speed: 45 dBA (below ASHRAE noise criteria (NC) curve
for NC35 over speech recognition frequency range of 500
to 2000 Hz).
120 Vac, 60 Hz 240 Vac, 60 Hz
Fan SpeedaFan Speeda
II (high) I (low) II (high) I (low)
Current (A) 7.0 5.5 3.5 2.8
Power (W) 800 695 800 695
Model Voltage
Efficiency
Gas, VOC, Odor
Control Module (2)
Air Vol cfm
(cu m/hr)
Air Vol cfm
(cu m/hr)a
Particulates at 0.3
micron (DOP Test)
VOC/Odors
(First Pass Average)
F120A 1023 120 Vac 60 Hz 95% 85% CPZ 900 (1530) 1050 (1780)
F120A 1031 120 Vac 60 Hz 99.97% — — 900 (1530) 1000 (1700)
F120A 1015 120 Vac 60 Hz b b b — —
F120 ROOM AIR CLEANING SYSTEM
3 68-0222-5
Installation Weight:
Blower Module: 63 lb (28.6 kg).
Supply Module: (4 required): 8 lb (3.6 kg).
Return Module without filter (2 required): 24 lb (10.9 kg).
95% DOP Filter/CPZ Module (2 required): 21 lb (9.5 kg).
99.97% HEPA Filter (2 required): 10 lb (4.5 kg).
Shipping Weight:
F120 with 95% DOP Filter and CPZ Module: 207 lb (94 kg).
F120 with 99.97% HEPA Filter: 182 lb (83 kg).
F120A1015: 152 lb (69 kg).
F120A1007: 70 lb (32 kg).
Dimensions:
See Fig. 1.
Fig. 1. Approximate F120 dimensions in in. (mm).
PLANNING THE INSTALLATION
The F120 Room Air Cleaning System is designed for use in
offices, hospitals, medical clinics, childcare centers, schools,
conference rooms, smoking rooms, copy centers, laboratories
and cafeterias.
The quiet design allows the system to be used in sound sensi-
tive areas such as conference rooms, offices, classrooms,
and libraries where other air cleaning systems may be too
noisy.
Determining F120 Size
Use the sizing procedure to determine how many F120 are
needed. The correct number for a particular application
depends on:
• type of contaminant.
• number of occupants.
• room volume.
• room use.
• outdoor air quality.
1. Select the fan speed to be used for the application as
the normal operating speed. Select the speed according
to the sound sensitivity level appropriate for the applica-
tion (if the application requires an especially quiet oper-
ation, low speed sizing is recommended):
a. High speed − the sound output is below the
ASHRAE NC-45 noise criteria curve over the
speech frequency range of 500 to 2000 Hz.
b. Low speed − the sound output is below the
ASHRAE NC-35 curve over the speech frequency
range of 500 to 2000 Hz.
22-3/4 (578)
8 (203) DIAMETER (2)
11
(279)
6-1/2 (165) 6-1/2 (165)
M13406
28-5/8 (727) 23-3/4 (603)
8 (203) RETURN (4)
23-3/4 (603)
9
(229)
34 (864)
20 (508)
16
(406)
11-7/8 (302)
6 (152)
8 (203)
6 (152) DIAMETER
8 (203) EXHAUST (OPTIONAL)
6 (152) SUPPLY (4)
UTILITY BOX AND LOW/
OFF/HIGH (I/O/II) SWITCH
4
(102)
RETURN MODULE
SUPPLY MODULE
BLOWER MODULE
