Seite 1/12
HBZ7390
HobbyZone® products are distributed exclusively by
Horizon Hobby, Inc.
4105 Fieldstone Road
Champaign, IL 61822
©2009 Horizon Hobby, Inc.
Horizon Hobby UK
Units 1-4 Ployters Rd
Staple Tye
Harlow, Essex
CM18 7NS
United Kingdom
Horizon Hobby Deutschland GmbH
Hamburger Strasse 10
25335 Elmshorn
Germany
14931 Printed 3/09

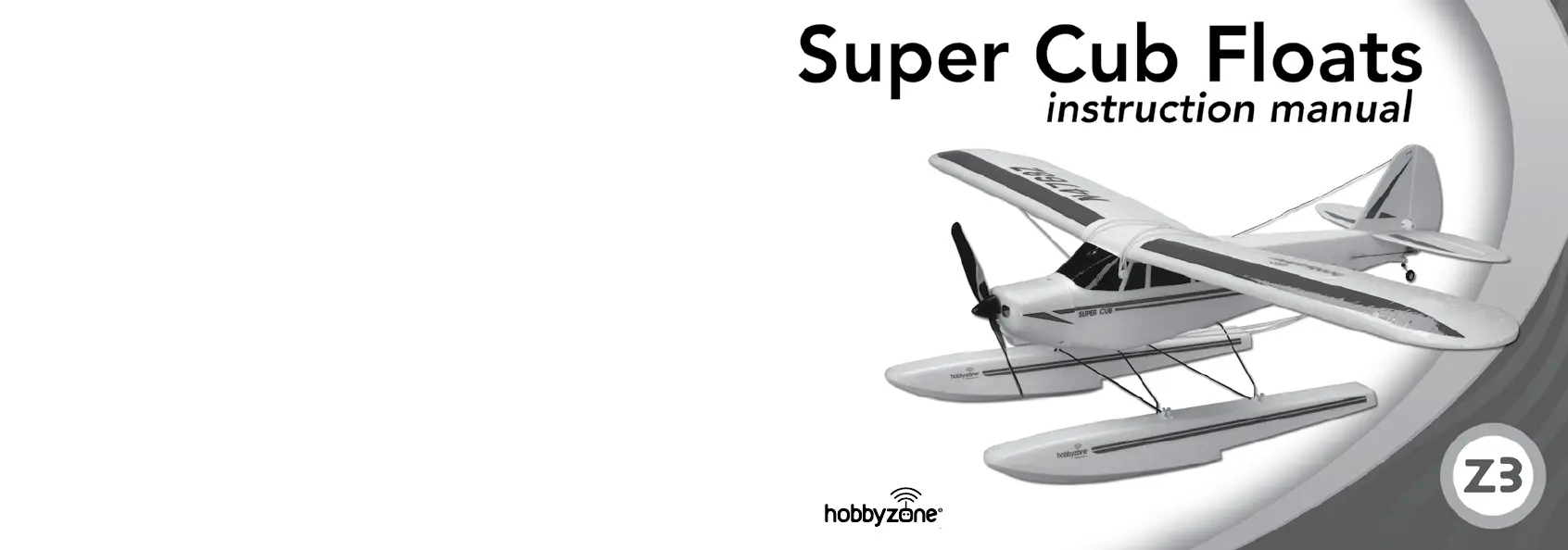

Congratulations on your purchase of the HobbyZone
®
Super Cub Floats. These floats add a new level of fun and
excitement to your Super Cub.
Note: Only use the floats if you are comfortable flying your Super Cub
and have repeatedly and successfully taken off, flown and landed.
Flying off water poses a higher risk to the airplane because the
electronics can fail if immersed in water.
Crash damage is not covered
under the warranty.
Be sure to read the warranty
on page 16 and "Warnings and
Safety" on pages 14–15 before
you proceed to Step 1.
3
Step 1
4
Step 1
Assembly
• Remove contents from the box
and inspect for missing parts or
any damage.
• Separate the eight 3mm x 10mm
Phillips head machine screws, the
spreader wires and the two landing
gear legs.
• Note that there is a right and left
float. The indentions in the foam for
the spreader wires and landing gear
will face inward.
• Install the landing gear with the wider
top portion into the front holes on the
floats. Next install the front spreader
wire into the second holes on the
floats. Install the rear spreader wire
into the third holes on the floats.
Finally, install the rear landing gear
legs with the narrower top portion into
the rear holes on the floats.
Wider
Right Float
1 (front holes)
4 (rear holes)
4 (rear holes)
2
3
3
Left Float
1 (front holes)
2
