Seite 1/1
1 2
3
4
5
1
2
3
4
5
7
INSTALLATION INSTRUCTIONS:
Review the parts list and ensure you have all parts and tools required for assembly.
1.
If converting another UT-1000 series product, first remove the existing side lugs and rear
2.
fences.

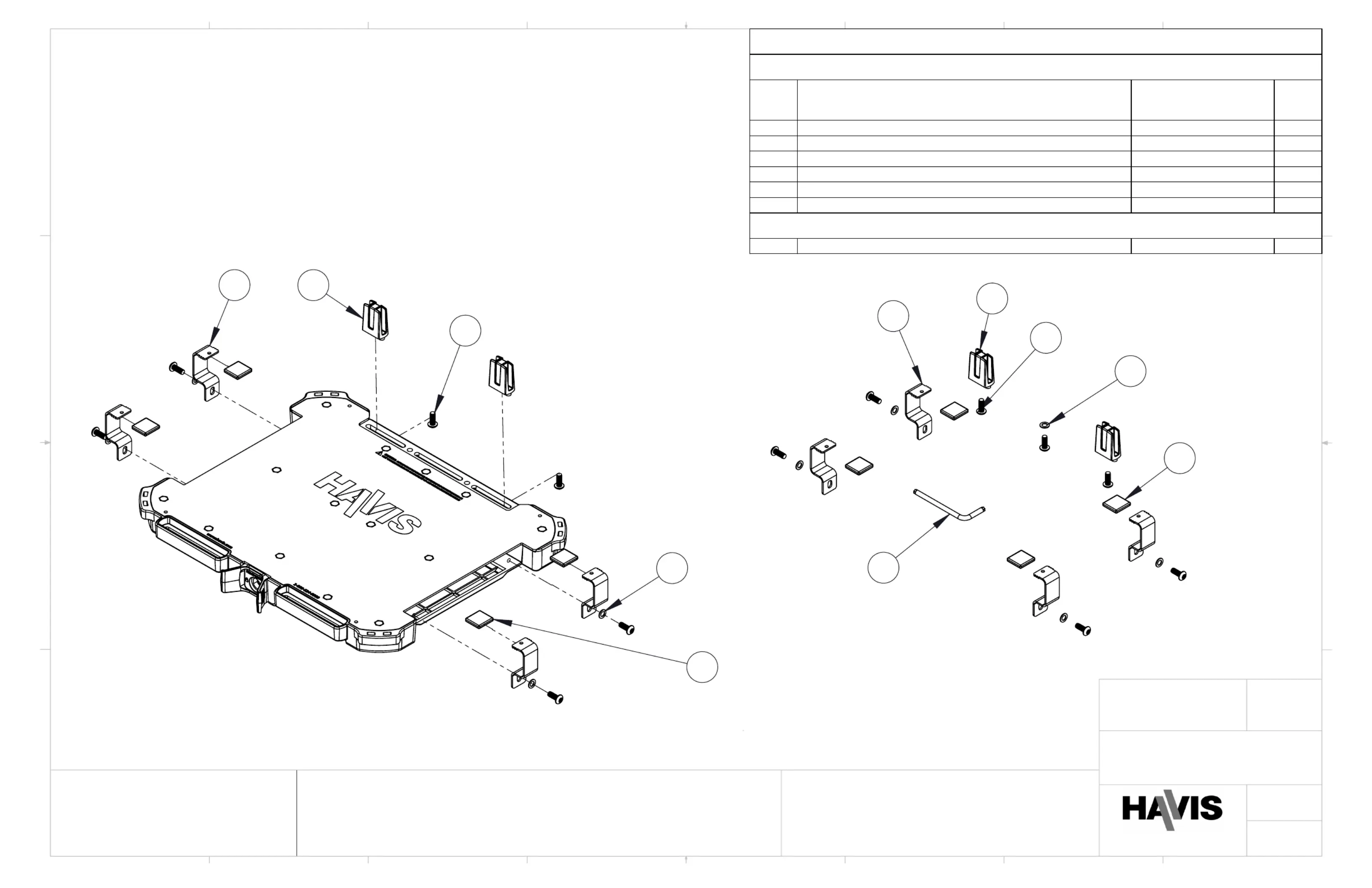

Loosely assemble the new kit to the base tray as shown in the exploded view.
3.
Adjust and tighten the new kit according to the configuration instructions in the UT-1000
4.
Series owner’s manual or go to www.havis.com for more information.
NOTE: Retain all unused hardware for possible future re-use.
UT-1004-KIT HARDWARE CONTENTS
REPLACEMENT PARTS
ITEM
NO.
DESCRIPTION
HAVIS PART
NUMBER
QTY.
1
BRACKET, OFFSET HOLD DOWN LUG
UT-0103-SM
4
2
FENCE, REAR, UT-200 SERIES
UT-0124-ML
2
3
SCREW, BUTTON HEAD, PIN-IN-TORX, #10-32 X 0.5"
HW-BH-0118/GSM33328
7
4
WASHER, BELLEVILLE, SERRATED, #10
HW-SW-1262/GSM31089
5
5
CAP-.69 x.62, .04 THK, BLACK
HW-CA-0004/GSM41122
4
6
INSTALLATION INSTRUCTIONS, UT-1004-KIT
UT-1004-KIT_INST
1
TOOLS
7
L-KEY TAMPER-RESISTANT, T25, 2-13/32" L
HW-AW-0006/GSM50261
1
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
PRODUCT I.D.
DATE
WEIGHT: (LBS)
UT-1004 KIT
09-14-17
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
PRODUCT I.D.
DATE
WEIGHT: (LBS)
UT-1004-KIT_INST_9-17
PRODUCT DESCRIPTION
REPLACEMENT
PARTS KIT, UT-1004
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
PRODUCT I.D.
DATE
WEIGHT: (LBS)
PRODUCT NAME
REV. DATE
9-17
DRAWING NUMBER:
UT-1004-KIT
WARNING: ALL HAVIS INC. PRODUCTS ARE DESIGNED WITH SAFETY OF USE AND INSTALLATION IN MIND. HOWEVER,
IT IS THE SOLE RESPONSIBILITY OF THE OWNER/OPERATOR OF A VEHICLE USING HAVIS INC. MOUNTING AND
DOCKING EQUIPMENT, TO INSURE THAT THE EQUIPMENT IS INSTALLED SO THAT IT WILL NOT INTERFERE WITH VEHICLE
OPERATION, INTERFERE WITH SAFETY DEVICES, OBSTRUCT VIEW OF DRIVING CONDITIONS, OR IN ANY WAY
DEGRADE OCCUPANT SAFETY. IMPROPER INSTALLATION CAN CAUSE SERIOUS INJURY IN THE EVENT OF AN
ACCIDENT. INSTALLATION SHOULD ONLY BE PERFORMED BY QUALIFIED PROFESSIONALS. COMPUTERS AND
MOTION DEVICES MUST BE MOVED TO AND STOWED/SECURED IN THEIR SAFE DRIVING POSITIONS BEFORE
OPERATING VEHICLE.
WWW.HAVIS.COM
1-800-524-9900
F-730-019 REV A
