C-VS-0809-CHGR-1_INST_4-11

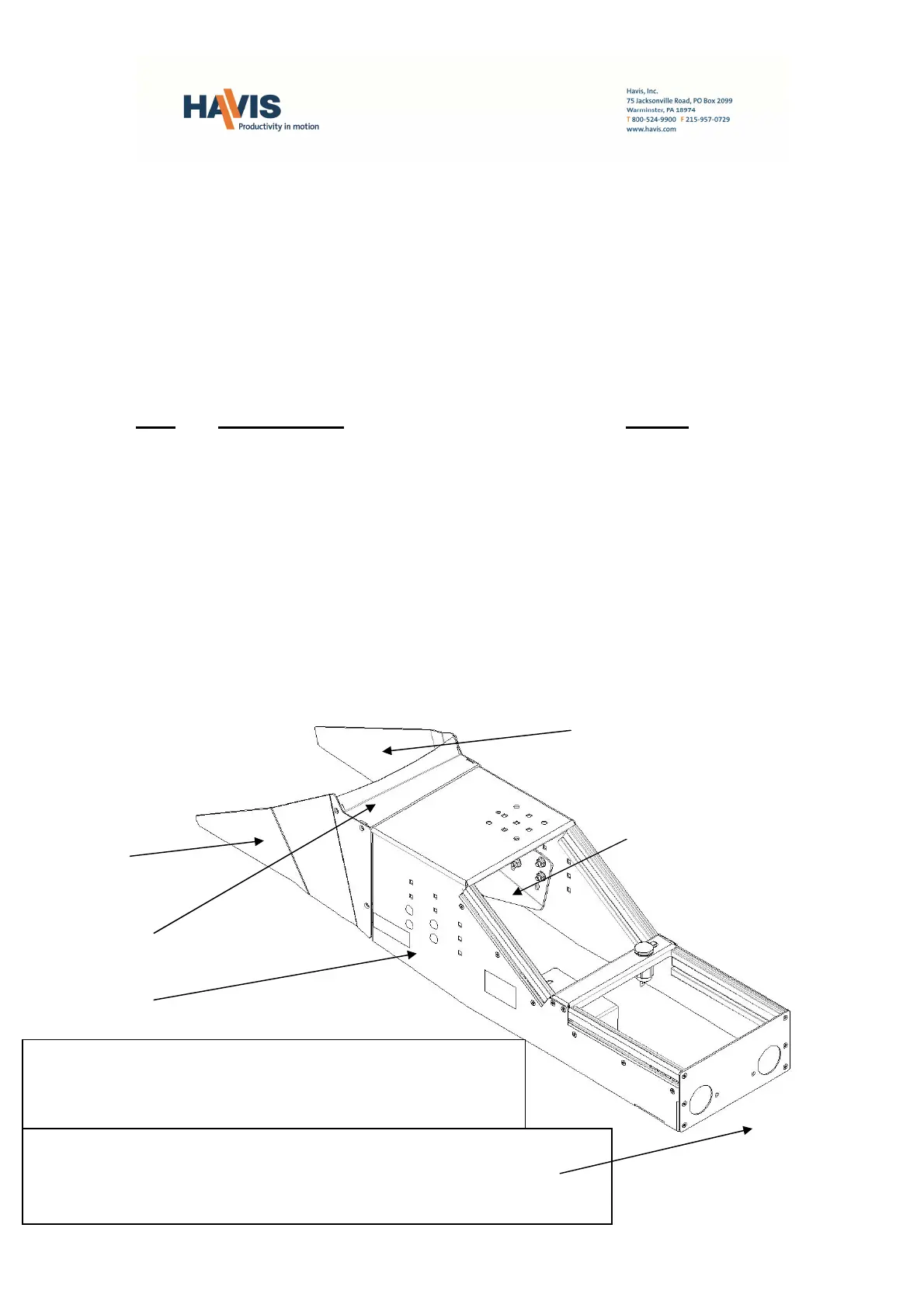

C-VS-0809-CHGR-1
(Assembly)
INSTALL INSTRUCTIONS C-VS-0809-CHGR-1
2011-2013 Dodge Charger (Police Package)
VEHICLE SPECIFIC CONSOLE
With 17” inches Equipment space
TOOLS NEEDED:
Phillips Screw Driver
Socket set (Standard & Metric)
Wire Cutters Wire Crimping tool
7/16 wrench T-20 Torx Bit
QTY DESCRIPTION PART #
1 Main Console Housing CM004345
CM004345 Main Housing Includes:
1 Floor Mount Bracket CM003956
1 Front / Center End Panel CM004380
1 Lighter Socket with cap CM216560
3 7/8” Plug CM86430
1 “O” Ring KRM98017
Not Included with CM00435 Housing, but included with complete kit:
1 Driver Side Trim Panel CM004381
1 Passenger Side Trim Panel CM004382
1 Lighter Socket with cap CM216560
1 Sensor Cover CM001638
1 Hardware kit C-HK-174
CM004380
Front / Center End Panel
CM004345
Main Console Housing
CM004381
Driver Side Trim Panel
CM003956
Floor Mount Bracket
ALWAYS!
* Read all Instructions before installing any Havis, Inc. products.
* Use Hardware included with install kit
CM004382
Passenger Side Trim Panel
NOTE:
If your vehicle has the optional carpet interior, there will be a small
hole in the carpet not covered by the console housing at the rear.
If desired, an optional cover plate part number - CM001642 is available.
Cover plate not shown.
C-VS-0809-CHGR-1_INST_4-11
Remove O.E.M. plastic center
console
Remove Ignition proximity sensor /
antenna from rear underside of
O.E.M. console.
(Phillips Screwdriver)
** SEE NOTE BELOW **
Remove sensor and 12 volt socket
wire harness assembly from under
side of O.E.M. console.
Pop out “AUX” socket from center
of O.E.M console.
O.E.M. console prior to
C-VS-0809-CHGR-1 console
installation.
Remove forward O.E.M console
plastic cover and remove two (2)
nuts from front floor bracket.
Nuts to be reused. (10mm)
Remove bolts that hold underside
of extrusion to rear floor bracket.
(7/16 wrench)
Remove rear floor bracket bolts
and center console bolt. (10mm)
Carefully place console assembly
between seats and onto front O.E.M.
floor studs.
On 2011 Charger, attach Ignition
proximity sensor /antenna to
transmission hump with Velcro.
NOTE: 2012 and newer cars include
an O.E.M. bracket with this sensor
already relocated. Velcro mounting
will not be needed
Plug O.E.M. wire harness back
onto original connectors.
Passenger side
C-VS-0809-CHGR-1_INST_4-11
Cut off O.E.M 12 volt socket
connectors and attach 1/4 spade
connectors on O.E.M. wires. O.E.M.
wire will need to be extended for rear
socket. If desired, new heavier gauge
wires can be installed instead of
using O.E.M. wiring.
Push Console assembly forward and
tighten all floor mount bracket
hardware. Run all wiring as needed.
Loosely attach rear of console to
existing floor inserts. Inserts located
under rubber mat as shown.
Reconnect under dash “AUX”
USB connectors back together.
Plug spade connectors onto 12 volt
sockets.
Positive Pink wire connects to
center (silver) spade and Negative
Black wire to outboard (gold)
spade.
Prior to installing passenger side
trim panel, firmly push in the
O.E.M. Auxiliary socket assembly
into cutout. “AUX” lettering goes
toward the front of vehicle.
Install 12 volt socket into 7/8” hole
or close off with supplied plug.
Attach passenger and driver side
trim panels on with # 8 x 1/4 Flat
Head Screws. (3 screws each panel
included with hardware kit)
(Phillips Screwdriver)
Loosely attach previously removed
nuts onto front floor studs.
(10mm)
Use OEM screws (if provided) or
1/4 x 3/4 self threading screws
(included in hardware kit) to mount
rear of console. (7/16 wrench)
Place # KRM98017 Rubber “O”
Ring onto AUX socket assembly.
Push ring all the way on. This
allows for a tight fit when installed.
“O” Ring shown partially on
