Seite 1/74

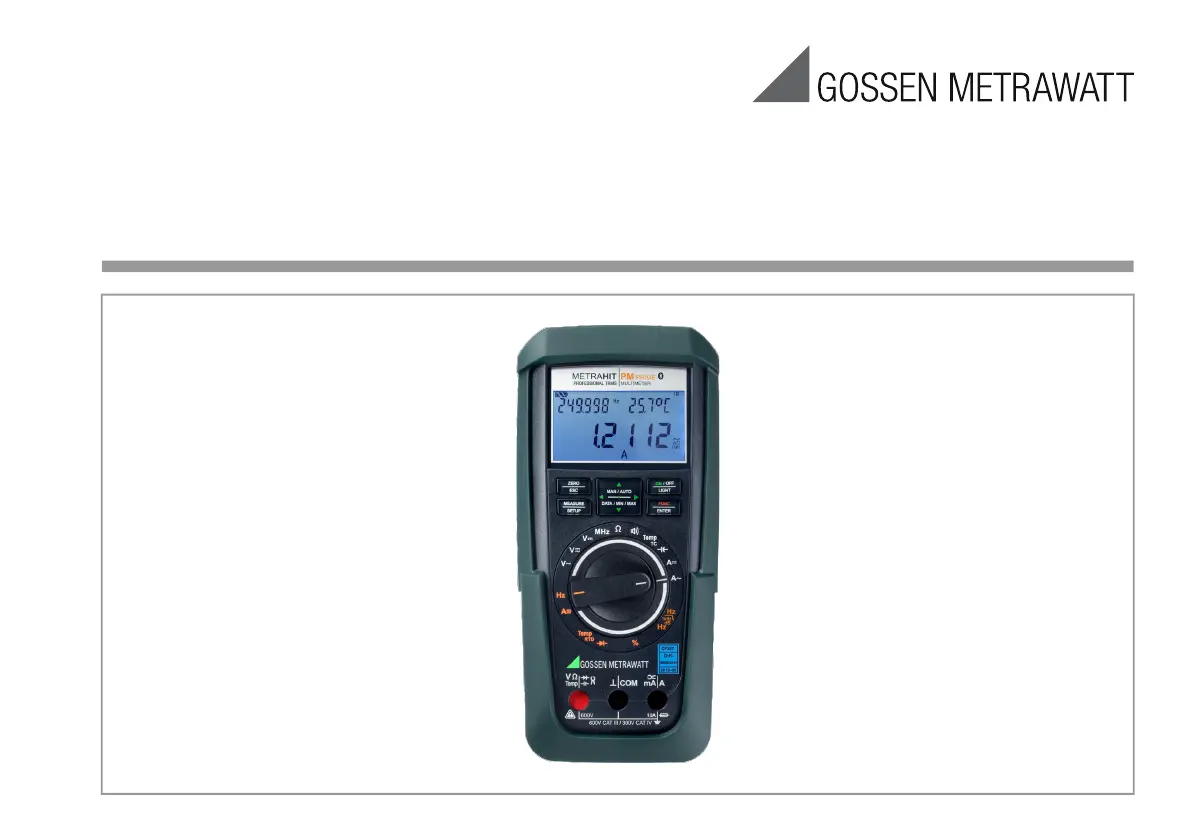

METRAHITULTRA and METRAHITULTRA BT
High Resolution TRMS Digital Multimeter
Operating Instructions
3-349-684-03
9/5.17
2 GMC-I Messtechnik GmbH
Scope of Delivery Contact Persons
Scope of Delivery
1 Multimeter
1 KS17-2 measurement cable set
2 Batteries
1 DAkkS calibration certificate
1 Rubber holster
1 Condensed operating instructions *
* Detailed operating instructions are available for download on the Internet
at www.gossenmetrawatt.com
Included Functions
1
16 Mbit = 2048 kByte = 300,000 measured values,
sampling rate adjustable from 0.1 seconds to 9 hours
Function METRAHIT ULTRA /
METRAHIT ULTRA BT
M248A / M248B
Voltage, VDC (Ri 10 M) ✓
Voltage, VAC TRMS (Ri 5 M) ✓
Voltage, VAC+DC TRMS (Ri 5 M) ✓
Frequency, Hz @ VAC @ VAC+DC Up to 300 kHz
1 kHz low-pass filter @ VAC @ VAC+DC
Bandwidth @ VAC+DC or VAC 100 kHz
Pulse frequency, MHz @ 5 V TTL 1 Hz to 1 MHz
Duty cycle as % 2.0% to 98%
Voltage level measurement, dB @ VAC @ VAC+DC
Resistance, ✓
Continuity test, ICONST = 1 mA ✓
Diode test,
I
CONST
= 1 mA ✓
Temp. measurement C/ F @ TCType K
Temp. measurement C/ F RTD Pt100/Pt1000
Capacitance measurement, F ✓
Current, ADC
300
A / 3 mA
30 mA / 300 mA
3 A / 10
A (16 A)
Current, AAC+DC TRMS
Current, AAC TRMS
Bandwidth @ AAC+DC or AAC 10 kHz
Frequency, Hz @ A
AC @ VAC+DC Up to 30 kHz
Current clamp measurement with ad-
justable transformation ratio
mV / A
mA / A
Data logger function 1 (memory) 16 MBit (2 MB)
Relative value measurement REL ✓
Zero point ✓
Min / Max / Data Hold ✓
IR interface (38.4 kBd)
✓
Bluetooth interface (38.4 kBd)
M248B only
Power pack socket ✓
Rubber holster ✓
Fuse 10 A / 1000 V
Protection IP 52
Measuring category 600 V CAT III
300 V CAT IV
DAkkS Calibration Certificate ✓
Function METRAHIT ULTRA /
METRAHIT ULTRA BT
M248A / M248B
GMC-I Messtechnik GmbH 3
Contact Persons
Accessories (sensors, plug inserts, adapters, consumable materials)
The accessories available for your instrument are checked for
compliance with currently valid safety regulations at regular inter-
vals, and are amended as required for new applications. Currently
up-to-date accessories which are suitable for your measuring in-
strument are listed at the following web address along with photo,
order number, description and, depending upon the scope of the
respective accessory, data sheet and operating instructions:
www.gossenmetrawatt.com
See also section 10 on page 70.
Product Support
Technical Queries
(use, operation, software registration)
If required please contact:
GMC-I Messtechnik GmbH
Product Support Hotline
Phone: +49 911 8602-0
Fax: +49 911 8602-709
e-mail: support@gossenmetrawatt.com
Software Enabling for METRAwin10 (as of version 6.xx)
GMC-I Messtechnik GmbH
Front Office
Phone: +49 911 8602-111
Fax: +49 911 8602-777
e-mail: info@gossenmetrawatt.com
