Seite 1/60

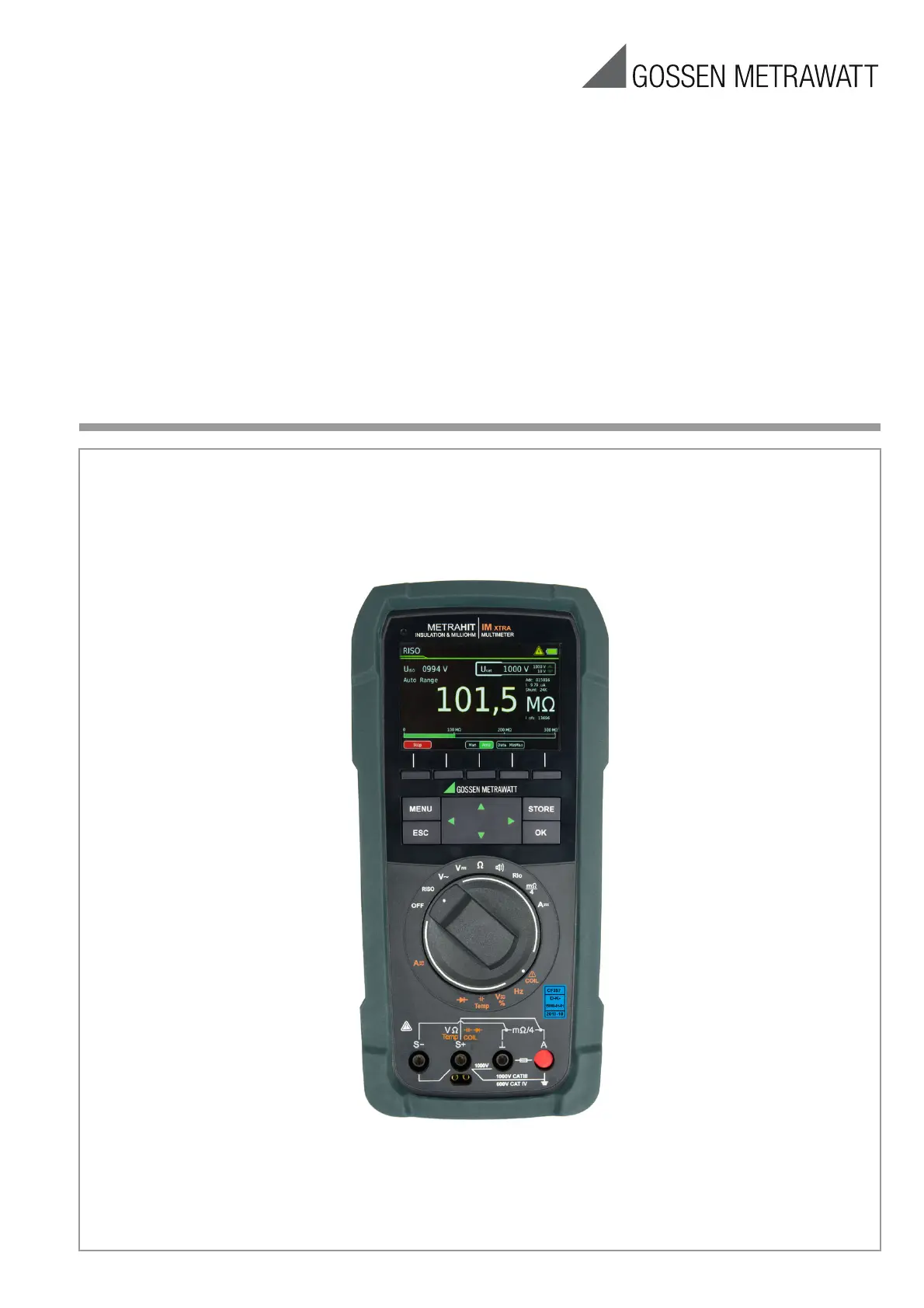

Operating Instructions
METRAHITIM XTRA
(M273A/D/W)
& METRAHITIM E-DRIVE
(M274A/B)
Insulation Tester, Milliohmmeter,
TRMS Multimeter, Inter-Turn Short Circuit Tester 3-447-035-03
7/5.20
2 GMC-I Messtechnik GmbH
Scope of Delivery (depending on instrument variant)
1METRAHIT IM XTRA or METRAHIT IM E-DRIVE multimeter
with rubber holster
1 Probe with start/stop and store/send function
1 KS17-2 cable set: 1 pair of safety measurement cables,
red/black, with 4 mm test tips
1 Type KC4 Kelvin clip (1 pair with METRAHIT IM XTRA)
1 Type KC27 Kelvin probe (with METRAHIT IM E-DRIVE only)
1 Quick change, rechargeable lithium polymer battery with
micro USB charging socket
1 USB mains power pack (5 V DC, 2 A) with cable and micro
USB charging plug
1 DAkkS calibration certificate
1 Hard case for the multimeter and accessories
1 Condensed operating instructions, German/English
Comprehensive operating instructions in German and English
available on the Internet for download at www.gossenme-
trawatt.com
1 Card with registration key
for the software
Overview Supply
Legend
X = Standard
O = Option
— = not possible, not provided for
Overview of Included Features
1With optional temperature sensors
2For 300,000 measured values, sampling rate adjustable from 0.1 sec-
onds to 9 hours
Accessories (sensors, plug inserts, adapters, consumable materials)
The accessories available for your instrument are checked for
compliance with currently valid safety regulations at regular inter-
vals, and are amended as required for new applications. Currently
up-to-date accessories which are suitable for your measuring
instrument are listed on our website along with photo, order num-
ber, description and, depending upon the scope of the respective
accessory, data sheet and operating instructions:
www.gossenmetrawatt.de
Software Version
These operating instructions describe a multimeter based on soft-
ware version 1.003.000. Refer to section 4.4.1 in order to query
the respectively installed version number.
Current operating instructions for the latest firmware update are
available for download from our website at
www.gossenmetrawatt.com.
Please register at myGMC in order to continuously receive the lat-
est information regarding current software and firmware, as well
as instrument updates and options.
Accessories Type Article No. M273S M274S
METRAHIT IM XTRA
M273D X
METRAHIT IM E-DRIVE BT M274B X
LiIon module & USB charger
Z270A+
Z270A,
Z270G X X
Mains module with electrical
isolation and USB charger Z270E O O
Remote probe Z270S Z270S X X
Cable set
KS17-2
GTY362003
P0002 X X
1 pair Kelvin clips KC4 Z227A X O
1 pair Kelvin probes KC27 Z227B O O
1 Kelvin clip &
1 Kelvin probe KC&S Z227C X
Hard case HC40 Z270K X X
COIL Adapter 10 μH ,,, 50 mH COIL Adapter 50mH Z270F O O
COIL Adapter 10 μH ,,, 500 mH
COIL Adapter XTRA Z270M O O
Adapter cable, 4 mm plug
to 6 mm socket AK-4M/6F Z110L O O
IZYTRONIQ Business Starter
Licence S101S & Z956A
S101S &
Z956A X X
Function METRAHIT IM XTRA (BT)
METRAHIT IM E-DRIVE (BT)
VDC (Ri 9 M)
VAC / Hz TRMS (Ri 9 M)
filter
VAC+DC TRMS (Ri 9 M)
filter
VAC+DC TRMS (Ri 1 M)
RISO range (interference voltage)
Hz (VAC)... 300 kHz
VAC, AC+DC bandwidth 100 kHz
A DC, AC, AC+DC / Hz TRMS 10 nA ... 1 A
Fuse 1 A / 1000 V - 30 kA
Current sensor transformation ratio
1 mV : 1 10 100 1000 mA
Hz (A AC) ... 30 kHz
Insulation resistance RISO: test voltages 50 100 250 500 1000 V
Inter-turn short circuit test (1 kV) with COIL adapter
Option
Duty cycle measurement as %
RPM measurement
Resistance Rlo with 200 mA per
EN 61557 / VDE 0413
Milliohm with 4-wire method, m with 200 mA
Milliohm with 4-wire method, m with 1 A pulse
Fuse FF 1A/1000 V – 30 kA
Resistance
Continuity
Diode ... 5.1 V
Temperature: °C/°F TC type K and Pt100/1000
1
Capacitance
Min-Max / data hold
Test sequence 20 steps
64 MBit memory 2
Bluetooth® interface METRAHIT IM XTRA BT
METRAHIT IM E-DRIVE BT
WiFi interface Option
3.5" TFT color graphic display
Probe with start/stop and send/store keys
Quick-change battery with USB charging
Mains module with electrical isolation and USB Option
WPC quick change battery for inductive charging Option
Protection IP 52
Measuring category 1000 V CAT III, 600 V CAT IV
1kHz
1kHz
GMC-I Messtechnik GmbH 3
Contents Page Contents Page
1 Addresses .........................................................................4
1.1 Product Support ..........................................................................4
1.2 Recalibration Service ..................................................................4
1.3 Repair and Replacement Parts Service
Calibration Center and Rental Instrument Service ...................... 4
2 Safety Features and Precautions .....................................5
2.1 Use for Intended Purpose ...........................................................6
2.2 Meanings of Danger Symbols ..................................................... 6
2.3 Meanings of Acoustic Warning Signals ...................................... 6
3 Operating Overview ..........................................................7
3.1 Connections, Keys, Rotary Switch, Symbols .............................. 7
3.2 Symbols Used in the Digital Display ..........................................7
3.3 Symbols Used for Rotary Switch Positions ................................ 8
3.4 User Interface Symbols in the Following Sections ..................... 8
3.5 Symbols on the Instrument .........................................................8
4 Initial Startup ....................................................................9
4.1 Battery Pack ............................................................................... 9
4.2 Mains Module ............................................................................. 9
4.3 Switching the instrument On ...................................................... 9
4.4 Querying or Setting Operating Parameters – General Setup ...... 9
4.4.1 Info > Version – Check Current Software Version ............................ 9
4.4.2 Language >German/English – Selecting the User Interface
Language ..................................................................................... 9
4.4.3 System > Date/Time – Setting Date and Time ................................ 9
4.4.4 System > Brightness – Digital Display Brightness ...........................9
4.4.5 System > Display Zeros ...............................................................10
4.4.6 System > Change Password ........................................................ 10
4.4.7 System > Display Profile – Digital Display View .............................10
4.4.8 System > Default Settings ........................................................... 11
4.4.9 System > Functions Expansion ....................................................11
4.4.10 Switching the Instrument Off ........................................................ 11
4.4.11 System > Auto-OFF – Automatic Shutdown .................................. 11
5 Control Functions ...........................................................12
5.1 Help ........................................................................................... 12
5.2 Selecting Measuring Functions and Measuring Ranges ...........13
5.2.1 Automatic Range Selection .......................................................... 13
5.2.2 Manual Range Selection ..............................................................13
5.2.3 Quick Measurements .................................................................. 13
5.3 Zero Offset / Relative Measurements ....................................... 13
5.4 Display (TFT) .............................................................................14
5.4.1 Digital Display .............................................................................14
5.4.2 Analog Display ............................................................................ 14
5.5
Measured Value Storage – Data Function (auto-hold/compare) .....15
5.5.1 Saving Minimum and Maximum Values – “MinMax” ......................16
5.6 Measured Value Memory – STORE Function. ........................... 16
5.6.1 Remote read-out and storage via the Z270S probe ....................... 16
5.6.2
Remote Read-Out and Storage via the PC – PUSH/PRINT Function .......16
5.7 Measurement Data Recording ..................................................17
6 Measurements ................................................................20
6.1 Enabling Parameter Changes ................................................... 20
6.2 Insulation Resistance Measurement – RISO Function ........... 20
6.2.1 Preparing for Measurement ......................................................... 20
6.2.2 Performing Insulation Measurement ............................................. 21
6.2.3 Ending the Measurement and Discharging .................................... 21
6.3 Inter-Turn Short Circuit Measurement –
COIL
Function ........ 22
6.3.1 Inter-Turn ShortCircuit Measurement with the
COIL TEST ADAPTER ..................................................................22
6.3.2
Inter-Turn Short Circuit Measurement with COIL ADAPTER XTRA ...............25
6.4 Absorption Index Measurement – DAR ................................. 28
6.5 Polarization Index Measurement – PI ................................... 29
6.6 Voltage Measurement ........................................................... 30
6.6.1 Alternating Voltage and Frequency Measurement V AC and Hz with
Selectable Low-Pass Filter ...........................................................31
6.6.2 Duty Cycle Measurement – Duty AC ............................................. 32
6.6.3 RPM Measurement – RPM AC ..................................................... 32
6.6.4 Direct and Pulsating Voltage Measurement, V DC and V (AC+DC) .. 33
6.7 Resistance Measurement .............................................. 34
6.8 Capacitance Measurement F ................................................ 35
6.9
Temperature Measurement with Resistance Thermometer
Temp RTD .......................................................................... 36
6.10 Temperature Measurement with Thermocouple – Temp TC . 37
6.11 Continuity Test .................................................................... 38
6.12 Diode Testing with Constant Current of 1 mA ..................... 38
6.13 Milliohm Measurement – Rlo (2-wire measurement) ............ 39
6.14 Milliohm Measurement – m/4 (4-wire measurement) ....... 40
6.14.1 Compensation of Cable Resistance .............................................. 40
6.14.2 Thermovoltage Compensation ...................................................... 40
6.14.3 Milliohm Measurement with 200 mA or 20 mA DC [m] .............. 41
6.14.4 Milliohm Measurement with 1 A Pulsating Measuring Current
(automatic thermovoltage correction at 3
 300
m
) .............................41
6.15 Current Measurement ........................................................... 42
6.15.1 Direct and Pulsating Current Measurement, Direct Connection,
– A DC and A (AC+DC) ............................................................... 43
6.15.2 Alternating Current and Frequency Measurement, Direct Connection,
– AAC and Hz ............................................................................. 44
6.15.3 Direct and Pulsating Current Measurement with Current Clamp Sensor
– ADC and A (AC+DC) ................................................................ 45
6.15.4 Alternating Current Measurement with Current Clamp Sensor
– AAC and Hz ............................................................................. 46
6.16 Measuring Sequences .......................................................... 47
7 Interface Operation .........................................................49
7.1 Bluetooth Interface ................................................................... 49
7.2 WiFi Interface ........................................................................... 49
8 Characteristic Values ..................................................50
9 Maintenance and Calibration ..........................................54
9.1 Displays – Error Messages ...................................................... 54
9.2 Battery Pack ............................................................................. 54
9.3 Fuse .......................................................................................... 55
9.4 Housing Maintenance ............................................................... 55
9.5 Measurement Cables ................................................................ 55
9.6 Returns and Environmentally Sound Disposal .......................... 55
9.7 Recalibration ............................................................................ 56
9.8 Manufacturer’s Guarantee ........................................................ 56
10 Accessories ....................................................................56
10.1 General ..................................................................................... 56
10.2 Technical Data for Measurement Cables
(included with KS17-2 cable set and Z270S probe) ................. 56
11 Index ...............................................................................57


Produktspezifikationen

Marke: Gossen Metrawatt
Kategorie: Multimeter
Modell: Metrahit IM XTRA (M273A/D/W)

Brauchst du Hilfe?

Wenn Sie Hilfe mit Gossen Metrawatt Metrahit IM XTRA (M273A/D/W) benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten




Bedienungsanleitung Multimeter Gossen Metrawatt

Bedienungsanleitung Multimeter

Neueste Bedienungsanleitung für -Kategorien-
