LARGE MOBILE GEARBOX
Assembly Instructions
ARMARIO GRANDE
MOVIBLE
Instrucciones de ensamblaje
GRANDE ARMOIRE MOBILE
Instructions d'assemblage
TABLE OF CONTENTS/ĂNDICE/TABLE DES MATIĂRES
CABINET/LOCKER SAFETY .......................2
PARTS ...........................................................2
ASSEMBLY INSTRUCTIONS.......................3
Cabinet Use Requirements........................3
Unpack Cabinet Parts................................3
Assemble Cabinet......................................3
Attach Back Panels....................................3
Install Casters or Leveling Legs.................4
Install Shelves ............................................5
Install Doors ...............................................6
Complete Assembly...................................6
ACCESSORIES .............................................6
WARRANTY ..................................................7
SEGURIDAD DEL ARMARIO ..................... 8
PIEZAS .......................................................... 8
INSTRUCCIONES DE ENSAMBLAJE ........ 9
Requisitos de uso del armario...................9
Desempaque las piezas del armario .........9
Ensamble el armario ..................................9
Fije los paneles posteriores .......................9
InstalaciĂłn de las patas niveladoras
o las ruedecillas .......................................10
InstalaciĂłn de los estantes ......................11
InstalaciĂłn de las puertas........................12
Complete el ensamblaje ..........................12
ACCESORIOS............................................. 12
GARANTĂA .................................................. 13
SĂCURITĂ DE LâARMOIRE....................... 14
PIĂCES........................................................ 14
INSTRUCTIONS D'ASSEMBLAGE ........... 15
SpĂŠcifications d'utilisation de l'armoire .. 15
DÊballage des pièces de l'armoire.......... 15
Assemblage de l'armoire......................... 15
Fixation des panneaux arrière................. 15
Installation des pieds de rĂŠglage
de l'aplomb ou des roulettes................... 16
Installation des Êtagères.......................... 17
Installation des portes ............................. 18
Fin de lâassemblage................................. 18
ACCESSOIRES........................................... 18
GARANTIE .................................................. 19
W10309372A
I T ' S T I M E T O R E T H I N K T H E G A R A G E . ÂŽ
E S T I E M P O D E V O L V E R A P E N S A R E N E L G A R A G E . â˘
L E G A R A G E R E P E N S Ă . â˘
2

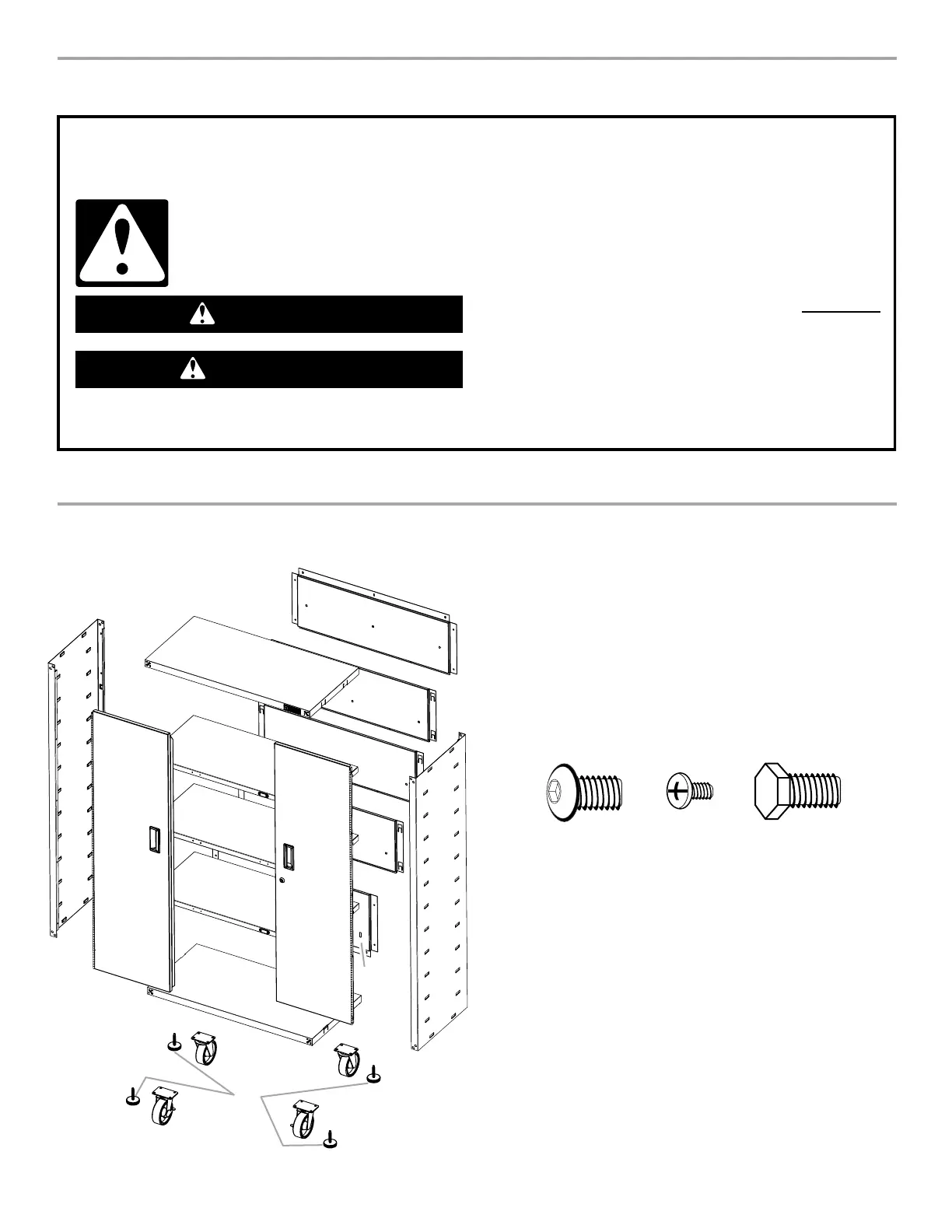

CABINET/LOCKER SAFETY
PARTS
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word âDANGERâ or âWARNING.â
These words mean:
follow instructions.
instructions.
DANGER
WARNING
P2
P5m
P5
P3
P6
P7
P1
P1
P4
P8
P9
P10
P9
P9
P5m
F1 F3b F14
3
ASSEMBLY INSTRUCTIONS
Cabinet Use Requirements
â Intended for use in a garage.
â Maximum weight limit is 50 lbs (22.7 kg) for each shelf.
â Maximum weight limit is 300 lbs (136 kg) for the cabinet.
Unpack Cabinet Parts
1. Remove and verify the contents. Contents include an Allen
wrench, a key, and the parts and fasteners shown in âParts.â
2. Dispose of/recycle all packaging materials.
Assemble Cabinet
Gather the required tools before starting installation.
Tools Needed:
Tools Supplied:
IMPORTANT:
â Two people may be required to complete the assembly.
â As you assemble the cabinet frame, make sure the edges with
the loops are facing up.
â The cabinet top (P2) is intentionally designed so that the tabs will
match with the loops on the sides only when it is positioned
correctly. If the tabs on the cabinet top do not match up with the
loops on the side panel (P1), turn the cabinet top around.
1. Place side panel (P1) on a flat, firm surface so that the edge with
the loops is facing up as shown.
2. Align the tabs in the cabinet top (P2) with the loops in the cabinet
side (P1). Slide the cabinet top between the edges of side panel.
NOTE: Make sure each tab is inserted fully behind the loop.
3. Align the two holes in each corner. Using Allen-head bolts (F1),
fasten the side panel (P1) to the top (P2) as shown. Do not
tighten completely.
4. Repeat steps 2 and 3 for the other cabinet side (P1).
5. With the smooth side toward the cabinet interior, align the four
tabs in the cabinet bottom (P3) with the loops in the cabinet
sides (P1). Slide the cabinet bottom between the edges of side
panels.
NOTE: Make sure each tab is fully inserted behind the loop.
6. Align the two holes in each corner. Using Allen-head bolts (F1),
fasten the side panels (P1) to the bottom (P3) as shown. Do not
tighten completely.
Attach Back Panels
IMPORTANT: Attach the back panels starting at the top of the
cabinet with back panel (P8) and working down to the cabinet
bottom. Each back panel will overlap the panel below.
1. Align the tabs in back panel (P8) with the loops in the top (P2)
and sides (P1) of the cabinet.
2. Slide back panel (P8) toward the cabinet top (P2) until the back
panel is firmly in place.
NOTE: Make sure each tab is inserted fully behind the loop as
shown.
3. Slide back panel (P9) upward until the top of panel (P9) is under
back panel (P8) and the tabs are inserted in each loop.
NOTE: Each back panel will slightly overlap the panel below.
4. Repeat Step 3 to assemble the remaining back panels ending
with back panel (P10).
5. Using Phillips-head screws, attach each back panel to the panel
below.
6. Using Phillips-head screws, attach panel (P8) to the cabinet top
(P2) and panel (P10) to the cabinet bottom (P3).
F1
F1
âľâââ
" Allen-head bolt (16)
â šââ" Wrench
â Phillips screwdriver
â Level
â â Allen wrench Key
WARNING
Excessive Weight Hazard
Use two or more people to move, assemble or install
cabinet.
Failure to do so can result in back or other injury. F3b
F3b Phillips-head screw (34)
P1
P3
P1
P2
P3
P1
P3
P1
