Seite 1/12
WELDED-STEEL MODULAR
GEARDRAWERS AND
GEARBOX CABINETS
Assembly Instructions
ARMARIOS MODULARES DE ACERO FUNDIDO
CON CAJONES PARA HERRAMIENTAS
Instrucciones de ensamblaje
ARMOIRES MODULAIRES EN ACIER SOUDÉ
AVEC TIROIRS À OUTILS
Instructions d'assemblage
TABLE OF CONTENTS/ÍNDICE/TABLE DES MATIÈRES
CABINET/LOCKER SAFETY .......................2
ASSEMBLY INSTRUCTIONS.......................2
WARRANTY ..................................................4
SEGURIDAD DEL ARMARIO .....................5
INSTRUCCIONES DE ENSAMBLAJE ........ 5
GARANTÍA .................................................... 7
SÉCURITÉ DE L’ARMOIRE......................... 8
INSTRUCTIONS D’ASSEMBLAGE ............. 8
GARANTIE .................................................. 11
2253771C
I T ' S T I M E T O R E T H I N K T H E G A R A G E . ®
E S T I E M P O D E V O L V E R A P E N S A R E N E L G A R A G E . ™
L E G A R A G E R E P E N S É . ™
2

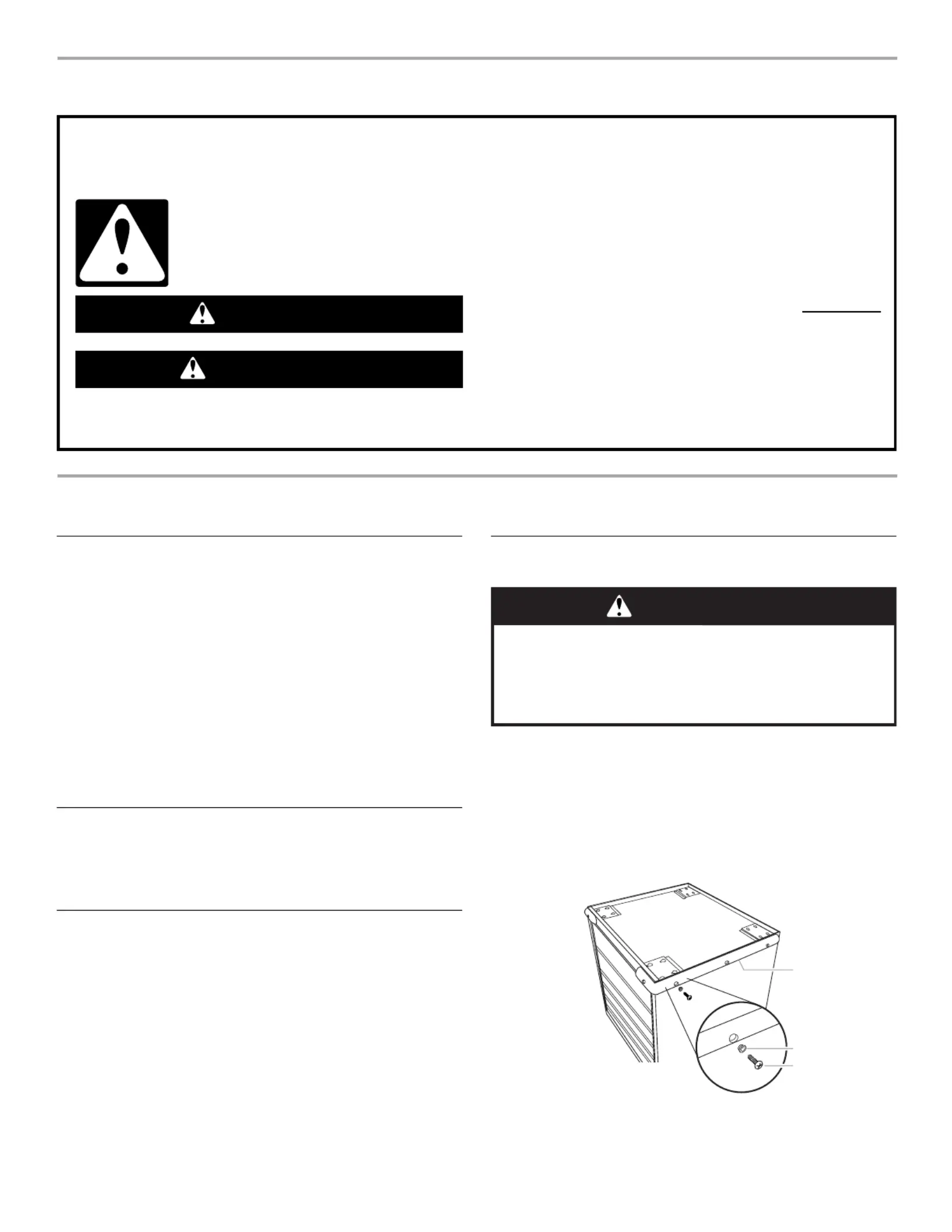

CABINET/LOCKER SAFETY
ASSEMBLY INSTRUCTIONS
Tools and Parts
Gather the required tools and parts before starting installation.
Tools Needed:
Parts Supplied:
Cabinet Use Requirements
■Intended for use in a garage.
■Maximum weight limit is 65 lbs (29 kg) for the tray/shelf.
■Maximum weight limit is 1,400 lbs (635 kg) for the cabinet.
Unpack the Cabinet
NOTE: Keep the packing materials to cushion the cabinet during
assembly and then dispose of/recycle all packaging materials.
1. Remove the key, located in the handle, and unlock the doors or
drawers.
2. Verify contents. See “Parts Supplied.”
Install the Bumpers
1. Close and lock the doors or drawers. Remove the key.
NOTE: The drawers must be pushed in completely to lock.
2. Remove the top mat from the cabinet.
3. Using two or more people, turn the cabinet upside down.
4. Attach the bumpers to the front corners using four washers and
four Phillips-head screws for each bumper.
NOTE: To keep from stripping the screws, do not overtighten.
5. Using a Phillips screwdriver, tighten all the screws.
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
■⁷⁄₁₆" Wrench
■Flat-blade screwdriver
■Phillips screwdriver
■Key (1)
■Top mat (1)
■Drawer model: Drawer liners (5)
Cabinet model: Tray liner (1)
■“L”-shaped bumpers (2)
■Phillips-head screws (8)
■Washers (8)
■Rigid casters (2)
■Swivel casters (2)
■¹⁄₄" - 20 Self-locking
nuts (16)
■¹⁄₄ ¹⁄₂" - 20 x " Carriage-
head bolts (16)
A. Bumper
B. Washer
C. Phillips-head
screw
WARNING
Excessive Weight Hazard
Use two or more people to move, assemble or install
cabinet.
Failure to do so can result in back or other injury.
B
C
A
3

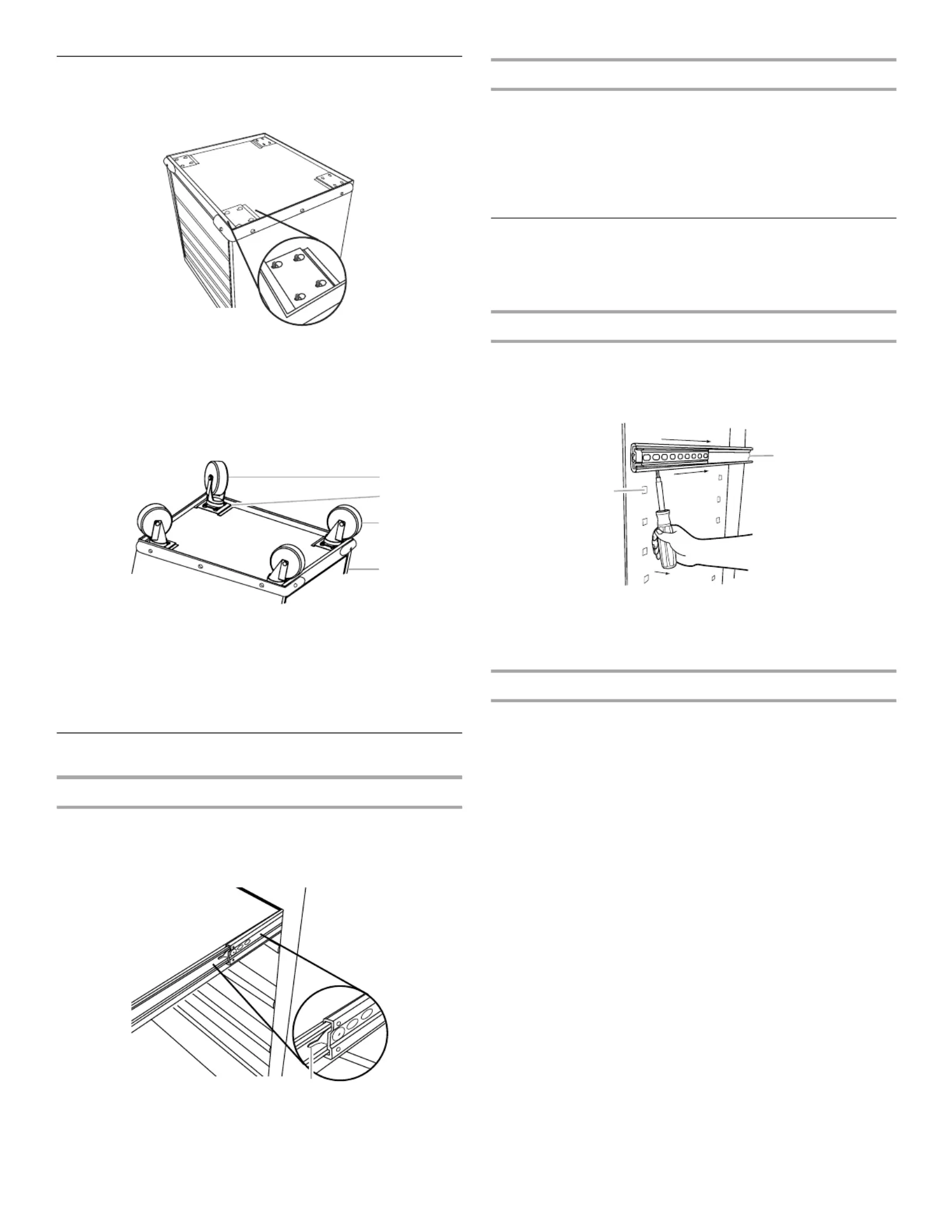

Install the Casters
1. Insert the carriage-head bolts into the keyhole slots and slide the
bolts into place as shown.
2. Position the two rigid casters over the bolts in the front cabinet
location, with the brakes toward the inside, and start four self-
locking nuts for each caster.
3. Hold the casters in place making sure the bolts are seated in the
narrow ends of the keyhole slots. Tighten the self-locking nuts
with a ⁷⁄₁₆" wrench.
4. To attach the two swivel casters to the rear caster location,
repeat Steps 2 and 3.
5. Return the cabinet to its upright position.
6. Replace the top mat with the textured side facing up.
7. Unlock the doors or drawers.
8. Place the liner(s) in the tray or the drawers.
Install the Convertible Tray or Drawers
Removing the Convertible Tray or Drawer
1. Unload the contents from the convertible tray or drawer.
2. Slide out the convertible tray or drawer as far as it will go.
3. Press the lever down on the right-hand track and lift the lever up
on the left track to release the convertible tray or drawer.
Replacing the Convertible Tray or Drawer
1. Align the convertible tray or drawer guides with the receiving
glides.
2. Hold the receiving glides firmly and insert the convertible tray or
drawer guide.
NOTE: It is normal for the convertible tray or drawer to close
tightly the first time after it has been removed.
3. Push the convertible tray or drawer in completely.
Adjust Drawer Location
(optional on GearDrawer only)
You can remove the drawer glides and reinstall them in different
locations to customize your storage space.
Removing the Glide
1. Unload the drawer and remove it. See “Install the Convertible
Tray or Drawers.”
2. Insert a flat-blade screwdriver between the glide and the cabinet
just past the first opening.
3. Using the screwdriver, pry the glide up and push it back toward
the rear of the cabinet.
Replacing the Glide
1. Determine the desired height for the drawer.
2. Insert the glide tabs into the openings in the cabinet.
3. Hold the back of the glide and pull it toward you until it locks into
place.
4. Replace the drawer. See “Install the Convertible Tray or
Drawers.”
A. Swivel casters
B. Caster plate
C. Rigid casters
D. Front of cabinet
A. Lever
A
B
D
C
A
A. First opening
B. Back of glide
B
A
