WORKBENCH POWER STRIP
Installation Instructions
CONTACTO MÚLTIPLE PARA
MESA DE TRABAJO
Instrucciones de Instalación
BARRE MULTIPRISE POUR ÉTABLI
Instructions d’installation
TABLE OF CONTENTS/ÍNDICE/TABLE DES MATIÈRES
WORKBENCH POWER STRIP SAFETY ...... 1
INSTALLATION REQUIREMENTS ............... 2
Tools and Parts ........................................... 2
Electrical Requirements .............................. 2
Power Strip Use Requirements .................. 2
INSTALL POWER STRIP............................... 3
6 ft (1.8 m) Workbench................................ 3
8 ft (2.4 m) Workbench................................ 3
INSTALL TOOL CADDIES............................. 4
TROUBLESHOOTING ................................... 5
WARRANTY ................................................... 5
SEGURIDAD DEL CONTACTO
MÚLTIPLE PARA MESA DE TRABAJO....... 6
REQUISITOS DE INSTALACIÓN.................. 6
Herramientas y piezas ................................ 6
Requisitos eléctricos................................... 7
Requisitos de uso del contacto múltiple.... 7
INSTALACIÓN DEL
CONTACTO MÚLTIPLE................................ 7
Mesa de trabajo de 6 pies (1,8 m).............. 7
Mesa de trabajo de 8 pies (2,4 m).............. 8
INSTALACIÓN DE LOS ESTUCHES PARA
HERRAMIENTAS........................................... 8
SOLUCIÓN DE PROBLEMAS ...................... 9
GARANTÍA ................................................... 10
SÉCURITÉ DE LA BARRE
MULTIPRISE POUR ÉTABLI.......................11
EXIGENCES D'INSTALLATION ..................11
Outillage et pièces.....................................11
Spécifications électriques .........................11
Utilisation de la barre multiprise................12
INSTALLATION DE LA
BARRE MULTIPRISE...................................12
Établi de 6 pi (1,8 m)..................................12
Établi de 8 pi (2.4 m)..................................13
INSTALLATION DES PORTE-OUTILS .......13
DÉPANNAGE................................................14
GARANTIE ....................................................15
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
2
INSTALLATION REQUIREMENTS

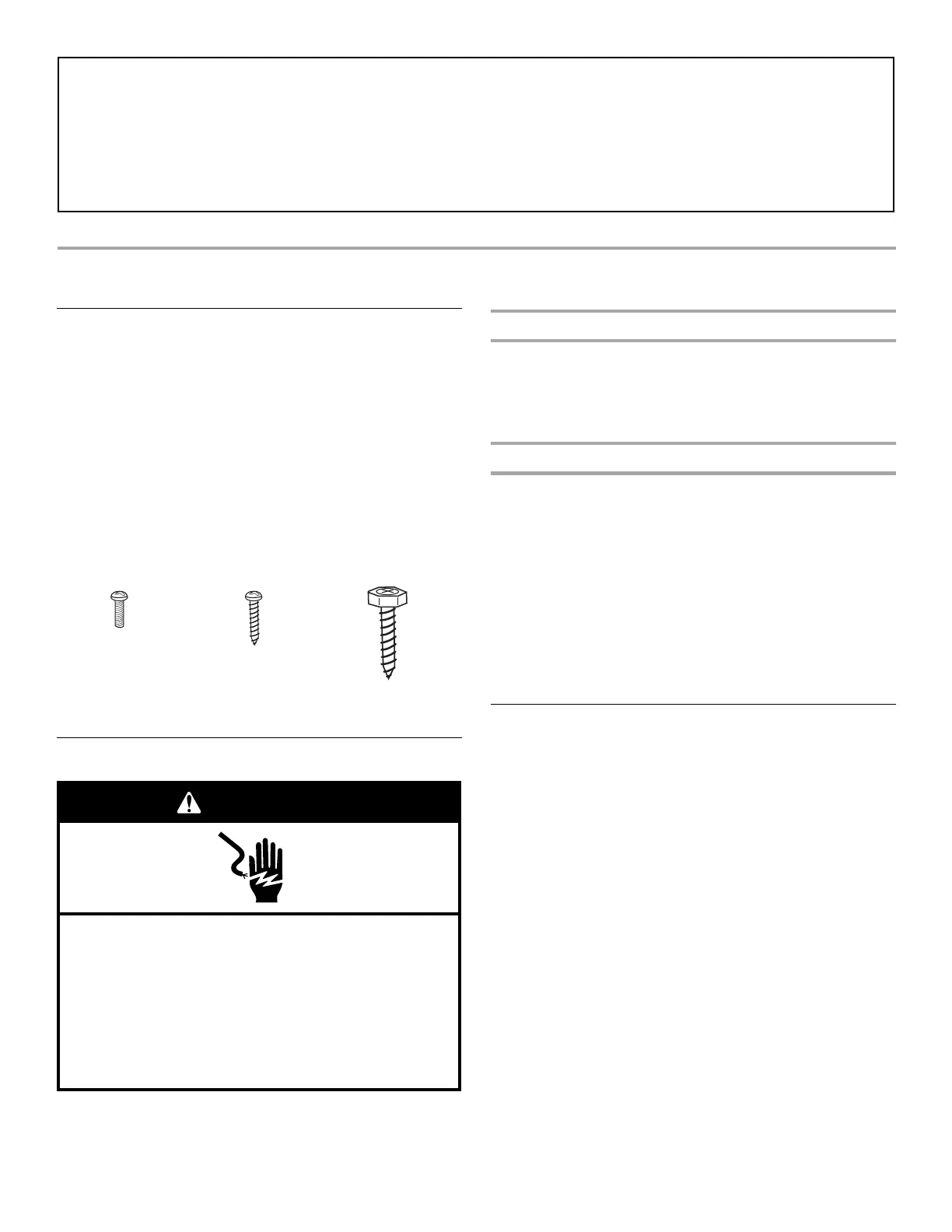

Tools and Parts
Gather the required tools and parts before starting installation. Read
and follow the instructions provided with any tools listed here.
Tools Needed:
Parts Supplied:
Electrical Requirements
IMPORTANT: Be sure you have the proper electrical connection
before you install the power strip on the workbench.
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only, 15-amp, fused, grounded electrical
supply is required. Use an outlet that cannot be turned off by a
switch. Do not use an extension cord.
NOTE: Before moving or cleaning the work bench disconnect the
power strip from the electrical source. When you are finished,
reconnect the power strip to the electrical source.
Over-Current Circuit Protection
The power strip is designed with a visual over-current protection
switch that operates as follows:
Over-current protection switch is in the ON position and
the green light is lit
The circuit has not tripped and the power strip can be used.
Over-current switch has been tripped
The green light will go out, and the over-current protection switch will
move to the OFF position. Unplug all items from the power strip. To
restore power, push the over-current protection switch back to the
ON position. Plug items back in one at a time, while watching to see
if the green light goes out and the over-current protection switch
moves to the OFF position again. If it does, unplug items until you are
sure that the green light is remaining lit and the over-current
protection switch is remaining in the ON position.
Power Strip Use Requirements
■Intended for use in a garage.
■The 6 ft (1.8 m) power strip is designed to be permanently
installed on the Gladiator® workbench.
■There are nine electrical outlets on the power strip. All outlets are
connected to the over-current protection switch.
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
To reduce the risk of fire, electric shock, or injury when using your power strip, follow these basic precautions:
SAVE THESE INSTRUCTIONS
■
Plug into a grounded 3 prong outlet.
■
Do not remove ground prong.
■
Do not use an adapter.
■
Do not use an extension cord.
■
Unplug before servicing.
■
Replace all parts and panels before operating.
■⁷⁄₁₆" Socket wrench
■³⁄₁₆" Wood drill bit
■¹⁄₁₆" Wood drill bit
■Drill
■Phillips screwdriver
■Flat-blade screwdriver
■Tape measure
■Tool caddies (2)
■#8 x ¹⁄₄" Phillips-head
screws (4)
■¹⁄₄" x ³⁄₄" Lag bolts (6)
■#8 x ¹⁄₂" Phillips-head
screws (2)
#8 x ¹⁄₄" Phillips-
head screws (4)
#8 x ¹⁄₂" Phillips-
head screws (2)
¹⁄₄ ³⁄₄" x " Lag
bolts (6)
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
3
INSTALL POWER STRIP
The workbench power strip can be installed on either the 6 ft (1.8 m) or the 8 ft (2.4 m) workbench. Before installing the power strip, verify the
size of your workbench (6 ft or 8 ft) (1.8 m or 2.4 m) and follow the corresponding installation instructions.
6 ft (1.8 m) Workbench
1. Remove the power strip and tool caddies from the box. Locate
the hardware packed in one of the tool caddies, and verify
contents. See “Parts Supplied.”
2. Place and align the power strip on the back edge of the
workbench.
3. Hold the power strip in place. Using the six holes in the power
strip back panel as a template, mark the workbench.
Before Installation
4. Using a ³⁄₁₆" wood drill bit, drill ³⁄₄" to 1" deep starter holes where
marked.
NOTE: While drilling, hold the drill level.
5. Using the six " lag bolts (provided), attach the power strip to ¹⁄₄
the workbench.
NOTE: Hand tighten each lag bolt. When all six lag bolts are in
place, tighten them completely with a ⁷⁄₁₆" socket wrench. Do not
overtighten.
After Installation
8 ft (2.4 m) Workbench
1. Remove the power strip and tool caddies from the box. Locate
the hardware packed in one of the tool caddies, and verify
contents. See “Parts Supplied.”
2. Measure 12" (30.48 cm) from an edge of the workbench and
mark a line.
3. Use the line as a guide to center the power strip on the back
edge of the workbench.
Before Installation
4. Hold the power strip in place. Using the six holes in the power
strip back panel as a template, mark the workbench.
5. Using a ³⁄₁₆" wood drill bit, drill ³⁄₄" to 1" deep starter holes where
marked.
NOTE: While drilling, hold the drill level.
6. Using the six " lag bolts (provided), attach the power strip to ¹⁄₄
the workbench.
NOTE: Hand tighten each lag bolt. When all six lag bolts are in
place, tighten them completely with a ⁷⁄₁₆" socket wrench. Do not
overtighten.
After Installation
A. Front
B. Back
A
B
A. Front
A
A. Front
B. Back
12"
(30.48 cm)
12"
(30.48 cm)
A
B
A. Front
A
