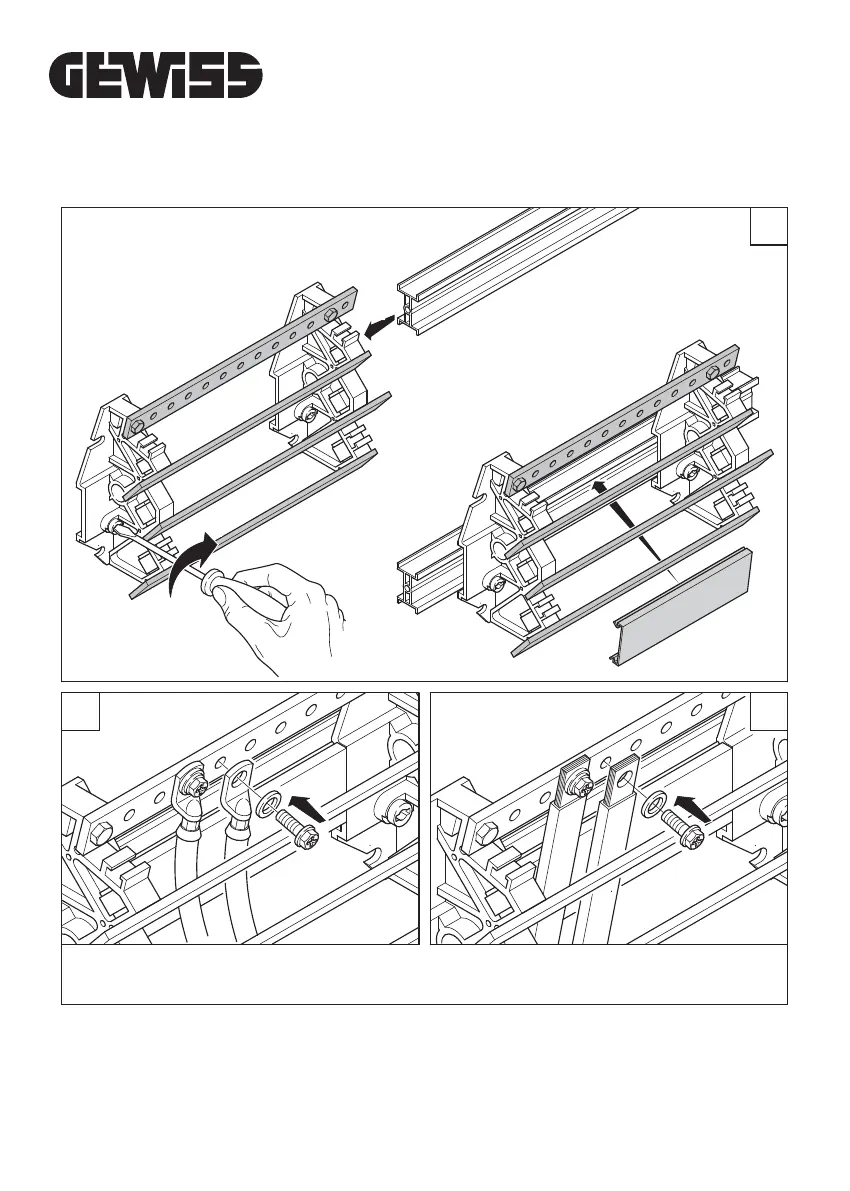

Montaggio supporti ripartitore
Distribution frame supports assembly
Serie 47 CVX
N.B.: • Alimentazione con capicorda: collegarsi all’estremità della barra.
Current feed with cable lug: connect to the end of the bar.
• Alimentazione con bandella: nessuna prescrizione della posizione.
Current feed with flexible insulated copper bar: no prescription.
• All’atto del cablaggio verificare che la distanza in aria tra le parti attive delle fasi non sia inferiore a 8 mm.
When wiring, ensure that the shortest distance between the two active parts of the phases is less than 8 mm.
1
2b2a
1
23
Cablaggio - Nota: non utilizzare capicorda ad ATTACCO CONTENUTO da 50 - 70 mm
2
.
Wire assembling - Note: do not use lugs with 50-70 mm
2
PALM WIDTH.
Montaggio su guida
Mechanical block on guide
GW 44 700
COD. 7.57.3.382.4ULTIMA REVISIONE 09/2008
4
3
5
23
27,5 91 13,5
6
Perni per coperchio
Pin for cover
Montaggio coperchio
Cover assembling
Posizione delle barre
Bars position
Alimentazione
Current feed
Interasse supporti
Supports gauge
