GAMBERJOHNSON.COM
3001 Borham Avenue, Stevens Point, WI 54481
800.487.9220 | sales@gamberjohnson.com
RUGGED. RELIABLE. RESPONSIVE.
RUGGED. RELIABLE. RESPONSIVE.

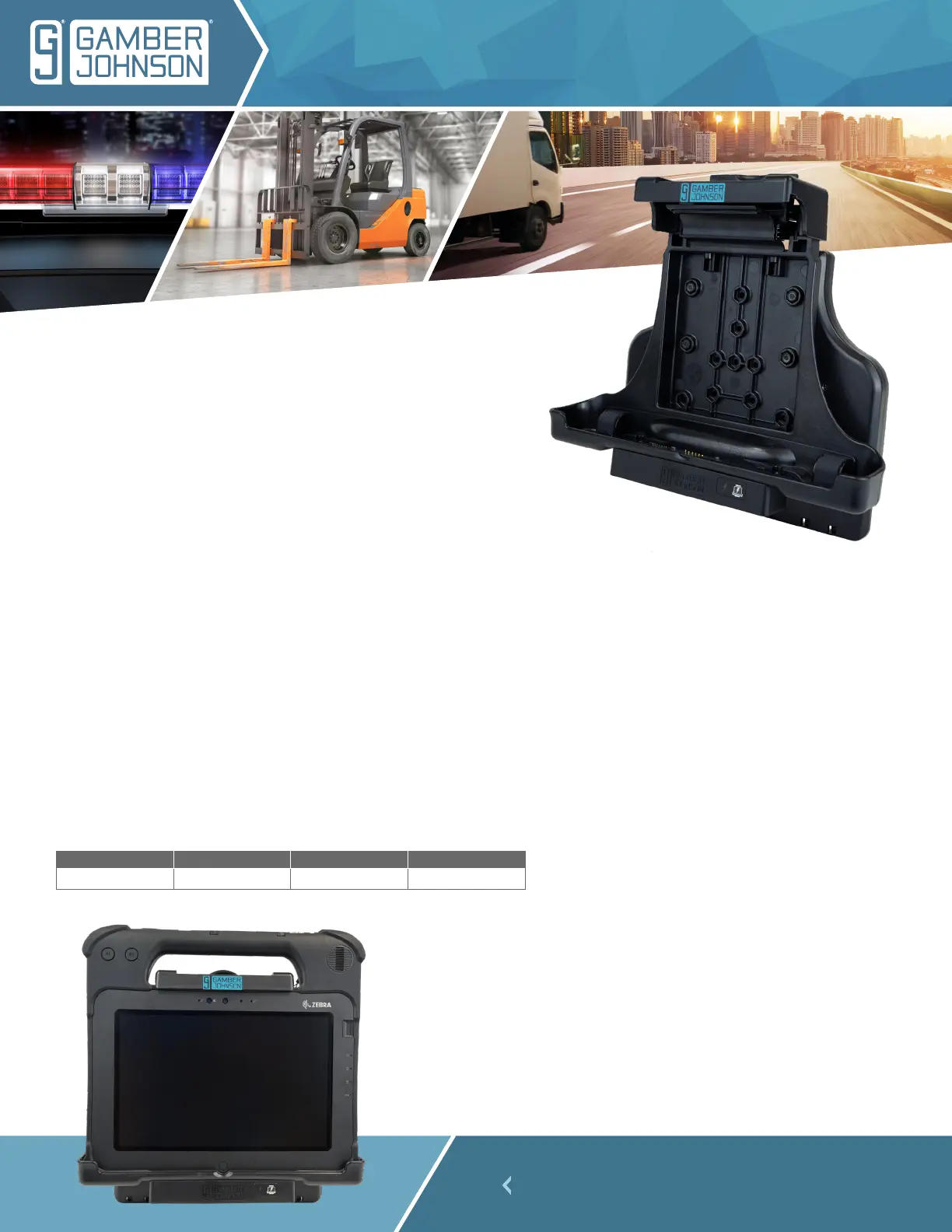

ZEBRA L10 WINDOWS®
TABLET DOCKING STATION
Rugged products designed for your work environment
Designed for the Zebra L10 WINDOWS rugged tablet, the Gamber-Johnson’s
L10 WINDOWS docking station is compatible with the Zebra L10 xPad hard-
handle tablet and xSlate tablet. The L10 WINDOWS tablet docking station
provides full port replication including a powered RS232 port to attach scanners
for a warehouse or forklift solution; USBs, VGA, HDMI, and Ethernet complete
the port replication for a multitude of mo bile applications to connect with
peripherals. The L10 vehicle dock has an optional 5 connection RF pass-through
for positive connections in remote places. The L10 docking station features
convenient LED indicator lights that help you know when the tablet is connected
to the docking station and when the dock is powered. The keyed-lock provides
added security and theft deterrence.
Certicates & Testing
• Zebra Certied
• Vibration Tested: MIL-STD 810G Operational/Non-Operational
• Shock Crash Hazard: SAE J1455; Mechanical Shock: 40G
• Cycle Test: Latch, Lock, and Docking Connector - 30,000 Cycles
• Environmental: Thermal Shock; High/Low Temperature Operational & Storage
• FCC, CE, RoHS, WEEE Certied
Features
• Compatible with the Zebra Windows L10 xPad
hard-handle and xSlate tablet computer
• Design accommodates the L10 extended battery, smart
card/CAC reader module, True Serial (RS232) module,
hard handle, soft handle, and shoulder strap
• Sealed docking connector to protect against moisture
• RS232 - power pin 9 (825mA)
• LED indicator lights show that “tablet is docked” and
“dock is powered”
• Access door to internal USB 2.0 port provides additional
security
• Floating docking connector for reliable docking
activation
• Bottom-facing I/O ports; integrated cable restraint/cable
management system
• Forward facing docking latch/release for easy one-
handed operation:
• Insert bottom of computer into docking station, push
top of computer in and pull latch forward until latch
engages
• To remove, lift latch to disengage and pull computer
out of docking station
• Keyed lock for security and theft deterrence
• VESA 75 and 50mm x 100mm mounting patterns
• Rounded edges to enhance personal safety
• Composite/aluminum design for reduced weight and
durability
• Optional RF pass-through SMA - (WWAN Main, GPS,
WWAN Aux, WIFI Main, WIFI Aux)
• 3-Year Limited Warranty
WEIGHT HEIGHT WIDTH DEPTH
3.75 lbs / 1.70 kg 10.63 in / 27.0 cm 11.81 in / 29.9 cm 3.94 in / 10.0 cm
GAMBERJOHNSON.COM 3001 Borham Avenue, Stevens Point, WI 54481
800.487.9220 | sales@gamberjohnson.com
GAMBERJOHNSON.COM
3001 Borham Avenue, Stevens Point, WI 54481
800.487.9220 | sales@gamberjohnson.com
RUGGED. RELIABLE. RESPONSIVE.
RUGGED. RELIABLE. RESPONSIVE.
Port Replication
• Zebra Certied Electronics
• USB 3.0 (2) - 9 Pin (900mA)
• USB 2.0 (2) - 4 Pin (500mA)
• USB 2.0 (1) - 4 Pin (500mA) behind access
door
• RS232 Serial (1) - Power on Pin 9 (825mA)
• HDMI (1) - 19 Pin
• VGA (1) - D-Sub 9 Pin
• Ethernet RJ45 (1) - (Gigabit)
• Microphone (1), Headphones/Speakers (1)
• Power Input: 19 VDC
• Antenna: 5x RF (SMA) (optional)
ZEBRA L10 WINDOWS
®
TABLET
DOCKING STATION
Accessories
• Item No. 7400-0026 - LIND Automotive Power Adapter 12-16V Bare Wire
• Item No. 7300-0344 - LIND Automotive Power Adapter 12-32V
• Item No. 7300-0345 - LIND Automotive Power Adapter 12-32V Cigarette Lighter Connector
• Item No. 7300-0027 - LIND Material Handling Isolated Power Adapter 12-32V Bare Wire
• Item No. 7400-0028 - LIND Material Handling Isolated Power Adapter 20-60V Bare Wire
• Item No. 7300-0346 - LIND Material Handling Isolated Power Adapter 72-110V Bare Wire
MICROPHONE
USB 3.0
ETHERNET HDMI VGA USB 2.0 SERIAL SPEAKERS/
HEADPHONE
POWER
INPUT
Product Selection
ITEM NUMBER ZEBRA L10 DESCRIPTION USB
2.0
USB
3.0 ETHERNET RS232
SERIAL HDMI VGA
MIC/
HEAD-
PHONES
POWER
ADAPTER
INCLUDED
ANTENNA
RF
7110-1292 Cradle NO RF (no electronics) No
7110-1293 RF Module 5x - SMA
7160-1321-00 Windows Docking Station No RF 3 2 1 1 1 1 1 each No No
7160-1321-05 Windows Docking Station with 5x RF Pass-Through 3 2 1 1 1 1 1 each No 5x - SMA
7160-1321-01 Windows Docking Station Module (converts L10 cradle to docking station) 3 2 1 1 1 1 1 each No No
7170-0789 Windows Docking Station 5x RF with 12-16V Automotive Power Adapter 3 2 1 1 1 1 1 each 5x - SMAYes
7170-0799 Windows Docking Station No RF with 12-16V Automotive Power Adapter 3 2 1 1 1 1 1 each NoYes
7170-0800 Windows Docking Station No RF with 20-60V Material Handling Isolated
Power Adapter 3 2 1 1 1 1 1 each NoYes
7170-0801 Windows Docking Station NO RF with 72-110V Material Handling Isolated
Power Adapter 3 2 1 1 1 1 1 each NoYes
GAMBERJOHNSON.COM 3001 Borham Avenue, Stevens Point, WI 54481
800.487.9220 | sales@gamberjohnson.com
