Seite 1/6
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
Rev. B
INST-835
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
This instruction sheet is for the Getac K120 Tablet docking station only. For instructions on
features, set-up, and operation of the computer, please refer to the manual provided by
Getac with the computer.
This docking station is designed to be used with a variety of Gamber-Johnson mounting
systems. Installation instructions for other Gamber-Johnson products are provided with each
individual product.
This instruction sheet is for the following products:
Item No. 7160-1084-00
No RF (External Power Supply sold separately)
Item No. 7160-1084-03
Tri RF (External Power Supply sold separately)
Getac recommends using the following Power Adapters to power the docking station. They
can be ordered from Gamber-Johnson seperately.
17057
- Auto (12-32 Vdc input) - Available with the docking station as KIT 7170-0694
16079
- Isolated (12-32 Vdc input)
16078
- Isolated (20-60 Vdc input)
16513
- Isolated (72-110 Vdc input)
1 / 6

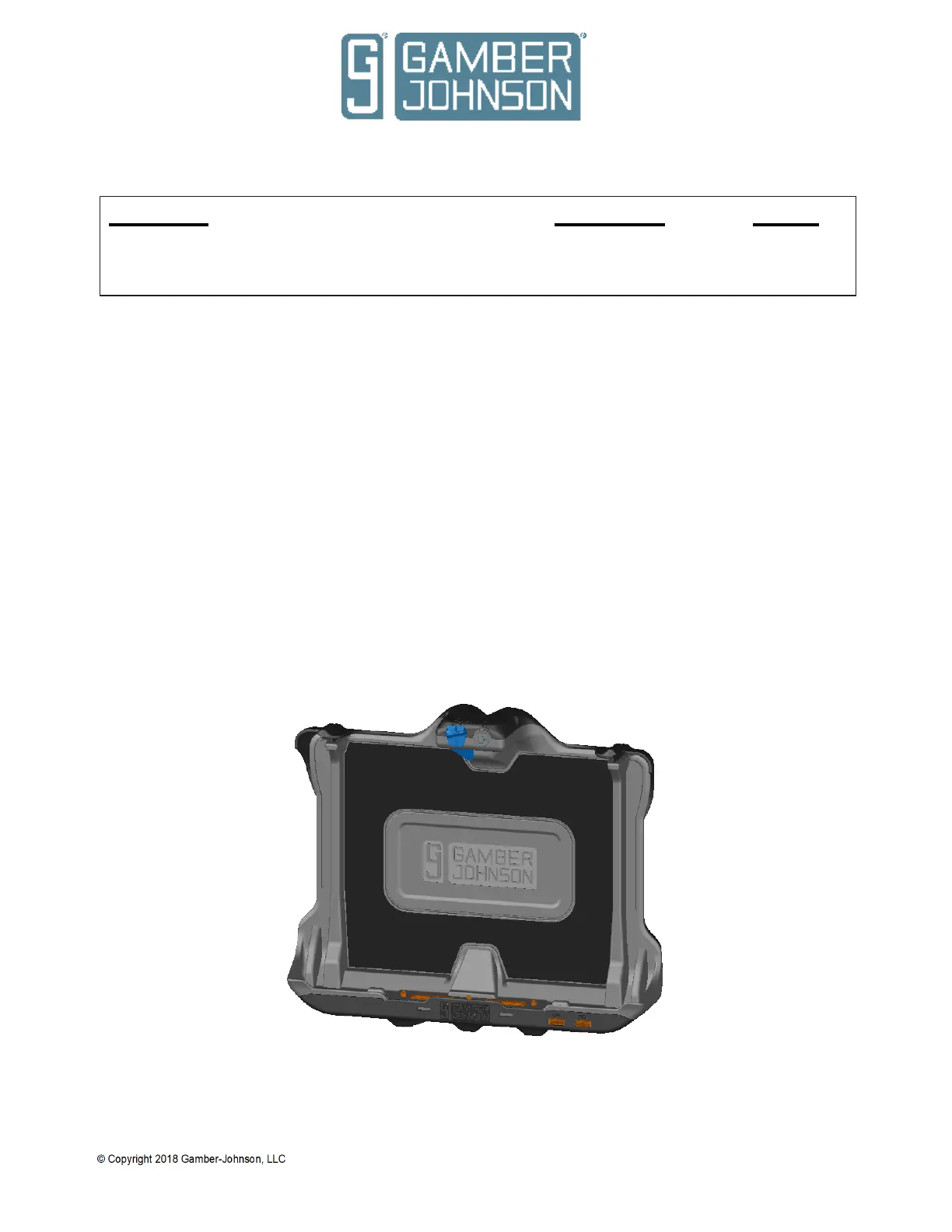

INSTALLATION INSTRUCTIONS
Product
Revision
Form
Printing Spec:
PS-001
7160-1084
GETAC K120 TABLET DOCKING STATION
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
IMPORTANT SAFETY INFORMATION FOR INSTALLERS
Safety is dependent on the proper installation and servicing of this docking station. It is
important to read and follow all instructions before installing this product.
To properly install a Gamber-Johnson docking station you must have a good understanding of
automotive electrical procedures and systems, along with proficiency in the installation and
service of aftermarket vehicle equipment.
There are no adjustments required at any time of the electrical components within the docking
station.
Opening the docking station will void the product warranty.
During Installation:
DO NOT
connect this docking station to the vehicle battery until:
All other electrical connections are made
1.
Mounting of all components is complete
2.
Verification that no shorts exist in the entire system
3.
DO NOT
install equipment or route wires or cords in the deployment path of any air bag.
When drilling into the vehicle, DO make sure that both sides of the surface are clear of
anything that could be damaged.
CAUTION:
If wiring is shorted to the frame, high current conductors can cause hazardous
sparks resulting in electrical fires or flying molten metal.
After installation:
Test the docking station to ensure that it is working properly.
File these instructions in a safe place and refer to them when performing maintenance or re-
installing.
WARNING
: Failure to follow all safety precautions and instructions may result in property
damage, serious injury, or death.
PRE-INSTALLATION RECOMMENDATIONS
Conduct a "Bench Test"
Gamber-Johnson strongly advises a "bench test" be conducted to verify all electronic and
software issues are resolved prior to installation:
Make sure the computer is operational by itself.
1.
Insert computer into the docking station and verify that the computer is
2.
operating in the dock.
Interconnect entire assembly and verify start-up of all components, including
3.
other equipment (printers, modems, scanners, etc.)
Gamber-Johnson recommends positioning of all mounts and equipment in the vehicle
prior to the actual install to verify that mounting locations are safe and practical.
2 / 6
Release Button
Slam Latch
Barrel Key Lock
Guide Pins
Upper Walls
Docking Connector
Lower Walls
Part#/Serial# Label
Port Indentification
(Ports, see page 4)
VESA 75mm Hole Pattern
1/4-20 x 0.500" hardware provided
External Antenna - SMA
(WiFi, GPS, CELL)
(Optional)
FEATURE IDENTIFICATION
3 / 6
Provides docking guidance and
connector protection, prevents
mis-docking
(2) USB 2.0
(Fast Charging)
1500 mA
External Antenna - Tri RF
(Optional)
