Rev. C INST-675
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
7160-0581
INSTALLATION INSTRUCTIONS
Form Product Revision
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
Printing Spec:
PS-004

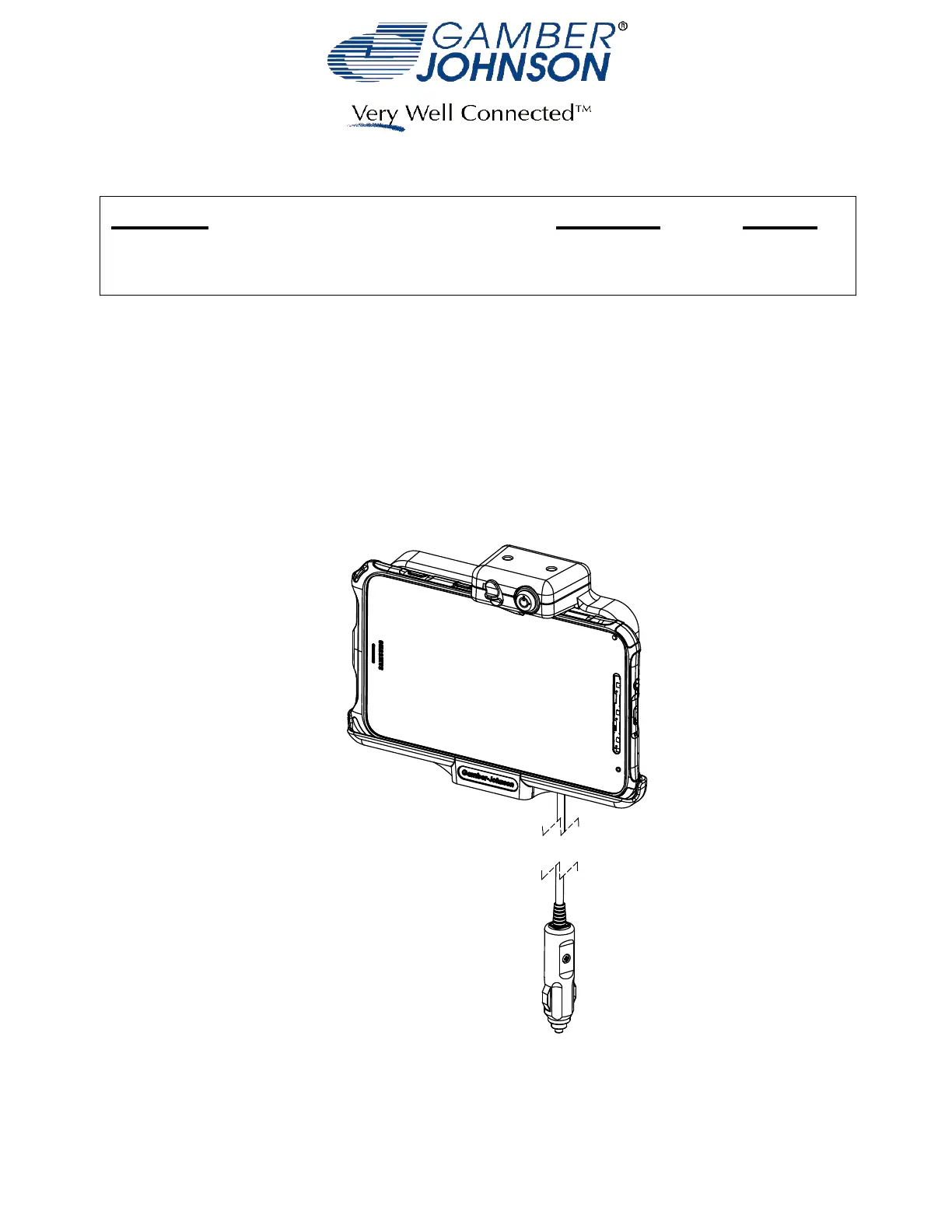

Samsung Galaxy Tab Active Docking Station
© Copyright 2016 Gamber-Johnson, LLC
are provided with each individual product.
This instruction sheet is for the Samsung Galaxy Tab Active docking station only.
For instructions on features, set-up, and operation of the Galaxy Tab Active
tablet, please refer to the manual provided by Samsung with the tablet.
This docking station is designed to be used with a variety of Gamber-Johnson
mounting systems. Installation instructions for other Gamber-Johnson products
1/5
IMPORTANT SAFETY INFORMATION FOR INSTALLERS
Safety is dependent on the proper installation and servicing of this docking station. It is
important to read and follow all instructions before installing this product.
To properly install a Gamber-Johnson docking station you must have a good understanding of
automotive electrical procedures and systems, along with proficiency in the installation and
service of aftermarket vehicle equipment.
There are no adjustments required at any time of the electrical components within the
docking station. Opening the docking station will void the product warranty.
During Installation:
DO NOT connect this docking station to the vehicle battery until:
All other electrical connections are made1.
Mounting of all components is complete2.
Verification that no shorts exist in the entire system3.
DO NOT install equipment or route wiring or cords in the deployment path of any air bag.
When drilling into the vehicle, DO make sure that both sides of the surface are clear of
anything that could be damaged.
CAUTION: If wiring is shorted to the frame, high current conductors can cause hazardous
sparks resulting in electrical fires or flying molten metal.
After installation:
Test the docking station to ensure that it is working properly.
File these instructions in a safe place and refer to them when performing maintenance or re-
installing.
WARNING: Failure to follow all safety precautions and instructions may result in property
damage, serious injury, or death.
PRE-INSTALLATION RECOMMENDATOINS
Conduct a "Bench Test"
Gamber-Johnson strongly advises a "bench test" be conducted to verify all
electronic and software issues are resolved prior to installation:
Make sure the computer is operational by itself.1.
Insert computer into the docking station and verify that the computer is 2.
operating in the dock and battery is charging.
Gamber-Johnson recommends positioning of all mounts and equipment in the
vehicle prior to the actual install to verify that mounting locations are safe and
practical.
2/5
4x 1/4-20unc threaded
inserts (Vesa 75mm
hole pattern)
2x #6-32unc theaded
inserts
Latch
Docking Connector
Lock
Base
POWER CABLE WITH A FUSED
(3A) CIGARETTE LIGHTER PLUG
SAMSUNG GALAXY TAB ACTIVE
DOCKING STATION FEATURE IDENTIFICATON
3/5

Produktspezifikationen

Marke: Gamber-Johnson
Kategorie: Ladestation/Dockingstation
Modell: 7160-0581
