Seite 1/24

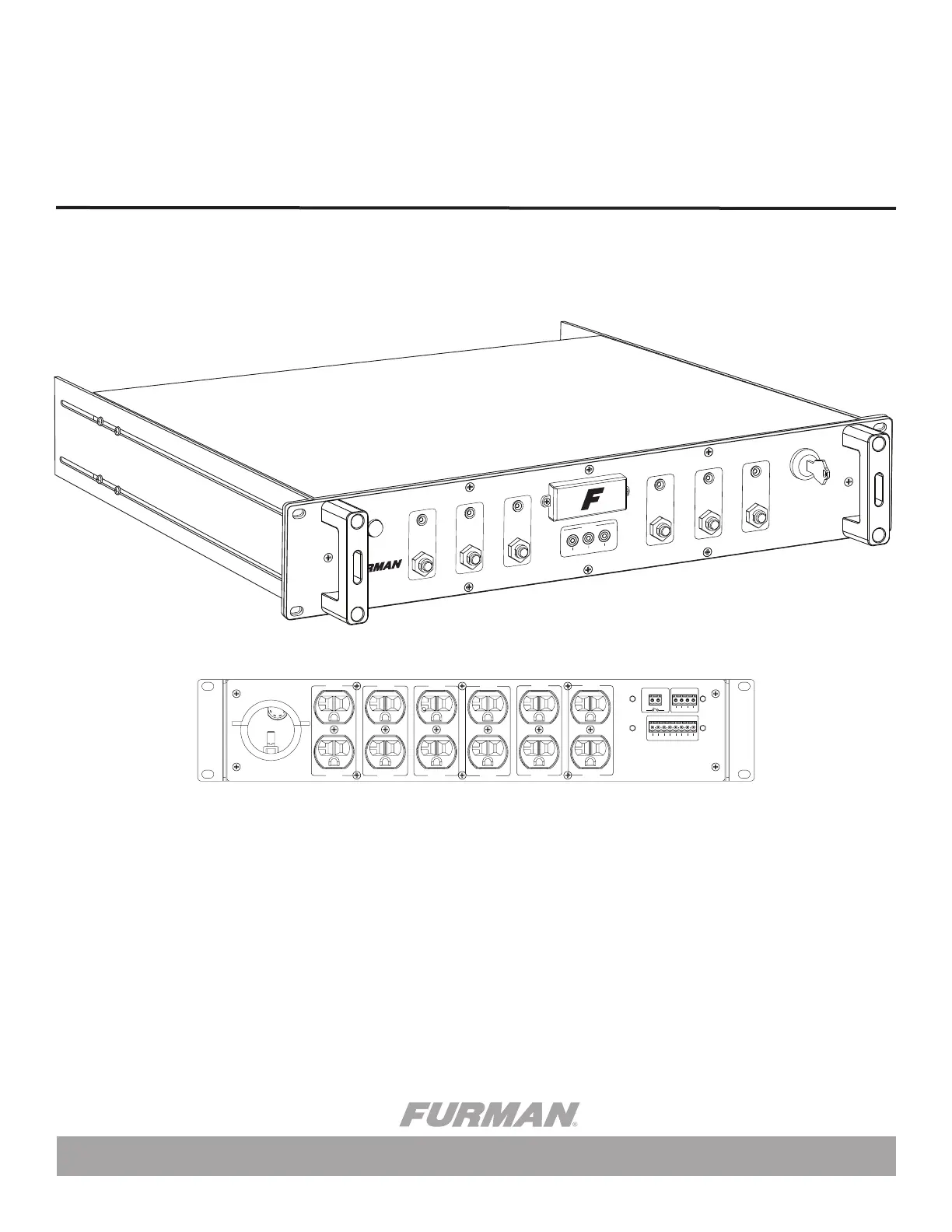

10007825 REV. B ASD-120 2.0 INST. 10-15
ASD-120 2.0
OWNER’S MANUAL
SIX CHANNEL SEQUENCING POWER DISTRIBUTION
START
EQUENCE
REMOTE
DELAY A DELAY B DELAY C
PHASE
X Y Z
DELAY D DELAY E DELAY F
OFF ON
-120 2.0
OWER SEQ UENCER
INPUT 120 / 3Ø, 208 / 240 VAC
14400 WATTS – 120 AMPS MAX 20A MAX
DELAY A
20A MAX
DELAY B
20A MAX
DELAY C
20A MAX
DELAY D
20A MAX
DELAY E
20A MAX
DELAY F
FORCE OFF
DELAY OUT PUTS
REMOTE
NC A B C D E F NO
12V STAT REM GND
WARNING! ELECTRIC SHO CK HAZARD. CO NNECTIO N OF A POWER
INPUT CABLE TO THIS DEVICE AND TO A POW ER SOURCE MUST BE
DONE BY QUAL IFIED PERSONNEL ONLY.
DANGER: MANIPULER SEL ON LES INST RUCT IONS DU
FABRICANT ET CO NFIER LA MAINTENANCE A UN T
ECHNICIEN QUALIFIE
DRY RELAY CO NTACT S - RATING 48V / 1 AMP
INTRODUCTION
Thank you for choosing a Furman product and congratulations on your choice
of the ASD-120 2.0. The ASD-120 2.0 is a six channel power sequencing
device intended for use in installations where multiple electrical loads must be
powered on and off in a delayed and orderly sequence. Typical applications for
the ASD-120 2.0 include: touring PA or sound reinforcement systems, musical or
theatrical acts, mobile recording facilities, and on-location film or video shoots.
Essentially, any situation where AC power must be distributed to multiple circuits
and activated or deactivated in discrete stages would benefit from the use of an
ASD-120 2.0.
Please read this manual completely and carefully and review the installation man-
ual before installing or applying power to your ASD-120 2.0. Those familiar with
the ASD-120 will recognize that the ASD-120 2.0 provides the same functionality
as the preceding version but adds a number of features that the user might
appreciate. These new features include the following:
1
BEFORE YOU BEGIN, PLEASE INSPECT UPON RECEIPT
ST ART
EQUENCE
REMOT E
DELAY A DELAY B DELAY C
PHAS E
X Y Z
DELAY D DELAY E DELAY F
OFF ON
-120 2.0
OWER SEQUENCER
INPUT 120 / 3Ø, 208 / 240 VAC
14400 WATT S – 120 AMPS MAX 20A MAX
DELAY A
20A MAX
DELAY B
20A MAX
DELAY C
20A MAX
DELAY D
20A MAX
DELAY E
20A MAX
DELAY F
FORCE OFF
DELAY OUT PUTS
REMOTE
NC A B C D E F NO
12V STAT REM GND
WARNING! ELECTRIC SHO CK HAZARD. CO NNECTIO N OF A POWER
INPUT CABLE TO THIS DEVICE AND T O A POW ER SOURCE MUST BE
DONE BY QUAL IFIED PERSONNEL ONLY.
DANGER: MANIPULER SEL ON LES INST RUCT IONS DU
FABRICANT ET CO NFIER LA MAINTENANCE A UN T
ECHNICIEN QUALIFIE
DRY RELAY CO NTACT S - RAT ING 48V / 1 AMP
This box should include the following items:
1. Model ASD-120 2.0
2. Two adjustable rear rack mounting ears
3. Security cover with Two 6-32 3/8”
Screws
4. One pair of security keys
5. Removable Rack Handles
6. 1.5 in. Cable Clamp (Please see wiring
instructions)
7. Two pin Phoenix-type connector
8. Four pin Phoenix-type connector
9. Eight pin Phoenix-type connector
3
8
1
6
7
4
2
9
• All settings, options, and controls are now easily accessible from the front panel
• The output capacity of the 12V remote interface has been increased to 250mA
• Maximum sequencing delay has been increased to 7 minutes per stage
• The operation of the Remote interface has been harmonized with other Furman
products
• The Force Off warning is now highly visible
• The sequencing bypass switches are now low profile to prevent inadvertent
operation
• A security cover has been added to prevent unauthorized access.
• Rear rack mounting ears have been added to enhance road worthiness
• Phoenix-type connectors have been used to simplify installation
Please note:
Because the ASD-120 2.0 switches hazardous voltages and high currents, we
recommend that installation be performed by a qualified electrician. For safe
operation, the ASD-120 2.0 must be installed in accordance with local/municipal
and National Electrical Codes. Please feel free to contact Furman Technical Ser-
vices if you have any questions or concerns regarding the installation, operation,
or service of your ASD-120 2.0.
IMPORTANT SAFETY NOTE:
While the subject of attaching a power cable to the ASD-120 2.0 is covered in
the Wiring Instructions, the connection to utility power or generator power is
not. We strongly recommended that the ASD-120 2.0 be installed by a qualified
electrician. Please refer to the “Wiring Instructions” section in this manual.
5
2
Introduction, Before You Begin, and Important Safety Note__________________________________________________________________ 1
Important Safety Instructions _____________________________________________________________________________________ 2
Wiring Instructions ___________________________________________________________________________________________ 3, 4
Rear Rack Mounting Ears _________________________________________________________________________________________ 4
Product Features _____________________________________________________________________________________________ 5
Product Overview ___________________________________________________________________________________________ 6, 7
Front Panel Configurations and Features_______________________________________________________________________ 7, 8, 9, 10
ASD-120 2.0 Programming Summary_______________________________________________________________________11, Back Cover
Rear Panel Control Terminal Interface ________________________________________________________________________________12
Advanced Installation Topics___________________________________________________________________________________13, 14
Local Operating Modes____________________________________________________________________________________15, 16, 17
Product Installation Examples_______________________________________________________________________________ 18, 19, 20
Specifications _______________________________________________________________________________________________ 21
Warranty Information __________________________________________________________________________________________ 22
TABLE OF CONTENTS
CAUTION
• The ASD-120 2.0 remote interface differs from the original ASD-120. While
the original ASD-120 REM terminal input was compatible with AC voltages, the
ASD-120 2.0 is not. For example, if an original ASD-120 is to be controlled by
the ASD-120 2.0, please use the Direct Current 12V and REM terminals of the
ASD-120 2.0 to provide the DC control signal to the REM input of the older ASD-
120 product.
• Ground loops at the control terminals and remote interface should be avoided.
The ASD-120 2.0 remote interface is designed to provide the flexibility of being
connected to multiple pieces of equipment within the same power distribution
system. To avoid ground loops, do not connect the remote interface to more than
one non-isolated ground referenced interface.
• A building’s AC Power Distribution System is grounded at the Utility Service
Entrance or Service Point. The ASD-120 2.0 Remote interface control is not in-
tended for applications between multiple buildings or where connected equipment
has multiple AC grounds or earth paths. If the ASD-120 2.0 Remote interfaces are
connected to equipment grounded elsewhere, catastrophic voltage irregularities
can damage the remote interface. All control equipment interfacing the ASD-
120 2.0 power distribution network must be properly grounded through a single
protective earth ground connection. Please consult a qualified electrician if there
are questions concerning equipment grounding.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
• With the exception of input wire connections, there are no user serviceable
parts inside the ASD-120 2.0. The top panel should never be removed while
power is applied to the unit.
• Input power must be connected by a qualified electrician. The unit must be
properly grounded through a protective earth ground connection.
• Refer all servicing to qualified personnel. Servicing is required when the unit
has been damaged in any way or fails to operate as designed.
• The ASD-120 2.0 is intended for use in a dry environment. Do not use this
product in or near water. To reduce the risk of fire or electric shock, do not
expose this device to rain or moisture.
• The device is intended for AC power sequencing. All output circuits should be
sequenced OFF prior to removing power to the unit.
• Do not install this product near heat sources or other equipment that generates
excessive heat.
