Seite 1/4
Page 1 / 4

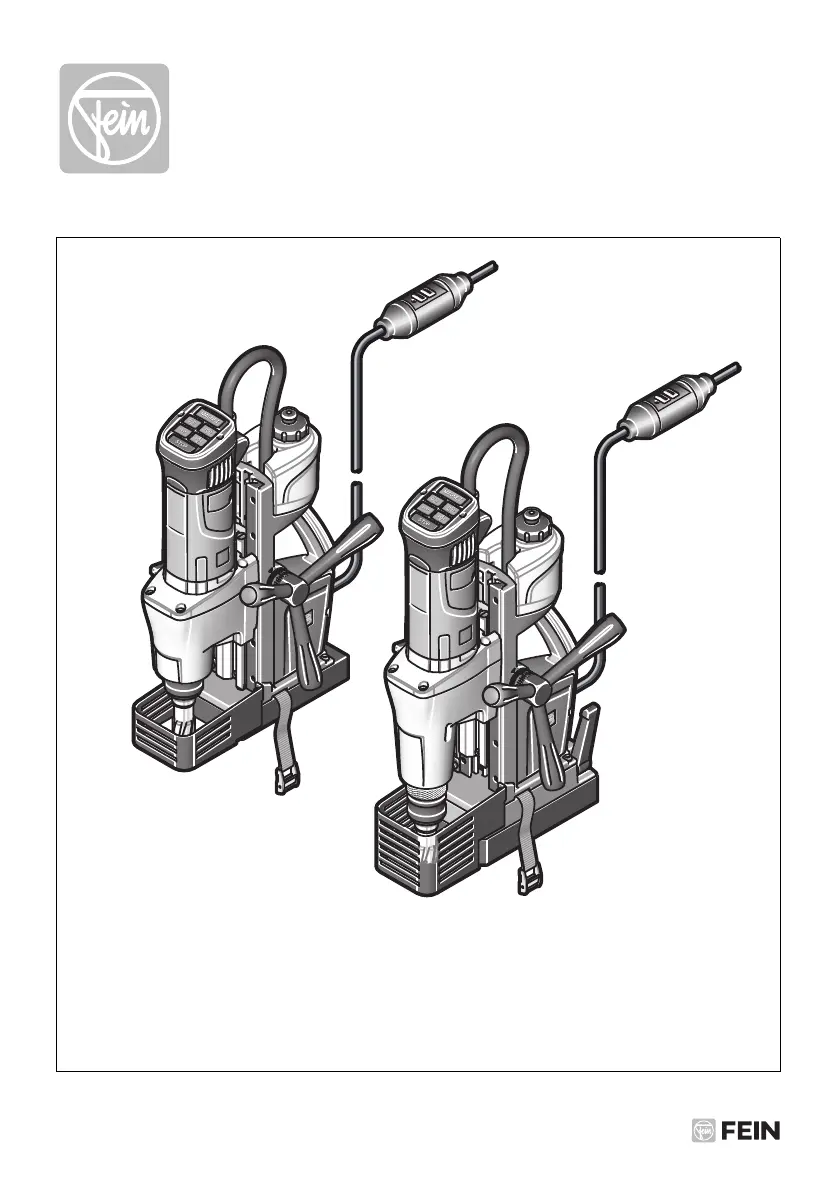

KBM 50 UQW
Metal core drilling unit up to 50 mm
Lightweight and powerful 2-speed universal magnetic
core drill with clockwise/anti-clockwise operation, MT3
tool mounting and maximum functionality for exible
working in the workshop and on the construction site.
Product number: 7 273 25 61 00 0
Page 2 / 4
Price includes
Product feature
Application
Details
Extremely low-wear tool design with swivel-
mounted motor cable protection hose for
tough use in industry and manual trades.
F
Perfect power-to-weight ratio thanks to
compact, weight-optimised design and FEIN
1,200 W high-power motor with tacho
electronics for high speed stability for reliable
and economical working.
F
With clockwise/anti-clockwise operation,
electronic speed setting and a 315 mm stroke
range, this is a universal tool for core drilling,
twist drilling, tapping, countersinking and
reaming.
F
MT3 tool mounting.
F
Simple operating concept avoids mix-ups and
can be clearly seen by the user.
F
Convenient magnetic holding force display.
F
High magnetic holding force.
F
Integrated coolant tank.
F
Feed handwheel can be moved from one side
to the other.
F
Speed saving "memory function".
F
Personal safety switch.
F
* Also available with accessories.
F
1 coolant tank
F1 lashing strap
F
1 swarf hook
F1 centering pin
F
1 contact guard
F1 drift key
F
1 case
F
Electronic magnetic holding force
FMagnetic holding force display
F
Reversible rotation
FVariable speed control
F
aus_memoryfunktion
FSpeed-controlled electronics
(tacho)
F
Core drilling in metal with a Ø up to 35 mm
Core drilling in metal with a Ø up to 50 mm
Twist drills with drill chuck (DIN 338)
Twist drills with MK tting (DIN 345)
Tapping
Page 3 / 4
Technical data
Countersinking
Reaming
Working overhead
Installation work
suitable
well suitable
TECHNICAL DATA VIBRATION AND SOUND EMISSION
VALUES
Input 1,200 W
Output 610 W
Load speed in speed 1 130 - 260 rpm
Load speed in speed 2 260 - 520 rpm
Tool Holder MK 3
Carbide core drill bit max.
Ø
50 mm
HSS core drill max. Ø 40 mm
Core drill, drilling depth
max.
50(75)* mm
Twist drill max. Ø 23 mm
Tapping M 16
Countersinking max. Ø 50 mm
Reaming max. Ø 23 mm
Core drill holder 3/4 in Weldon
Sound pressure level LpA 82,1 dB
Uncertainty of measured value
KpA
5 dB
Sound power level LWA 93,1 dB
Uncertainty of measured value
KWA
5 dB
Sound peak value
LpCpeak
96,2 dB
Uncertainty of measured value
KpCpeak
5 dB
Vibration value 1 hv 3-α
way
< 2,5 m/s²
Uncertainty of measured value
Kα
1,5 m/s²
Produktspezifikationen
| Marke: | Fein |
| Kategorie: | bohren |
| Modell: | KBM 50 UQW |
