EV90 - MASTER
DIGITAL CONTROL UNIT FOR COMPLEX
HEATING AND TECHNOLOGICAL PLANTS
USE
The EV90 control unit is used in particularly complex
plants where several different devices are required to
meet heat regulation requirements.

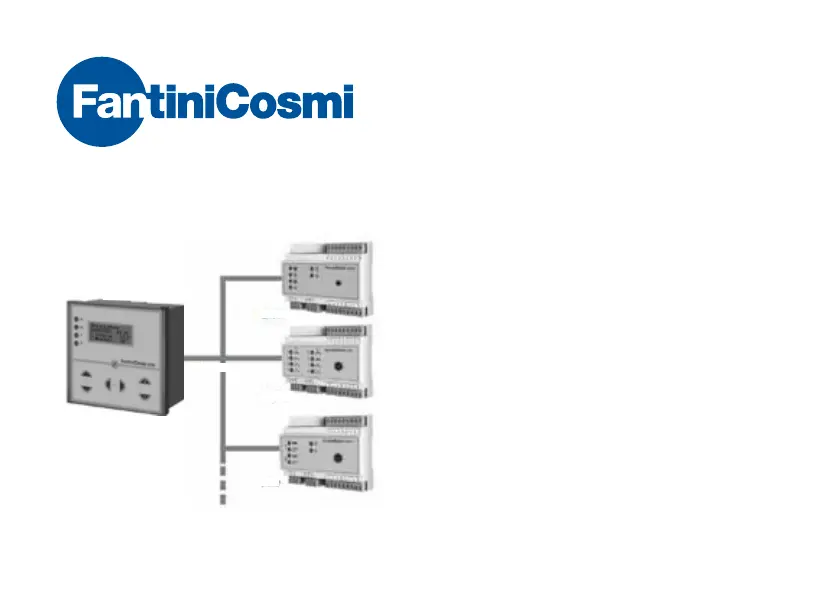

The system features a master device (EV90) and
one or more slave modules connected to the master
through a communication Bus called FANBUS.
OPERATION
The EV90 acts as central control unit. The para-
meters of the slave modules connected to the FAN-
BUS can be displayed or modiîšżed through the EV90
display and keyboard. A probe measures the outside
temperature value which is sent through the FANBUS
to all relevant control units thereby avoiding pointless
duplicates.
Date and time, including daylight-saving time, may be
directly set on the front panel of the control unit and
used by all devices connected to the BUS.
One modem (analogue or GSM) enables to manage
and to modify remotely the parameters of the Master
EV90 as well as the parameters of all other modules.
Any alarm generated by a slave module is îšżrst tran-
smitted to the master EV90 and then to a remote sta-
2
tion or to an enabled mobile phone.
The EV90 also controls boiler (1 or 2 stages) regula-
tion in order to keep boiler temperature high enough
to guarantee heat to all connected devices.
TO SELECT THE REQUIRED LANGUAGE
During installation the user can select the language
required to display the Menu information. With the
control unit off, keep the key + (see the îšżgure below)
pressed and then switch the control unit on. When
the icon “CHOOSE LANGUAGE” is displayed release
the key + and scroll the available languages using the
keys + and -. Find the required language and then
press key > to select it.
Menu info will be then displayed in the chosen lan-
guage.
DESIGN CHARACTERISTICS
DIN 144x144 container, quick coupling control unit
on base with FASTON connections, transparent
protection cover. Wall, ush or rear panel mounting
available. All parameters are displayed on 4-line/16
characters alphanumeric display. To facilitate reading
under poor light conditions, press any key to light up
the display that will go off automatically after about 60
seconds if no other key is pressed (no operation).
Two LEDs, Tx and
Rx indicate com-
munication on the
FUNBUS
4-line 16-characters alpha-
numeric display
Two LEDs indicate
the status of the two
output relays
Use keys “UP” and
“DOWN” to move
over a page and to
go from one para-
meter to another
Use keys “<” and “>”
to go from one page to
another
Use keys “+” and “-” to
change parameters
CHOOSE LANGUAGE:
ENGLISH
3
FANBUS
Up to 15 different types of controllers can be con-
nected to the FANBUS, with max. 8 controllers of the
same type (i.e.: 15 x 8 = max 120 controllers).
The FANBUS connection between master EV90 and
slave is performed with a simple low voltage non-
polarized twin cable (the two wires can therefore be
inverted with each other without causing malfunc-
tion). Slaves shall be connected to the BUS through
parallel connection.
CONTROL UNIT ADDRESS
Each control unit is identiîšżed by two digits that deter-
mine its address. The îšżrst digit represents the model
and cannot be modiîšżed. The second one may be set
through jumpers on each slave terminal board.
Example:
EV91A îšżrst digit: 1
EV91C îšżrst digit: 2
EV92 îšżrst digit: 3
If only one control unit per type is present on the BUS,
no intervention is required.
Since the second digit is automatically set =0, control
units shall have addresses 10, 20 and 30 respec-
tively.
Should three EV91A control units be required on the
same BUS then, set address 1 on the second control
unit and address 2 on the third one.
The following situation is therefore obtained:
1 - EV91A address 10 (no jumper = address 0)
2 - EV91A address 11 (set address 1)
3 - EV91A address 12 (set address 2)
1 - EV91C address 20 (no jumper = address 0)
1 - EV92 address 30 (no jumper = address 0)
Every control unit shall therefore have an address
that identiîšżes it unambiguously.
N.B. In order to communicate properly with the re-
quired device, every remote control command must
be preceded by two digits that represents the address
of the device.
