Seite 1/24
1
Thank you for purchasing this 8-line Digital I/O to Ethernet Adapter
(hereinafter referred to as ). It is designed to adopt your “Adapter
digital I/O lines remotely on your Ethernet (Internet). It delivers simple,
reliable and cost-effective network connectivity for your digital I/O
applications such as home or industrial factory automation, digital I/O
control from any networked PC, alarm and power monitoring by
network or Internet, PC controlled machines, distributed machine
I/O, remote lighting and power control etc.
Features:
4 Digital Input and 4 Output Lines over a 10-pin Terminal Blocks
2 Non-inverted and 2 Inverted Output Lines
Provides ESD and Surge Protection for all I/O Lines
I/O Line Voltage is Compatible with CMOS/TTL
Provides one 10/100Mbps, RJ45 LAN Port
Provides TCP Server, TCP Client, and I/O Extender Modes
Powered +5VDC by DC Jack or Terminal Blocks
Provides both Wall Mounting and DIN RAIL Kits
Supports Virtual COM Port Drivers
DIO Lines Terminal
Blocks
EX-6011
8-line Digital I/O to Ethernet Adapter, w/ DIN
RAIL Mounting Kit

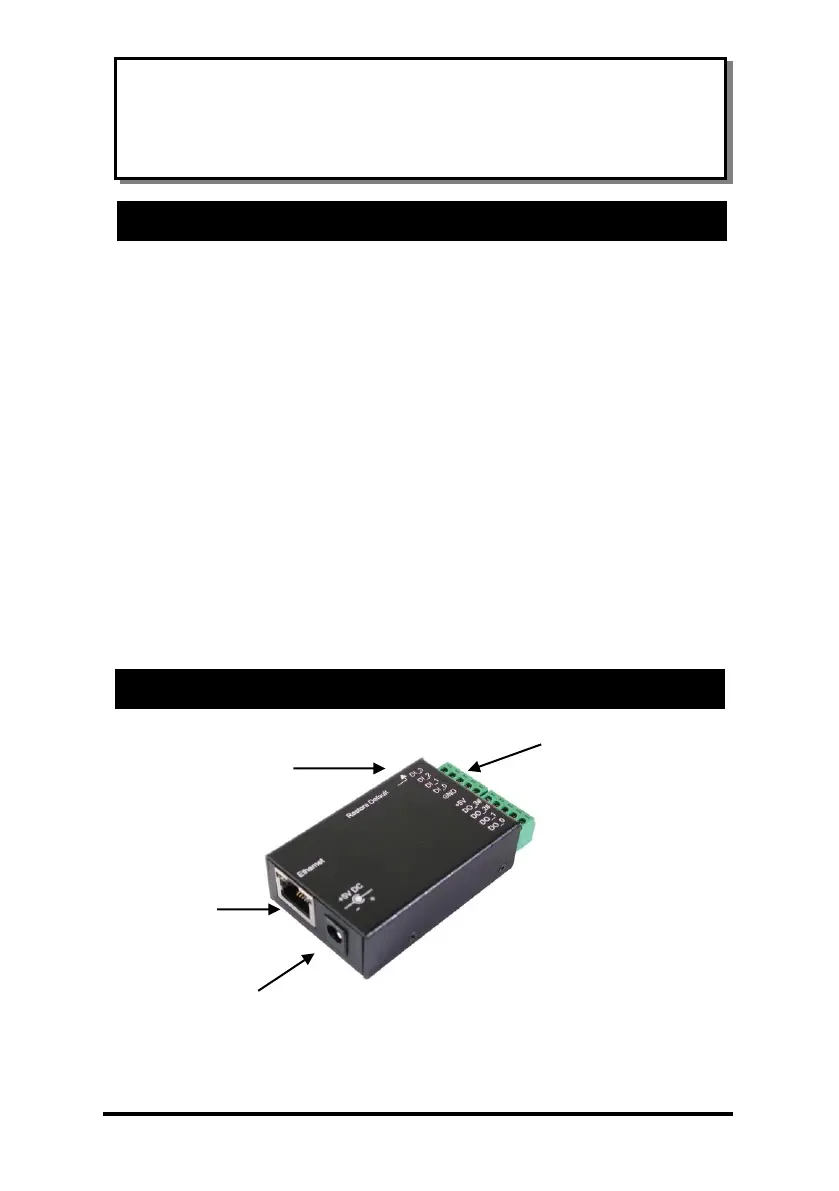

1. Introduction
2. Connector Layout
+5VDC Power
Input DC Jack
RJ45 LAN
Connector
Switch to Restore
Default Settings
8-line Digital I/O to Ethernet Adapter
2
10-pin Terminal Blocks: This pluggable terminal blocks integrates 4
digital input and 4 digital output I/O lines (CMOS/TTL Level). Its pin
assignment as the following table. The +5V pin functions as either
INPUT or OUTPUT, if DC Jack is powered, it simply copies the +5V
from the DC jack and works as +5V OUTPUT. If the DC Jack is
unconnected, it can be powered by this pin with +5V input
power.
Switch to Restore Default Settings: This switch can be used to reset
the product to its factory default settings. Press the switch by
either a pen or similar tool will restore the default settings
immediately.
Power Input DC
Jack Connector
10/100 Mbps LED
(amber color)
Link/Activity LED
(green color)
INPUT 3
INPUT 2
INPUT 1
INPUT 0
GROUND
+5V INPUT
OUTPUT 3# (INVERTED)
OUTPUT 2# (INVERTED)
OUTPUT 1
OUTPUT 0
+5V
DO_3#
DO_2#
DO_1
DO_0
DI_3
DI_2
DI_1
DI_0
GND
8-line Digital I/O to Ethernet Adapter
3
DC Jack Power Connector: A 5V/2A AC adapter is supplied with
this product.
RJ45 Ethernet Connector: 10/100Mbps Ethernet port. It supports
auto cross-over feature. You can use the same cable to connect
to either a Hub/Switch or a host computer.
LED Indicators: There are 2 LAN LEDs on the rear panel. They are
described as the following table:
LED Name Color LED Function
Link/Activity
Green Steady on: Linked.
Blinking: Transferring data
10/100Mbps
Amber Steady on: Linked in 100Mbps mode.
Off: Linked in 10Mbps mode.
1. Use static electricity discharge precautions.
Remove possible static discharge potential from any objects that
the may come in contact with before installation. This Adapter
can be accomplished by touching a bare metal chassis rail after
you have turned off the power.
2. Attached the power adapter. +5V DC power needs to be
connected to either the DC jack or the Terminal Blocks, but not
simultaneously. Once the power is connected to the DC jack,
the +5V power will output to the 10-pin Terminal Blocks
immediately. So it is not allowed to connect any power to the
Terminal Blocks if the DC jack is connected to a 5V AC power
adapter.
3. Connecting LAN cable: Use a standard straight-through Ethernet
cable to connect to a Hub or Switch. If you connect the
Adapter to your computer’s Ethernet port instead, you don’t
need to change to a cross-over type cable since the Adapter
provides auto cross-over feature.
4. Connect the Adapter’s DI and DO pins to your devices.
5. Use the Wall or DIN RAIL mounting Kit (optional) if you want to
place the product on the industrial DIN RAIL.
