Seite 1/4
1
Thank you for purchasing this 4-Port USB2.0 USB Server (hereinafter
referred to as ). It provides an ideal solution to use “The USB Server”
USB devices over Internet instantly. With its Client Software, the
network users can use the remote USB devices over a local network
or the Internet as if they were connected directly to your local PC.
With its PoE (Power over Ethernet, actives as a PD) feature, the USB
Server can be powered by Ethernet cable that was driven by the
standard PSE (Power Sourcing Equipment).
The USB Server supports High speed USB devices such as printers,
scanners, digital cameras and USB Flash drives over the network. It is
ideal for home office, small office or industrial applications that
access the USB devices remotely.
+7~24V DC
Power Input
Terminal Blocks
EX-6002PoE
4-Port USB2.0 to Ethernet Adapter (USB over IP, w/ PoE)
1. Introduction

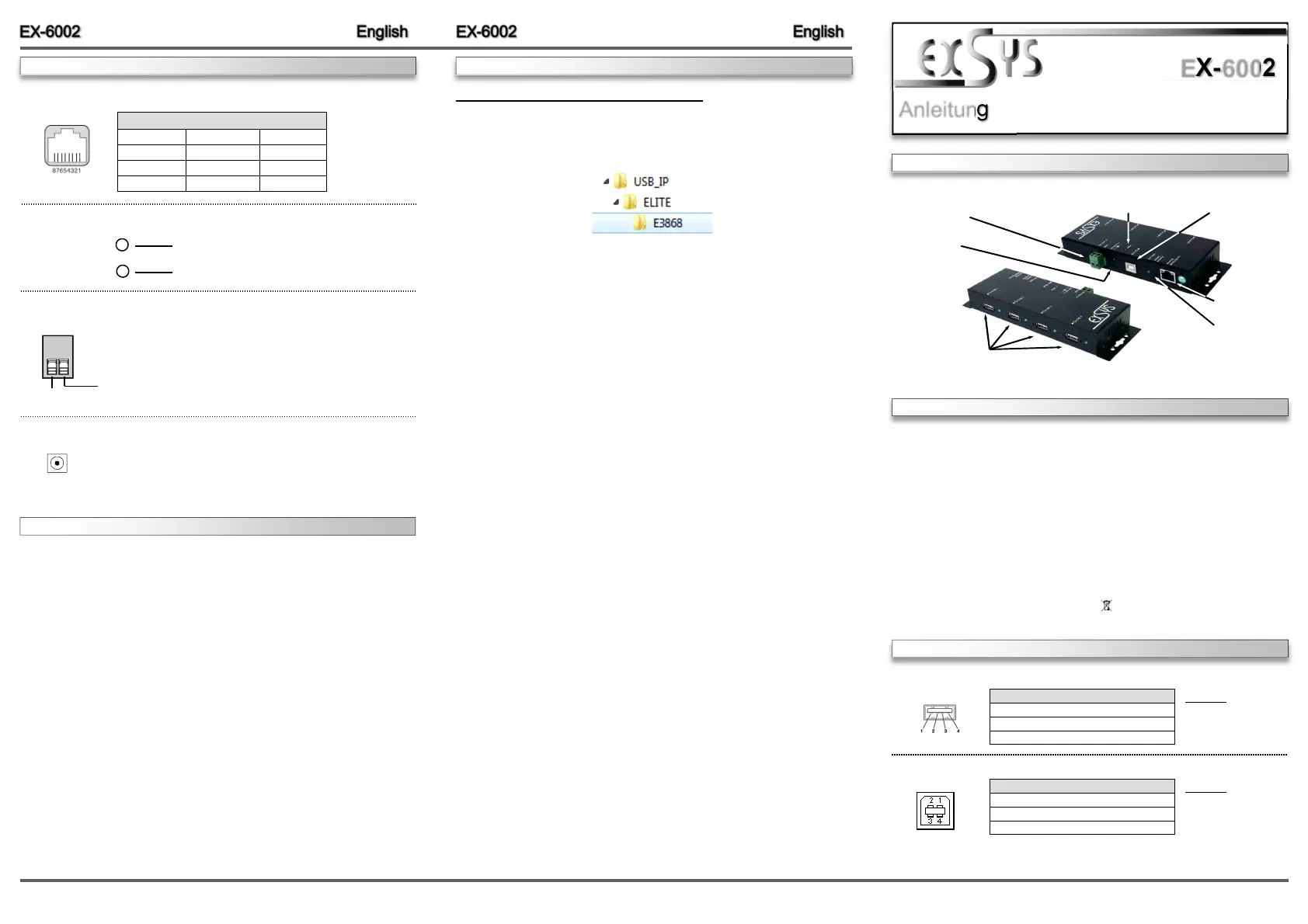

2. Connector Layout
+7~24V DC Power
Input DC Jack
RJ45 LAN
Connector
4 USB2.0 Downstream
Type-A Connectors
USB Status
LED
Power LED
Switch to Reset to
Default Settings
USB Upstream
Port
4-Port USB2.0 to Ethernet Adapter (USB Server, w/ PoE)
2
Features:
Provides 4 USB2.0 Downstream Host Ports over Ethernet (or IP)
Supports Standard USB Hub Mode: the 4 USB Devices can be Accessed
by either Ethernet Port or the Upstream USB Connector
Supports PoE (PD) Feature, no External AC Power Adapter is Required
Allows Working With Remote USB Devices as with Local Ones
Supports High Speed/Full Speed USB2.0 Peripherals
Provides IEEE 802.3 10/100/1000Mbps, Auto Cross-over Ethernet Port
DC Jack and Terminal Blocks for DC +7~24V DC Power Input
Supports Windows XP, 2003, Vista and Win 7
DC Jack and Terminal Blocks Power Connectors: If your Ethernet
cable supports power according to PoE standard, you don’t
have to connect any power to the DC Jack or Terminal Blocks.
However, a 7V~24V DC Power is required if your Ethernet does
NOT support PoE. In this case, power is supplied from either the
DC Jack or the Terminal Blocks, but not both at the same time.
RJ45 Ethernet Connector: 10/100/1000Mbps Ethernet port. It
supports auto cross-over feature. You can use the same cable to
connect to either a Hub/Switch or a host computer. A PSE will
supply power to this connector.
Type-B USB Upstream Port Connector: If connect it to the PC’s USB
host port, the USB server will be switched immediately to work as
a simple USB hub, however, the Ethernet port is not able to
access the USB devices any more. In this case, please make sure
the Ethernet is not accessing the USB devices (the USB devices
are in the free device state), otherwise, the USB devices may not
function properly.
USB Link LED: It indicates the USB devices are linked to Ethernet
port and are been accessing.
PWR LED: It lights when the DC power is on.
LAN LED Indicators: There are 2 LEDs on the RJ45 connector, they
are described as the following table:
LED Name Color LED Function
Link
Green The Connection on the Steady on:
Ethernet port is built and Active
Off: Ethernet Port Disconnected
Act
Yellow Transferring Ethernet Data Blinking:
Off: No Data Transferring on Ethernet
4-Port USB2.0 to Ethernet Adapter (USB Server, w/ PoE)
3
1. Use static electricity discharge precautions.
Remove possible static discharge potential from any objects that the
Adapter may come in contact with before installation. This can be
accomplished by touching a bare metal chassis rail after you have
turned off the power.
2. Attached the DC power source: there are 2 connectors can be added
the power to the unit. One is the DC Jack (by the AC /DC Adapter) and
the other is the 2-pin terminal blocks.
3. Connecting LAN cable: Use a standard straight-through Ethernet cable
to connect to a Hub or Switch. If you connect the USB Server to your
computer’s Ethernet port instead, you don’t need to change to a
cross-over type cable since the Adapter provides auto cross-over
feature.
4. Connect the USB Server’s USB ports to your USB devices.
Typical Connection Diagram:
Client PC1 Client PC2 Client PC3
Router/Hub
USB Server
WAN/DSL
(to Internet)
USB Printer
USB
Camera USB DVD
