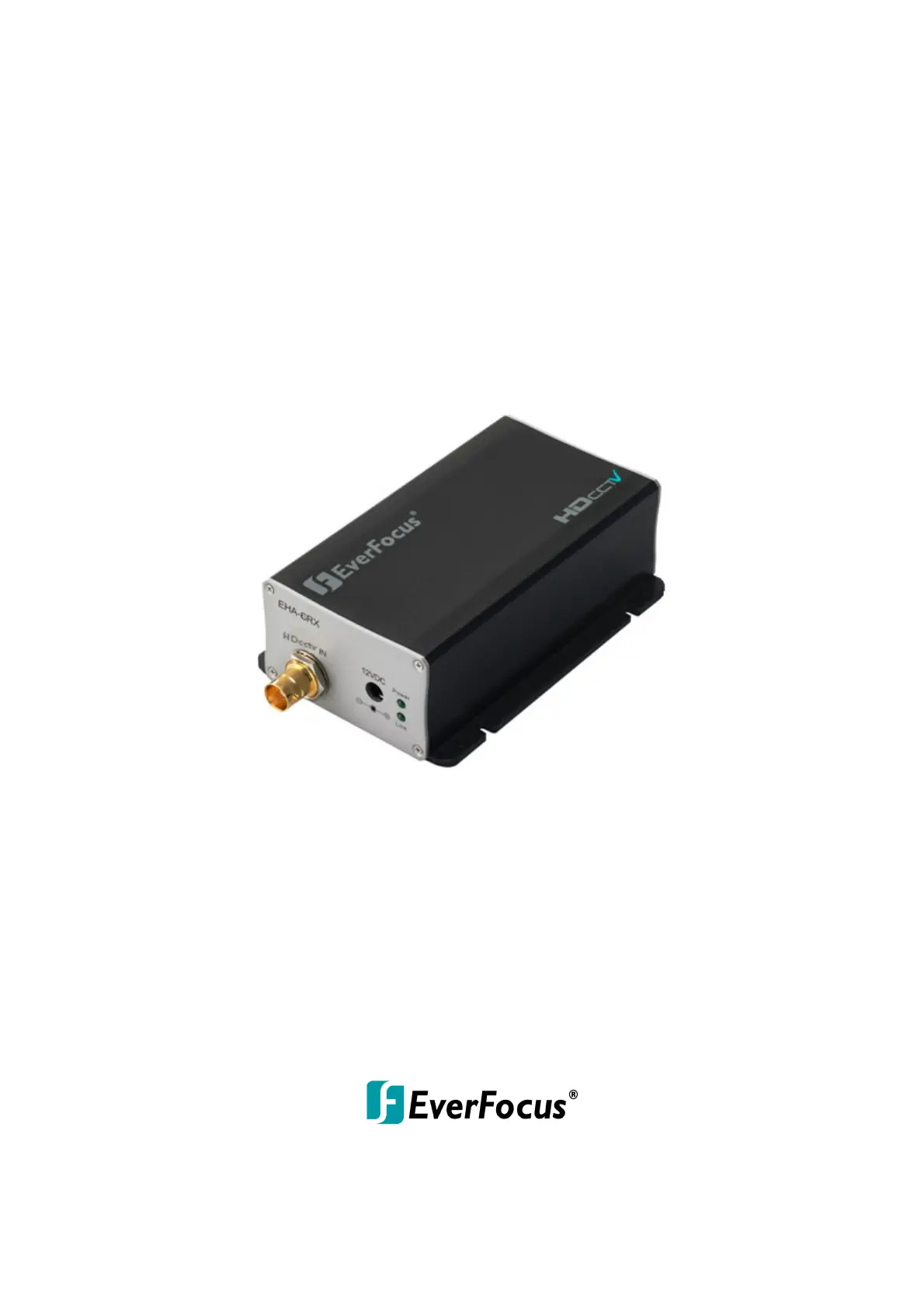

EHA-CRX
HDcctv Repeater + HDMI Converter
User’s Manual
Copyright © EverFocus Electronics Corp,
Release: April, 2012
EHA-CRX
2
Please read this manual first for correct installation and operation. This manual should be
retained for future reference. The information in this manual was current when published. The
manufacturer reserves the right to revise and improve its products. All specifications are
therefore subject to change without notice.
PRECAUTIONS
1. Do not install the EHA-CRX near electric or magnetic fields.
Install the EHA-CRX away from TV/radio transmitters, magnets, electric motors,
transformers and audio speakers since the electromagnetic fields generated from these
devices may distort the video image.
2. Never disassemble the EHA-CRX beyond the recommendations in this manual nor
introduce materials other than those recommended herein.
Improper disassembly or introduction of corrosive materials may result in equipment
failure or other damage.
3. Keep the power cord away from water and other liquids and never touch the power
cord with wet hands.
Touching a wet power cord with hands or touching the power cord with wet hands may
result in electric shock.
4. Never install the EHA-CRX in areas exposed to water, oil or gas.
Water, oil or gas may result in equipment failure, electric shock or, in extreme cases, fire.
5. Do not operate the camera beyond the specified temperature, humidity or power
source ratings.
Use the camera at temperatures within 0 ~ 50 (32 ~122 ) and humidity between
20~80%. The input power source is 12VDC.
EHA-CRX
3
1. INTRODUCTION
The EHA-CRX accepts the HDcctv digital video signal from an HDcctv camera, repeats the
signal for use by another HDcctv downstream device and also coverts the signal for
presentation on the HDMI input of an HD TV or monitor. The converter supports HDcctv video
signals similar to the SMPTE 292M, 296M standards, at data rates up to 1.485Gb/s. With
integrated cable equalizer technology, the EHA-CRX is capable of receiving HDcctv digital
video at up to 1920 x 1080 resolution over 75Ω coaxial cable at distances up to 400~500 feet
(RG59) without loss of quality, and sending the HDcctv signals another 400~500 feet over
RG59 coax. This provides a complete solution for the transmission and display of both
interlaced and progressive scan HDcctv digital video from coaxial cable-based HDcctv
cameras.
2. FEATURES
Accepts HDcctv high-definition HDcctv digital video at 720p/60, 1080i/60 and 1080p/30
formats/ frame rates
Processes HDcctv standard at 1.485Gb/s data rate
Provides standard HDMI video output for HD TV monitor display
Integrated cable equalizer for long distance video transmission without loss of quality
Capable of receiving HDcctv digital video over 75Ω coaxial cable at distances of 400~500
feet.
Retransmits/repeats HDcctv digital video over 75Ω coaxial cable to distances of 400~500
feet.
High quality digital video transmission with zero latency
