E T C Q u i c k G u i d e
Source Four LED Profile
Source Four LE D Pr o fi le Page 1 of 8 Ele ctron i c T h eat r e Cont rol s , I nc.
Corporate Headquarters
3031 Pleasant View Road, P.O. Box 620979, Middleton, Wisconsin 53562-0979 USA
Tel +608 831 4116
Fax +608 836 1736
London, UK
Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK
Tel +44 (0)20 8896 1000
Fax +44 (0)20 8896 2000
Rome, IT
Via Pieve Torina, 48, 00156 Rome, Italy
Tel +39 (06) 32 111 683
Fax +44 (0) 20 8752 8486
Holzkirchen, DE
Ohmstrasse 3, 83607 Holzkirchen, Germany
Tel +49 (80 24) 47 00-0
Fax +49 (80 24) 47 00-3 00
Hong Kong
Rm 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong
Tel +852 2799 1220
Fax +852 2799 9325
Service:
(Americas) service@etcconnect.com
(UK) service@etceurope.com
(DE) techserv-hoki@etcconnect.com
(Asia) service@etcasia.com
Web:
www.etcconnect.com
Copyright © 2014 ETC. All Rights Reserved.
Product information and specifications subject to change.
7460M1300-1.7.0
Rev A
Released 2014-12
ETC intends this document to be provided in its entirety.

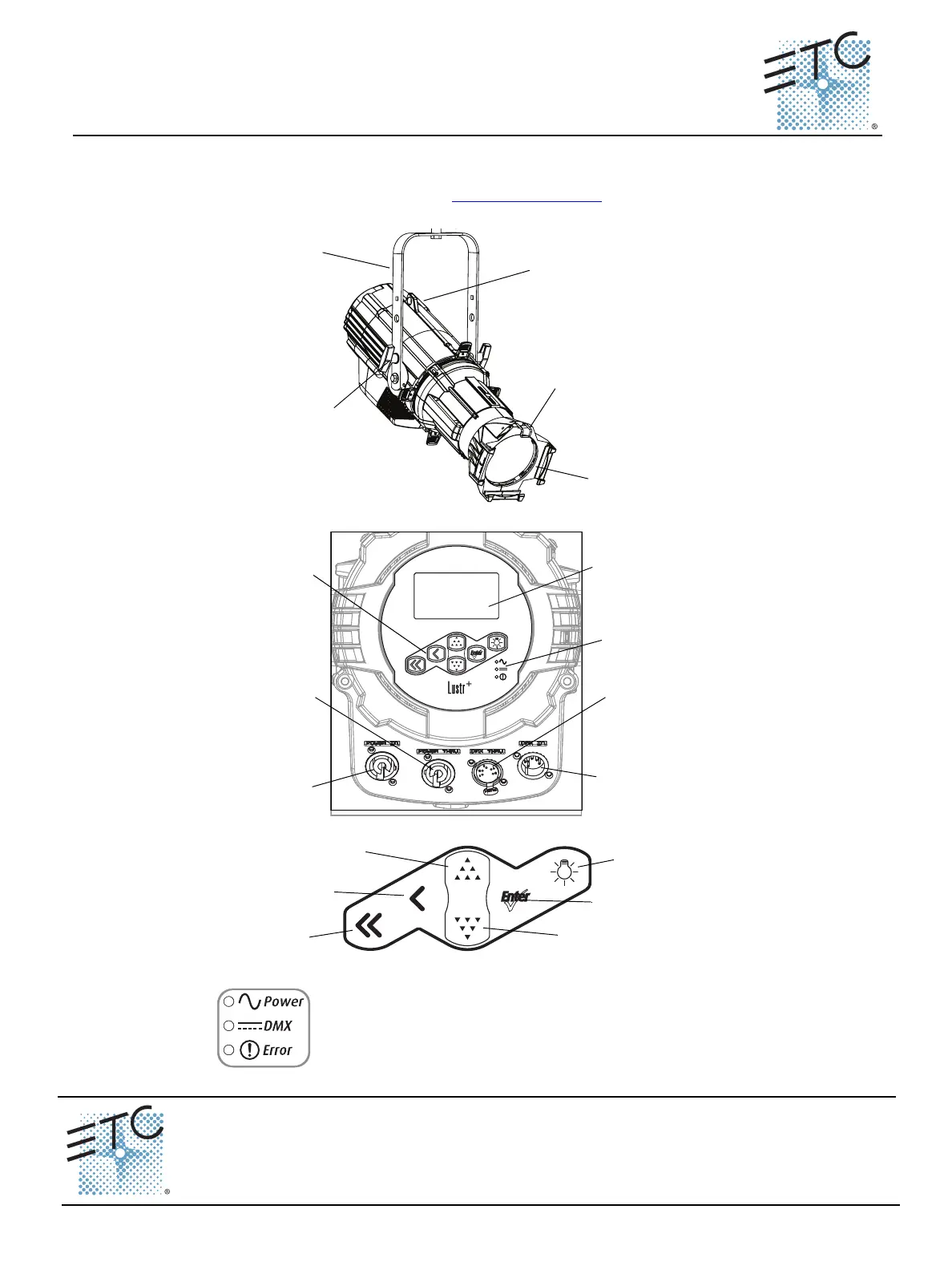

Ov er vi ew
For complete information and step-by-step instructions, see the Source Four LED Profile User Manual.
ETC documentation can be downloaded at www.etcconnect.com.
Accessory
holder
Yoke
Accessory
retainer
Yoke
locking knob
Safety cable
loop
LCD
DMX Thru
DMX In
Keypad
Power In
Power Thru
Status
indicators
Light Bulb
Home
Back
Up
Enter
Down
Power – Indicates AC power is On.
DMX – Indicates control signal is Active.
Error Indicates data error, high temperature, or other unusual status.
E T C S o u r c e F o u r L E D Q u i c k G u i d e
Install
Source Four LE D Pro fi le Page 2 of 8 El ect ron i c The a tre C ont rols , I nc.
I ns tall
Len s Tube
Step 1: Slide the lens tube into the shutter barrel.
Step 2: Tighten the lens zoom knob.
Step 3: Tighten the Phillips screw at the top of the lens barrel.
In s ta ll Fi xtu re
Step 1: Hang or mount the fixture.
Step 2: Attach a safety cable.
Step 3: Insert additional accessories such as a top hat, etc.
W A R N I N G :
Use only hardware rated for total weight of fixture and accessories.
A safety cable (or other approved safety device) must be securely attached to
the safety cable loop before loosening the clamp.
Disconnect the unit from power and DMX and allow the fixture to cool before
removing or installing the shutter barrel or other adapters, and all cleaning and
maintenance.
Low clearance position
General use position
E T C S o u r c e F o u r L E D Q u i c k G u i d e
Connect
Source Four LE D Pro fi le Page 3 of 8 El ect ron i c The a tre C ont rols , I nc.
C o n n e c t
Step 1: Attach the power cable to the Power In connector.
Step 2: Attach the 5-pin XLR cable to the DMX In connector (if using external control).
Step 3: Connect the power cable to AC power.
Step 4: Plug the XLR cable (if using) into the data source.
Step 5: Link additional fixtures via Power Thru and DMX Thru connectors.
F o c u s
Step 1: Supply power and wait for the fixture to boot up.
Step 2: Press [ ] to open the Presets & Sequences menu.
Step 3: Select Focus and press [ ] to turn on the LED array.
Step 4: Adjust the fixture to the desired position.
Step 5: Once focus is set, press [ ] to turn off the LED array and then [ ] to return to home
screen.
W A R N I N G :
No more than nine total Source Four LED (four total Series 2 Lustr) fixtures on
Power Thru (non-dimming, 100 to 240 VAC, 50/60 Hz)
Up to 32 device loads can be on one DMX daisy-chain.
W A R N I N G :
The fixture must be connected to a non-dimmable power source in order to
avoid damage to its internal power supply and other electrical components.
Dimming will damage the fixture and void the warranty.
Power In
Power Thru
DMX In
DMX Thru
