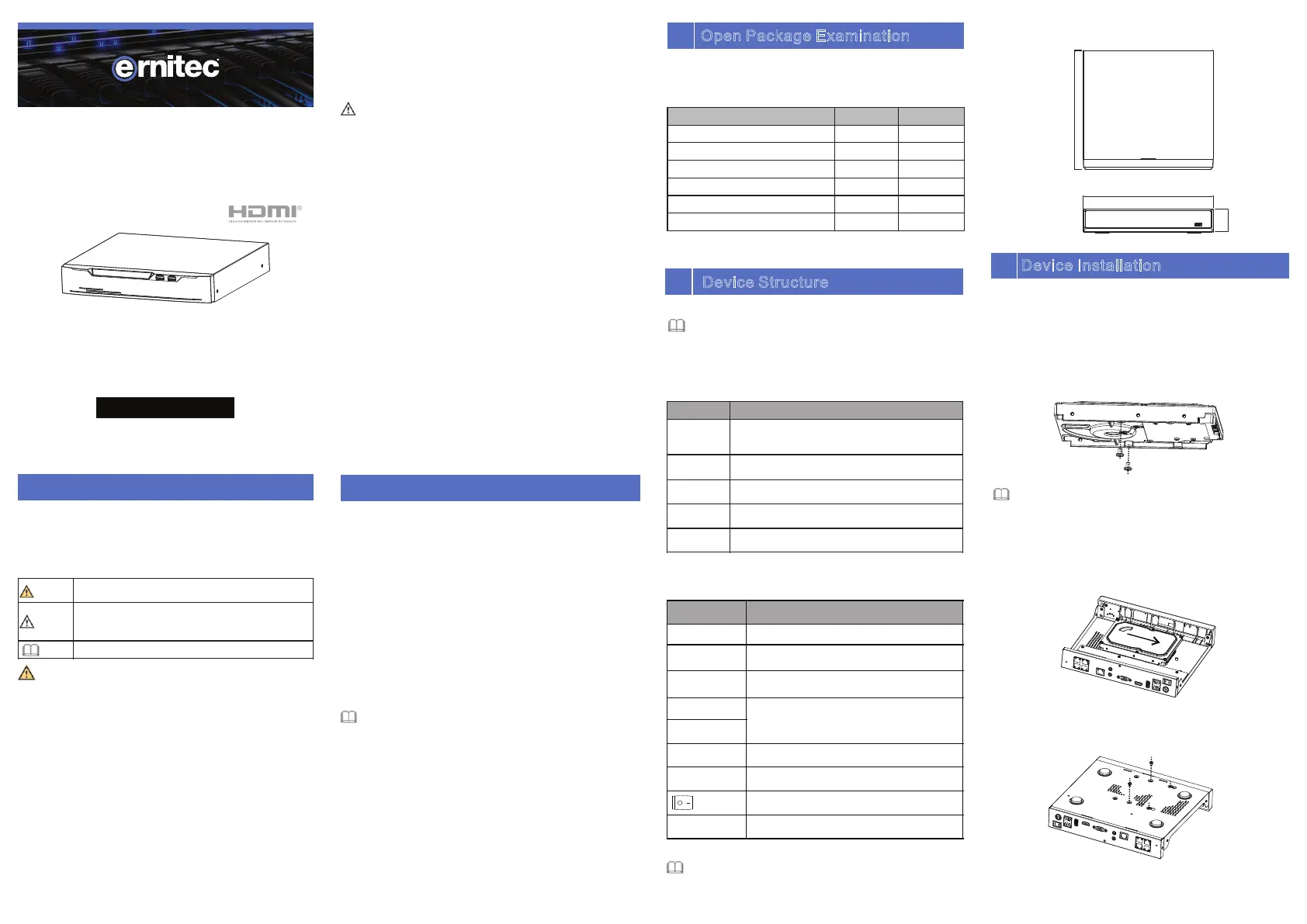

Fully understand this document before using this device, and
strictly observe rules in this document when using this device. If
you install this device in public places, provide the tip "You have
entered the area of electronic surveillance" in an eye-catching
place. Failure to correctly use electrical products may cause fire
and severe injuries.
It alerts you to moderate dangers which, if not
avoided, may cause minor or moderate injuries.
It alerts you about risks. Neglect of these risks may
cause device damage, data loss, device
performance deterioration, or unpredictable results.
It provides additional information.
ŸStrictly observe installation requirements when installing the
device. The manufacturer shall not be held responsible for
device damage caused by users' non-conformance to these
requirements.
ŸStrictly conform to local electrical safety standards and use
power adapters that are marked with the LPS standard when
installing and using this device. Otherwise, this device may be
damaged.
ŸUse accessories delivered with this device. The voltage must
meet input voltage requirements for this device.
ŸIf this device is installed in places with unsteady voltage, ground
this device to discharge high energy such as electrical surges in
order to prevent the power supply from burning out.
ŸWhen this device is in use, ensure that no water or any liquid
flows into the device. If water or liquid unexpectedly flows into
the device, immediately power off the device and disconnect all
cables (such as power cables and network cables) from this
device.
Precautions Special Announcement
, For more information please refer to website.
ŸAvoid heavy loads, intensive shakes, and soaking to prevent
damages during transportation and storage. The warranty does
not cover any device damage that is caused during secondary
packaging and transportation after the original packaging is
taken apart.
ŸProtect this device from fall-down and intensive strikes, keep the
device away from magnetic field interference, and do not install
the device in places with shaking surfaces or under shocks.
ŸClean the device with a soft dry cloth. For stubborn dirt, dip the
cloth into slight neutral cleanser, gently wipe the dirt with the
cloth, and then dry the device.
ŸDo not jam the ventilation opening. Follow the installation
instructions provided in this document when installing the device.
ŸKeep the device away from heat sources such as radiators,
electric heaters, or other heat equipment.
ŸKeep the device away from moist, dusty, extremely hot or cold
places.
ŸIf the device is installed outdoors, take insect- and moisture-
proof measures to avoid circuit board corrosion that can affect
monitoring.
ŸRemove the power plug if the device is idle for a long time.
ŸAll complete products sold by the manufacturer are delivered
along with nameplates, quick setup guide and accessories after
strict inspection. The manufacturer shall not be held responsible
for counterfeit products.
ŸThe manufacturer will update this manual according to product
function enhancement or changes and regularly update the
software and hardware described in this manual. Update
information will be added to new versions of this manual without
prior notice.
ŸThis manual may contain misprints, technology information that
is not accurate enough, or product function and operation
description that is slightly inconsistent with the actual product,
the final interpretation of company is as a standard.
ŸThis manual is only for reference and does not ensure that the
information is totally consistent with the actual product. For
consistency, see the actual product.
NOTE
ŸIf this device is installed in places where thunder and lightning
frequently occur, ground the device nearby to discharge high
energy such as thunder strikes in order to prevent device
damage.
CAUTION
NOTE
CAUTION
WARNING
WARNING
Table 2 1 - Front panel description
Open the package, check the appearance of product for no
obvious damage, and confirm the item list for table 1-1 is
consistent.
Table 1 1- Packing list
Open Package Examination
1
2.1 Device Ports
Different devices may have different ports and multi-head
cables; Please refer to the actual product.
NOTE
Device Structure2
Table 2 2 - Rear panel description
Front panel description of device refer to table 2-1.
Rear panel description of device, please refer to table 2-2.
2 2 Device Dimensions.
Different devices may have different dimensions; Please
refer to the actual product.
NOTE
Port Name Description
HDD
Indicator
Hard disk status indicator.
This indicator flashes when data is transmitted.
MOUSE
BACKUP Supports connection to an USB flash drive or
USB removable hard disk.
PWR
Indicator
When the NVR is operating, the PWR indicator
is steady on.When the NVR is shut down, the
PWR indicator is turned off.
PoE
Indicator
PoE network status indicator.
This indicator flashes when data is transmitted.
Component
Network video recording
Power cord
Power adapter
Mouse
Quick Setup Guide
1
1
1
1
1
Phillips head screw 6
Quantity Remark
Supports connection to an USB mouse.
3Device Installation
Figure 2-1 Dimensions (Unit:mm)
The hard disk of the NVR must be provided by the user. Take the
following steps to install the hard disk：
Step 1 Remove the screws for fixing the cover and take down the
cover.
Step 2 Take out the screws and mount two of them to the screw
holes, as shown in figure 3-1.
Figure 3 1 - Installing the hard disk screws
Step 3 Route the screws through the pear-shaped holes on the
base, push the hard disk to the appropriate position, as
shown in figure 3-2.
Figure3 2- Installing hard disk
Step 5 In sert the hard disk data cable and power cable, then
replace t he upper cover and fasten the fixing screws.
Figure3 3- Fixing hard disk
Step 4 Turn the device over, and mount another two screws to the
holes as shown in figure 3-3. Then fasten all screws.
232.6
255
44.5
NOTE
Just screw the screws about 1 to 2 turns, instead of tightening.
Name Description
PoE Port
PoE network interfaces.
LAN Rj45 10 /100/1000 Mbps adaptive. Ethernet
interface.
AUDIO OUT/
AUDIO IN
Audio output / Audio input.
VGA Video o utput interface.
HDMI
Alarm I/O Alarm input/Alarm output.
DC48V Connected to an external power adapter.
Power switch.
USB USB 2.0 port.
PoE NVR
4CH
Quick Setup Guide
Item no.: 0070-10400
Figure 4-3 Topology of the NVR
In some environments, if the power supply is abnormal,
the NVR may not work properly. In severe cases, the NVR
may be damaged. In these environments, you are advised
to use regulated power supply.
Plug in power to access the NVR user page. The wizard window
would show at first time; the user can configure quickly or close
immediately. For configuration details please refer to main menu.
Use the mouse to right-click any where on the main interface to
access the main menu. Main menu comprises Channel, Record,
Alarm, Network and System settings, as shown in figure 5 1.-
Quick Configuration5
Device Operation4
4.1 Startup
Before starting NVR, ensure that the NVR is connected to a power
supply properly and a monitor is connected to the HDMI or VGA
interface of the NVR correctly. After starting the NVR, there is a
login window located in the center, as shown in figure 4-1.
CAUTION
.4 2 Topology of the NVR
NVR with PoE ports can access IP cameras immediately when IP
cameras are plugged into NVR’s PoE ports. The n the NVR will
assign an IP address for each camera automatically. For the
topology refer to figure 4-3.
PoEPoE
PoE
LAN
Switch
Remote
monitor
IP cameras
NOT E
ŸThe default user name and password both are admin. For system
security, users will be forced to modify password when login the system
at the first time.
If the NVR need activation, please create a new password to login.
User can change the system display language on the login window.
Figure 4-2 Login interface
Forgo t password
Log in
Login
Activation
Ent er chan nel def ault pa sswor d
Con firm th e new pas sword
Ent er a new pa sswor d
Use rname
Lan guage
-Vali d passw ord ran ge [6-3 2] char acter s.
-At l east 2 ki nds of nu mbers , lower case, u pperc ase or sp ecial
-On ly thes e speci al char acter s are sup port !@ #$*+- = _%&” ’
-Ch annel d efaul t passw ord lim it is not e mpty
OK
admin
Engli sh
Figure 4-1 Activation interface
5.1 Channel
Channel settings contain Camera, Encode, Sensor Setting, OSD,
Privacy Zone, ROI, Microphone, Human Thermal, Smart,
Intelligent Tracking.
ŸCamera Click : user can add cameras automatically by clicking
to Add Add., and add manually by clicking Tick cameras th en
click to delete cameras. User can batch update software. Delete
4.4 Power off
Enter the path > > > Main Menu System Maintenance Shutdown to
power off th e NVR.
Before replacing the hard disk, the power must be turned off.
The special function is only carried by some devices, if the current
device does not have the function, please ignore it.
4.3 Special Function
Click the AI Recognition icon, Human Face, or Thermal
Temperature at the bottom of page to enter the AI interface. The
user can set and view the AI cameras’ parameters, include human
face, vehicle license plate.
NOTE
Channel Record Network
Alarm System
Camera Encode
Sensor Setting OSD
Privacy Zone
Reco rd Sched ul e Disk Network 802.1X
Port Mapping
DDNS E-mail
P2P
IP Filter SNMP
General Motion Detection
Video Loss Intelligent Analysis
Alarm In
Information
General
User
Secur ity Center Auto Sequenc.
Maintenance Auto restart
Figure 5-1 Main menu
Figure 7-1 Login
Mobile Client
6
Figure 6-1 P2P
NOTE
Ÿ
The user name and password are same as the UI interface.
ŸNetwork,802.1X DDNS SNMP, , and interface to set network
parameters.
ŸE-mail: set E-mails for sending and receiving alarm messages
and password retrieval message.
ŸPort Mapping: set the ports for remote accessing.
ŸP2P: add NVR into device list of App by accessing the QR code.
ŸIP Filter: sett ings for creating black list or white li st.
Ÿ3G/4G: use 3G/4G modem plug to NVR provide the network.
ŸPPPoE: point to point network to access NVR directly.
5.6 Live Video
Live video page is displayed after starting the NVR by default, as
shown in figure 5-5.
Figure 5-5 Live video
The NVR also can be accessed in a Web browser. Open a web
browser and enter the IP address of device (The default IP like IE
address is 192.168.0.121) in the address box, and press . Enter
The login page is displayed as shown in figure 7-1.
Web Accessing
7
Search for “ ” in App Store or Google Play to download InView Pro4
and install the mobile client. Use the App to scan the QR code on
the back board of NVR, or in P2P settings page in NVR user
interface. Then input the password of the NVR to add the NVR into
the device list of the App. User can manage the device throug h
mobile client.
5.5 System
System settings contain Information, General, User, Security
Center, Auto Sequence, Logs, Maintenance and Auto Resta rt, as
shown in Figure 5-4.
5.4 Network
Network settings contain Network, 802.1X, DDNS, E-mail, Port
Mapping, P2P, IP Fi lter, SNMP, 3G/4G, and PPPoE as shown in
figure 5-3.
Figure 5-3 Network
5.2 Record
Record settings contain Record Schedule, Disk, Storage, Disk
Calculation, SMART, Disk Detection and Cloud Storage.
Set record schedule and storage strategic. user can calculate the
disk’s usin g time at Disk calculation interface.
Enter SMART interface to view the state of disks.
Disk detection can detect the disks.
Cloud storage can storage alarm recording.
ŸSensor Setting: set the sensor parameter of channels’ cameras.
ŸOSD Privacy Zone/ROI: / set on live video scre
en.
ŸMicrophone: adjust and set the microphone of channels.
ŸHuman thermometer/ Smart/ Intelligent Tracking: these
functions are used for special function cameras, configure the
parameters of cameras.
ŸAll these settings can be copied to other channels by clicking
copy button.
5.3 Alarm
Alarm settings contain General, Motion detection, Video loss,
Intelligent analysis, Alarm in, Abnormal alarm, Ala rm out as shown
in figure 5-2
Figure 5-2 Alarm
Information Informa ti on
Dev ice ID NVR_11_ JYE 1_00_ 06
Dev ice Name
Dev ice Type
Dev ice
NVR
Mod el NV R3508 E1 -E
Firmware Ver s io n V4 . 4. 08 05.00 00 .003. 0 .5 0.2.0
HDD Vo lume
Chann el Support
Al a rm I n
Al a rm O ut
Au d io In
Au d io Out
1
8
1
1
1
1
General
Us e r
Se c urity Cen te r
Au t o Sequenc e
Logs
Mai nt enan c e
Au t o Re start
Setting Channel Record Alarm Net work System
Figure 5-4 System
Setting Channel Re cord Alarm Network System
Netwo rk
802.1 X
DDNS
E-mai l
UPn P
P2P
IP Fil ter
SNM P
P2P
Ena bl e
Sta tu s
P2P ID
App N am e
- It is a va il ab l e on App St o re a nd Google Play
InVi ew Pro 4
NVR_11 _J YE 1_00_06
Onlin e
Inpu t u sern ame
Inpu assw ordt p
ŸGeneral: include system, date and time, time zone, DST.
ŸUser: add user and set advance setting(auto login, password
double authentication, boot wizard).
ŸSecurity Center: modify the password, pattern unlock, secure
Email, Secure question.
ŸAuto Sequence: settings for sequencing view of the channels.
ŸLogs: shows operating and alarm log, user can export logs if an
USB disk is plugged in.
ŸMaintenance: include shutdown, reboot, exit system, reset,
import configuration, export configuration and update.
ŸAuto Restart: enable this function to make device restart
periodically.
App ly
Setting
Channel Record Alarm Ne t work Syste m
General
Mot io n Dete c tion
Vi de o Loss
Intel li ge nt Anal y sis
Al a rm I n
General
10s
Ena bl e Ala rm
Duratio n Time
App ly
General: enable or disable alarm and set duration time of alarm.
ŸMotion Detection: enable this function, if detection the motion
actions, it will alarm.
1. Event actions: contain buzzer, alarm out, push message to
App, pop-up message to monitor, send E-mail and post recording
(after enabling, choose the recording time from drop list.)
2. Area: set motion detection area. Press left button and drag the
cursor to add a detection area, and double-click an area to delete
it.
3. Schedule: set schedule to enable or disable motion detection
alarm. There are three methods to set, click the double arrows
button to choose all day. The second, click and drag the cur sor to
select periods. The third, click one by one.
ŸVideo Loss, Intelligent Analysis are same settings as motion
detection.
ŸAlarm In Abnormal Alarm : settings for I/O alarming. can ti ck
disk error, IP conflict, network disconnected.
192.1 68 .0.1
Storag e Mode
S.M.A.R.T
Disk Detection
Cloud Storage 3G/4G PPPoE
Logs
Abn or ma l Ala rm
PPPoE
3G/4G
I
Abnormal Alarm
AUDIO ALA RM I/O
IN
1 3 5 7
POE P ORTS
2 4 6 8
USB
HDMI
Alarm Out
Disk Cal.
ROI
Microphone Human The.
Smart Intelligent Tra.
Al a rm O ut

Produktspezifikationen

Marke: Ernitec
Kategorie: Nicht kategorisiert
Modell: 0070-10400

Brauchst du Hilfe?

Wenn Sie Hilfe mit Ernitec 0070-10400 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten


Bedienungsanleitung Nicht kategorisiert Ernitec

Ernitec

Ernitec ELECTRA-POE-30W Bedienungsanleitung

4 September 2024
Ernitec

Ernitec 0070-10400 Bedienungsanleitung

23 August 2024
Ernitec

Ernitec 0070-10403 Bedienungsanleitung

23 August 2024
Ernitec

Ernitec 0070-10402 Bedienungsanleitung

23 August 2024

Bedienungsanleitung Nicht kategorisiert

Neueste Bedienungsanleitung für -Kategorien-

DAS Audio

DAS Audio AX-112-5 Bedienungsanleitung

16 Oktober 2024
Ferplast

Ferplast Ergocomfort Freetime Bedienungsanleitung

16 Oktober 2024
AEG

AEG MECK52 Bedienungsanleitung

16 Oktober 2024
Makita

Makita UR012G Bedienungsanleitung

16 Oktober 2024
Stihl

Stihl HT 70 Bedienungsanleitung

16 Oktober 2024
Ernesto

Ernesto H14270 Bedienungsanleitung

16 Oktober 2024
IFM

IFM AC901S Bedienungsanleitung

16 Oktober 2024
Nedis

Nedis RFPOM120FBK Bedienungsanleitung

16 Oktober 2024
AEG

AEG E9KLCS01 Bedienungsanleitung

16 Oktober 2024
ART

ART ProChannel II Bedienungsanleitung

16 Oktober 2024
