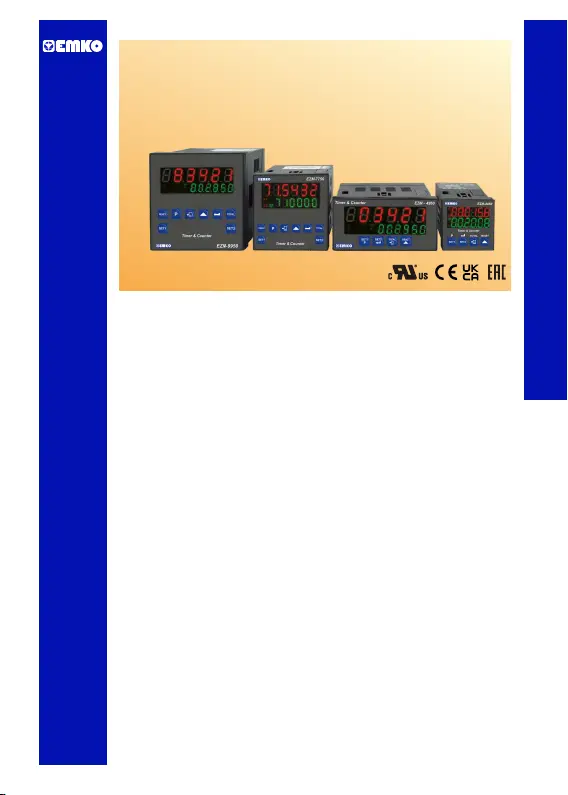

EZM-XX50 Programmable Timers & Counters
ENGLISH
ENGLISH
ENGLISH
ENGLISHENGLISH
Programmable Timers & Counters
EZM-4450,EZM-4950,EZM-7750,EZM-9950
-
-
- Reset , Pause and ChA-ChB Counting Inputs
- NPN/PNP input type selection
- Congurable Counter/Totalizer Counter,Batch Counter,Timer,
Chronometer , Frequencymeter and Tachometer Functions
-Programmable Time Bases for Timer and Chronometer (Second ,
Minute ,Hour )
-
- Output Module System
- INC,DEC,INC/INC,INC/DEC,UP/DOWN, x1 / x2 / x4
-
-Dierent Alarm Alternatives in Frequencymeter and Cycle
Measuring Functions
- Absolute or Oset Operation in Counter Function
- RS-232 (standard) or RS-485 (optional) Serial Communication with
Modbus ASCII or RTU Protocol
6 digits Process (PV) and 6 digits Set (SV) Value Display
Operation with 2 Set Values
Operation with Automatic and Manual Reset
Counting
with Phase Shifting Property in Counter Function
Multiplication Coecient and Decimal Point Position
EZM-4450,EZM-4950,EZM-7750,EZM-9950 Universal Input
Programmable Timer & Counter with Output Module System
SPECIFICATIONS
Phase Shifting
:
INPUT :
Output Modules : There are two module sockets for plugging the output modules.
- Relay Output Module
- SSR Output Module (Max. 26mA, 22V )
- Digital (Transistor) Output Module (Max.40mA@18V )
Counting Inputs (Ch-A,Ch-B): Switch, Proximity,Capacitive sensor or encoder can be
connected.
Reset Input: Switch, Proximity or Capacitive sensor can be connected.
Pause Input: Switch, Proximity or Capacitive sensor can be connected.
Input Type Selection: It can be selected NPN/PNP with DIP Switch that is located on
the device.
Reset Function: Automatic or Manual.
Count Input Types:
INC,DEC,INC/INC,INC/DEC,UP/DOWN ,x1 / p2-x2 / x4: ( for encoder )
counting
OUTPUT
Z
Z
DISPLAY
Actual Count Value Display
Value Display
:
EZM-4450 : 8 mm Red 6 digit LED Display
EZM-4950 : 13.2 mm Red 6 digit LED Display
EZM-7750 : 10.8 mm Red 6 digit LED Display
EZM-9950 : 13.2 mm Red 6 digit LED Display
Set :
EZM-4450 : 8 mm Green 6 digit LED Display
EZM-4950 : 8 mm Green 6 digit LED Display
EZM-7750 : 8 mm Green 6 digit LED Display
EZM-9950 : 8 mm Green 6 digit LED Display
LEDs : S1(Set1 value),S2(Set2 value),O1/2(Output Status) LEDs.
SUPPLY VOLTAGE
Supply Voltage :
Must be determined in order.)
100-240 V 50/60 Hz (-15%;+10%) -6VAV
24V 50/60 Hz (-15% ; +10%) -6VAV
24V (-15% ; +10%) -6W
(
Z
ENVIRONMENTAL RATINGS and PHYSICAL SPECIFICATIONS Operating
Temperature
Humidity none condensing
Protection Class
Weight
: 0...50°C
: 0-90%RH ( )
: IP65 at Front, IP20 at rear.
Mounting: Type-1 Enclosure Mounting
:
EZM-4450 : 210 gr. ; EZM-4950 : 210 gr.
EZM-7750 : 0 gr. ; EZM-9950 : 0 gr. 25 34
Installation: Fixed installation Category II
Over Voltage Category: II
Pollution Degree: II, oce or workplace, none conductive pollution
2
DIP SWITCH Adjustment
Electrical Wirings
Function Selection
Counter / Totalizer Counter
Batch Counter
Timer
Frequencymeter / Tachometer
Chronometer
Input Type Selection
NPN
PNP
Sensor
Supply
Communication
Module
RS-232(Standard)/
RS-485 (Optional)
Supply
Switch
Output
Module-1
Relay, SSR or
Digital
(Transistor)
Output
Module-2
Relay, SSR or
Digital
(Transistor)
Max.50mA
Fuse
Note-3
(-) (+)
Note-1
a
External
Fuse
Note-2
Panel Cut-Out:
EZM-4450 : (46 x 46mm)
EZM-4950 : (92 x 46mm)
EZM-7750 : (69 x 69mm)
EZM-9950 : (92 x 92mm)
Dimensions:
EZM-4450 : (48 x 48mm,Depth:116 mm)
EZM-4950 : (96 x 48mm,Depth:86.5 mm)
EZM-7750 : (72 x72mm, Depth:87.5 mm)
EZM-9950 : (96 x 96mm,Depth:87.5 mm)
3
