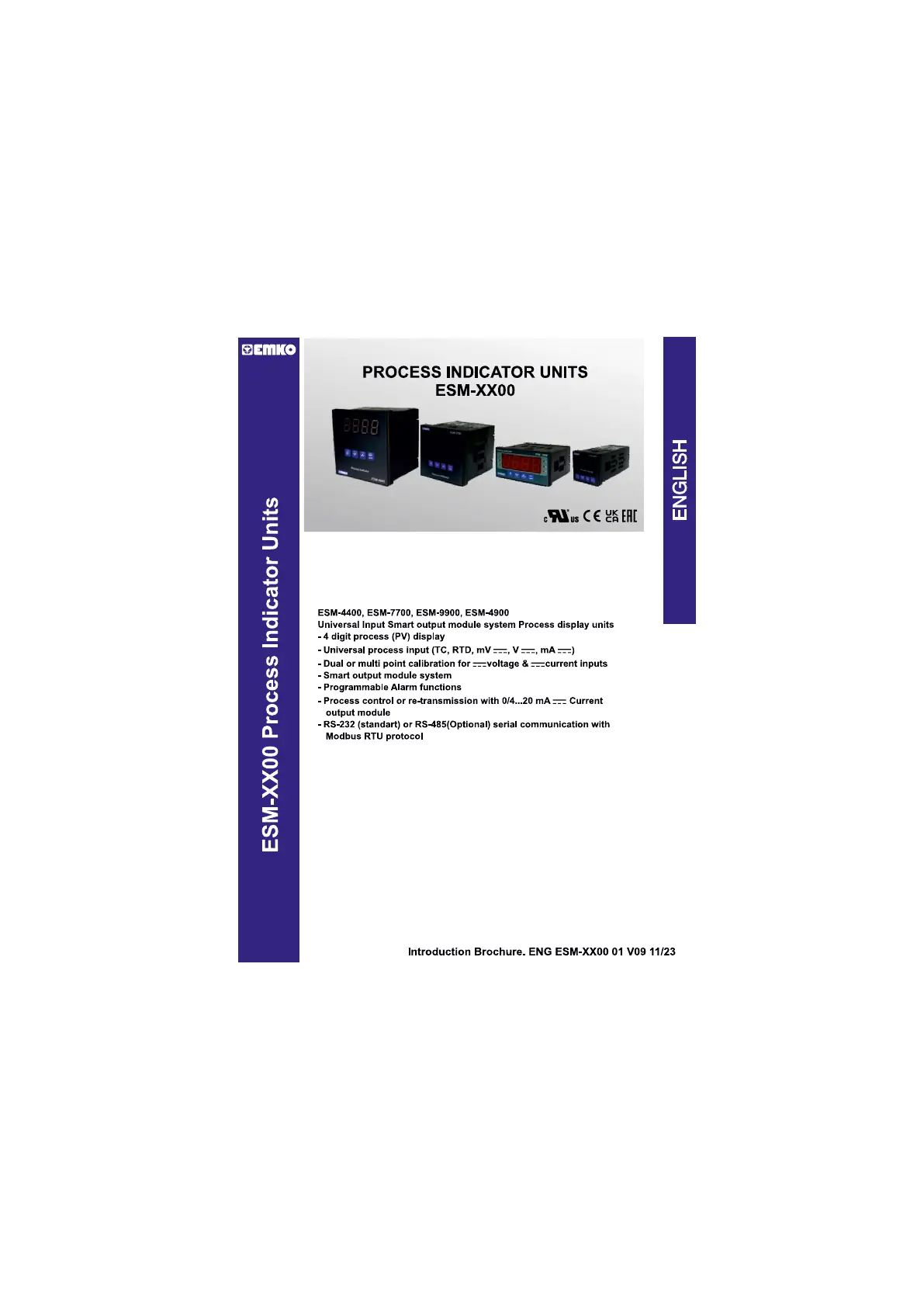

ESM-XX00 Process Indicator Units
ESM-4400, ESM-7700, ESM-9900, ESM-4900
Universal Input Smart output module system Process
display units
- 4 digit process (PV) display
- U (TC, RTD, mV , V , mA )niversal process input Z Z Z
- Dual or multi point calibration for voltage & current Z Z
inputs
- Smart output module system
- Programmable Alarm functions
- Process control or re-transmission with 0/4...20 mA Z
Current output module
- RS-232 (standart) or RS-485(Optional) serial
communication with Modbus RTU protocol
PROCESS INDICATOR UNITS
ESM-XX00
ENGLISH
ENGLISH
ENGLISH
ENGLISHENGLISH
ENGLISH
ENGLISH
ENGLISH
ENGLISHENGLISH
SPECIFICATIONS
PROCESS INPUT
Universal Input: TC, RTD, Voltage/CurrentZ
Thermocouple (TC): L(DIN 43710) ,J , K , R , S , T , B , E and N
(IEC584.1)(ITS90) ,C (ITS90)
Thermoresistance (RTD): PT-100 (IEC751)(ITS90)
Z Input: mV, V, mA
Measurement Range : Please refer to Table-1 for selection of input
type and scale
Accuracy:± 0.25% of full scale for thermocouple, thermoresistance,
mV, V and mA input.
Cold Junction Compensation:Automatically ±0.1°C/1°C
Line Compensation: Maximum 10 Ohm
Sensor break protection:Upscale
Sampling Cycle:3 samples per second
I 0.0 to 900.0 secondsnput Filter:
OUTPUT
Standart Relay Output: 5A@250V (on resistive load)V
Output Modules: User can insert 2 output module to the device.
-Relay Output Module
-SSR Output Module (Max. 26mA , Max. 22V )Z
-Digital (Transistor) Output Module (Max.40 mA @18V )Z
-0/4...20 mA Current Output ModuleZ
DISPLAY
Process Display :
ESM-4400 : 10.1 mm Red 4 digit LED Display
ESM-4900 : 20.3 mm Red 4 digit LED Display
ESM-7700 : 13.2 mm Red 4 digit LED Display
ESM-9900 : 19 mm Red 4 digit LED Display
LED Göstergeler : °C /°F / V, OP1/2/3 (Output Status) LED.
POWER SUPPLY
Power Supply Voltage :
100-240V 50/60 Hz (-%15;+%10) -6VA V
24V 50/60 Hz (-%15 ; +%10) -6VA V
24V (-%15 ; +%10) -6WZ
(It must be determined in order.)
2
ENGLISH
ENGLISH
ENGLISH
ENGLISHENGLISH
ENVIRONMENTAL RATINGS and PHYSICAL SPECIFICATIONS
Operating Temperature : 0...50°C
Humidity : 0-90%RH (non condensing)
Protection Class : IP65 at front, IP20 at rear
Mounting : Type-1 Enclosure Mounting
Installation : Fixed installation Category II
Over Voltage Category : II
Pollution Degree : II, office or workplace, none conductive pollution
Weight:
ESM-4400: 0 gr. 21
ESM-4900: 260 gr.
ESM-7700: 270 gr.
ESM-9900: gr. 360
Dimensions / Panel Cut-Out:
ESM-4400 : (48 x 48mm, Depth:116 mm) / (46 x 46mm)
ESM-4900 : (96 x 48mm, Depth:86.5 mm) / (92 x 46mm)
ESM-7700 : (72 x 72mm, Depth:87.5 mm) / (69 x 69mm)
ESM-9900 : (96 x 96mm, Depth:87.5 mm) / (92 x 92mm)
Minimum Distance Between Panel Cut-Out Centers:
ESM-4400 : X=65mm, Y=65mm
ESM-4900 : X=129mm, Y=65mm
ESM-7700 : X=97mm, Y=97mm
ESM-9900 : X=129mm, Y=129mm
a
c
i
This symbol is used for safety warnings. User must pay
attention to these warnings.
This symbol is used to determine the dangerous
situations as a result of an electric shock. User must
pay attention to these warnings definitely.
This symbol is used to determine the important notes
about functions and usage of the device
3
