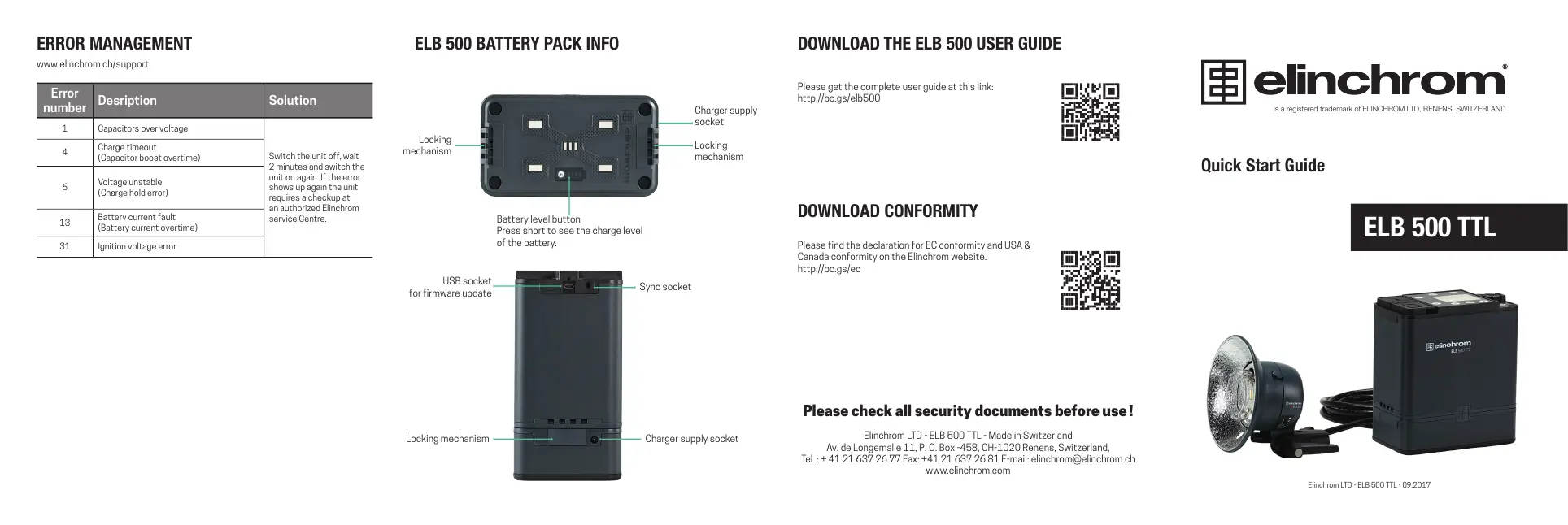

Quick Start Guide
Elinchrom LTD - ELB 500 TTL - 09.2017
is a registered trademark of ELINCHROM LTD, RENENS, SWITZERLAND
ELB 500 TTL
DOWNLOAD THE ELB 500 USER GUIDE
DOWNLOAD CONFORMITY
Elinchrom LTD - ELB 500 TTL - Made in Switzerland
Av. de Longemalle 11, P. O. Box -458, CH-1020 Renens, Switzerland,
Tel. : + 41 21 637 26 77 Fax: +41 21 637 26 81 E-mail: elinchrom@elinchrom.ch
www.elinchrom.com
Please check all security documents before use !!
Please get the complete user guide at this link:
http://bc.gs/elb500
Please find the declaration for EC conformity and USA &
Canada conformity on the Elinchrom website.
http://bc.gs/ec
ERROR MANAGEMENT ELB 500 BATTERY PACK INFO
Error
number Desription Solution
1 Capacitors over voltage
Switch the unit off, wait
2 minutes and switch the
unit on again. If the error
shows up again the unit
requires a checkup at
an authorized Elinchrom
service Centre.
4Charge timeout
(Capacitor boost overtime)
6Voltage unstable
(Charge hold error)
13 Battery current fault
(Battery current overtime)
31 Ignition voltage error
Battery level button
Press short to see the charge level
of the battery.
www.elinchrom.ch/support
Charger supply
socket
Locking
mechanism
Locking mechanism
Locking
mechanism
Charger supply socket
Sync socket
USB socket
for firmware update
MODELLING LAMP BUTTON
CONTROL PANELSETUP MENU
Long press to enter the menu.
Short press to switch among the outlets
A and B and the modelling lamp menu.
1. Menu selected
2. Selected menu options
3. Menu option settings menu navigation
4. Exit menu navigation
5. Back
Knob Button :
Scroll function to change setting /
press function to enter the menu option.
On / Std By / OffTest Button
Eyecell
Output B
0-500 Ws
Output A
0-500 Ws
Independent power
control of A and B
with full asymmetry.
Maximum power is 100%
(500 ws)
Output A
On/Off
Output B
On/Off
Radio
System Skyport Odin 2
Mode Off Normal Speed
Group 1-4
Frequency 1-20
Flash mode
Action On Off
Photocell On Off
Recycling time Fast Eco
Extra
Auto stand-by Off 1-59 min.
Auto-off Off 1-60 min.
Ready tone On Off
Keyboard click On Off
Background Black White
Info
Friendly name Set through computer software.
Firmware rev. *******
Serial number *******
Life time In hours (hhhh:mm)
Flash count Total flash number
Knob Button
CW: +0.1 f-stop / down
CCW: -0.1 f-stop / up
-1 f-stop / back
+1 f-stop / exit
DISPLAY PANEL – DASHBOARD
The dashboard changes automatically between one and two heads view depending
on the number of heads switched on.
The colours of the upper bar correspond to the group number :
blue for the group 1, yellow for the group 2, red for the group 3 and green for the
group 4.
2 heads view 1 head view
1 2 3 4
1 12 23 34 45 5
6
7
8
9 910 10
11 11
12
13 6
1. EL-Skyport Synchronisation
(normal or speed sync mode).
2. EL-Skyport frequency channel and
group number.
3. Photocell status.
4. Modelling Lamp status.
5. Battery charge status.
6. Power outlet B
7. Power setting of the B outlet in
f-stop equivalents.
8. Flash Duration value of the B outlet.
9. Increase selected outlet by 1 f-stop.
10. Decrease selected outlet by
1 f-stop.
11. Flash Duration value of the A outlet.
12. Power setting of the A outlet in
f-stop equivalents.
13. Power outlet A
1
5 4
2
3
12
